Metravi TP-700 100V - 240V AC / 12 - 25V DC Two Way Multi-Channel Data Logger With IoT
Click To Zoom
Metravi TP-700 100V - 240V AC / 12 - 25V DC Two Way Multi-Channel Data Logger With IoT
Metravi TP-700 100V - 240V AC / 12 - 25V DC Two Way Multi-Channel Data Logger With IoT

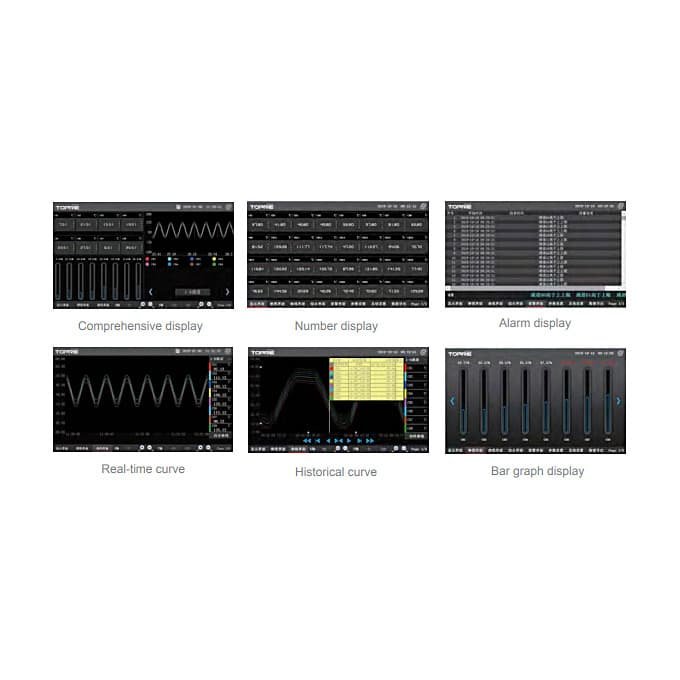

The Metravi TP700 Multiple Channel Data Logger features high-definition display graphs, digital graphs, bar graphs, data overview, etc.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,59,299
(GST inclusive price) i-
Base Value: ₹ 134999.2
-
GST: (18) % ₹ 24299.8
-
Total Value ₹ 159299
₹1,82,250.00
( - 13% OFF )
Description
Key Features
- 0.1S high speed acquisition, resulting in smoother curves
- Strong anti-interference ability, which results in highest accuracy
- 7" Touchscreen, colour display
- 8 groups of different modules can be inserted to realise data acquisition, relay output, power supply and wireless transmission, etc.
- Data logger RS485 can connect external acquisition modules and increase numbers of channels*
- Up to 200 Channels*
- A single computer software can be connected to multiple recorders in the same LAN through the network cable.
- Can be connected to IoT platform remote monitor
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
Power supply | AC:100V~240V，DC:12~25V；two way |
Lithium powersupply TP1701 | Adpot 12V, 4000mAH large polymer li thium battery, outtput voltage DC 12.6V（optional) |
Power consumption | ≦25VA（actual power consumption is related to the numbers of channel) |
Numbers of channel | 1-64 channel（up to extend 200channels) |

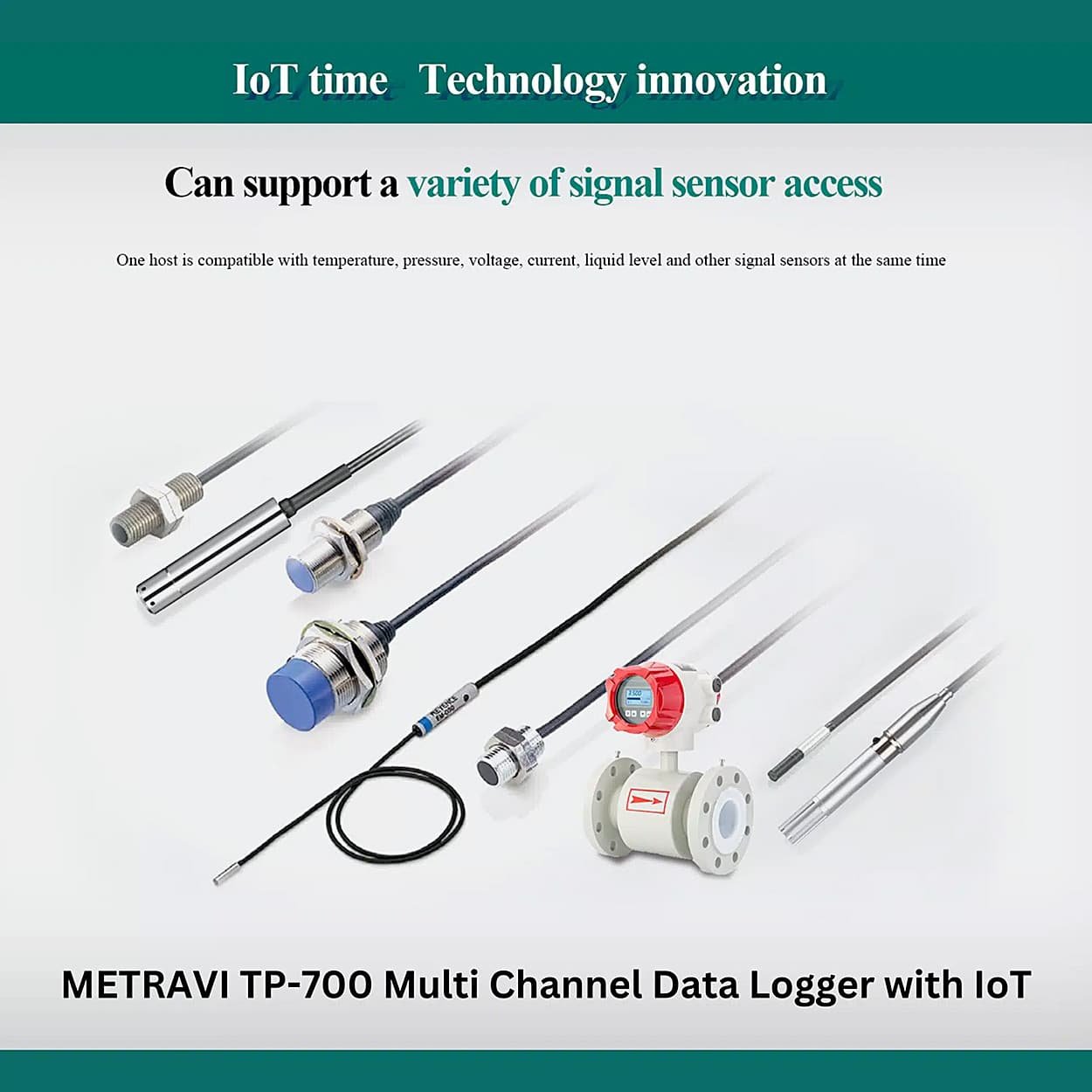

Input signal | Thermocouple：K , T , J , B , N , R , E , S , WRE5-26 , WRE3-25 |
Thermal resistance：PT100,PT1000 | |
Current（DC）：4~20mA，0 ~20mA | |
Voltage（DC）：0~5V，0~10V, ±20mV，±100mV | |
Isolated withstand measurement | AC/DC 400V (Differential between channels） |
Record mode | 1~19999 secs self-setup |
Record memory | 700 (standard memory） |
2G (large memory） | |
Alarm type | Upper and lower limitalarms, each channel has 4 modes(Upper1, Upper 2, Lower 1, Lower 2) |
Relay | 8 channels normal open relay220VAC/ 2A |
Infeed output | 1 channel24VDC power distribution |
Communication | Standard ethernet, RS485, RS232 |
Standard ModBusRTU ModBus TCP communication protocol | |
Working environment temperature | -20°C 〜 70°C |
Working environment humidity | ＜90%R.H（No condensation） |
Storage environment temperature | 0°C 〜 50°C |
Storage environment humidity | ＜85%R.H（No condensation） |
Body material | Fireproof ABS |
Dimensions | 288*288*200mm |
Installing opening hole size | 278*278mm+1mm |
