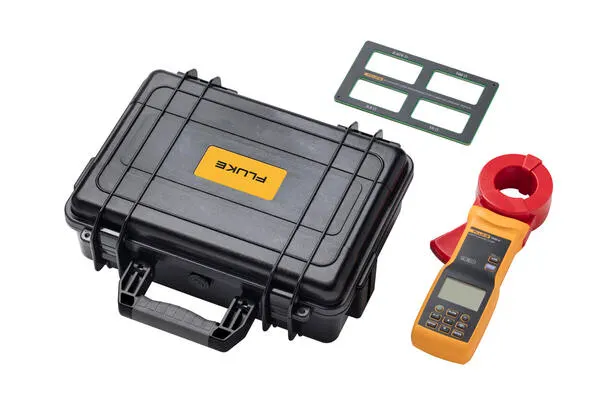

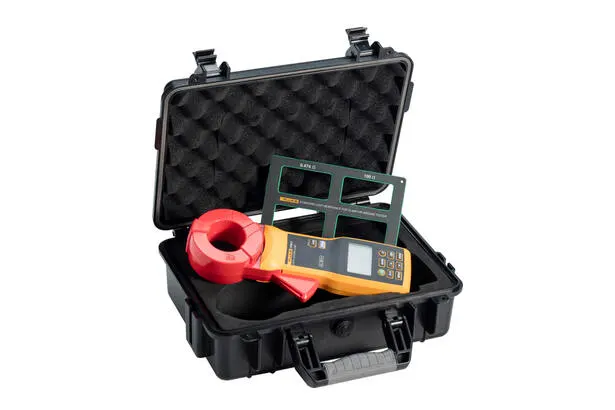

Fluke 1630-2 FC Earth Ground Clamp
Click To Zoom
Fluke 1630-2 FC Earth Ground Clamp
Fluke 1630-2 FC Earth Ground Clamp
The 1630-2 FC clamp measures earth ground loop resistances for multi-grounded systems using the dual-clamp jaw. This test technique eliminates the dangerous and time-consuming activity of disconnecting parallel grounds, as well as the process of finding suitable locations for auxiliary test stakes. You can also perform ground tests in places that were previously difficult: inside buildings, on power pylons or anywhere you don't have access to soil to place auxiliary test stakes.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
6 MONTHS WARRANTY
1 YEAR WARRANTY
B2B INVOICES
₹ 2,21,869
(GST inclusive price) i-
Base Value: ₹ 188024.6
-
GST: (18) % ₹ 33844.4
-
Total Value ₹ 221869
₹3,39,000.00
( - 35% OFF )
Description
Key Features
- AC LEAKAGE CURRENT MEASUREMENT
- RUGGED
- LOGGING MEASUREMENTS
- ALARM THRESHOLD
- BAND-PASS FILTER
What's in the box?
|
Rating & Reviews
Rating
Electrical specifications | ||||
Maximum voltage to earthground | 1000 V | |||
Battery type | 4 x 1.5 V AA alkaline IEC/ENLR6 | |||
Battery life | More than 15 hours* | |||
Frequency range | 40 Hz to 1 kHz | |||
Ingress protection | IEC/EN 60529: IP30 with jaw closed | |||
LCD | Digital reading | 9999 counts | ||
| Refresh rate | 4/s | |||
Temperature | Operating | -10 °C to +50 °C (14 °F to +122 °F) | ||
| Storage | -20 °C to +60°C (-4 °F to +140°F) | |||
Operating humidity | Non condensing (<10°C) (< 50 °F) | |||
| ≤90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]) | ||||
| ≤75 % RH (at 30 °C to 40 °C [86 °F to 104 °F]) | ||||
≤45 % RH (at 40 °C to 50 °C [104 °F to 122 °F]) (Non condensing) | ||||
Altitude | Operating | 2000 m (6561 ft.) | ||
| Storage | 12,000 m (39370 ft.) | |||
Reference temperature | 23 °C ±5 °C (73°F ±9 °F) | |||
Temperature coefficient | 0.15 % X (specified accuracy)/ °C (<18 °C or >28°C ([<64.4 °F or >82.4 °F]) | |||
Overload indication |
| OL | ||
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Data logging capacity | Minimum of 32,760 measurements | |||
Data logging interval | 1 second to 59 minutesand 59 seconds | |||
Safety | General | IEC/EN 61010-1: Pollution Degree 2 IEC/EN61557-1 | ||
| Measurement | IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V | |||
Current clamp for leakage current measurements | IEC/EN 61557-13: Class2, ≤30 A/m | |||
Resistance to Earth | IEC/EN 61557-5 | |||
Effectiveness of the protective measures | IEC/EN 61557-16: cutoff frequency 20 kHz (-3 dB) | |||
Electromagneticcompatibility (EMC) | International | IEC/EN 61326-1: Portable Electromagnetic Environment CISPR 11: Group 1, Class B, IEC/EN 61326-2-2 | ||
| Korea (KCC) | Class A equipment (Industrial Broadcast & Communications Equipment) | |||
| USA (FCC) | 47 CFR 15 subpartB. This productis considered an exempt deviceper clause 15.103. | |||
Display Reading Specification with Loop Resistance Standard | Input (Ω) | Minimum | Maximum |
| 0.474 | 0.417 | 0.531 |
| 0.5 | 0.443 | 0.558 |
| 10 | 9.55 | 10.45 |
| 100 | 96 | 104.0 |
Wireless radio | |
Frequency range | 2412 MHz to 2462 MHz |
Output power | <10 mW |
Radio frequency certification | FCC ID:T68-FBLE IC:6627A-FBLE |
General specifications | |
Conductor size | 40 mm (1.57 in) approximately |
Dimensions (L x W x H) | 283 mm x 105 mm x 48 mm (11.1 in x 4.1 in x 1.9 in) |
Weight Warranty | 880g (31 oz) Oneyear |
