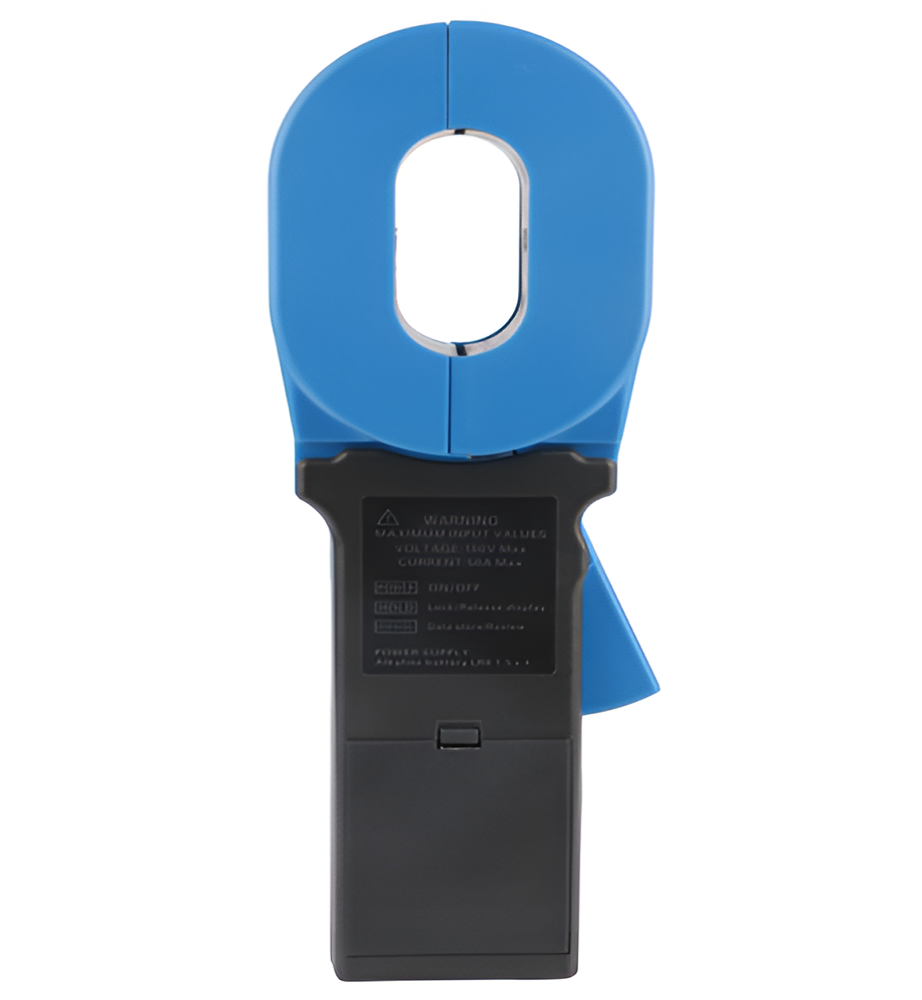

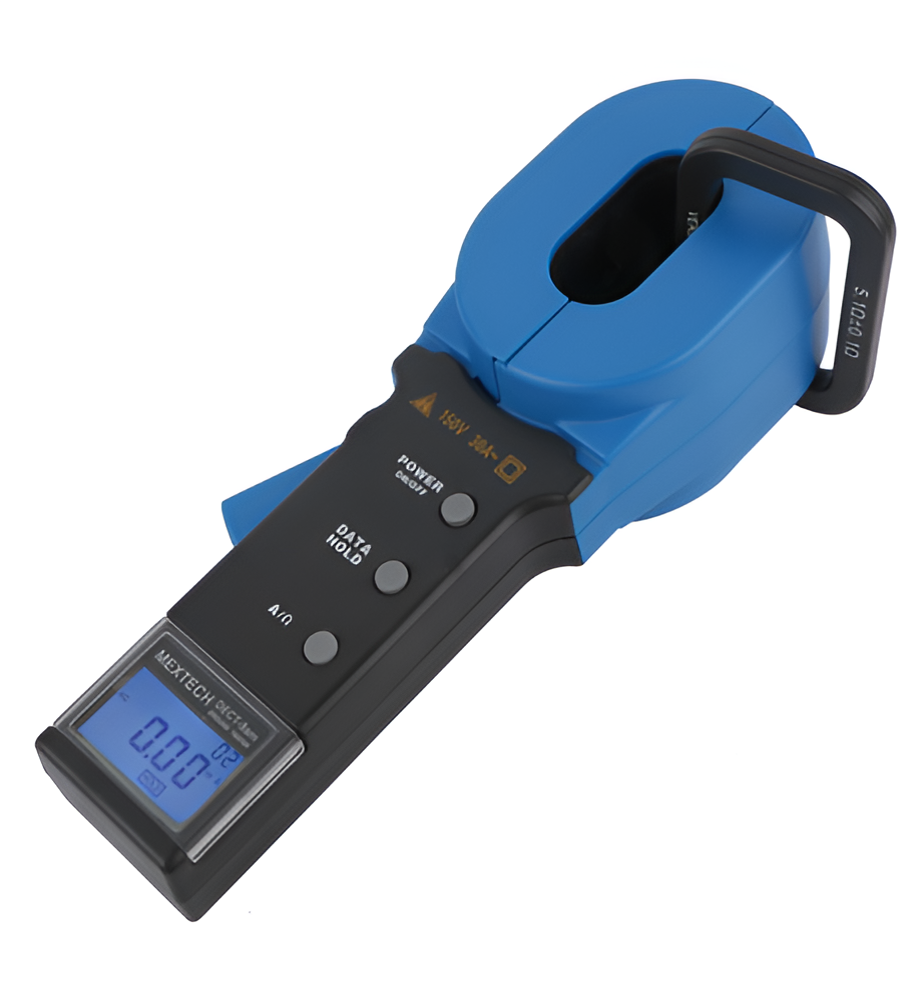

Mextech DECT9AM Digital Earth Clamp Tester
Click To Zoom
Mextech DECT9AM Digital Earth Clamp Tester
Mextech DECT9AM Digital Earth Clamp Tester
- Measures Earth Resistance at electrical ground rod and grid
- Use for testing quality of grounding without disconnecting the ground rod under test
- Conduct field surveys fast and effectively and retrieve and analyze readings at a later time
- Use on telecommunication Tower’s grounding
- Useful in finding earth fault such as discontinuation or loose contact of earthling strips or cables
- To find the resistance of earth pit
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 22,599
(GST inclusive price) i-
Base Value: ₹ 19151.7
-
GST: (18) % ₹ 3447.3
-
Total Value ₹ 22599
₹29,999.00
( - 25% OFF )
Description
Key Features
- Long Jaw size: 65mm x 32mmø. The unique long Jaw is particularly suitable where grounding is done by flat steel or copper strips
- Range:0.01Ω to 1000 Ω, leakage current: 0.00mA to 30A
- Maximum Resistance Measurement Resolution 0.001 Ω
- Display 4 Digits LCD, 47×28.5 mm in length
- Over range (OL Ω) as well as low range (L0.01 Ω) indication
- Low bat indication and Data hold facility, Jaw opening Indication, Noise signal
- Double insulation level and also protected from External magnetic as well as Electric field
- External Magnetic field: <40A/m
- External Magnetic field: <1V/m
- Automatic range selection & Automatic Self Calibration
- Alarm with measured value
- Single Measuring Time: 1 second
- Power : 6 VDC (AA 1.5V x 4)
- Dimensions : 298mm X 90mm X 66mm (Approx.) for long jaw
- Net Weight : 1320g for long jaw size

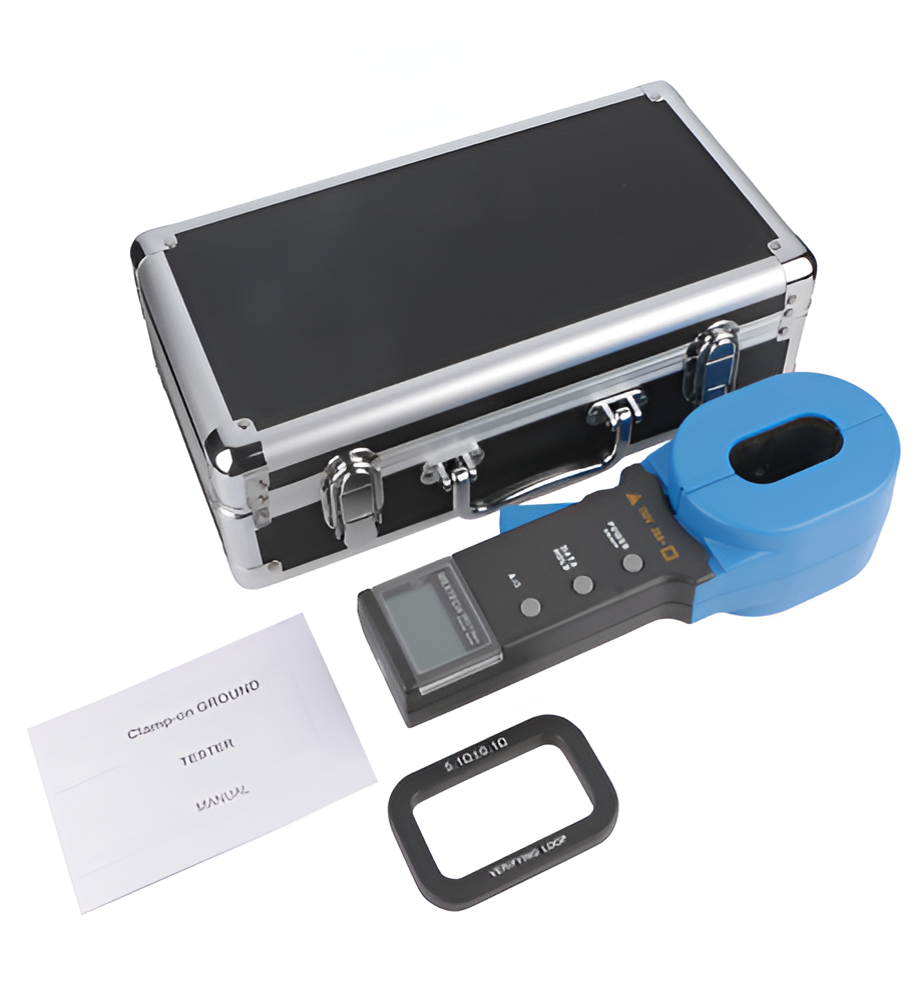

What's in the box?
|
Rating & Reviews
Rating
Ranges and Accuracy at [ (20 ±3˚C) 50% RH ± 10%]
| Ranges | Resolution | Accuracy |
| 0.010 – 0.099Ω | 0.001Ω | ±(1%+0.01Ω) |
| 0.10 – 0.99Ω | 0.01Ω | ±(1% + 0.01Ω) |
| 1.0 -49.9Ω | 0.01Ω | ±(1.5% + 0.1Ω) |
| 50.0 – 99.5Ω | 0.5Ω | ±(2% + 0.5Ω) |
| 100-199Ω | 1Ω | ±(3% + 1Ω) |
| 200- 395Ω | 5Ω | ±(6% + 5Ω) |
| 400- 590 Ω | 10 Ω | ±(10% + 10Ω) |
| 600 – 1000 Ω | 20 Ω | ±(20% + 20Ω) |
Ranges and Accuracy of current measurement:
| Range | Resolution | Accuracy |
| 0-80mA | 0.05mA | ±2.5%+1mA |
| 80mA-650mA | 0.5mA | ±2.5%+2mA |
| 650mA-4A | 5mA | ±2.5%+10mA |
| 4A-30A | 10mA | ±2.5%+20mA |
