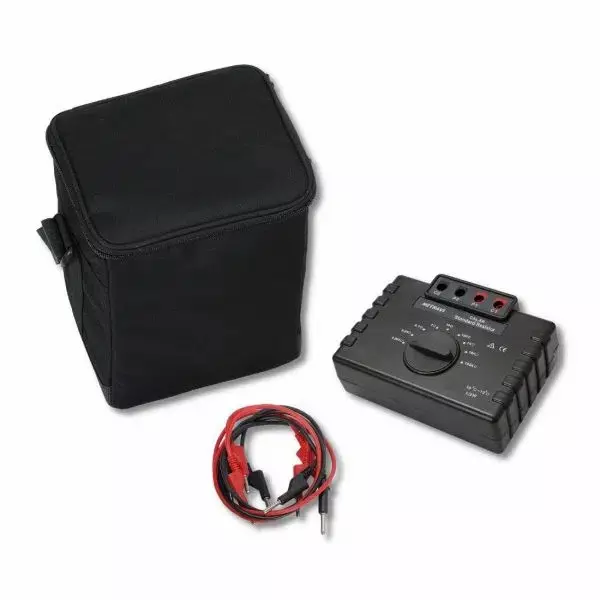

METRAVI CAL-ER Earth and Ground Tester Calibrator
Click To Zoom
METRAVI CAL-ER Earth and Ground Tester Calibrator
METRAVI CAL-ER Earth and Ground Tester Calibrator
The Metravi CAL-ER Earth and Ground Tester Calibrator is used for calibrating grounding resistance testers, equipotential testers and other instruments which require a standard resistor.It is widely used in building quality inspection stations, supervision companies, construction companies, lightning protection companies, electric power departments, etc.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 32,480
(GST inclusive price) i-
Base Value: ₹ 27525.4
-
GST: (18) % ₹ 4954.6
-
Total Value ₹ 32480
₹46,440.00
( - 30% OFF )
Description
Key Features
- The military grade instrument is composed of 9 pieces of 1/2w, high-precision, military-grade wire wound resistors.
- It has stable performance and strong structure, especially convenient for calibration & testing.
- When calibrating resistors, one can direct shift and test without replacing the test line.
- Fully meets the national weather service order "lightning protection device detection qualification management approach" specified in the range of 10-3 ~ 105 Ω.
What's in the box?
|
Rating & Reviews
Rating
| Function | Used for calibration of grounding resistance tester, equipotential tester and other instrument |
| Range and Accuracy | 0.001Ω； 2% 0.01Ω； 0.5% 0.1Ω； 0.2% 1.0Ω； 0.2% 10Ω； 0.05% 100Ω； 0.05% 1KΩ； 0.05% 10KΩ； 0.05% 100KΩ； 0.05% |
| Connection Wire Method | 4-wire method |
| Power | 1/2W |
| Temperature Coefficient | ±25ppm |
| Dimensions | 173mmX125mmX70mm |
| Weight | 350g |
| Test Line | Red 0.5m & black 0.5m, each with 2pcs |
| Working Temperature and Humidity | -10℃～40℃；80%rh below |
| Storage Temperature and Humidity | -20℃～60℃；70%rh below |
| Insulation Resistance | 10MΩ above(between the circuit and shell 500V) |
| Withstand Voltage | AC 3700V/rms(between the circuit and shell) |
| Suitable Safety Standard | IEC61010-1，CAT Ⅲ 600V，Polluted Gradation |
