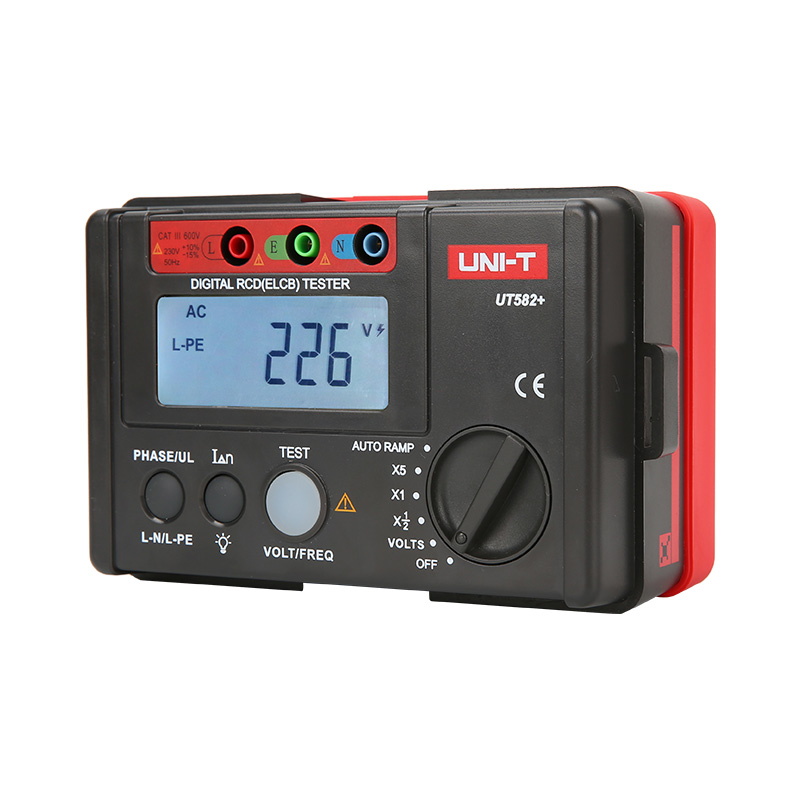

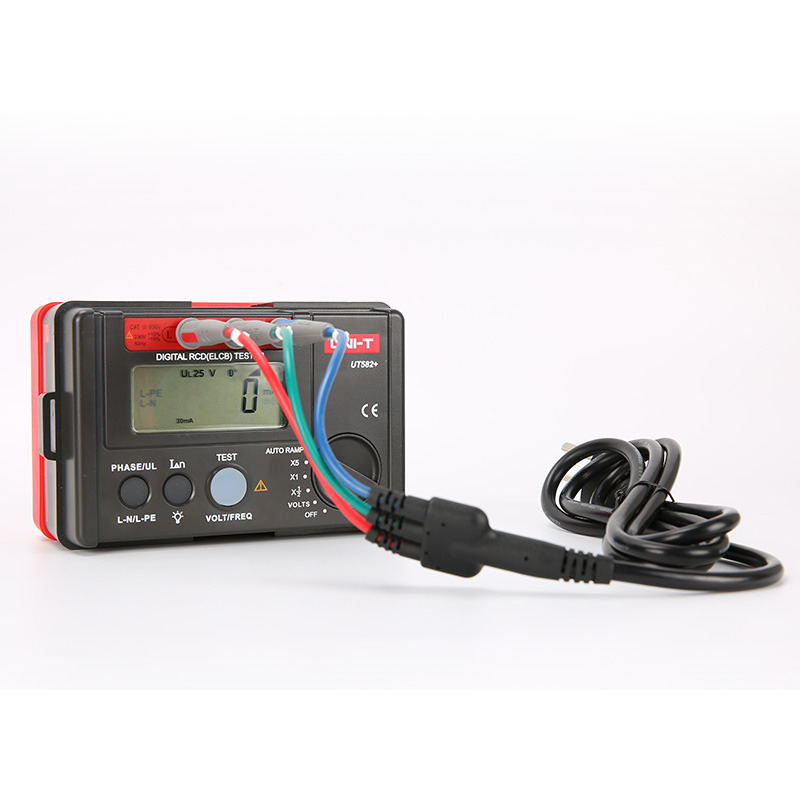

UNI-T UT582+ Digital RCD (ELCB) Tester
Click To Zoom
UNI-T UT582+ Digital RCD (ELCB) Tester
UNI-T UT582+ Digital RCD (ELCB) Tester
UT582+ is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with the supply voltage range of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz ~65Hz.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 11,150
(GST inclusive price) i-
Base Value: ₹ 9449.2
-
GST: (18) % ₹ 1700.8
-
Total Value ₹ 11150
₹15,000.00
( - 26% OFF )
Description
Key Features
- Power off gear
- Over-range display: OL
- LCD backlight
- With protect fuses
- Data hold
- Mis-operation buzzer
- Auto ramp
- Power off buzzer
- Disconnect buzzer
- Full icon display
What's in the box?
|
Rating & Reviews
Rating
Range setting | Rated operating current | Trip time | Accuracy |
Certificates | CE, UKCA | ||
X 1/2 | 10mA/20mA/30mA/100mA/300mA/500mA | 2000ms | -10%~0% |
X 1 | 10mA/20mA/30mA/100mA/300mA 500mA | 1000ms 300ms | 0%~10% 0%~10% |
X 5 | 10mA/20mA/30mA | 40ms | 0%~10% |
Auto ramp | 10mA/20mA/30mA/100mA/300mA/500mA | 300ms | -10%~10% |
Trip time accuracy | ±(2%+2) | ||
Operating voltage (Freq.) | 195V~253V | ||
Voltage measurement | |||
Voltage range | 30~600V | ||
Frequency | 45Hz~65Hz | ||
Resolution | 1V | ||
Accuracy | ±(3%+3) | ||
| Display count | 1000 | ||
| Low battery indication | <7.2V | ||
| APO auto power off | √ | ||
| Phase angle selection | 0° and 180° | ||
| Connections check | Simultaneously test the trip time andtrip current | ||
| Compliance standards | IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007; IEC 61557-6:2007, EN61326-1, EN61326-2-2 | ||
| Lead sequence check | LCD | ||
| Category ratings | CAT III 600V | ||
Characteristics | |
Standard accessories | Test leads, elastic strap,English manual |
Power | 1.5V battery (LR6) x 6 |
Display | 71x 34mm |
Product size | 160x 100 x 71mm |
Product net weight | 400g |
Standard individual packing | Gift box, carrying bag |
Standard quantity per carton | 5pcs |
Standard carton measurement | 425x 280 x 180mm |
Standard carton gross weight | 4.9kg |
