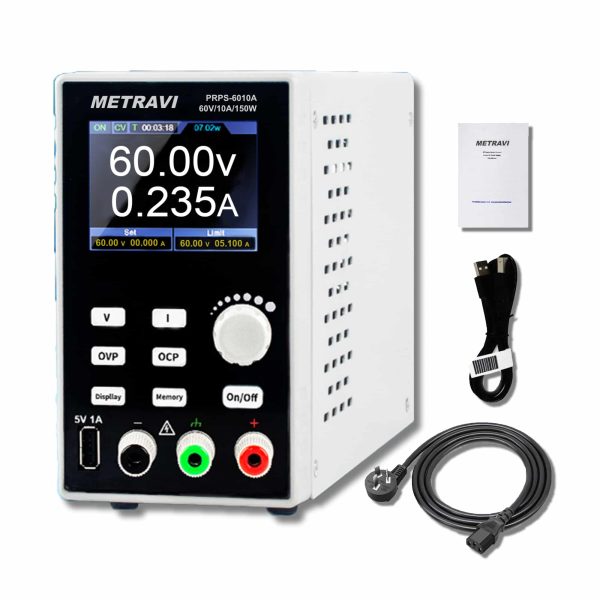

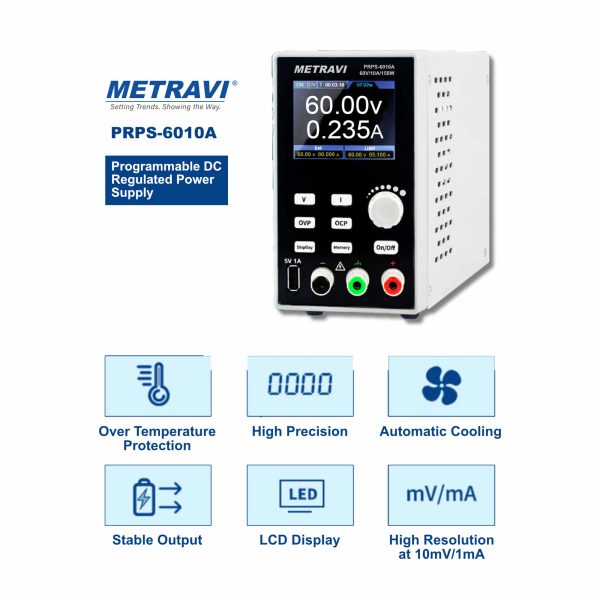

Metravi PRPS-6010A Programmable DC Regulated Power Supply
Click To Zoom
Metravi PRPS-6010A Programmable DC Regulated Power Supply
Metravi PRPS-6010A Programmable DC Regulated Power Supply
Programmable DC Regulated Power Supply with Single Output and large TFT multi-display. Variable 0–60V/0–10A DC. Remote control from computer via USB, Over Voltage / Over Current protection, supports SCPI, low ripple & noise.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 16,929.00
(GST inclusive price) i₹22,781.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Model | PRPS-6010A |
| Input Characteristics: | |
| Supply Voltage | 110Vac±15% or 220Vac±15%, pleasesupply power according to the mark on the left of the power input socket on the rear panel of the instrument |
| Input Frequency | 45~65Hz |
| Input Parameter 1 (110Vac±15%): | |
| InputVoltage Range | 93~127Vac |
| Full Load InputCurrent | ≤5.6A |
| No-Load Input Current | ≤300mA |
| Input Fuse | 250V, F10A |
| Input Parameter 2 (220VAC±15%): | |
InputVoltage Range | 187~253Vac |
Full Load InputCurrent | ≤2.8A |
| No-Load Input Current | ≤150mA |
Input Fuse | 250V, F5A |
| Rated Output: | |
Voltage | 0~60V |
Current | 0~10A |
| Power | 300W |
Efficiency (110VAC, Rated Load) | 80% |
Efficiency (220VAC, Rated Load) | 85% |
| Regulation (CV): | |
| Load | ≤30mV |
| Line | ≤20mV |
| Regulation (CC): | |
| Load | ≤30mA |
| Line | ≤20mA |
Model | PRPS-6010A |
Ripple &Noise (Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uFceramic capacitor to the outputterminal for testing: | |
Voltage(Vp-p) | ≤50mV |
Voltage(RMS) | ≤5mV |
Current(Ap-p) | ≤30mA |
Setting Resolution: | |
Voltage | 10mV |
Current | 1mA |
| ReadbackResolution: | |
Voltage | 10mV |
Current | 1mA |
Setting Accuracy: | |
Voltage | ≤0.1%±30mV |
Current | ≤0.1%±10mA |
| Readback Accuracy: | |
Voltage | ≤0.1%±30mV |
| Current | ≤0.1%±10mA |
| Response Time | |
Transient recovery time (50%~100% rated load) | ≤1 ms |
| Protective Function: | |
OVP | 0~61V |
OCP | 0~10.1A |
OTP | 85°C |
Temperature Coefficient Of Output: | |
Voltage | 100ppm/°C |
Current | 200ppm/°C |
Temperature Coefficient Of Readback Value: | |
Voltage | 100ppm/°C |
Current | 200ppm/°C |
Model | PRPS-6010A |
| Display: | |
| Display Type | 2.8 InchesColour LCD |
| Resolution | 240 x 320 Pixels |
Colour | 65536 Colour TFT |
| Environment: | |
Temperature | Working Temperature : 0°C~40°C Storing Temperature : -20°C~60°C |
| RelativeHumidity | ≤90%RH; No condensation |
| Height | 2000 Meters |
Cooling | Fan cooling, temperature intelligent speed control |
Other: | |
CommunicationPort | USB communication, compatible with SCPIcommunication protocol |
| USB Charging Port | 5V/1A Charging |

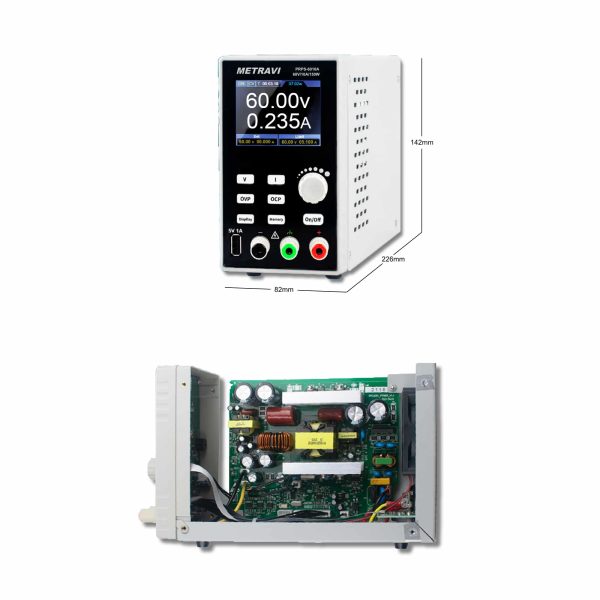

| Dimension | 82mm (Width) × 142mm (Height) × 226mm (Length) |
Weight | Approx. 1.5 kg |
