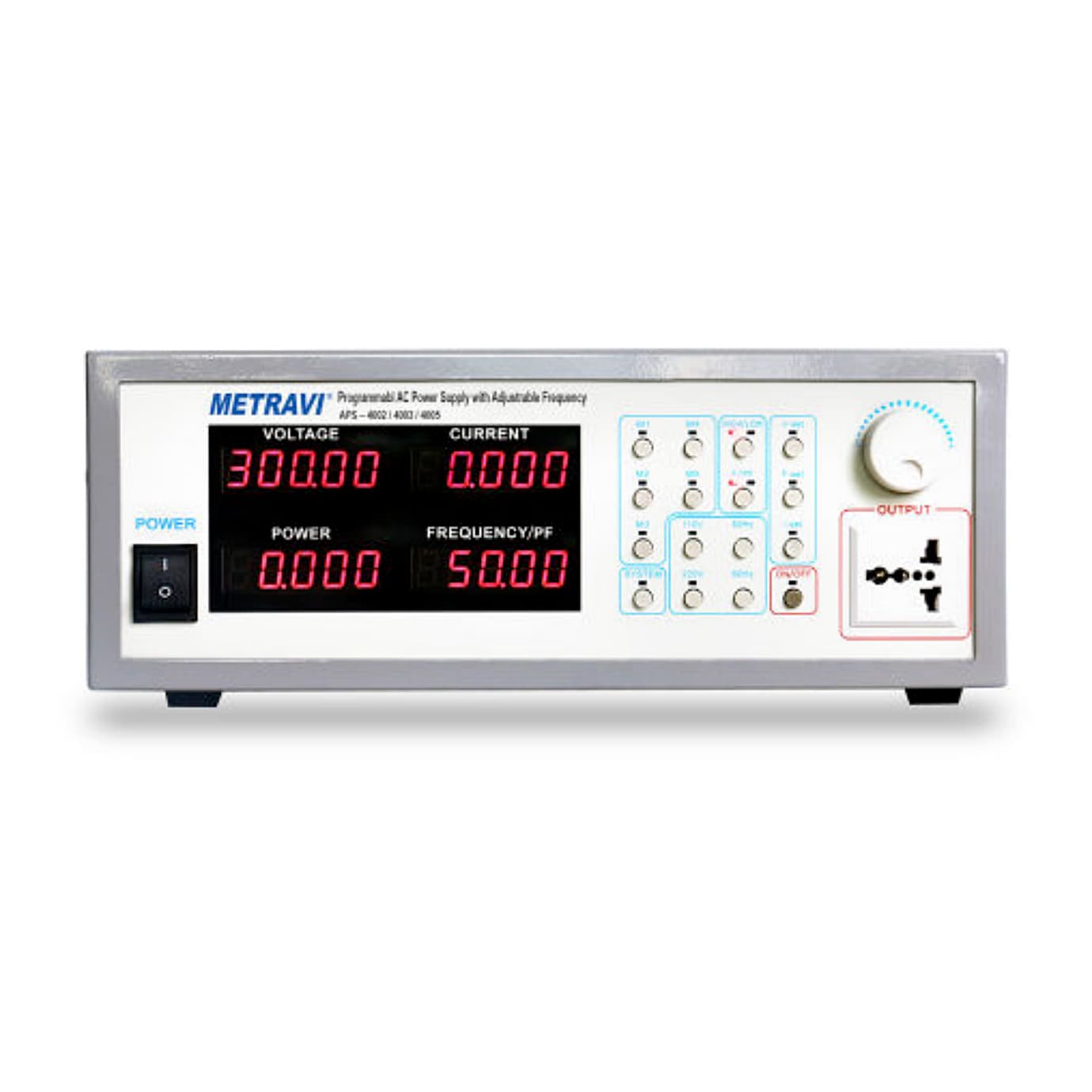

Metravi APS-4002 0 - 40V / 0 - 2A Programmable AC Power Supply with Adjustable Frequency (Single Output)
Click To Zoom
Metravi APS-4002 0 - 40V / 0 - 2A Programmable AC Power Supply with Adjustable Frequency (Single Output)
Metravi APS-4002 0 - 40V / 0 - 2A Programmable AC Power Supply with Adjustable Frequency (Single Output)
The Metravi APS‑4002 is a programmable DC electronic load offering adjustable voltage and current ranges, rapid response, built‑in protections, digital display, and interface support — ideal for power supply, battery, and solar system testing.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 57,999.00
(GST inclusive price) i₹78,064.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Model | APS-4002 |
| capacity | 350VA |
| Operating mode | SPWM (Sinusoidal PulseWidthModulation) |
| Input | |
| Phase | 1φ2W |
| Voltage | 220V ± 10% |
| Frequency | 45-250Hz (0.01step) |
| Output | APS-4002 | |
| Phase | 1Φ2W | |
| Voltage | 0~ 150VAC/ 0~ 300VAC AUTO | |
| Frequency | 45 ~ 250Hz (0.01step) | |
| Maximum Current | L = 120V | 3A |
H = 240V | 1.5A | |
| Load Regulation | 1% |
|
| Waveform Distortion | 2% (low-end 120V, high-end 240V, with pure resistance load) | |
| Frequency Stability | 0.01% | |
| Display | Voltage / Current / Frequency / Power / Power Factor | |
| VoltageResolution | 0.01V | |
| Frequency Resolution | 0.01Hz | |
| Current Resolution | 0.001A | |
| Storage | M1 ~ M5 (V_F_A) | |
Test Accuracy | Voltage | ± 0.5% FS + 5dgt |
Electric Current | ± 0.5% FS + 5dgt | |
Frequency | ± 0.01% FS + 5dgt | |
Power | ± 0.5% FS + 5dgt | |
| Setting Accuracy | Voltage | ± 1% FS |
| Frequency | ± 0.1% FS |
| Current Limit Setting | 0 ~ Max Current (The maximum current is: maximum capacity / 240V or P / 240) | |
| Output Protection | Overcurrent,Over Temperature, Overload, Short Circuit | |
| Operating Environment | 0 ~ 40 ° C ≤80% RH | |
| Bare Metal Size | mm | 365 * 150 * 430 |
Packing Size | mm | 510 * 255 * 550 |
Net Weight | kg | 12.7 |
Gross Weight | kg | 14.5 |
