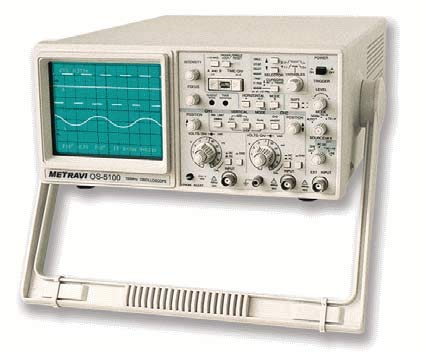

Metravi OS-5100 Cathode Ray Oscilloscope
Click To Zoom
Metravi OS-5100 Cathode Ray Oscilloscope
Metravi OS-5100 Cathode Ray Oscilloscope
100MHz Dual Channel Four Trace Cathode Ray Oscilloscope with 1:1 and 10:1 Probes
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,00,300
(GST inclusive price) i-
Base Value: ₹ 85000
-
GST: (18) % ₹ 15300
-
Total Value ₹ 100300
₹1,35,000.00
( - 26% OFF )
Description
Key Features
- Wide frequency range: DC-100MHz -3dB.
- High sensitivity: 1mV/DIV (×5 MAG).
- In ALT (A and B alternately sweeps) mode, four traces are displayed.
- Fast sweep rate to 5ns/DIV by magnifying 10.
- The function of B TRIG'D can decrease the delay shrinking.
- Hold-off function makes it easier to catch the complex triggering signals.
What's in the box?
|
Rating & Reviews
Rating
| CH1 and CH2 sensitivity | 5mV/DIV to 5V/DIV 1-2-5 step, 10 calibrated steps (1mV/DIV to 1V/DIV at×5 MAG) | ||
| Accuracy | ×1:±5%,×5:±8% (Vertical knob is set to CAL position) | ||
| Variable vert-Ical sensitivity | Be less than 1/2.5 times indicated sensitivity value | ||
| Frequency band width×5MAG | DC:DC to 100MHz AC:10Hz to 100MHz -3dB DC:DC to 15MHz AC:10Hz to 15MHz -3dB | ||
| 20MHz Bandwidth | DC:DC to 20MHz AC:10Hz to 20MHz -3dB | ||
| Rise time | Approximately 3.5nsApproximately 23ns by | ||
| Input impedance | 1MO±2%,25 pF±3pF | ||
| Maximum input voltage | 400V (DC+AC peak) 1kHz | ||
| Input coupling system | AC-GND-DC | ||
| Operating systems | CH1, CH2, ADD, DUAL(CHOP?ALT) | ||
| Invert | Only CH2 signal is inverted | ||
| Overshoot | Max 8% | ||
| Triggering | |||
| Trigger mode | AUTO, NORM, TV-V,TV-H | ||
| Trigger signal source | INT, CH2, LINE, EXT | ||
| Polarity | +, - | ||
| Coupling system | AC coupling | ||
| Sensitivity | Frequency | INTEXT | EXT |
| DC~10MHz | 0.48 div | 200mV | |
| 10MHz~100MHz | 2 div | 500mV | |
| TV Synchronization | INT Min 2 div | ||
| EXT Max 1 Vp-p | |||
| Input Impedance | About 1MΩ 25pF | ||
| Max Input Voltage | 400V(DC+ACpeak) 1kHz | ||
| Input Impedance | About 40kΩ | ||
| Max Input Voltage | 30V(DC+ACpeak) | ||
| Bandwidth | DC~2MHz | ||
| Input signal | ±5V (Negative intensity) | ||
| Sweep mode | A, B, B TRIG'D, X-Y, ALT | ||
| Sweep time | A: 0.05µs to 0.2s/DIV±5%, in 21 calibrated steps(1-2-5 seq)B: 0.05µs to 10s/DIV±5%, in 8 calibrated steps(1-2-5 seq) | ||
| Sweep expansion | ×10 MAG: ±8% (0.1, 0.05µs/DIV: Non-Cal) | ||
| Sweep Rate Varb | Less than 1/2.5 | ||
| Delay System | Continuous delay or Triggering delay | ||
| Delay Time | 0.2µs~2s | ||
| Hold-off | Continuous change for 2 times | ||
| Operating mode | CH1 X-axis and CH2 Y-axis When in X-Y operation mode | ||
| Sensitivity | As verticalaxis | ||
| X-axis band width | DC~2MHz | ||
| Phase difference | ≤ 3º (DC~100kHz) | ||
| Frequency | About 1kHz | ||
| Waveform | Square wave | ||
| Output level | 0.5V (±3%) | ||
| Duty | ≤ 48: 52 (min) | ||
