Metravi PRO DIT-931E 10kV High Voltage Digital Insulation Tester
Click To Zoom

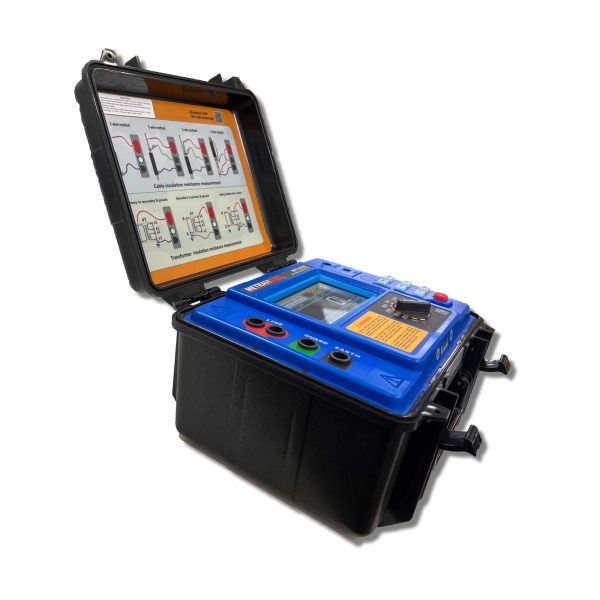

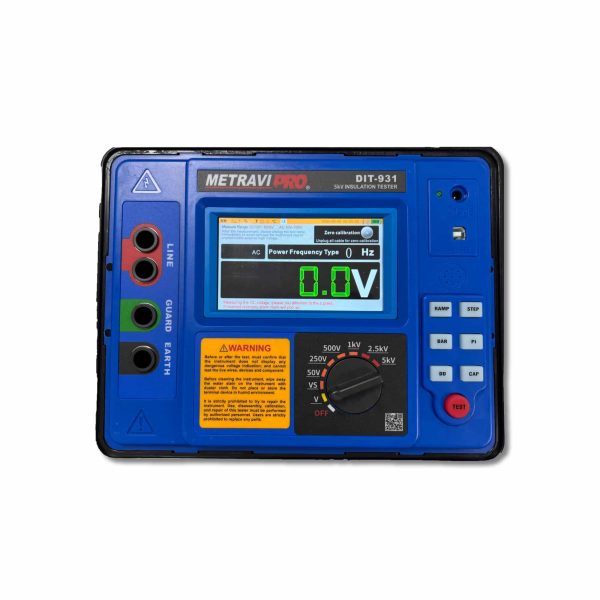

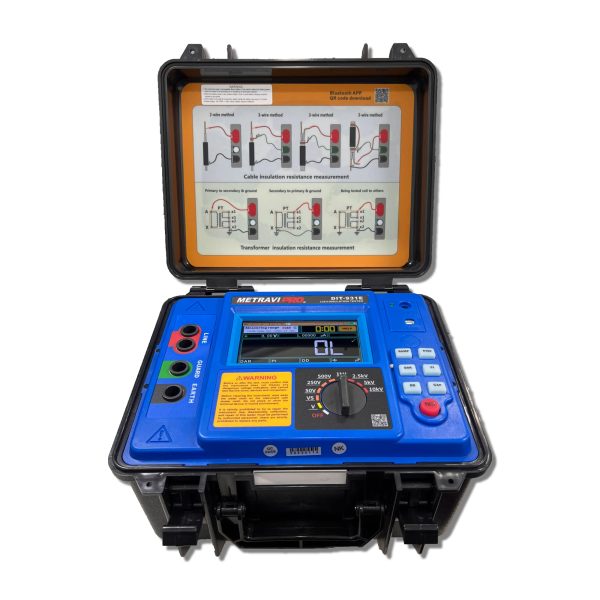

Metravi PRO DIT-931E 10kV High Voltage Digital Insulation Tester
Metravi PRO DIT-931E 10kV High Voltage Digital Insulation Tester
0.005MΩ ~20 TΩ, 50V/250V/500V/1kV/2.5kV/5kV/10kV, Accuracy ±5%rdg±3dgt, Large Touchscreen with Multifunction Colour Display. Test Voltage, Capacitance, Current. Insulation Resistance test (IR), Polarisation Index test (PI), Dielectric Absorption Ratio Test (DAR), Ramp Test mode (RAMP), Dielectric Discharge (DD). With Voltage monitor function, Test Timer function, Automatic Discharge, Data Logging for 1000 sets, Rechargeable Battery, USB PC Interface for data download & analysis, IP65 protection, Certification IEC61010-1, IEC61326-1
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,10,450
(GST inclusive price) i-
Base Value: ₹ 93601.7
-
GST: (18) % ₹ 16848.3
-
Total Value ₹ 110450
₹1,57,950.00
( - 30% OFF )
Description
Key Features
- Insulation resistance range: 0.50MΩ ~ 20.0TΩ
- Rated Voltage: 50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV
- Short Circuit Current: ≥7mA
- Output Voltage Accuracy: (5% ~ 10%) ±10V.
- Max short circuit current: 7mA
- Insulation Resistance Range and Accuracy:

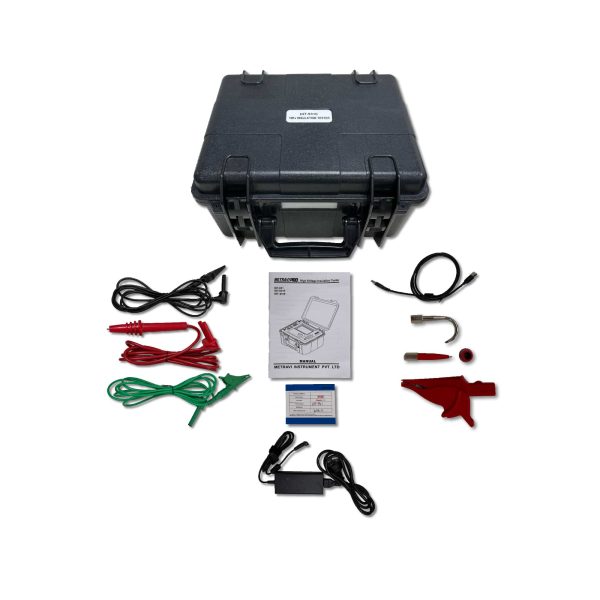

What's in the box?
|
Rating & Reviews
Rating
Product Model | Rated Voltage | Insulation Resistance Range | Short Circuit Current |
DIT-931 | 50V, 250V, 500V, 1kV, 2.5kV, 5kV | 0.005MΩ ~ 10.0TΩ | >7mA |
DIT-931E | 50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV | 0.005MΩ ~ 20.0TΩ | >7mA |
DIT-931F | 50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV, 15kV | 0.005MΩ ~ 30.0TΩ | >7mA |
| Rated Voltage | Insulation Resistance Range | Accuracy |
| 50V | 0.005MΩ ~ 10.0GΩ | ±5%rdg±3dgt |
| 10.0GΩ ~ 100GΩ | ±10%rdg±3dgt | |
| 250V | 0.05MΩ ~ 50.0GΩ | ±5%rdg±3dgt |
| 50.0GΩ ~ 500GΩ | ±10%rdg±3dgt | |
| 500V | 0.10MΩ ~ 100GΩ | ±5%rdg±3dgt |
| 100GΩ ~ 1.00TΩ | ±10%rdg±3dgt | |
| 1000V | 0.5MΩ ~ 200GΩ | ±5%rdg±3dgt |
| 200GΩ ~ 2.00TΩ | ±10%rdg±3dgt | |
| 2500V | 1.00MΩ ~ 1.00TΩ | ±5%rdg±3dgt |
| 1.00TΩ ~ 5.00TΩ | ±10%rdg±3dgt | |
| 5000V | 2.00MΩ ~ 2.00TΩ | ±5%rdg±3dgt |
| 2.00TΩ ~ 10.0TΩ | ±10%rdg±3dgt | |
10kV | 5.00MΩ ~ 4.00TΩ | ±5%rdg±3dgt |
4.00TΩ ~ 20.0TΩ | ±10%rdg±3dgt | |
15kV | 10.00MΩ ~ 6.00TΩ | ±5%rdg±3dgt |
6.00TΩ ~ 30.0TΩ | ±10%rdg±3dgt |
