Metravi PRO DIT-931 5kV / 0.005M - 10T Ohms High Voltage Digital Insulation Tester
Click To Zoom

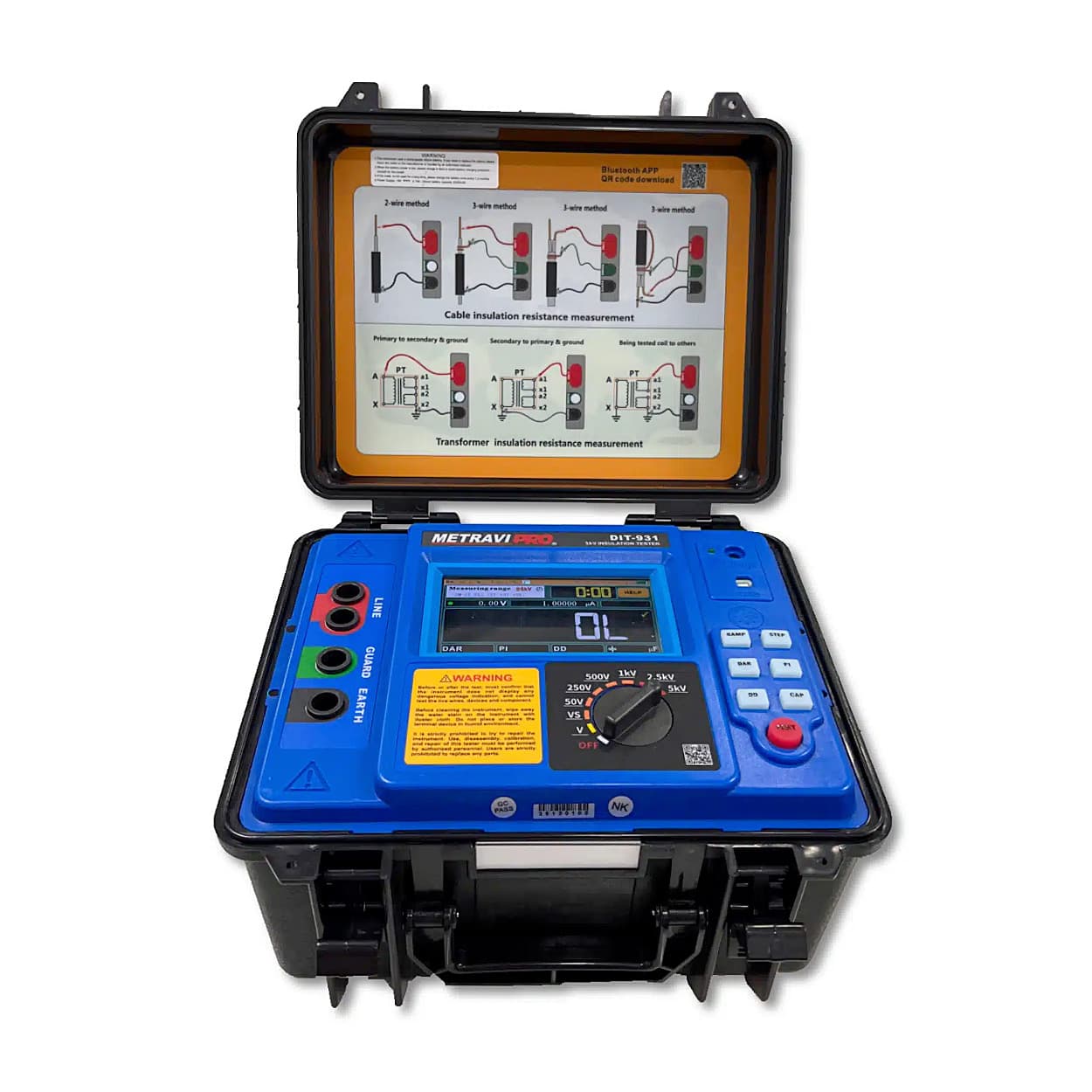

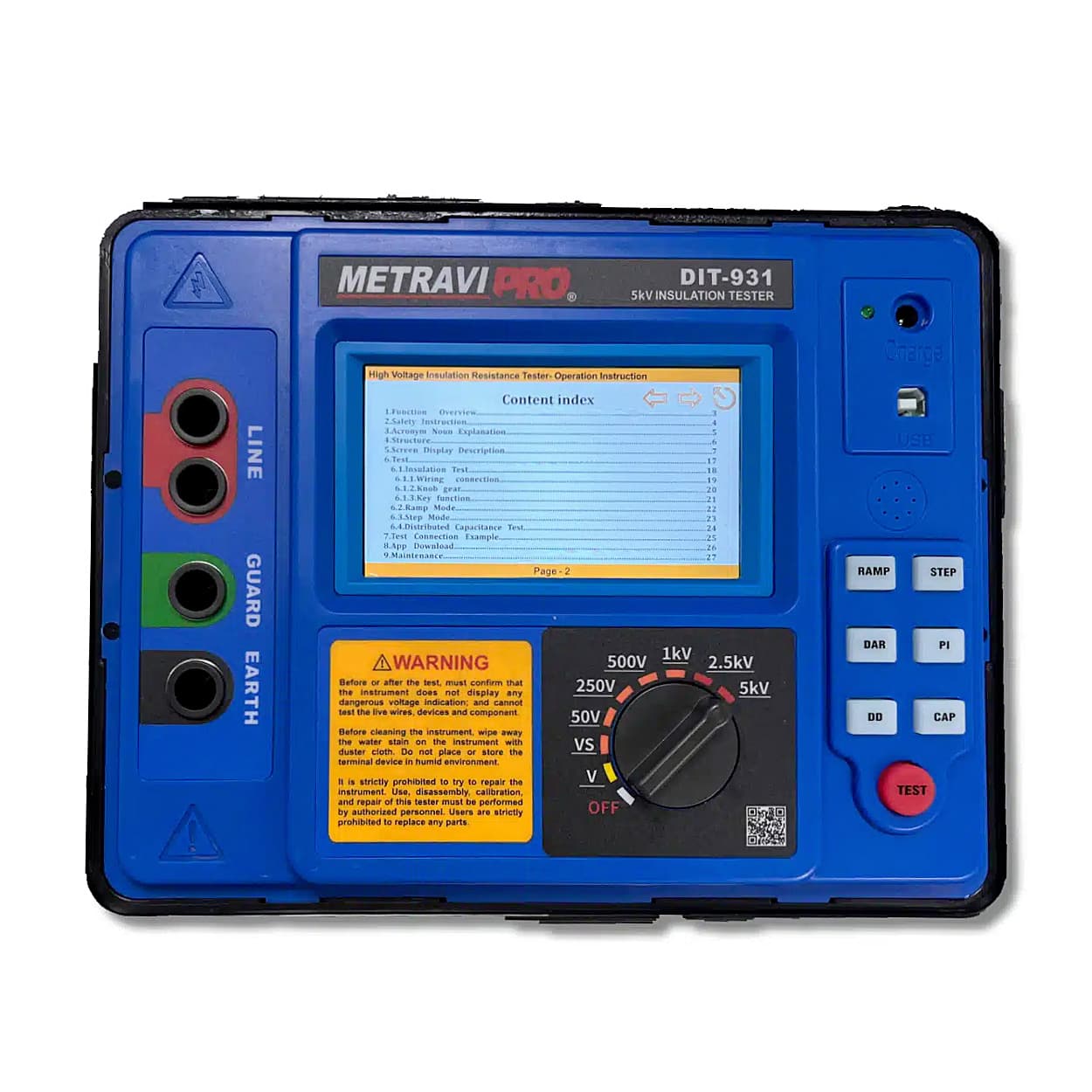

Metravi PRO DIT-931 5kV / 0.005M - 10T Ohms High Voltage Digital Insulation Tester
Metravi PRO DIT-931 5kV / 0.005M - 10T Ohms High Voltage Digital Insulation Tester
The Metravi DIT-931 series High Voltage Insulation Resistance Testers have perfect testing functions of various insulation resistance parameters and excellent anti-interference ability, which can be used to test the insulation resistance of large-capacity, high voltage, electrical equipment and transmission lines at substations with strong induction electric environments.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 92,325
(GST inclusive price) i-
Base Value: ₹ 78241.5
-
GST: (18) % ₹ 14083.5
-
Total Value ₹ 92325
₹1,32,030.00
( - 30% OFF )
Description
Key Faetures
- Insulation resistance range up to 30TΩ (15kV), 20TΩ (10kV),10TΩ (5kV)
- Output rated voltage max reach 8 gears (50V,250V, 500V, 1kV, 2.5kV, 5kV, 10kV, 15kV)
- Max short circuit current 7mA
- Insulation resistance test (IR), Polarisation Index test (PI), Dielectric Absorption Ratio test (DAR), Ramp test mode (RAMP), Dielectric Absorption Ratio(DAR), Step Voltage(STEP) Measurement, Dielectric Discharge Index(DD), Capacitance
- Voltage monitor function, automatically monitors the live voltage of the measured object
- Test timer function, automatically records the test time
- Automatic discharge function, the charge of the tested object is released automatically after the test
- utomatic shutdown function
- Large size touch colourful screen
- Double-shell structure, sturdy and durable, protection rating of IP65
- Large capacity rechargeable lithium battery pack
- Storage function, can automatically store 1000 groups of real-time test data with test date, time and timing.
- Upload function, equipped with USB interface, the recorded data can be uploaded to the computer via USB communication cable for data statistical analysis

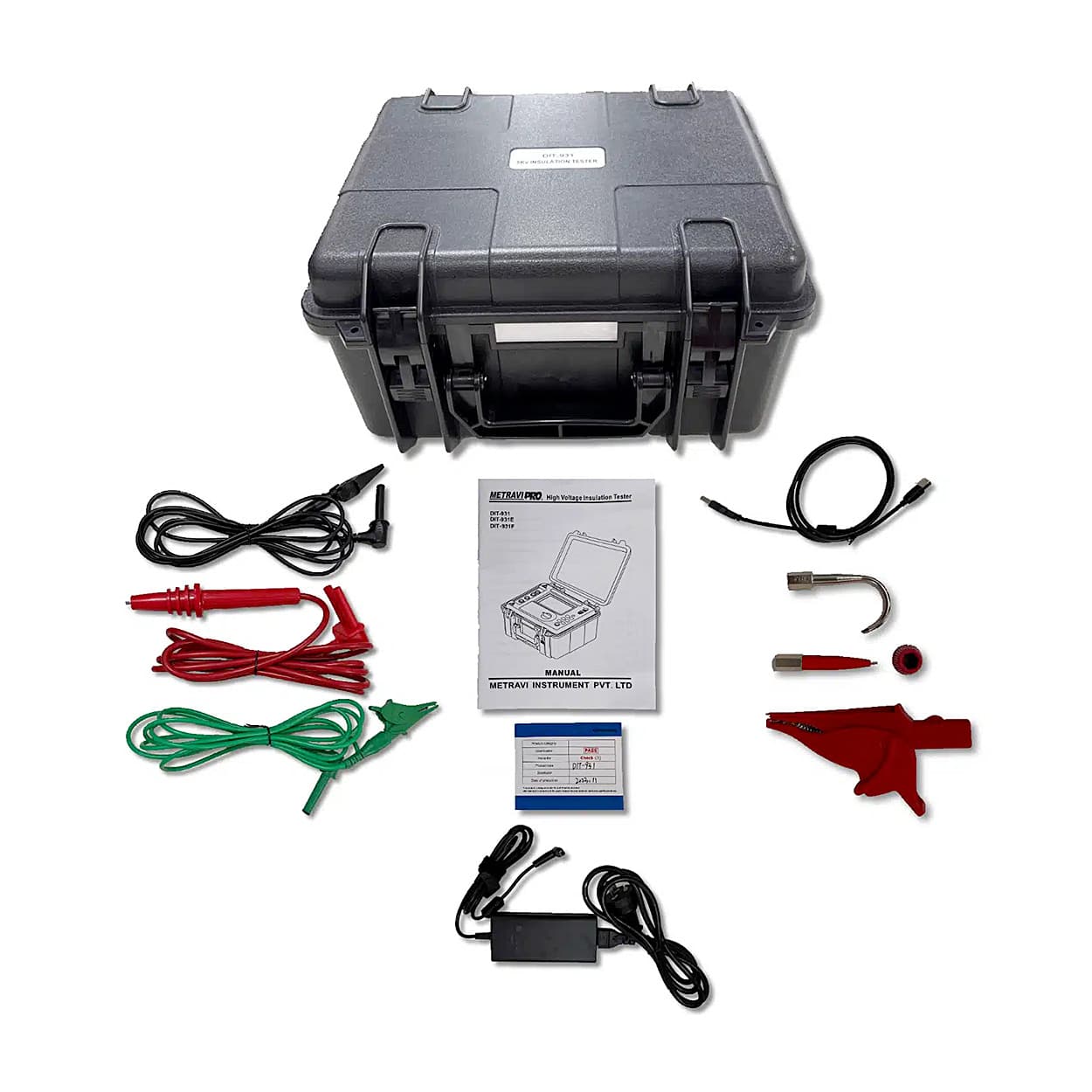

What's in the box?
|
Rating & Reviews
Rating
Product Model | Rated Voltage | Insulation Resistance Range | Short Circuit Current |
DIT-931 | 50V, 250V, 500V, 1kV, 2.5kV, 5kV | 0.005MΩ ~ 10.0TΩ | >7mA |
| Rated Voltage | Insulation Resistance Range | Accuracy |
| 50V | 0.005MΩ ~ 10.0GΩ | ±5%rdg±3dgt |
| 10.0GΩ ~ 100GΩ | ±10%rdg±3dgt | |
| 250V | 0.05MΩ ~ 50.0GΩ | ±5%rdg±3dgt |
| 50.0GΩ ~ 500GΩ | ±10%rdg±3dgt | |
| 500V | 0.10MΩ ~ 100GΩ | ±5%rdg±3dgt |
| 100GΩ ~ 1.00TΩ | ±10%rdg±3dgt | |
| 1000V | 0.5MΩ ~ 200GΩ | ±5%rdg±3dgt |
| 200GΩ ~ 2.00TΩ | ±10%rdg±3dgt | |
| 2500V | 1.00MΩ ~ 1.00TΩ | ±5%rdg±3dgt |
| 1.00TΩ ~ 5.00TΩ | ±10%rdg±3dgt | |
| 5000V | 2.00MΩ ~ 2.00TΩ | ±5%rdg±3dgt |
| 2.00TΩ ~ 10.0TΩ | ±10%rdg±3dgt | |
10kV | 5.00MΩ ~ 4.00TΩ | ±5%rdg±3dgt |
4.00TΩ ~ 20.0TΩ | ±10%rdg±3dgt | |
15kV | 10.00MΩ ~ 6.00TΩ | ±5%rdg±3dgt |
6.00TΩ ~ 30.0TΩ | ±10%rdg±3dgt |
