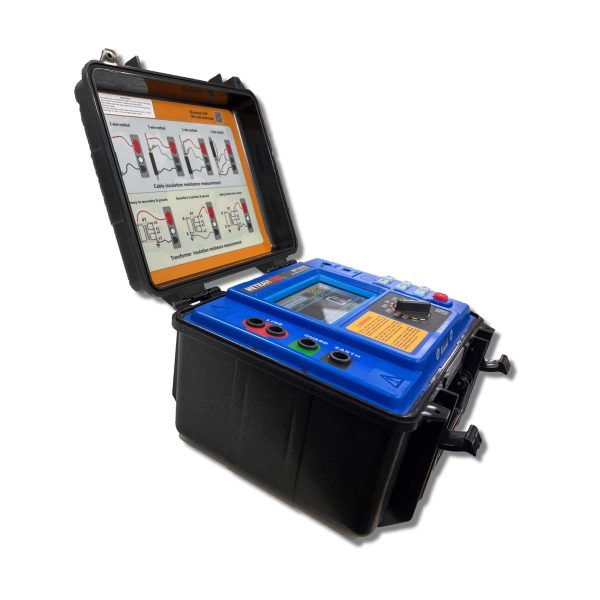

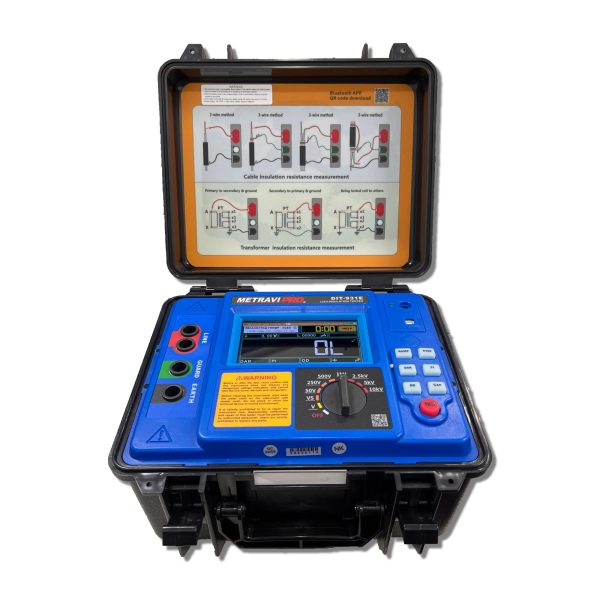

Metravi PRO DIT-930E 10kV High Voltage Digital Insulation Tester
Click To Zoom
Metravi PRO DIT-930E 10kV High Voltage Digital Insulation Tester
Metravi PRO DIT-930E 10kV High Voltage Digital Insulation Tester
0.005MΩ ~20 TΩ, 50V/250V/500V/1kV/2.5kV/5kV/10kV, Accuracy ±5%rdg±3dgt, Large Touchscreen with Multifunction Colour Display. Test Voltage, Capacitance, Current. Insulation Resistance test (IR), Polarisation Index test (PI), Dielectric Absorption Ratio Test (DAR), Ramp Test mode (RAMP), Dielectric Discharge (DD). With Voltage monitor function, Test Timer function, Automatic Discharge, Data Logging for 1000 sets, Rechargeable Battery, USB PC Interface for data download & analysis, IP65 protection, Certification IEC61010-1, IEC61326-1
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 69,559.00
(GST inclusive price) i₹93,623.00
( - 26% OFF )
Description

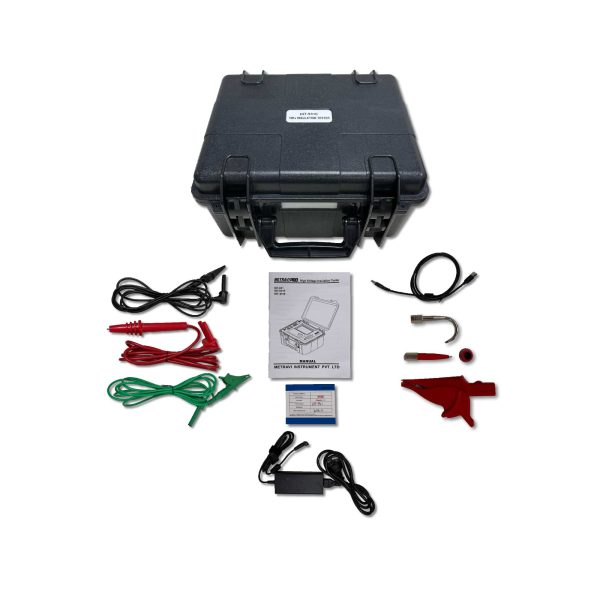

What's in the box?
|
Rating & Reviews
Rating
Model | DIT-930E |
| Rated Applied Voltage | 250; 500; 1000; 2500V; 5KV; 10KV |
| ResistanceLimit Range | 0.01MΩ ~ 35TΩ |
| Resolution | 0.01MΩ |
| Accuracy | ±3%rdg ±5dgt |
| Output short-circuitt Current | ≥6mA |
| Function | Insulation Resistance test, Voltagetest,Currenttest, Capacitance test |
| Basic Condition | 23°C ±5°C below 75%rh |
Rated Voltage (V) | 100V; 250V; 500V; 1000V; 2500V; 5000V | Accuracy rated voltage ×(1±10%) | |
| 250V; 500V; 1000V; 2500V; 5000V; 10KV | Accuracy rated voltage ×(1±10%) | ||
| 500V; 1000V; 2500V; 5000V; 10KV; 15KV | Accuracy rated voltage ×(1±10%) | ||
Insulation Resistance Range (GΩ) | 0.01MΩ ~ 10TΩ | Accuracy : ±3%rdg±5dgt | Resolution : 0.01MΩ |
| 0.01MΩ ~ 35TΩ | Accuracy : ±3%rdg±5dgt | Resolution : 0.01MΩ | |
| 0.01MΩ ~ 50TΩ | Accuracy : ±3%rdg±5dgt | Resolution : 0.01MΩ | |
| DC Voltage Range | 0.1 ~ 1000V | Accuracy : ±1.5%rdg±3dgt | Resolution: 0.1V |
| AC Voltage Range | 0.1 ~ 750V | Accuracy : ±1.5%rdg±3dgt | Resolution: 0.1V |
| DC Current Measurement | 0.01nA ~ 6mA | Accuracy : ±5.0%rdg±5dgt | Resolution: 0.01nA |
| Capacitance Test | 10nF ~ 50uF | Accuracy : ±10%rdg±5dgt | Resolution: 10nF |
| Absorption Ratio and Polarization Index Measurement | Available | ||
| Power | 12Vrechargeable battery | ||
| Backlight | Controllable gray screen backlight, suitable for use in dim places | ||
| Display Mode | 4-bit large LCD display, gray screen backlight | ||
| Instrument Size | 240mm(L)* 188mm (W)* 85mm (H) | ||
| USB Interface | With USB interface, software monitoring, storage data can upload computer, save and print | ||
| Communication Line | USB communication online 1pc | ||
| Test Line | High voltage rodred line3 meters, high voltage test line black line1.5 meters,green line1.5 meters | ||
| Data Storage | 500 groups, “FULL” symbol indicates that storage is full | ||
| Data Review | Data review function: “READ” symbol display | ||
| Overflow Display | Exceed measurement rangeoverflow function: “OL ” symbol display | ||
| Alarm Function | Whenthe measured value exceeds the alarm set value, an alarm prompt is issued. | ||
| Instrument Weight | 2720g(includingbattery) | ||
Power Consumption | Standby: 30mA Max (backlight off) | ||
| Turn on backlight : 42mA Max | |||
| Measure: 200mA Max (backlight off) | |||
| Battery Voltage | Whenthe battery voltage is low, low battery symbol will display | ||
| Automatic shut-down | Automaticshutdownafter15 minutes boot | ||
| Insulation Resistance | ≥50MΩ (between Measuring line and housing) | ||
| Pressure Resistance | AC3kV/50Hz 1min | ||
Working Temperature and Humidity | -10°C ~ +50°C < 85%RH | ||
| Storage Temperature and Humidity | -15°C ~ +55°C < 90%RH | ||
| Suitable forSafety Regulations | IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54) pollution grade 2, CAT III 1000V | ||
