Metravi PRO DIT-960PV Digital Solar Insulation Tester
Click To Zoom

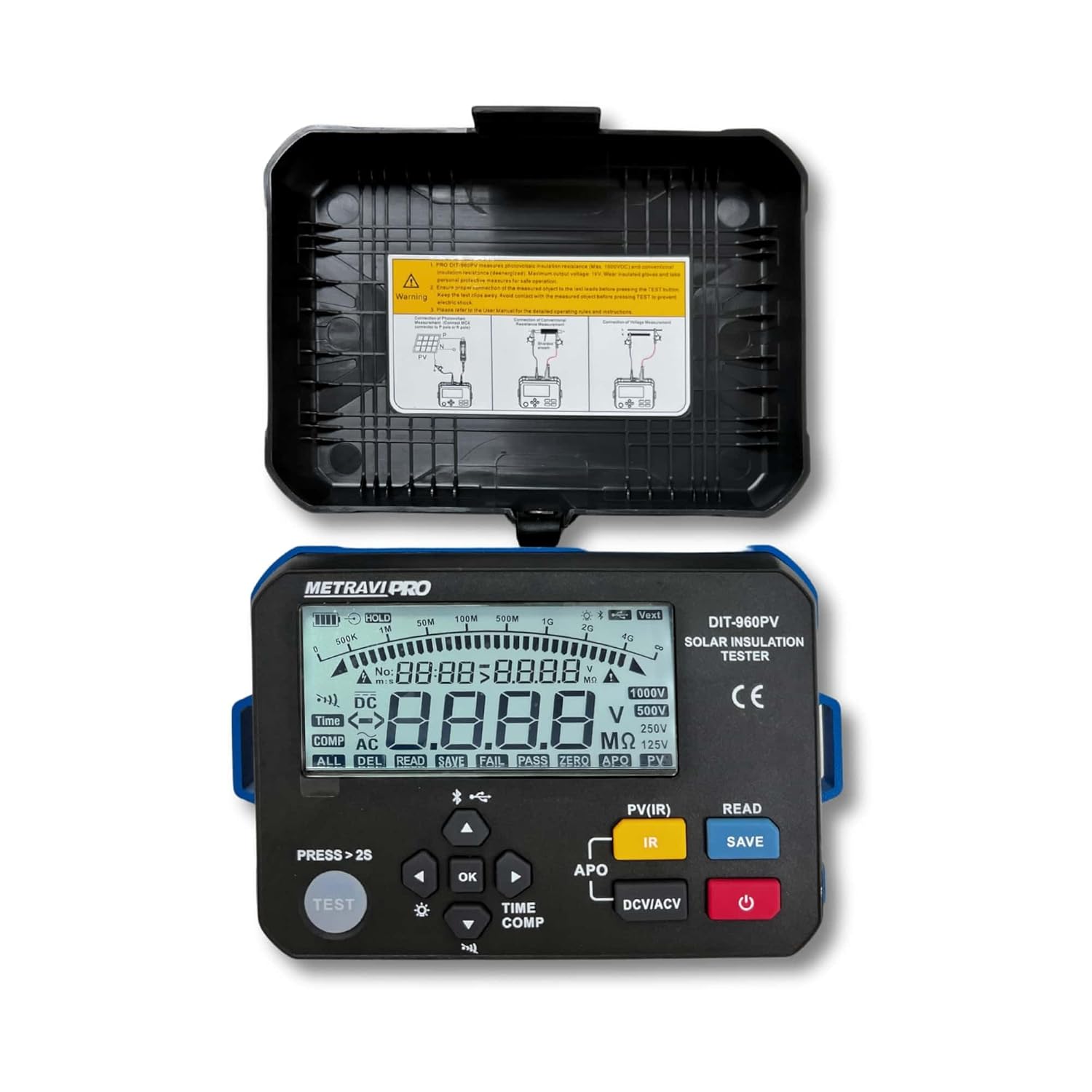

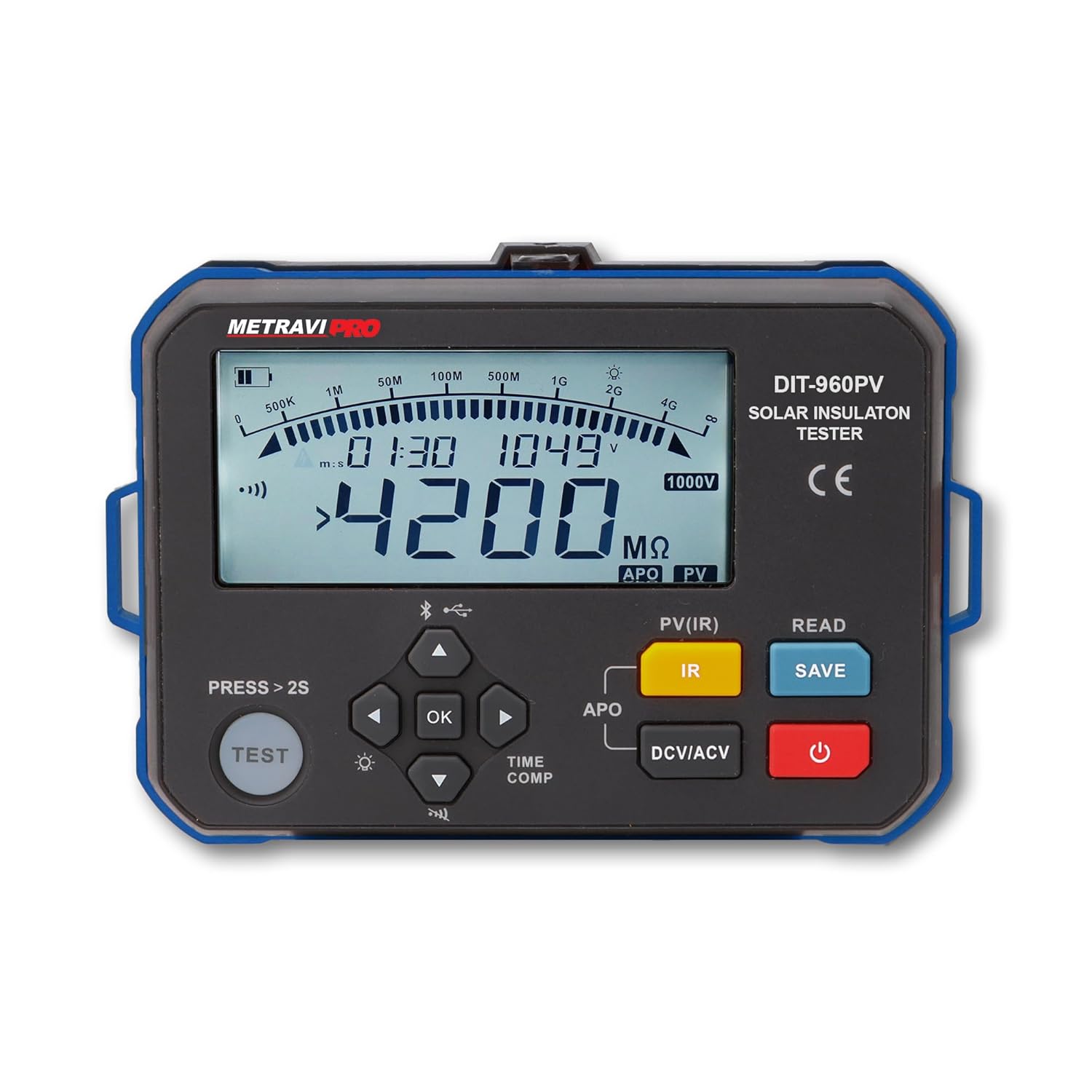

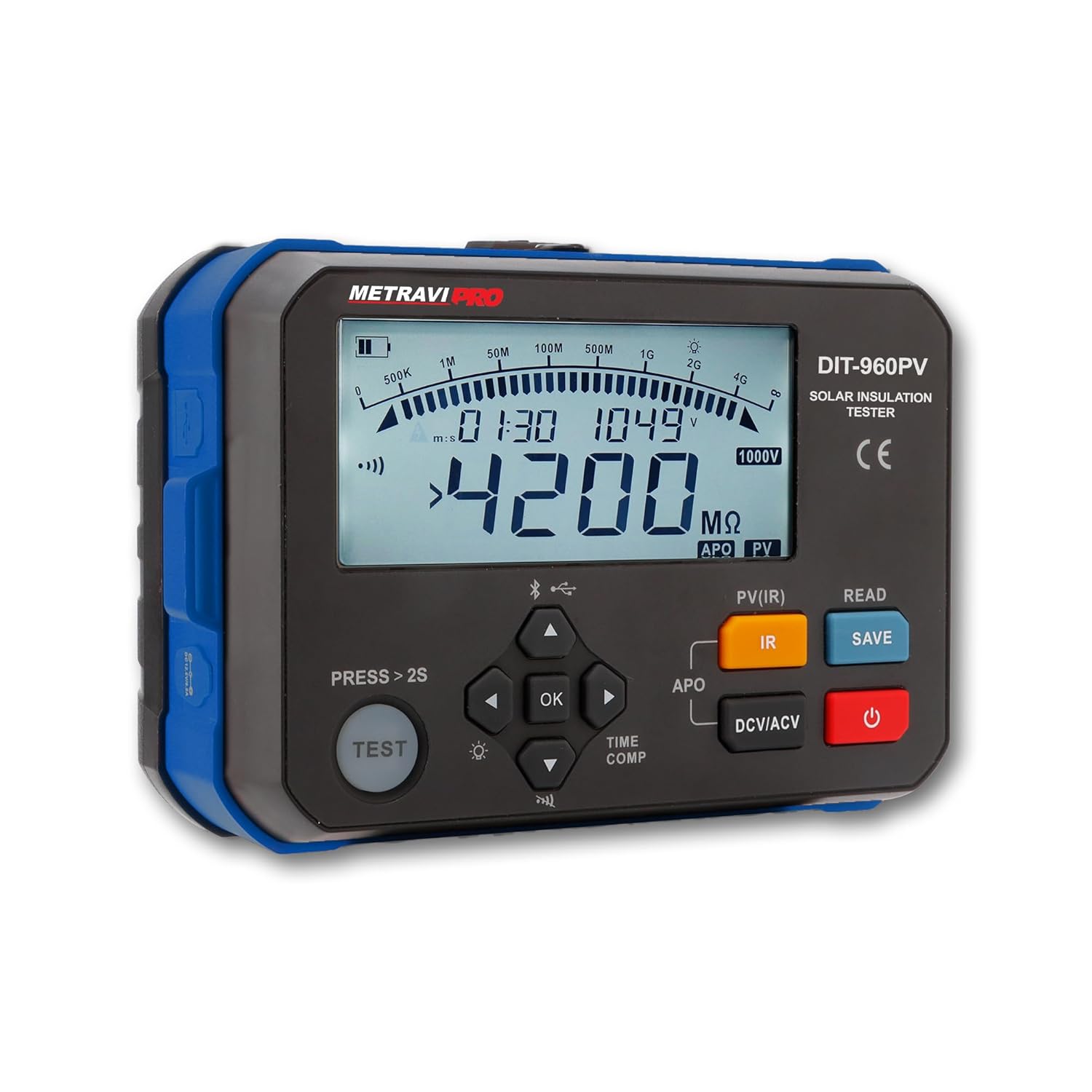

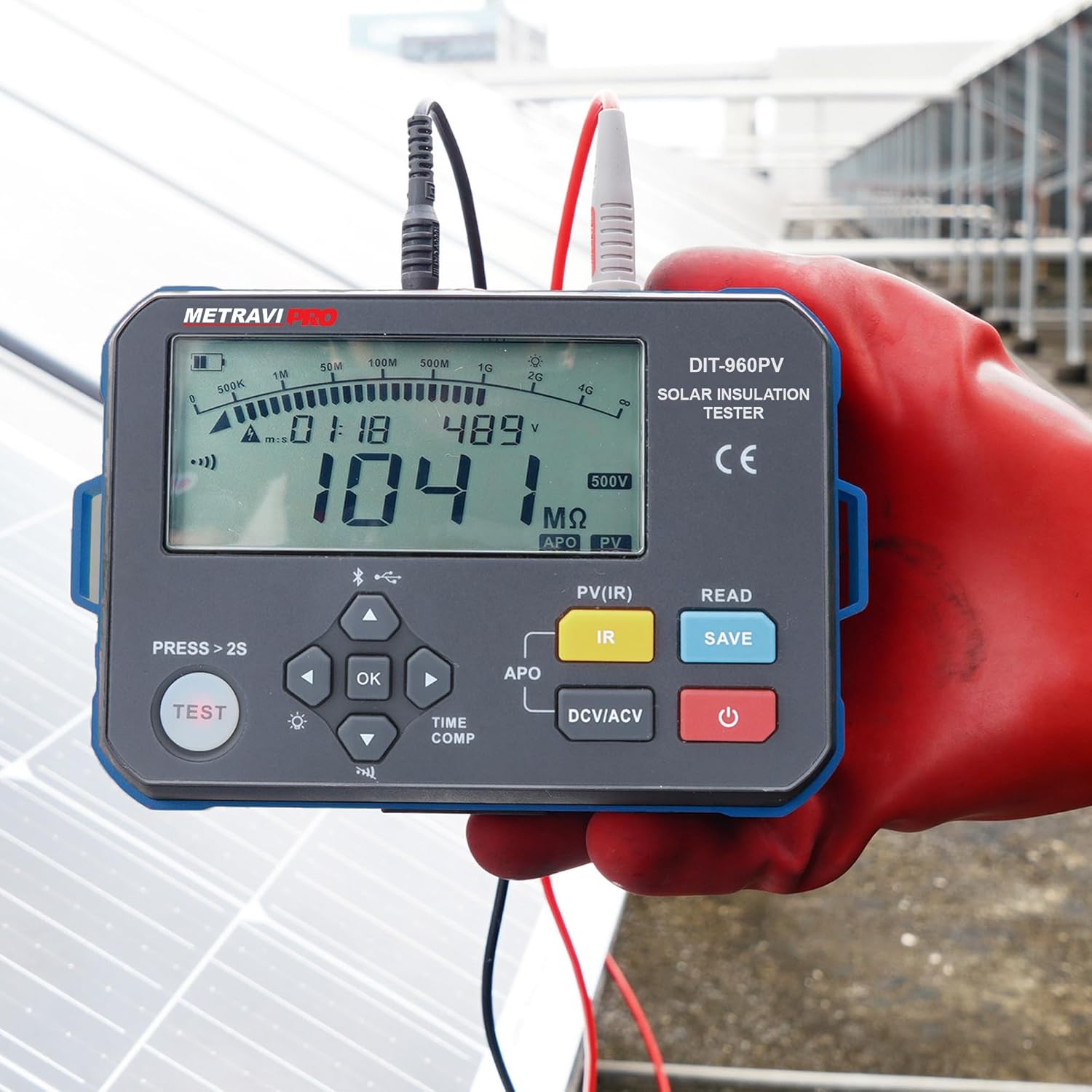

Metravi PRO DIT-960PV Digital Solar Insulation Tester
Metravi PRO DIT-960PV Digital Solar Insulation Tester
Measure Photovoltaic (PV) live insulation resistance 4000MΩ, ordinary insulation resistance function (non-live), AC and DC voltage automatic recognition 1000V. With Automatic Discharge, high Voltage warning, comparative & time-set measurement, Data Logging 1000 sets, USB & Bluetooth Interface for PC data transfer & analysis. IP54 protection, CAT III 600V.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 3,209.00
(GST inclusive price) i₹43,200.00
( - 93% OFF )
Description

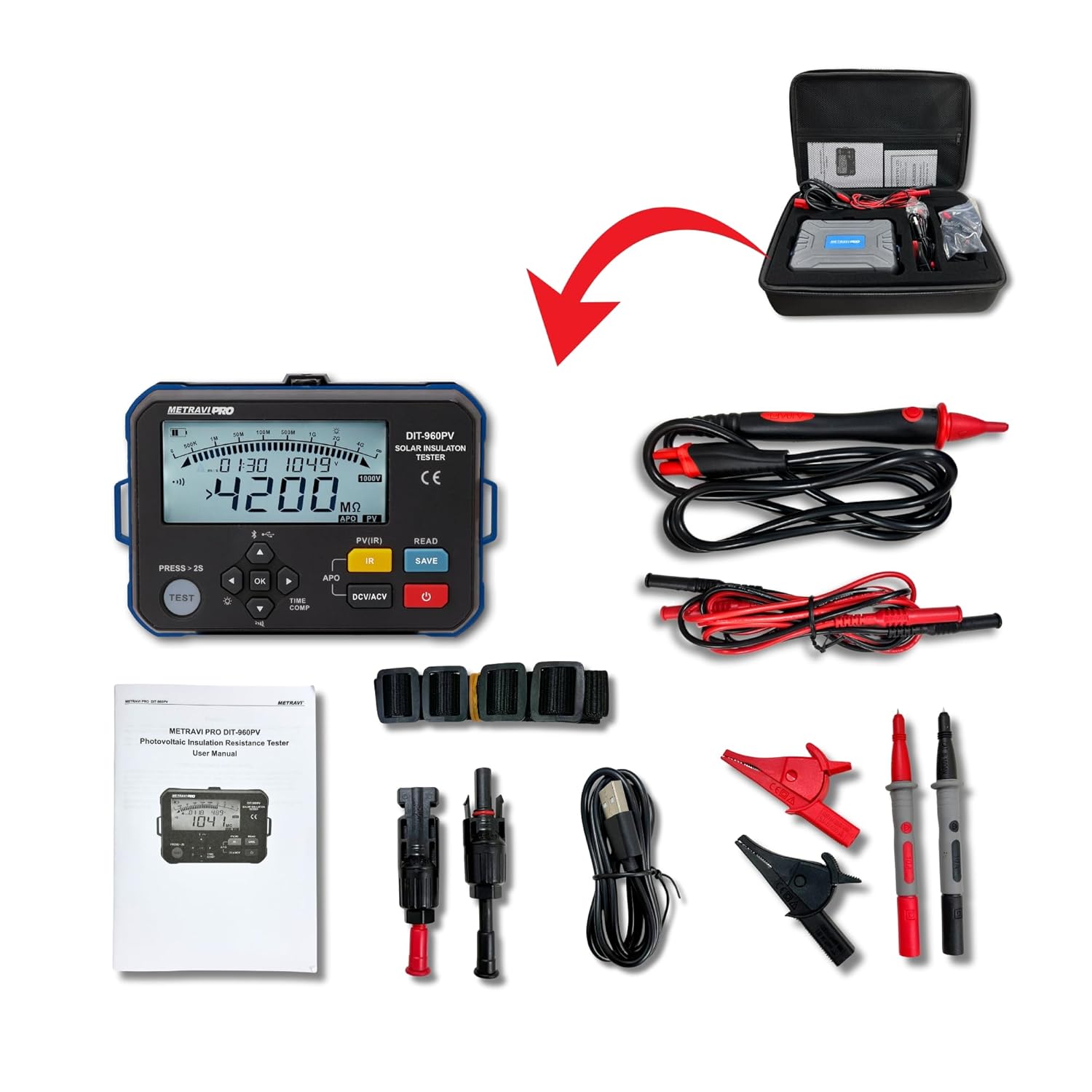

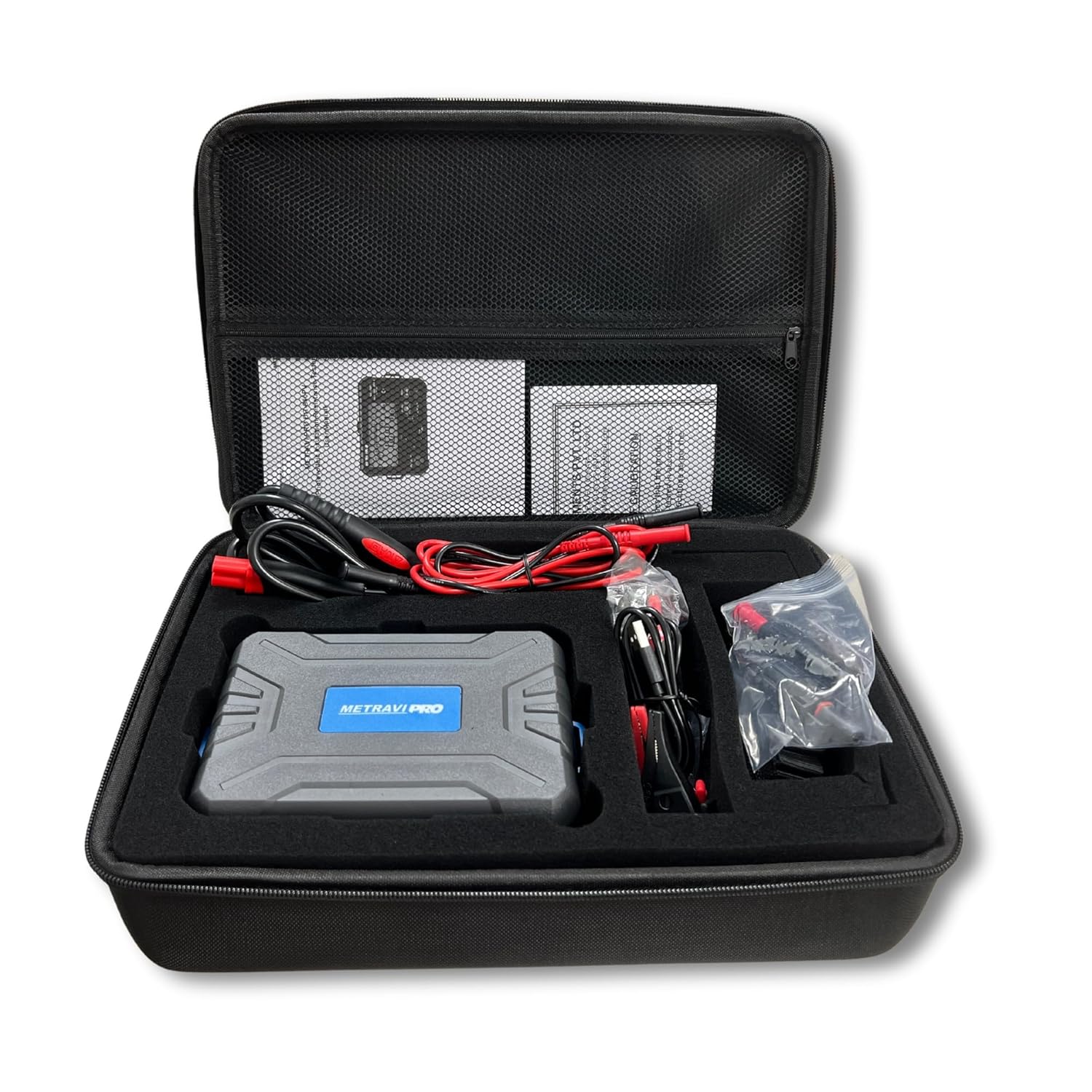

What's in the box?
|
Rating & Reviews
Rating
Power supply Rated voltage | 6X1.5V LR6 AA alkaline batteries 125V, 250V,500V, 1000V |
| Output voltage accuracy | +(0%~20%) |
| Testing range of insulation resistance |
0.125MΩ~4000MΩ |
Testing range of PV insulation resistance Output short-circuit current |
0.50MΩ~4000MΩ <1.5mA |
Continuous measurement of insulation resistance Time-set measurement |
|
Comparative measurement of resistance Voltage testing |
Automatic identification of AC/DC voltage |
| Voltage step | |
Test with external voltage | In conventional insulation resistance testing mode, it is forbidden to test if the external AC/DC voltage is greater than about 25V. |
Test with external voltage
Timer | In PV mode, insulation resistance with external DC voltage of less than 1000V can be tested. Record testing time automatically. Timing range: 0 sec~99 min and 59 sec |
| High voltage warning | If safety voltage is exceeded, the hazardous voltage symbol will flash |
| Automatic discharge | |

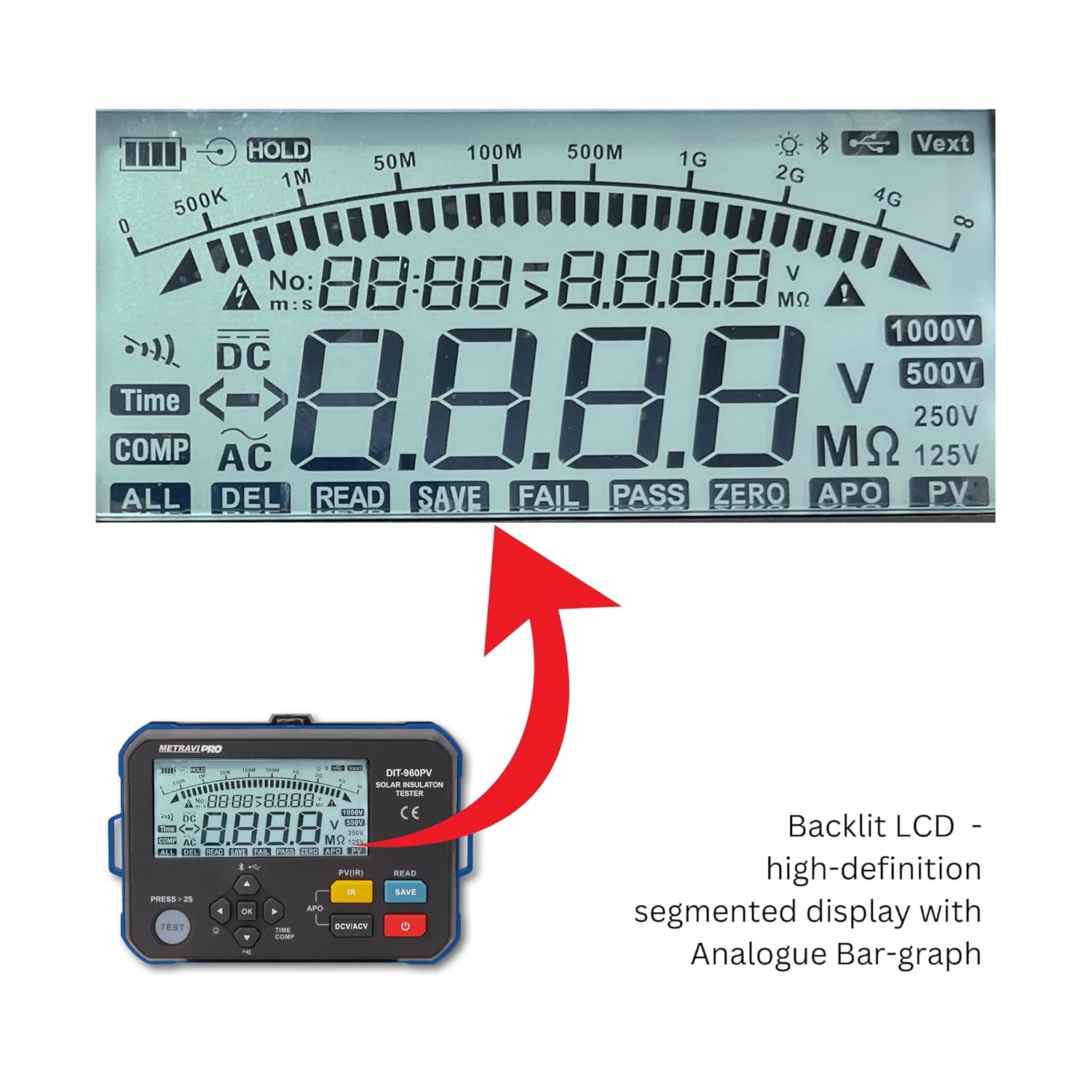

Backlight Data Logging | Manual/Automatic backlight Capable to save 1000 sets of testing data |
| Communication functions Displaying battery power | Upload the data to PC (unidirectional) via USB cable. Data can be uploaded and distributed via the Bluetooth APP.
|
| Auto power off | The Tester powers off after it is ON for 10 minutes (without high voltage being generated and without any operation) |
| Tester dimensions | 161(L) x 117.3(D) x 63(H) mm |
| Tester weight | 0.5kg (including battery) |
| Operating altitude | ≤2000m |
| Drop proof | 1m |
| IP rating | IP54 (Overall protection with coverclosed) |
| Pollution degree | 2 |
| Intended use | Indoor use |
| Operating environment | 0°C ~ 40°C : <80%RH (No condensation) 40°C ~ 50°C : <70%RH |
| Storage environment | -20°C ~ 60°C : <75% (No condensation) |
| Measurement category | CAT II 1000V,CAT III 600V |
| Regulatory compliance | CE EN 61010-1; EN IEC 61010-2-034; EN 61557-1, -2. |
Position | Measurement range | Measurement accuracy | Overrange indication | Short-circuit current |
| <1.51MΩ | For reference only |
|
|
125V | 1.51MΩ~100.0MΩ | ±(1.5%+5) | >1100MΩ |
<1.5mA |
100.1MΩ~1000MΩ | ±(5%+6) | |||
|
| On-load current | ||
|
|
|
| |
| <1.51MΩ | For reference only |
| capacity (Only |
250V | 1.51MΩ~200.0MΩ | ±(1.5%+5) | >2200MΩ | applicable to conventional |
200.1MΩ~2000MΩ | ±(5%+6) | |||
|
| insulation | ||
| <1.51MΩ | For reference only |
| resistance |
500V | >4200MΩ | measurement): 1mA~1.2 mA | ||
1.51MΩ~1000MΩ | ±(1.5%+5) | |||
| 1001MΩ~4000MΩ | ±(5%+6) |
| (125V, 0.125 MΩ); 250V, 0.25 MΩ; |
| <1.51MΩ | For reference only |
| |
1000V | >4200MΩ | 500V, 0.5 MΩ; (1000V, 1.0 MΩ) | ||
1.51MΩ~1000MΩ | ±(1.5%+5) | |||
| 1001MΩ~4000MΩ | ±(5%+6) |
|
|
PHOTOVOLTAIC (PV) INSULATION RESISTANCE
| Position | Measurement range | Measurement accuracy | Overrange indication | Short-circuit current |
500V | <1.51MΩ | For reference only |
>4200MΩ |
<1.2mA |
1.51MΩ~1000MΩ 1001MΩ~4000MΩ | ±(1.5%+5) ±(5%+6) | |||
1000V | <1.51MΩ | For reference only |
>4200MΩ | |
| 1.51MΩ~1000MΩ | ±(1.5%+5) | |||
| 1001MΩ~4000MΩ | ±(5%+6) |
OUTPUT VOLTAGEFOR CONVENTIONAL INSULATION RESISTANCE
Rated voltage | Output accuracy | Display accuracy | Output voltage range | Remark |
|
|
|
| Inconventional testing |
|
|
|
| mode, the step voltage |
| 125V |
|
| 125V~150V | can be adjustedas: |
|
|
|
| For125V position: |
|
|
|
| 125V, 138V,150V |
|
|
|
| For250V position: |
| 250V |
|
| 250V~300V | 125V, 150V,175V, 200V, 225V, 250V, |
|
|
|
| 275V, 300V |
| ±(0%~20%) | 1V |
|
|
|
|
|
| For500V position: |
| 500V |
|
| 500V~600V | 250V, 300V,350V, 400V, 450V, 500V, |
|
|
|
| 550V, 600V |
|
|
|
|
For 1000Vposition: |
| 1000V |
|
| 1000V~1200V | 500V, 600V, 700V, |
|
|
|
| 800V, 900V,1000V |
