Metravi DIT-921 Digital Insulation Tester Battery cum Mains Operated
Click To Zoom

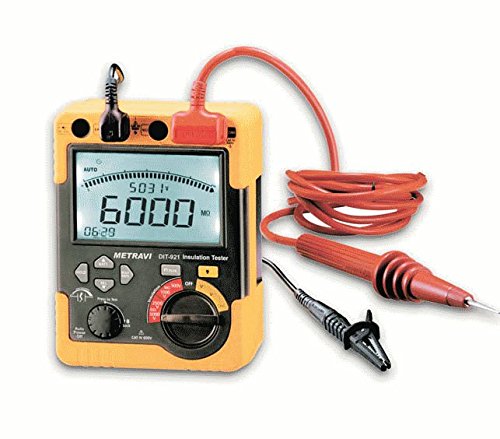

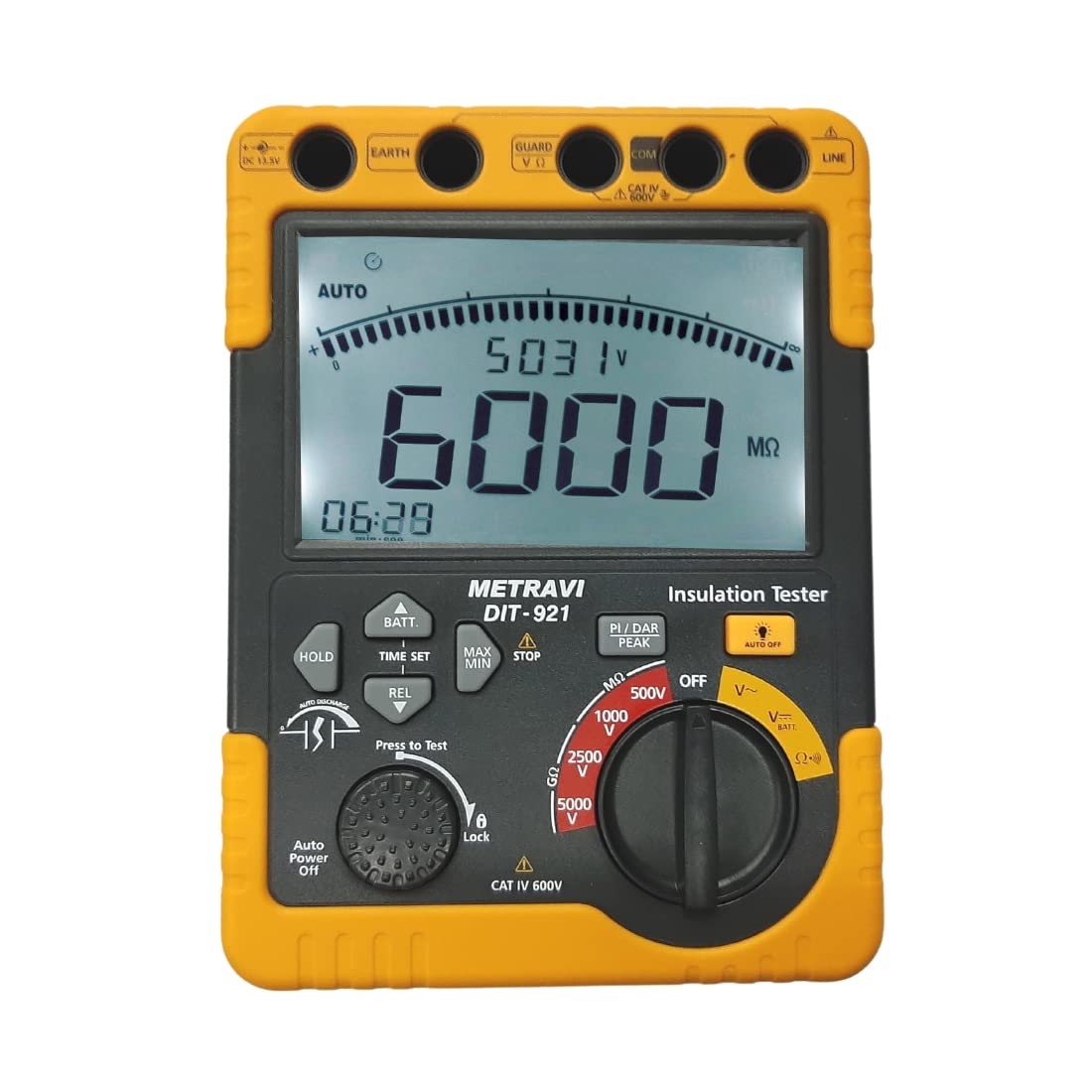

Metravi DIT-921 Digital Insulation Tester Battery cum Mains Operated
Metravi DIT-921 Digital Insulation Tester Battery cum Mains Operated
Battery cum Mains Operated, with facility to measure, PI, DAR, AC Voltage, Low Resistance, Continuity, 500V/6G.Ohms, 1000V/6G.Ohms, 2500V/60G.Ohms, 5000V/60G.Ohms
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 31,152
(GST inclusive price) i-
Base Value: ₹ 26400
-
GST: (18) % ₹ 4752
-
Total Value ₹ 31152
₹44,550.00
( - 30% OFF )
Description
Key Features
- Designed to following safety standards: IEC 61010-1 (CAT IV 600V Pollution degree 2) IEC 61010-031 (Requirements for hand-held probes)
- Insulation test range: 0.1MΩ to 60GΩ
- Insulation test voltages: 500 V,1000V,1500V,5000V
- AC/DC voltage: 0.5 V to 600 V
- 200 mA Continuity
- Resistance: 0.1 Ω to 6kΩ
- Battery Cum Mains Operated
- With auto-discharge function & voltage output warning function
- Backlight levels selector function to facilitate working at dimly illuminated location or at nighttime work.
- LIVE circuit warning symbols plus audible warning.
- Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
- With Auto-power off function & battery check.
- With Timer measurement function : Automatically performs a measurement at the set time.
- With Polarization index measurement (PI)
- With Dielectric absorption ratio measurement (DAR)
- Auto ranging with larger 6000 counts LCD display with bargraph
- MAX/MIN, PEAK,Relative value & Data hold functions for DC/AC voltage measurments.
- Accuracy: +2.5%

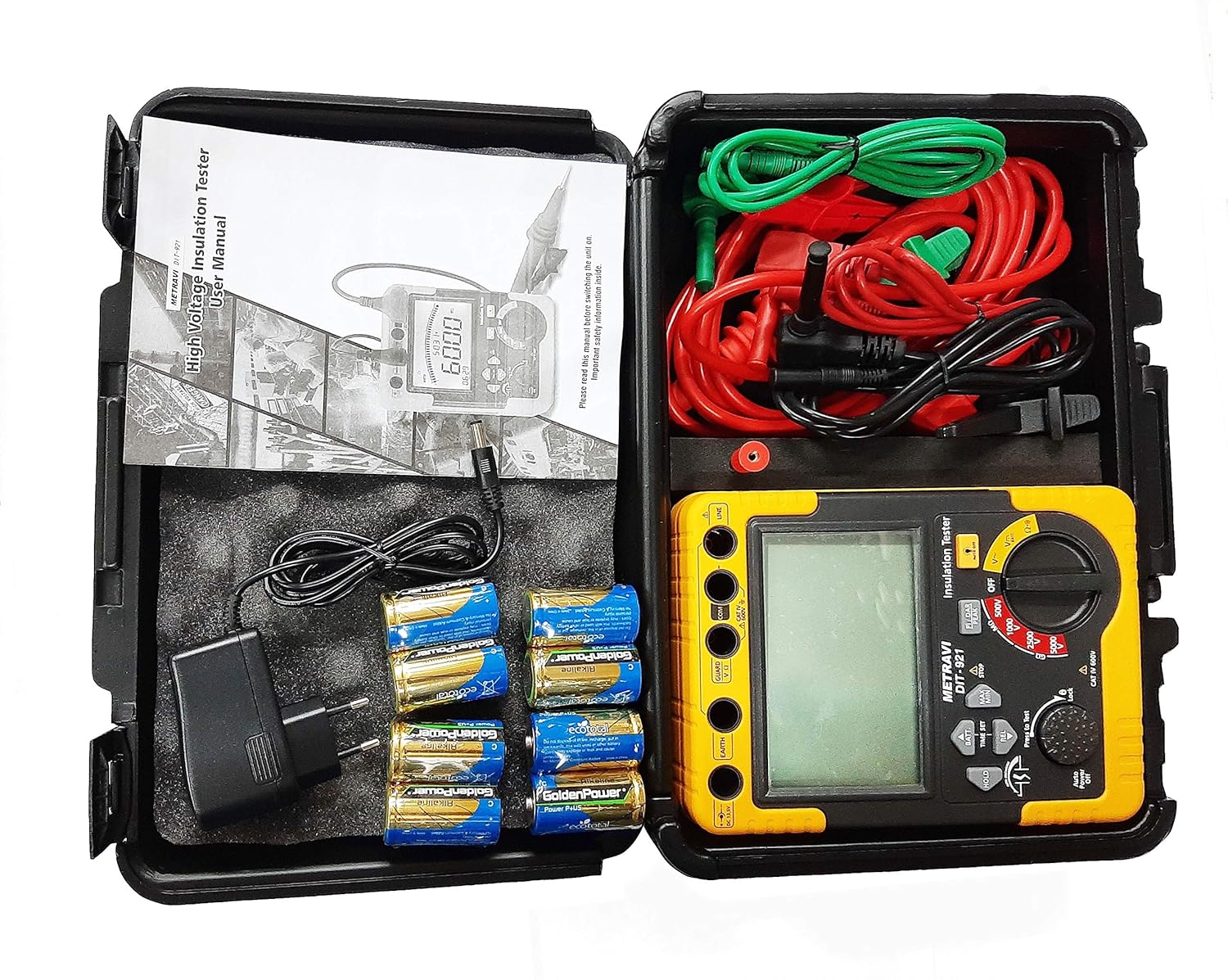

What's in the box?
|
Rating & Reviews
Rating
GENERAL
| Applicable standards | IEC 1010 CAT IV 600V overvoltage and double insulation standard |
| Display | 6000 counts LCD display with bargraph |
| Sampling rate | 2.5 readings per second |
| Over range indicator | “OL” displayed |
| Fuse | 500mA/600V (ϕ 6X32mm) ceramic 3AG Fast blow |
| Zero adjust Automatic Auto power off | Power off function operates automatically after a switch remains for 20 min (current consumption approx. 50uA) |
| Low battery indicator | Low battery symbol displayed when battery voltage is low |
| Environmental Installation | 8 x 1.5V (R14) batteries |
| Operating conditions | 0 to 40ºC (32 to 104ºF);<80% RH |
| Storage condition | -10 to 60ºC (14 to 140ºF); 80% RH |
| Dimensions | 198(L) x 148(W) x 86(D) mm |
| Weight | 1438g |
| Insulated Resistance Measurement | ||||
| Rated Voltage | 500V | 1000V | 2500V | 5000V |
Measuring Range (Auto Ranging) | 0.005 to 6.000MΩ | 0.005 to 6.000MΩ | 0.05 to 60.00MΩ | 0.05 to 60.00MΩ |
6.01 to 60.00MΩ | 6.01 to 60.00MΩ | 60.1 to 600.0MΩ | 60.1 to 600.00MΩ | |
60.1 to 600.0MΩ | 60.1 to 600.0MΩ | 0.61 to 6.000GΩ | 0.61 to 6.000GΩ | |
0.61 to 6.00GΩ | 0.61 to 6.000GΩ | 6.1 to 60.00GΩ | 6.1 to 60.00GΩ | |
| Open Circuit Voltage | DC 500V+20%, -0% | DC 1000V +20%,-0% | DC 2500V +20%,-0% | DC 5000V +20%,-0% |
| Rated Current | 1 to 1.2mA (at 0.5MΩload) | 1 to 1.2 mA (at 1MΩ load) | 1 to 1.2 mA (at 2.5MΩload) | 1 to 1.2 mA (at 5MΩ load, Recomm- ended use of the Power Adaptor) |
| Short-Circuit Current | Approx. 1mA | |||
| Accuracy | ± 2.5% reading ± 15 digits (at 0.005 to 600.0MΩ) ± 3% reading ± 15 digits (at 0.61 to 6.00MΩ) ± 4% reading ± 15 digits (at 6.1 to 60.0GΩ) | |||
| Voltage Monitor Range | 5 to 6000VDC (Resolution 1V); Accuracy: ± 1.5% reading ± 5 digits | |||
Note: This monitor is used to check whether electric charge stored on the equipment under test is discharged or not. Measured voltage value displayed on the LCDis a reference value. Pleasebe noted thatthe indicated value,when external AC or DC Voltage is applied to the instrument is not thecorrect value, is display “>30V”. | ||||
