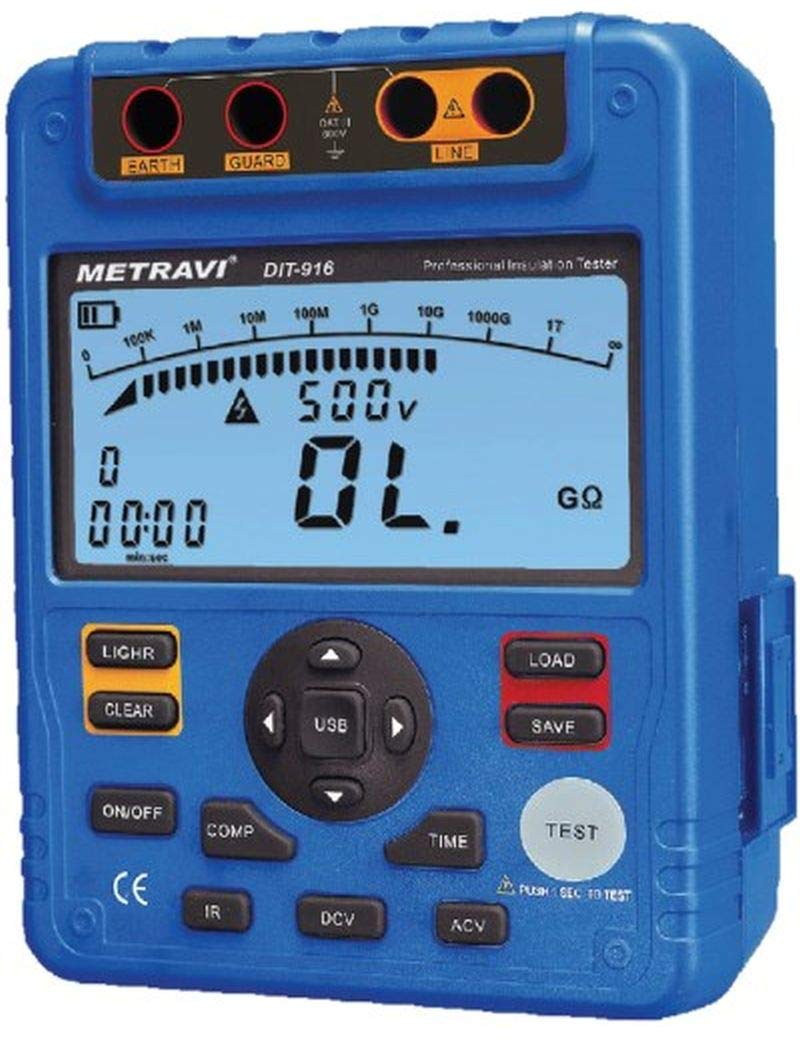

Metravi DIT-916 Digital Insulation Tester

Product Specifications

GENERAL

Display (LCD) : Digital : 9999 counts Analog bar graph
Display Backlight : Bright Backlight for clear readings in poorly lighted areas
Computer Connection : Via USB interface
Data Logging and Recall : 18 sets
Auto Range : The meter automatically selects best range
Warning : Displayed on the instrument
Test Voltage : Automatically source the voltage
COMP Measurement : Used for Compare function to set a pass/fail compare level for the insulation measurement

PI Measurement : Polarisation Index is the ratio of insulation resistance. Preset the time for two points and the Meter will carry out the measurement automatically
Time : To carry out measurement by setting a specified time within 15 minutes
Over Loading : Display OL on insulation resistance range
Battery Indicator : Display
Icon Display : Equips with function and battery indicator icons
Current Consumption : Maximum : Around 1.0A, Average Around 20mA
Operating Temperature : -10˚C ~ 40˚C (14˚F ~ 104˚F)
Storage Temperature : -20˚C ~ 60˚C ( -4˚F ~ 152˚F)
Relative Humidity : ≤ 85% @ 0˚C ~ 40˚C below ≤ 90% @ -20˚C ~ 60˚C
Power Supply : 8pcs of 1.5V (LR14) batteries.Power Power adaptor is optionally available at extra cost (input voltage 230V, 50/60Hz, 150mA, input DC15V, 1.0A)
Dimensions (HxWxL) : 202 x 155 x 94 mm
Weight : Approx. 2kg (including battery)

Accuracy : ± (% of reading) + (number of least significant digits)
Operating temperature : 18°C ~ 28°C
Relative Humidity : 45 ~ 75%RH

TECHNICAL

VOLTAGE MEASUREMENT

	DC Voltage	AC Voltage
Measurement	±30 ~ ±600V	30V ~ 600V (50/60Hz)
Resolution	1V
Accuracy	±(2% + 3)

INSULATION RESISTANCE MEASUREMENT

Output V	500 V	1000 V	2500 V	5000 V
Display Range	0.0MW ~ 20GΩ	0.0MW ~ 40GΩ	0.0MΩ ~ 100GΩ	0.0MΩ ~ 1000GΩ
Open Circuit Voltage	DC 500V 0% ±20%	DC 1000V 0% ±20%	DC 2500V 0% ±20%	DC 5000V 0% ±20%
Test Current	1mA ~ 1.2mA @ 500kΩ	1mA ~ 1.2mA @ 1MΩ	1mA ~ 1.2mA @ 2.5MΩ	1mA ~ 1.2mA @ 5MΩ
Accuracy	0.0MΩ ~ 99.9MΩ: ±(3%+5) 100MΩ ~ 9.99GΩ: ±(5%+5) 10.0GΩ ~ 20.0GΩ: ±(10%+5	0.0MΩ ~ 99.9MΩ: ±(3%+5) 100MΩ ~ 9.99GΩ: ±(5%+5) 10.0GΩ ~ 40.0GΩ: ±(10%+5)	0.0MΩ ~ 99.9MΩ: ±(3%+5) 100MΩ ~ 9.99GΩ: ±(5%+5) 10.0GΩ ~ 100GΩ: ±(10%+5)	0.0MΩ ~ 99.9MΩ: ±(3%+5) 100MΩ ~ 9.99GΩ: ±(10%+5) 10.0GΩ~ 99.9GΩ: ±(5%+5) Above 100GΩ: ±(20%+5) Humidity : Below 50%]
Short Circuit	Maximum than 2.0mA
