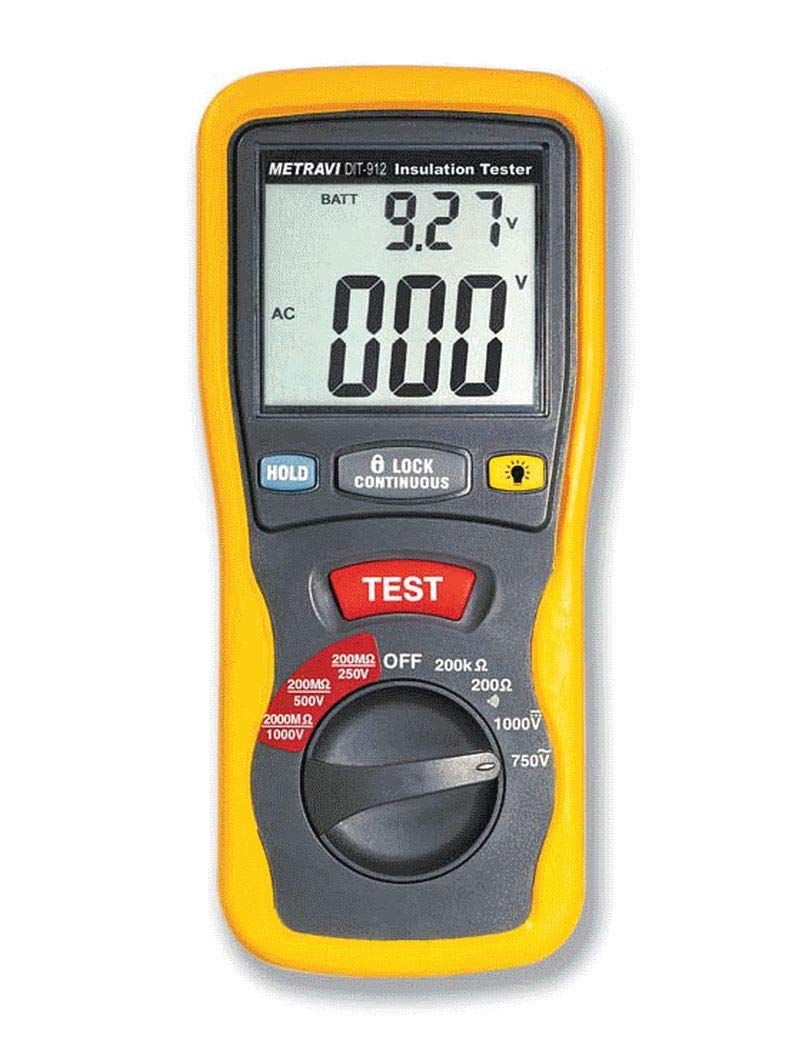

Metravi DIT-912 Fully-protected Digital Insulation Tester with Analogue Bargraph
Click To Zoom
Metravi DIT-912 Fully-protected Digital Insulation Tester with Analogue Bargraph
Metravi DIT-912 Fully-protected Digital Insulation Tester with Analogue Bargraph
Metravi DIT‑912 is a 1 kV digital insulation tester featuring a dual backlit LCD, measuring insulation up to 200 MΩ @ 250/500 V and 2000 MΩ @ 1000 V, also supports low resistance & continuity testing, with data hold, output lock for hands‑free operation, and protected body design for field use.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 11,330
(GST inclusive price) i-
Base Value: ₹ 9601.7
-
GST: (18) % ₹ 1728.3
-
Total Value ₹ 11330
₹16,200.00
( - 30% OFF )
Description
Key Features
- Insulation testing up to 2000 MΩ @ 1000 V.
- Supports 250 V, 500 V, 1000 V test voltages.
- Measures AC (750 V) and DC (1000 V) voltages.
- Continuity and low resistance testing.
- Dual backlit LCD with analog bar graph.
- Output lock for hands-free operation.
- Data hold function.
- Audible continuity buzzer.
- Rugged, splash-proof body.
- CE & IEC 61010-1 compliant.
What's in the box?
|
Rating & Reviews
Rating
OHMS
Range | Resolution | Accuracy | Max. open Circuit Voltage | Overload Protection |
200Ω | 0.1Ω | ± (1% + 2) | 4.5V | 250Vrms |
200kΩ | 0.1kΩ | 3.0V |
DC Voltage
Range | Resolution | Accuracy | Max. open Circuit Voltage | Overload Protection |
1000V | 1V | ± (0.8% + 3) | 10MΩ | 1000Vrms |
Countinuity Beeper
Range | Resolution | Accuracy | Max. open Circuit Voltage | Overload Protection |
| 0.1Ω | Resistance ≤ 40Ω | 4.5V | 250Vrms |
| Short circuilt current | ≤ 200mA | |||
AC Voltage (40Hz~400Hz)
Range | Resolution | Accuracy | Max. open Circuit Voltage | Overload Protection |
750V | 1V | ± (1.2% + 10) | 10MΩ | 750 Vrms |
Mega OHMS
| Range | Resolution | Accuracy | Terminal Voltage |
| 200MΩ/250V | 0.1MΩ | ± (3% + 5) | 250V ± 10% |
| 200MΩ/500V | 0.1MΩ | 500V ± 20% | |
| 0 ~ 1000MΩ/1000V | 1MΩ | 1000V ± 10% | |
| 1000 ~ 2000MΩ/1000V | ± (5% + 5) |
| Range | Test Current | Short circuit current | |
| 200MΩ/250V | 1mA | 250kΩ (load) | ≤1mA |
| 200MΩ/500V | 500kΩ (load) | ||
| 0 ~ 1000MΩ/1000V | 1MΩ | ||
| 1000 ~ 2000MΩ/1000V | |||
