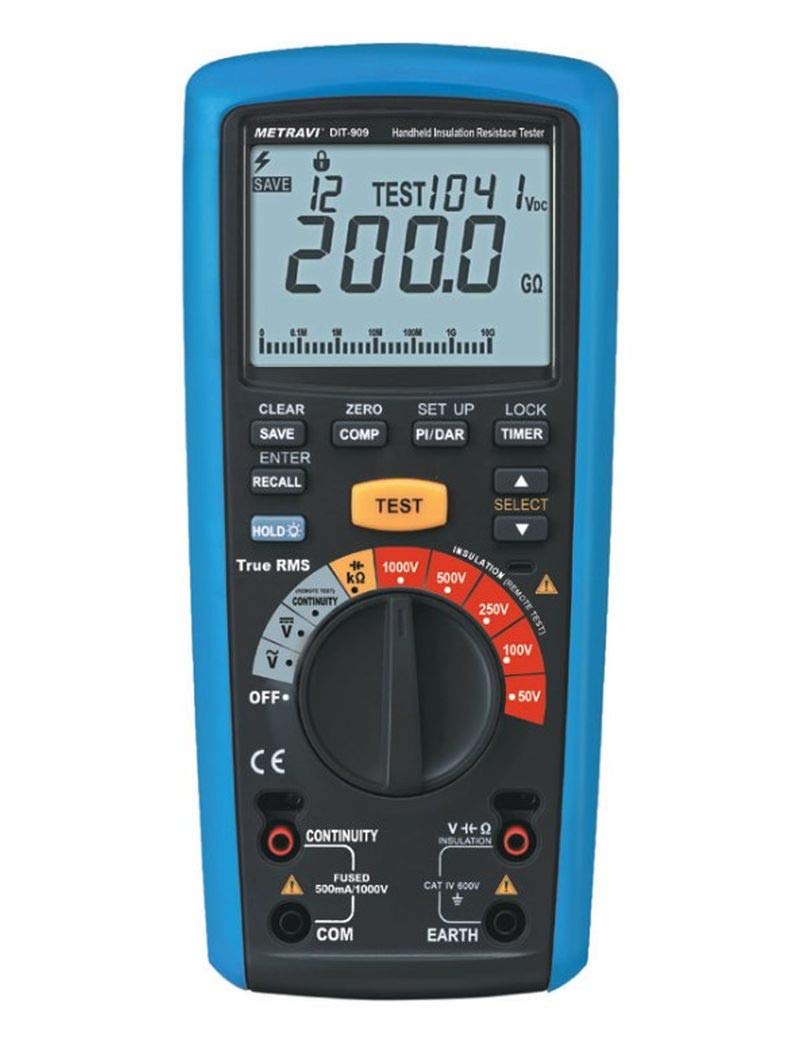

Metravi DIT-909 Digital Insulation Tester
Click To Zoom
Metravi DIT-909 Digital Insulation Tester
Metravi DIT-909 Digital Insulation Tester
DIT-909 a digital Insulation Resistance Testing Instrument. The complete equipment is brand new degin with large-scale integrated circuit, accomplices measuring of Insulation Resistance, DC Voltage, AC Voltage, Continuity, Resistance Capacitance and other Parameters; it offers more complete function, higher accuracy, more stable performance, and more convenient & reliable operation. It’s application includes measuring IR on various electrical devices such as voltage transformer, motor, cable, switch, electrical appliance and insulation resistance for insulation materials, maintenance, testing and verification on variouse electrical device.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 31,095.00
(GST inclusive price) i₹41,850.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
• Display : Backlit liquid crystal display with maximum display reading of up to 9999;
• Low-battery warning
• Over-range indicatior : mark of “>” appears on tap positions of insulation Resistance and Continuity;
• Auto Ranging;
• Unit display : display of symbols for functions and power unit;
• Operationg conditions : 0°C -40°C / relative humidity of 85% or lower;
• Storing conditions : -20°C -60°C / relative humidity of 90% or lower;
• Dimensions : mm (225L) x mm (103W) x mm (59D);
• Current consumption : about 500mA ( 1000V at maximum in output) (about 17mA in normal state);
• The instrument is designed and produced in strict accordance with IEC61010 safety standard, and complies with the safety standards for over-voltage (CAT IV 600V) and pollution level II;
• Function of automatic voltage discharge
• Backlight function is convenient for operation in dark light;
• Red warning indicator;
• Altitude : ≤ 2,000m;
• Weight : 0.7kg (with batteries)
Measuring of AC voltage:(T-RMS)
| Measurement Range | Minimum Resolution | Range of Valid Frequency in Accuracy: 45Hz-450Hz |
| 0~ 600V | 0.01V | ±(1.5%+5) |
Measuring of Frequency (Auxiliary Display of AC Voltage Tap position):
| Measurement Range | Minimum Resolution | Range of Valid Frequency in Accuracy: 45Hz-450Hz |
| 45 ~ 1KHz | 0.1Hz | ±(0.1%+3) |
Measuring of DC Voltage:
| Measurement Range | Minimum Resolution | Accuracy |
| -600 ~ 600V | 0.01V | ±(2%+3) |
Measuring of continuity:
Measured Current | Measurement Range | Minimum Resolution | Accuracy |
20m A | 0.01W - 100W | 0.01W | ±(1.5%+5) |
Measuring of Resistance:
| Measurement Range | Minimum Resolution | Accuracy |
0. 001KW - 10MW | 0. 001KW | ±(3%+3) |
Measuring of Capacitance:
| Measurement Range | Minimum Resolution | Accuracy |
0.1 nF - 500mF | 0.1 nF | ±(5%+5) |
Measuring Insulation Resistance:
Measured Current | Measurement Range | Minimum Resolution | Accuracy |
50V (0~+20%) | 0.00MΩ ~ 0.99GΩ | 0.01MΩ | ±(3%±3) |
1.00GΩ ~ 10.0GΩ | 0.01GΩ | ±(3%+3) Reading ± 4%/GW | |
100V (0~+20%) | 0.00MΩ ~ 0.99GΩ | 0.01MΩ | ±(3%±3) |
1.00GΩ ~ 20.0GΩ | 0.01GΩ | ±(3%+3) Reading ± 2%/GW | |
250V (0~+20%) | 0.00MΩ ~ 0.99GΩ | 0.01MΩ | ±(3%±3) |
1.00GW ~ 50GW | 0.01GΩ | ±(3%+3) Reading ± 8%/GW | |
500V (0~+20%) | 0.00MΩ~ 0.99GΩ | 0.01MΩ | ±(3%±3) |
1.00GΩ ~ 100GΩ | 0.01GΩ | ±(3%+3) Reading ± 4%/GW | |
1000V (0~+20%) | 0.00MΩ ~ 0.99GΩ | 0.01MΩ | ±(3%±3) |
1.00GΩ ~ 200GΩ | 0.01GΩ | ±(3%±3) Reading ± 2%/GW |
