Metravi PRO 589 Digital TRMS Multimeter
Click To Zoom
Metravi PRO 589 Digital TRMS Multimeter
Metravi PRO 589 Digital TRMS Multimeter
Professional True RMS Industrial Digital Multimeter and TFT color LCD display, providing fast A/D converting sampling time, high accuracy, built-in data logging, and Trend Capture features. AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency (electrical & electronic), Duty Cycle, Diode Test, Insulation Test, and Continuity plus Thermocouple Temperature. It can store and recall data. It features a waterproof, rugged design for heavy duty use.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 23,130
(GST inclusive price) i-
Base Value: ₹ 19601.7
-
GST: (18) % ₹ 3528.3
-
Total Value ₹ 23130
₹33,075.00
( - 30% OFF )
Description
Key Features
- 50,000 Counts TFT LCD Colour Display
- 100kHz Bandwidth

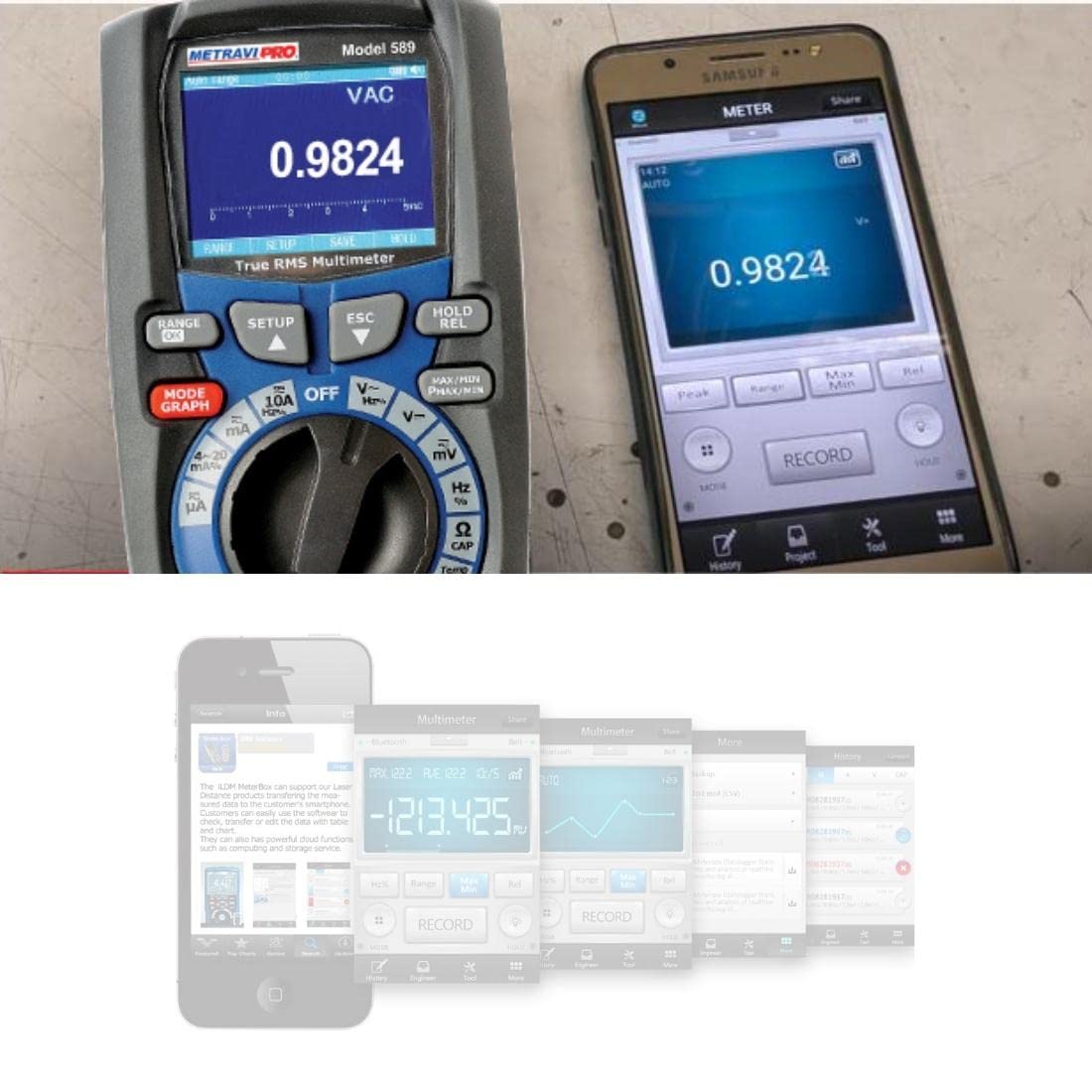

- Bluetooth interface for PC / Smartphone connection
- Trend Capture facility
- Low Pass Filter
- Surge Protection up to 8kV peak as per IEC 61010
- Full Overload Protection
- UL Certified
- CATIII 1000V, CATIV 600V
- 0.05% Accuracy
- MAX / MIN / AVG readings can be seen on the same screen with the live parameter
- PEAK MAX / PEAK MIN readings can be recorded
- Peak values of transients up to 250uS can be recorded
- AC+DC Measurement
- Relative Function and Data Hold Facility
- Data Logging Capability
- Histogram Data viewable with time stamp
- Real Time Data Recoding with Date and Time Stamp
- User Selectable Recording function
- Cursor Measurements on Trend Graphs
- Zoom in function on Trend Capture
- Rechargeable Battery with Battery Charger
- Auto Power Off with Manual Over-ride function
- Overload Indication
- T-RMS Measurements
What's in the box?
|
Rating & Reviews
Rating
GLOBAL
Polarity : Automatic (no indication for positive); Minus (-) sign for negative
Measurement Rate : 20 times per second, nominal
Low Battery Indication : “ ” is displayed if battery voltage drops below operating voltage
Battery : 7.4 Volts Rechargeable Lithium Battery
Fuses : mA, mA ranges; 0.8A/1000V ceramic fast blow A
range; 10A/1000V ceramic fast blow
Operating Temperature : 5°C to 40°C (41°F to 104°F)
Storage Temperature : -20°C to 60°C (-4°F to 140°F)
Operating Humidity : Max 80% up to 31°C (87°F)” decreasing linearly to 50% at 40°C (104°F)
Storage Humidity : 50% at 40°C (104°F)
Operating Altitude : <80% 7000ft. (2000meters) maximum
IP Rating : 67) (IP Proof Dust And Proof Water
TECHNICAL
AC Voltage
Range | Resolution | 50/60Hz | <1KHz | <5KHz | ≤100KHz [1] |
500mV | 0.01mV | ±0.5% | ±1.5% | ±3.0% | ±5.5% |
5V | 0.0001V | +5 | +5 | +5 | +20 |
50V | 0.001V |
|
|
|
|
500V | 0.01V | ±1.5% | ±3.5% | Unspecifie | |
|
|
| +10 | +10 | |
1000V | 0.1V |
|
| Unspecifie | Unspecifie |
[1] Upper10% of range,sine wave. Low Pass Filter : RANG 1000V 50/60Hz (+-1%+10) 40-400Hz (+-3%+10) > 3KHz (-3dB) | |||||
DC Voltage
RANGE | RESOLUTION | ACCURACY |
500mV[1] | 0.01mV | (0.1% + 5digits) |
5V | 0.0001V | (0.05% + 5digits) |
50V | 0.001V | (0.05% + 5digits) |
500V | 0.01V | (0.05% + 5digits) |
1000V | 0.1V | (0.1% + 5) |
[1] Whenusing the relative mode (REL Q ) to compensate for offsets. | ||
(AC + DC)
Range | Resolution | <1KHZ | <5KHZ |
5V | 0.0001V | (1.5% + 20) | (3.0% + 20) |
50V | 0.001V | ||
500V | 0.01V | ||
1000V | 0.1V |
Resistance
RANGE | RESOLUTION | ACCURACY |
500W [1] | 0.01W | 0.20% + 10 |
5KW | 0.0001kW | 0.20% + 5 |
50KW | 0.001kW | 0.20% + 5 |
500KW | 0.01kW | 0.50% + 5 |
5MW | 0.0001MW | 0.50% + 5 |
50MW | 0.001MW | 2.0% +10 |
[1] Whenusing the relative mode (REL Q ) to compensate for offsets. | ||
Temp(type-K)
RANGE | RESOLUTION | ACCURACY |
-200 to 1350°C |
0.1C | ±(1.0% reading +3.0°C) ±(1.0% reading +5.4°F) (probe accuracy not included) |
1. Doesnot include errorof the thermocouple probe. | ||
2. Accuracy specification assumes ambient temperature stable to ±1°C | ||
3. Usea long time,reading will increase 2°C | ||
4. <-50°C Temp Rang accuracy ± (3%+5°C) | ||
DC Current
RANGE | RESOLUTION | ACCURACY |
| 500mA | 0.01mA | ±0.2%+5 |
5000mA | 0.1mA | ±0.2%+5 |
| 50mA | 0.001mA | ±0.2%+5 |
| 500mA | 0.01mA | ±0.3%+8 |
| 10A | 0.001A | ±0.5%+8 |
AC Current
RANGE | RESOLUTION | ACCURACY | |
|
| <1KHZ | <5KHZ |
| 500mA | 0.01mA | ±(0.8% +5) | ±(3% +5) |
| 5000mA | 0.1mA | ||
| 50mA | 0.001mA | ||
| 500mA | 0.01mA | ||
| 10A | 0.001A | ||
(20A : 30 sec max withreduced accuracy) | |||
All AC currentranges are specified from 5% of range to 100% of range | |||
Capacitance
RANGE | RESOLUTION | ACCURACY |
| 5nF [1] | 0.001nF | ±(1.5% +20) |
| 50nF | 0.01nF | ±(1.5% +8) |
| 500nF | 0.1nF | ±(1.0% +8) |
5mF | 0.001mF | ±(1.5% +8) |
50mF | 0.01mF | ±(1.0% +8) |
500mF | 0.1mF | ±(1.5% +8) |
| 10mF | 0.01mF | ±(2.5% +20) |
[1] With a film capacitor or better, usingrelative mode (REL△ ) to zero residual. | ||
Frequency (electronic)
RANGE | RESOLUTION | ACCURACY |
| 50Hz | 0.001Hz | ±(0.01% +5) |
| 500Hz | 0.01Hz | ±(0.01% +5) |
| 5kHz | 0.0001kHz | ±(0.01% +5) |
| 50kHz | 0.001kHz | ±(0.01% +5) |
| 500kHz | 0.01kHz | ±(0.01% +5) |
| 5MHz | 0.0001MHz | ±(0.01% +5) |
| 10MHz | 0.001MHz | Unspecified |
Sensitivity : 2V rmsmin. @ 20% to 80% dutycycle and <100kHz; 5V rms min@20% to 80% duty cycleand >100kHz. | ||
Frequency (electrical)
RANGE | RESOLUTION | ACCURACY |
| 10.00Hz - 10KHz | 0.01Hz - 0.001KHz | ±(0.5% reading) |
Sensitivity : 2V rms | ||
Duty Cycle
RANGE | RESOLUTION | ACCURACY |
0.1 to 99.90% | 0.01% | ±(1.2% +2 reading) |
Pulse width : 100ms - 100ms,Frequency : 5Hzto 150kHz | ||
