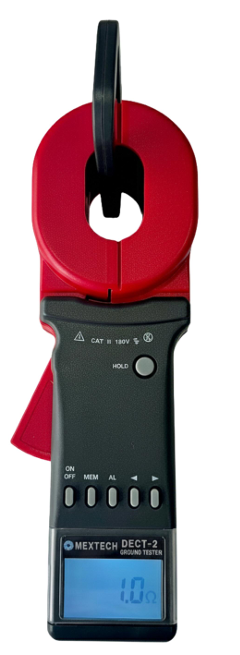

Mextech DECT2 DIGITAL EARTH CLAMP TESTER

Mextech DECT2 DIGITAL EARTH CLAMP TESTER
Mextech DECT2 DIGITAL EARTH CLAMP TESTER

Mextech DECT2 DIGITAL EARTH CLAMP TESTER

Click To Zoom

Mextech DECT2 DIGITAL EARTH CLAMP TESTER

Mextech DECT2 DIGITAL EARTH CLAMP TESTER

(Based On 10 Reviews)

The DIGITAL EARTH CLAMP TESTER DECT2 is a precise and reliable instrument for measuring ground resistance and leakage current without disconnecting the earth system. It offers quick, safe, and accurate testing, ideal for electrical maintenance, grounding inspections, and industrial safety applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 13,850

(GST inclusive price) i
  • Base Value: ₹ 11737.3
  • GST: (18) % ₹ 2112.7
  • Total Value ₹ 13850

₹19,800.00

( - 30% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Measures Earth Resistance at electrical ground rod and grid.
  • Use for testing quality of grounding without disconnecting the ground rod under test.
  • Conduct field surveys fast and effectively and retrieve and analyze readings at a later  time.
  • Use on telecommunication Tower’s grounding.
  • Useful in finding earth fault such as discontinuation or loose contact of earthling strips  or cables.
  • To find the resistance of earth pit.



What's in the box?

  • Mextech DECT2 DIGITAL EARTH CLAMP TESTER
  • Carrying Case
  • Standard Test Ring Resistance of 1Ω
  • Instruction Manual
  • Batteries

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

  • Long Jaw size: 55mm x 32mm. The unique long Jaw is particularly suitable where  grounding is done by flat steel or copper strips.
  • Range:0.01Ω to 200 Ω
  • Maximum Resistance Measurement Resolution 0.001 Ω.
  • Data Storage : 99 Groups.
  • Alarm Critical Values setting Range: Resistance: 1 ~ 199Ω
  • Display 4 Digits LCD, 47x28.5 mm in length.
  • Over range (OL Ω) as well as low range (L0.01 Ω) indication.
  • Low bat indication and Data hold facility, Jaw opening Indication, Noise signal
  • Double insulation level and also protected from External magnetic as well as Electric  field.
  • External Magnetic field: <40A/m
  • External Magnetic field: <1V/m
  • Automatic range selection & Automatic Self Calibration.
  • Alarm with measured value
  • Single Measuring Time: 1 second.
  • Operating Temperature: -20ËšC to 55ËšC, 10% RH – 90% RH
  • Power: 1.5V x 4 Batteries
  • Dimensions : 275mm X 85mm X 56mm (Approx.).
  • Net Weight : Approx. 850g.

TECHNICAL

RangesResolutionAccuracy
0.010 – 0.099Ω0.001Ω±(1%+0.01Ω)
0.10 – 0.99Ω0.01Ω± (1% + 0.01Ω)
1.0 -49.9Ω0.1Ω± (1% + 0.1Ω)
50.0 - 99.5Ω0.5Ω± (1.5% + 0.5Ω)
100-200Ω1Ω± (2% + 1Ω)
