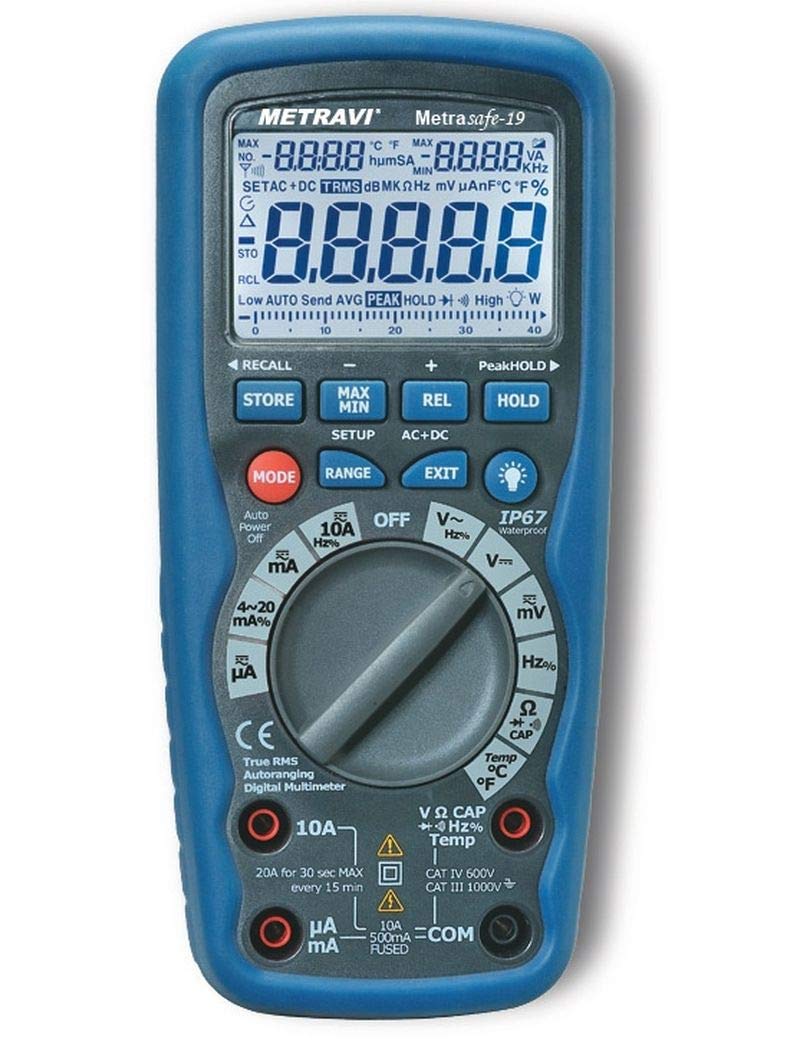

METRAVI Metrasafe-19 Digital TRMS Multimeter
Click To Zoom
METRAVI Metrasafe-19 Digital TRMS Multimeter
METRAVI Metrasafe-19 Digital TRMS Multimeter
4-3/4 Digits, Analogue Bargraph, Wireless PC Interface, T-RMS, Backlit LCD, Autoranging, FULLY PROTECTED, Data & Peak Hold, Max/Min Record, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Temperature, Non Contact type Infra Red Thermometer, Duty Cycle, Diode & Continuity Test. Confirms to CAT IV 600V.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 17,599.00
(GST inclusive price) i₹23,693.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
GENERAL
Store capacitance 9999
Enclosure Double molded, waterproof
Shock (Drop Test) 2M
Diode Test Test current of 0.9mA maximum, open circuit voltage 2.8V DC typical
Continuity Check Audible signal will sound if the resistance is less than 35Ω (approx.), test current < 0.35mA
PEAK Captures peaks >1ms
Temperature Sensor Requires type K thermocouple
Input Impedance >10MΩ VDC & > 9MΩ VAC
AC Response True rms
AC True RMS: The term stands for "Root-Mean-Square," which represents the method of calculation of the voltage or current value. Average responding multimeters are calibrated to read correctly only on sine waves and they will read inaccurately on non-sine wave or distorted signals. True rms meters read accurately on either type of signal.
ACV Bandwidth 50Hz to 1000Hz
Crest Factor ≤ 3 at full scale up to 500V, decreasing linearly to ≤ 1.5 at 1000V
Display 4-3/4 Digits, 40,000 count backlit liquid crystal with bargraph
Overrange indication "OL" is displayed
Auto Power Off 15 minutes (approximately) with disable feature Polarity Automatic (no indication for positive); Minus (-) sign for negative
Measurement Rate 2 times per second, nominal
Low Battery Indication " " is displayed if battery voltage drops below operating voltage
Battery One 9 volt (NEDA 1604) battery
Fuses mA, µA ranges; 0.5A/1000V ceramic fast blow A range; 10A/1000V ceramic fast blow
Operating Temperature 5ºC to 40ºC (41ºF to 104ºF)
Storage Temperature -20ºC to 60ºC (-4ºF to 140ºF )
Operating Humidity Max 80% up to 31ºC (87ºF) decreasing linearlyto 50% at 40ºC (104ºF)
Storage Humidity <80%
Operating Altitude 2000M maximum.
Weight 342g (includes holster).
Size 187 x 81 x 50mm (includes holster)
Safety This meter is intended for origin of installation use and protected, against the users, by double insulation per EN61010-1 and IEC61010-1 2nd Edition (2001) to Category IV 600V and Category III 1000V; Pollution Degree 2. The meter also meets UL 61010-1, 2nd Edition (2004), CAN/CSA C22.2 No. 61010-1 2nd
Edition (2004), and UL 61010B-2-031, 1st Edition (2003)
SAFETY INSTRUCTIONS
Function | Maximum Input |
VDC or VAC | 1000VDC/AC rms |
mA AC/DC | 500mA 1000V fast acting fuse |
A AC/DC | 10A 1000V fast acting fuse (20A for 40 seconds max every15 minutes) |
Frequency, Resistance, Capacitance | 1000VDC/AC rms |
Duty Cycle, Diode Test, Continuity Temperature | 1000VDC/AC rms |
Surge Protection 8kV peak perIEC 61010 | |
Function | Rang | Resolution | Accuracy |
DC Voltage | 400mV | 0.01mV |
±(0.06% reading + 4 digits) |
| 4V | 0.0001V | ||
| 40V | 0.001V | ||
| 400V | 0.01V | ||
| 1000V | 0.1V | ±(0.1% reading + 3 digits) | |
AC Voltage (T-RMS) | 400mV | 0.1mV | ±(1.0% reading + 40 digits) |
| 4V | 0.001V | ±(1.0% reading + 30 digits) | |
| 40V | 0.01V | ||
| 400V | 0.1V | ||
| 1000V | 1V | ||
| All AC voltage ranges are specified from 5% of range to 100% of range | |||
DC Current | 400μA | 0.01μA |
±(1.0% reading + 3 digits) |
| 4000μA | 0.1μA | ||
| 40mA | 0.001mA | ||
| 400mA | 0.01mA | ||
| 10A | 0.001A | ||
| (20A: 30 sec max with reduced accuracy) | |||
AC Current (T-RMS) | 400μA | 0.01μA | ±(1.0% reading+ 3 digits) |
| 4000μA | 0.1μA | ||
| 40mA | 0.001mA | ||
| 400mA | 0.01mA | ||
| 10A | 0.001A | ||
| (20A: 30 sec max with reduced accuracy) | |||
| All AC voltage ranges are specified from 5% of range to 100% of range | |||
Resistance | 400Ω | 0.01Ω | ±(0.3% reading + 9 digits) |
| 4kΩ | 0.0001kΩ |
±(0.3% reading + 4 digits) | |
| 40kΩ | 0.001kΩ | ||
| 400kΩ | 0.01kΩ | ||
| 4MΩ | 0.0001MΩ | ||
| 40MΩ | 0.001MΩ | ±(2.0% reading + 10 digits) | |
Capacitance | 40n | 0.001nF | ±(3.5% reading + 40 digits) |
| 400n | 0.01n | ||
| 4µ | 0.0001µ |
±(3.5% reading + 10 digits) | |
| 40µ | 0.001µF | ||
| 400µ | 0.01µ | ||
| 4000µ | 0.1µF | ±(5% reading + 10 digits) | |
| 40m | 0.001m | ||
Frequency (electronic) | 40Hz | 0.001Hz |
±(0.1% reading + 1 digits) |
| 400Hz | 0.01Hz | ||
| 4kHz | 0.0001kHz | ||
| 40kHz | 0.001kHz | ||
| 400kHz | 0.01kHz | ||
| 4MHz | 0.0001MHz | ||
| 40MHz | 0.001MHz | ||
| 100MHz | 0.01MHz | Not specified | |
Sensitivity: 0.8V rms min. @ 20% to 80% duty cycle & <100kHz; 5Vrms min @ 20% to 80% duty cycle & > 100kHz. | |||
Frequency (electrical) | 40.00-10KHz | 0.01-0.001KHz | ±(0.5% reading) |
| Sensitivity: 1Vrms | |||
Duty Cycle | 0.1 to 99.90% | 0.01% | ±(1.2% reading + 2 digits) |
| Pulse width: 100µs- 100ms, Frequency: 5Hz to 150kHz | |||
Temp (type-K) | -58 to 2192° | 1°F | ±(1.0% reading + 4.5°F) |
| -20 to 1200°C | 1°C | ±(1.0% reading + 2.5°C) (probe accuracy not included) | |
4-20mA% | -25 to 125% | 0.01% | ±50 digits |
| 0mA=-25%, 4mA=0%, 20mA=100%, 24mA=125% | |||
