Metravi PRO 27 Industrial Grade, Digital TRMS Multimeter
Click To Zoom

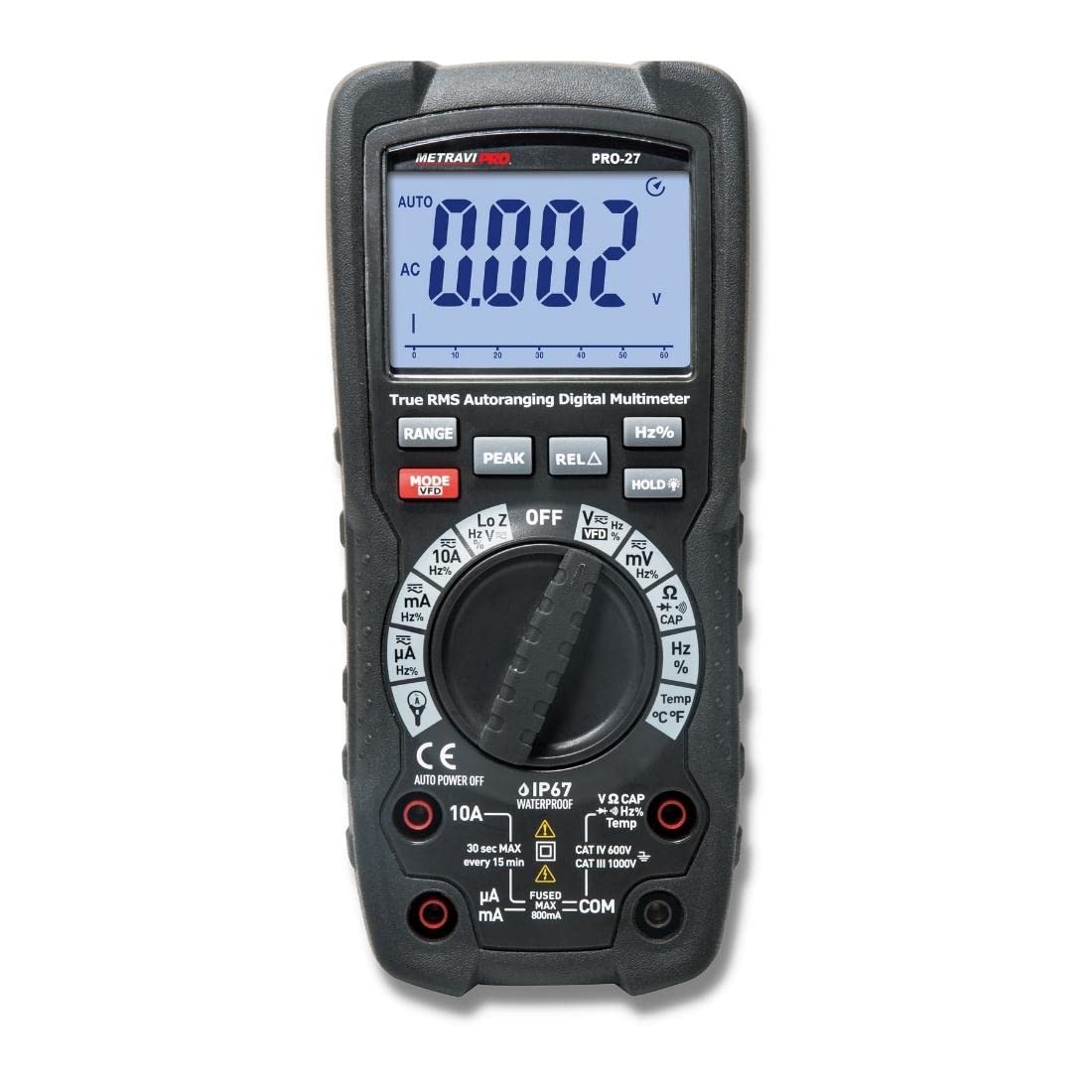

Metravi PRO 27 Industrial Grade, Digital TRMS Multimeter
Metravi PRO 27 Industrial Grade, Digital TRMS Multimeter
The Metravi PRO‑27 is a rugged premium TRMS digital multimeter with a backlit 6000‑count LCD display, featuring VFD and Low‑Impedance (Lo‑Z) modes. It includes a 61‑segment analogue bar‑graph, IP67 dust/water protection, CAT III 1000V / CAT IV 600V safety, auto‑ranging, peak/relative measurement, and is ideal for motor and industrial diagnostics.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 6,515
(GST inclusive price) i-
Base Value: ₹ 5521.2
-
GST: (18) % ₹ 993.8
-
Total Value ₹ 6515
₹9,315.00
( - 30% OFF )
Description
Key Features
- True RMS (TRMS) AC/DC voltage measurement
- Measures VFD (Variable Frequency Drive) signals up to ~700 V AC
- Lo‑Z (low impedance) mode to avoid ghost voltages
- 6000‑count backlit LCD display
- 60‑segment analog bar graph for visual trend detection
- AC bandwidth ~1 kHz for more accurate AC measurements
- Peak hold function to capture transient spikes
- Safety ratings: CAT III 1000 V / CAT IV 600 V
- Relative measurement (zeroing) and auto range capability
- Robust, heavy‑duty build suitable for industrial field work

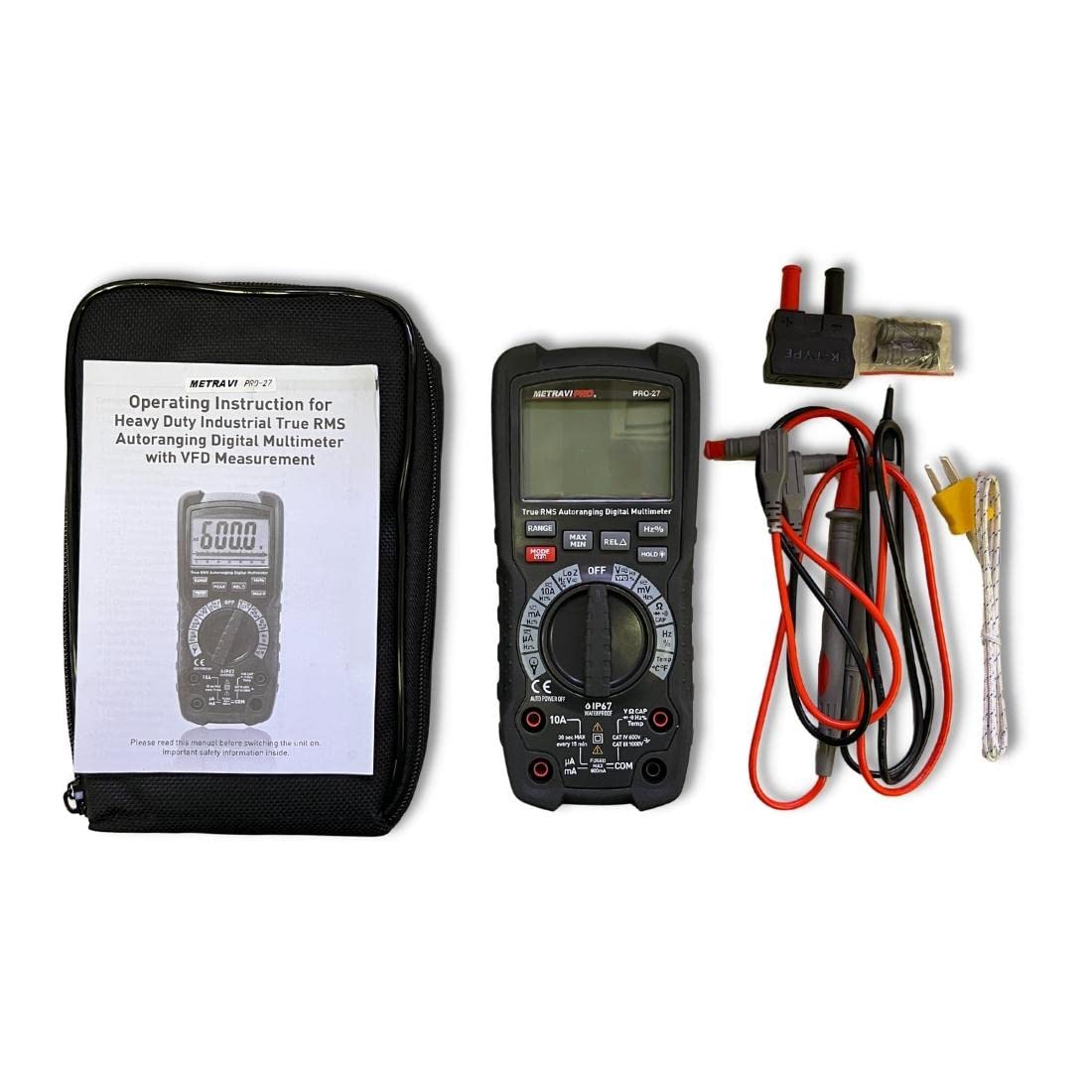

What's in the box?
|
Rating & Reviews
Rating
Function | Maximum Input |
V DC | 1000V AC RMS/1000V DC |
V AC | 1000V AC RMS/1000V DC |
LoZ AC/DC Voltage | 600V AC RMS/600V DC |
mA AC/DC | 800mA 1000Vfast acting fuse |
A AC/DC | 10A 1000Vfast acting fuse (30 seconds max every 15 minutes) |
Frequency, Resistance, Capacitance, Diode Test, Continuity |
250V DC/ACRMS |
Surge Protection : 8kV peak per IEC 61010 | |
DCVoltage
Range | Resolution | Accuracy |
60.00mV | 0.01mV | ±(0.9% + 9 digits) |
600.0mV | 0.1mV | |
6.000V | 0.001V | ±(0.5% + 5 digits) |
60.00V | 0.01V | |
600.0V | 0.1V | ±(0.6% + 6 digits) |
1000V | 1V |
AC Voltage(45Hz to 1KHz)
Range | Resolution | Accuracy |
60.00mV | 0.01mV | ±(0.9% + 9 digits) |
600.0mV | 0.1mV | |
6.000V | 0.001V | ±(0.8% + 3 digits) |
60.00V | 0.01V | |
600.0V | 0.1V | ±(0.8% + 8 digits) |
1000V | 1V | |
All AC Voltageranges are specified from 5% of range to 100% of range. AC VoltageVandwidth: 45Hz to 1kHz(Sine); 45Hz to 60Hz(All wave); | ||
LoZ AC/DC Voltage
Range | Resolution | Accuracy |
6.000V | 0.001V |
±(3.0% + 30 digits) |
| 60.00V | 0.01V | |
| 600.0V | 0.1V | |
All AC Voltageranges are specified from 5% of range to 100% of range. AC VoltageVandwidth: 45Hz to 1kHz(Sine); 45Hz to 60Hz(All wave); Input Impedance: Approx 3kW | ||
VFD
Range | Resolution | Accuracy |
150.0 to 700V | 0.1V/1V | ±(4% + 3 digits) |
DC Current
Range | Resolution | Accuracy |
| 600.0μA | 0.1µA |
±(1.0% + 3 digits) |
| 6000μA | 1µA | |
| 60.00mA | 0.01mA | |
| 600.0mA | 0.1mA | |
| 6.000A | 0.001A | ±(1.5% + 3 digits) |
| 10.00A | 0.01A | |
| (10A: 30 sec max with reducedaccuracy | ||
AC Current (45Hz to 1KHz)
Range | Resolution | Accuracy |
| 600.0μA | 0.1µA |
±(1.5% + 3 digits) |
| 6000μA | 1µA | |
| 60.00mA | 0.01mA | |
| 600.0mA | 0.1mA | |
| 6.000A | 0.001A | ±(2.0% + 3 digits) |
| 10.00A | 0.01A | |
10A: 30 sec max with reduced accuracy. All AC CurrentRanges are Specified from 5% of range to 100% of range. AC VoltageBandwidth: 45Hz to 1kHz (Sine); 50Hz to 60Hz (All wave); | ||
Flexible Coil Current ( 45Hz to 1kHz)
Range | Resolution | Accuracy |
| 30.00A | 0.01A |
±(3.0% + 5 digits) |
| 300.0A | 0.1A | |
| 3000A | 1A | |
Protection Against Overcharge: 3000A DC/AC RMS All AC Current Ranges are Specifiedfrom 5% of range to 100% of range. AC VoltageBandwidth: 45Hz to 1kHz (Sine); 45Hz to 60Hz (All wave); | ||
Resistance
Range | Resolution | Accuracy |
600.0W | 0.01W | ±(1.0% + 2 digits) |
6.000kW | 0.001kW |
±(0.8% + 2 digits) |
60.00kW | 0.01kW | |
600.0kW | 0.1kW | |
6.000MW | 0.001MW | ±(1.2% + 2 digits) |
60.00MW | 0.01MW | ±(1.0% + 5 digits) |
Capacitance
Range | Resolution | Accuracy |
99.99nF* | 0.01nF | ±(5.0% + 20 digits) |
| 999.9nF | 0.1nF |
±(4.0% + 5 digits) |
| 9.999μF | 0.001µF | |
| 99.99μF | 0.01µF | |
| 999.9μF | 0.1µF | |
| 9.999mF | 0.001mF | |
99.99mF | 0.01mF | ± 10%reading |
| *<99.99nF Not specified | ||
Frequency (electronic)
Range | Resolution | Accuracy |
9.999Hz | 0.001Hz |
±(0.1% + 4 digits) |
99.99Hz | 0.01Hz | |
999.9Hz | 0.1Hz | |
9.999kHz | 0.001kHz | |
| 99.99kHz | 0.01kHz | |
| 999.9kHz | 0.1kHz | |
| 9.999MHz | 0.001MHz | |
| Sensitivity : 0.8V RMS min. @ 20% to 80% duty cycle and <100kHz; 5V RMS min @ 20% to 80% duty cycle and > 100kHz. | ||
