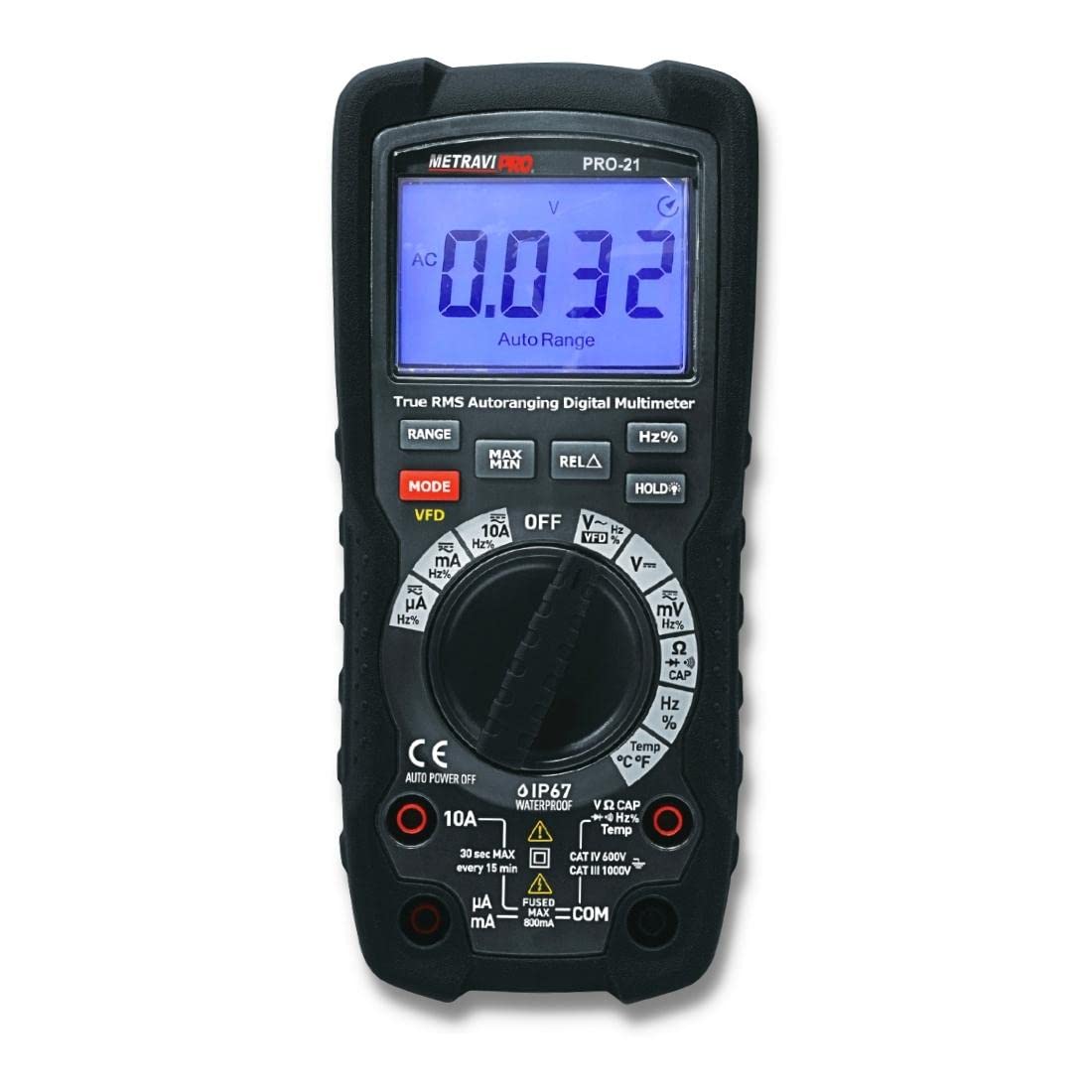

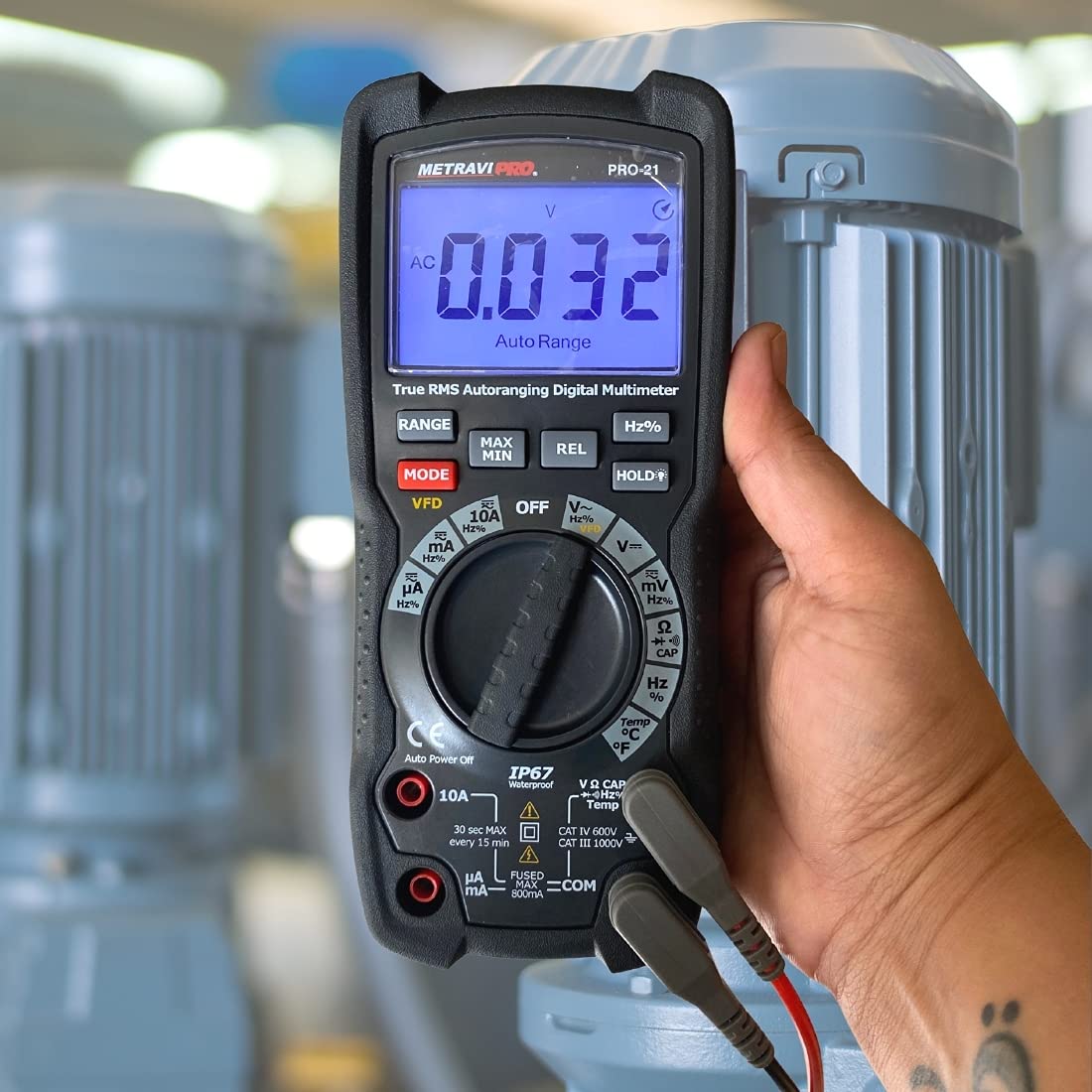

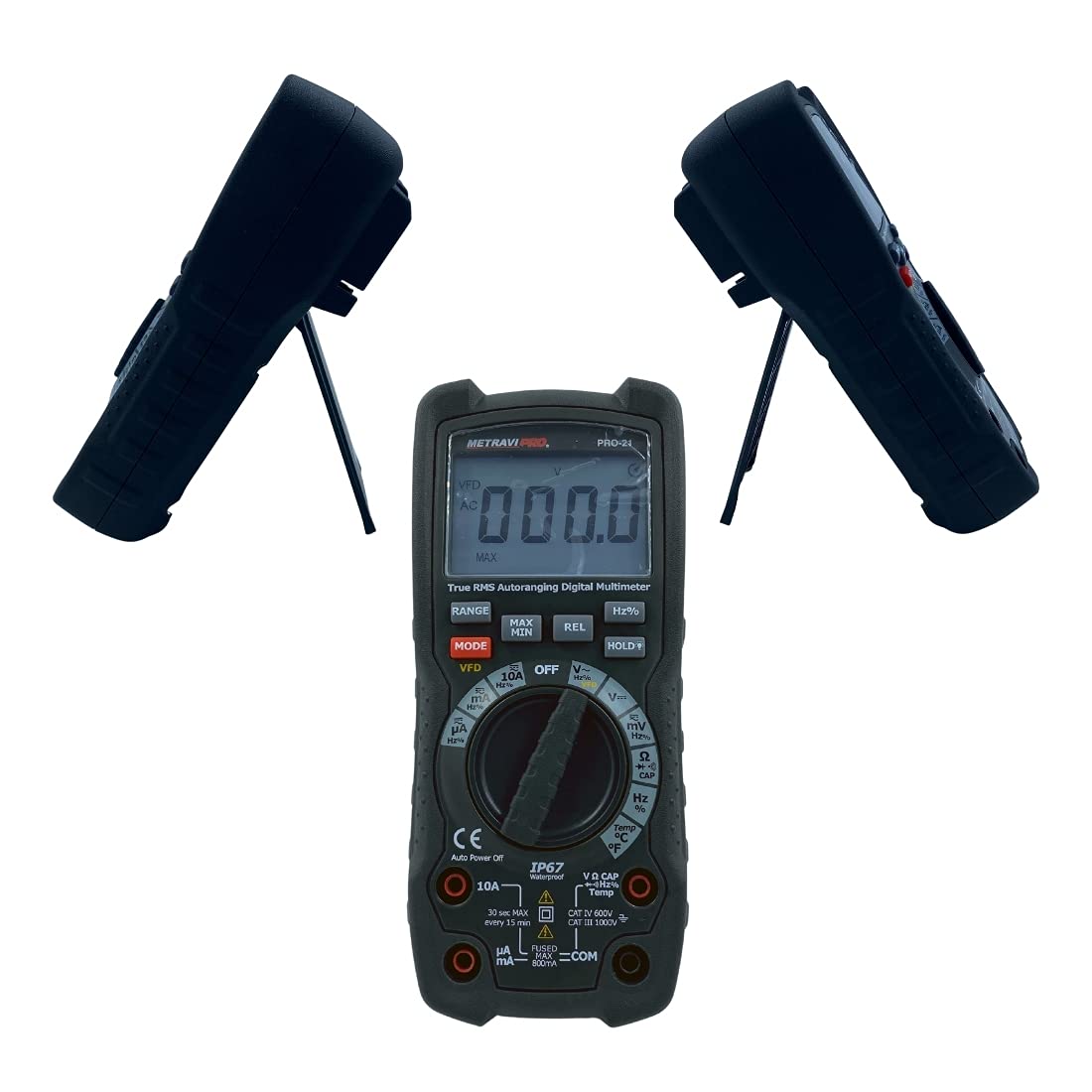

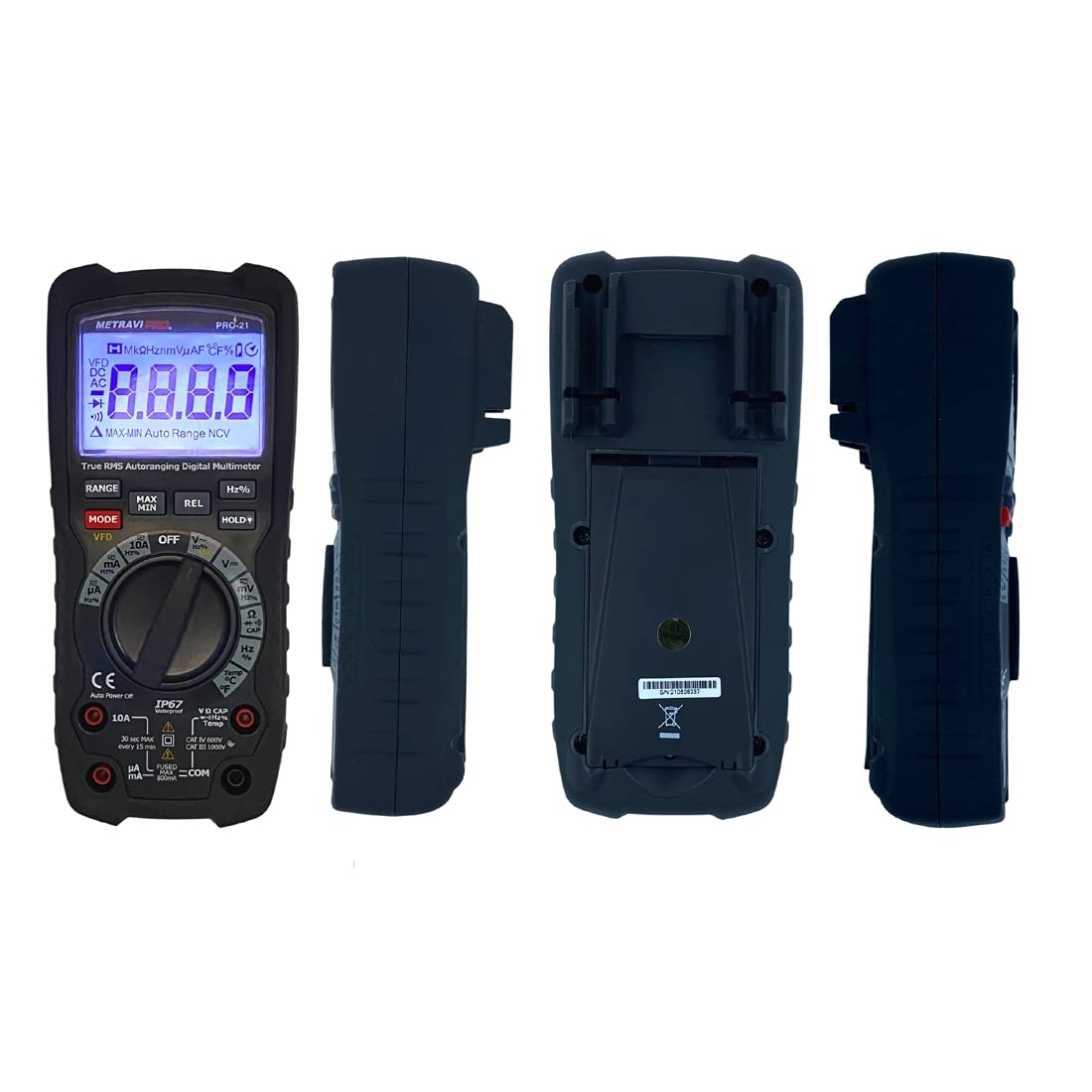

Metravi PRO 21 Industrial Grade Digital TRMS Multimeter with 700V VFD
Click To Zoom
Metravi PRO 21 Industrial Grade Digital TRMS Multimeter with 700V VFD
Metravi PRO 21 Industrial Grade Digital TRMS Multimeter with 700V VFD
The Metravi PRO‑21 is a heavy‑duty industrial True RMS multimeter featuring VFD measurement, a large backlit 6000‑count LCD display, auto‑ranging, and IP67 dust/water protection. It’s drop‑proof up to 2m and built for demanding field‑work.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 5,760
(GST inclusive price) i-
Base Value: ₹ 4881.4
-
GST: (18) % ₹ 878.6
-
Total Value ₹ 5760
₹8,235.00
( - 30% OFF )
Description
Key Features
- 6000 Counts Extra Large Backlit LCD Display
- MAX/MIN Record Function
- Double Injection Mould
- Relative Measurement
- T-RMS Auto-Ranging
- IP-67, Water and Dust Proof
- 2m Shock-proof
- Fast Blow Fuse
- Auto Power Off
- Low Battery Indication
- 9V Battery Operated
- CE Certified, CAT-III 1000V, CAT-IV 600V
- AC Measurement Bandwidth 1kHz

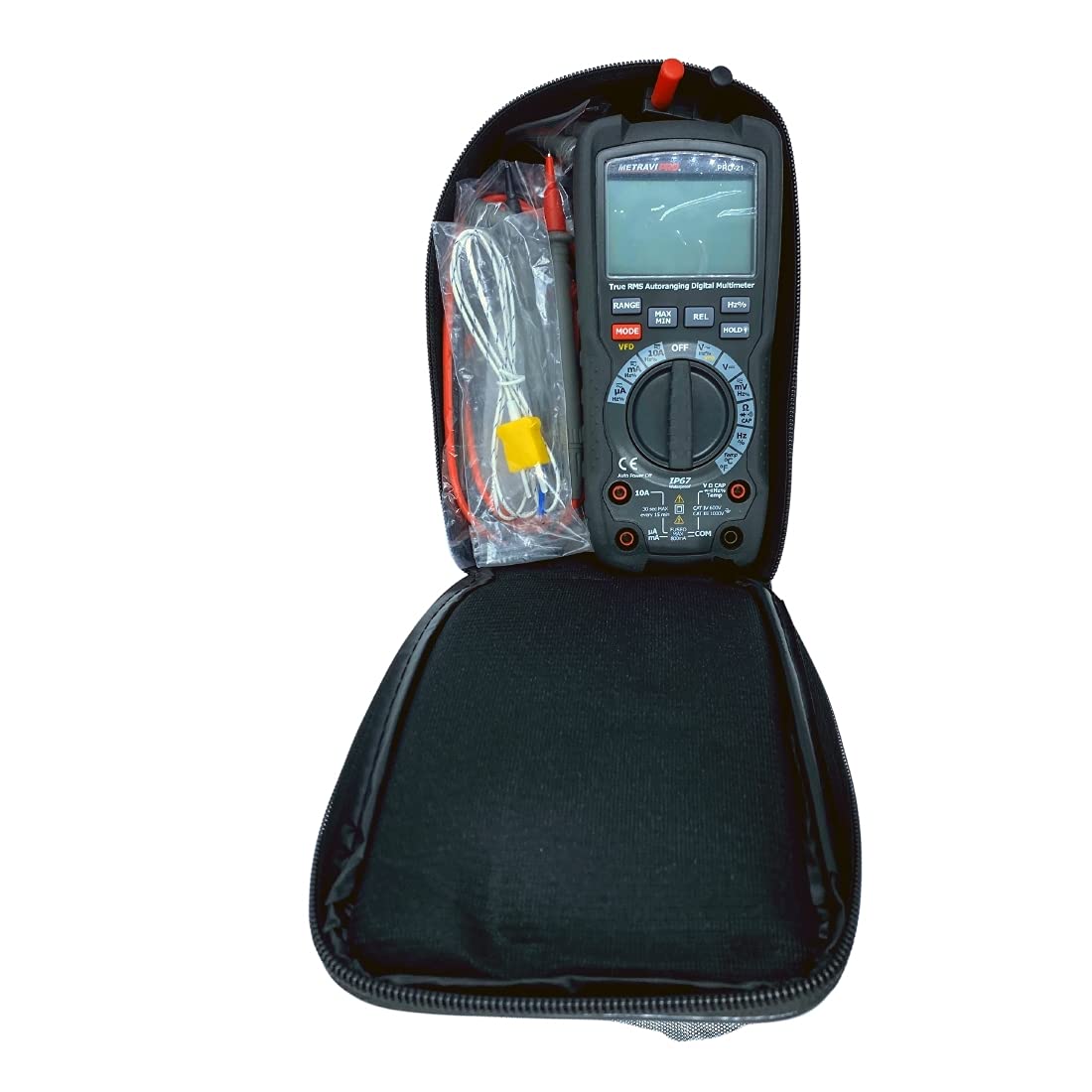

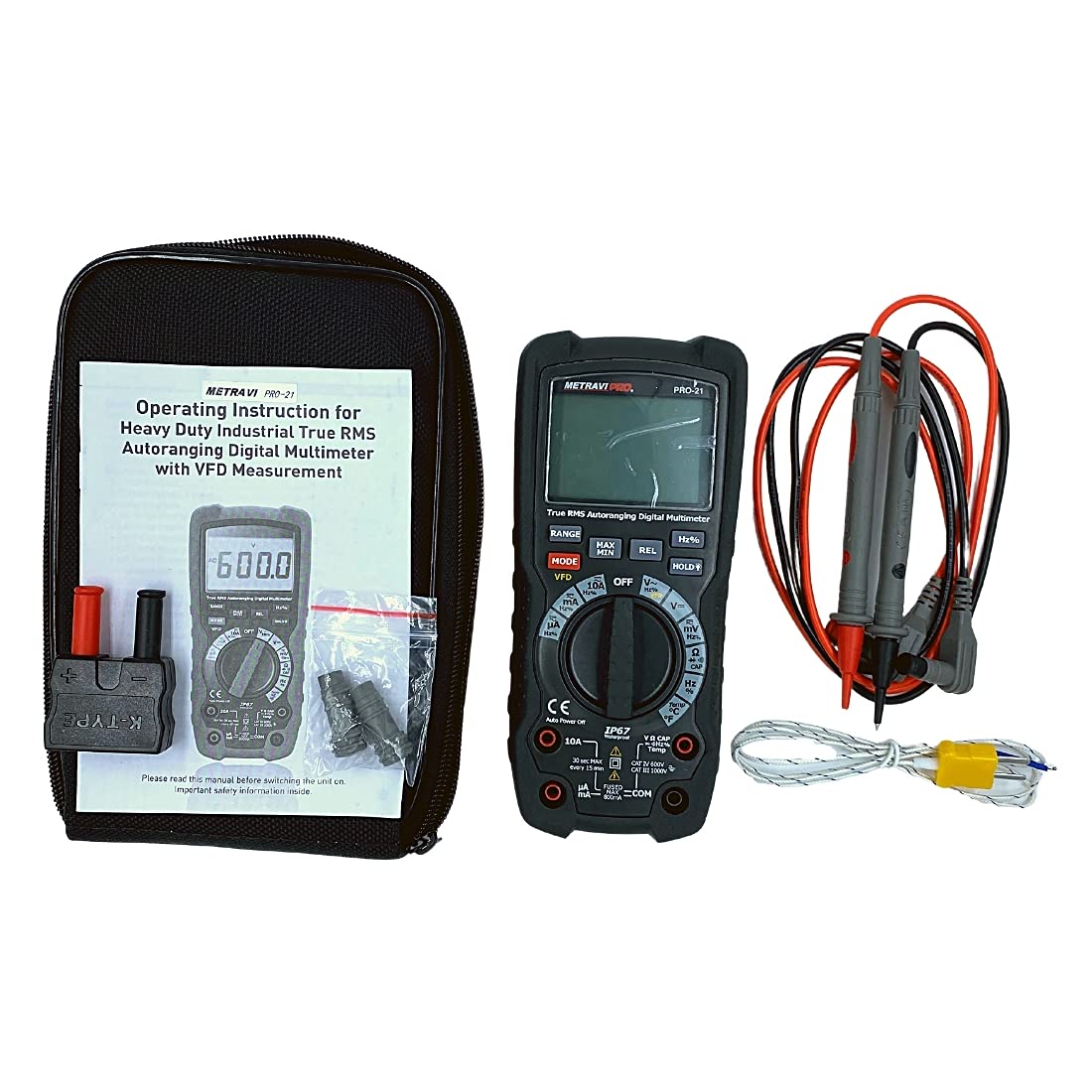

What's in the box?
|
Rating & Reviews
Rating
Product Specifications
Enclosure : DoubleMoulded,Waterproof
Shock(DropTest): 6.5feet(2 meters)
Diode Test: Testcurrentof 0.9mAmaximum open circuit voltage approx 3.2V DC typical.
ContinuityCheck: Audible signal will sound if the resistance is Less than 50W (approx.), test current <0.35mA.
Input Impedance : > 10MWVDC & > 10MW VAC.
AC Response: True RMS.
ACV Bandwidth: 45Hz to 1KHz.
CrestFactor : ≤ 3 at full scale up to 500V, decreasing linearly to ≤ 1.5 at 1000V.
Display: 6,000 Counts backlit liquid crystal with bargraph.
Overrange indication : “OL” is displayed.
Text Box: *Technical Specifications & Appearance are subject to change wi hout prior noticeAuto Power Off : 15 minutes(Approximately) with disablefeature. Polarity : Automatic(No indication for positive); Minus (-) sign for negative. Measurement Rate : 2 times per second, nominal.
Peak:Captures peaks> 1 ms.
Low Battery Indication : “ “ is displayedif battery voltage drops below operating voltage.
Battery: One 9 Volt (NEDA 1604) battery.
Fuses: mA, μA ranges; 0.8A/1000V ceramic fast blow A range; 10A/1000V ceramic fast blow.
Operating Temperature : 5 to 40°C (41 to 104°F)
Storage Temperature : -20 to 60°C (-4 to 140°F)
Operating Humidity : Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F)
Storage Humidity : <80%
OperatingAltitude: 2000 meters (7000 ft) maximum.
Safety: This meter is intended for origin of installation use and protected, against the users, by double insulation per EN61010-1 and IEC61010 1, 2nd Edition (2001)to CategoryIV 600Vand CategoryIII 1000V;Pollution Degree2. Themeter alsomeets UL 61010-1, 2nd Edition (2004).CAN/CSA C22.2 No. 61010 -1, 2nd Edition (2004).and UL 610108-2-031, 1st Edition (2003).
TECHNICAL
DC Voltage
Range | Resolution | Accuracy |
| 60.00mV | 0.01mV | ±(0.9% + 9 digits) |
| 600.0mV | 0.1mV | |
| 6.000V | 0.001V | ±(0.5% + 5 digits) |
| 60.00V | 0.01V | |
| 600.0V | 0.1V | ±(0.6% + 6 digits) |
| 1000V | 1V |
AC Voltage(45Hz to 1KHz) T-RMS
Range | Resolution | Accuracy |
| 60.00mV | 0.01mV | ±(0.9% + 9 digits) |
| 600.0mV | 0.1mV |
±(0.8% + 3 digits) |
| 6.000V | 0.001V | |
| 60.00V | 0.01V | |
| 600.0V | 0.1V | |
| 1000V | 1V | ±(0.8% + 8 digits) |
AllAC voltage rangesare specifie from5% of range to 100% of range. AC voltage bandwidth: 45Hz to1kHz(Sine); 45Hz to 60Hz (All wave). | ||
VFD
Range | Resolution | Accuracy |
50.0 to 700V | 0.1V/1V | ±(4% + 3 digits) |
DC Current
Range | Resolution | Accuracy |
| 600.0μA | 0.1μA |
±(1 .0%+ 3 digits) |
| 6000μA | 1μA | |
| 60.00mA | 0.01mA | |
| 600.0mA | 0.1mA | |
| 6.000A | 0.01A | ±(1.5% + 3 digits) |
| 10.00A | 0.01A |
(10A: 30 sec max with reduced accuracy)
Capacitance
Range | Resolution | Accuracy |
| 99.99nF* | 0.01nF | ±(5.0% + 20 digits) |
| 999.9nF | 0.1nF |
±(4.0% + 5 digits) |
| 9.999μF | 0.001μF | |
| 99.99μF | 0.01μF | |
| 999.9μF | 0.1μF | |
| 9.999mF | 0.001mF | ± 10%reading |
| 99.99mF | 0.01mF |
AC Current(45Hz to 1 KHz) T-RMS
Range | Resolution | Accuracy |
| 600.0μA | 0.1μA |
±(1.5% + 3 digits) |
| 6000μA | 1μA | |
| 60.00mA | 0.01mA | |
| 600.0mA | 0.1mA | |
| 6.000A | 0.001A | ±(2.0% + 3 digits) |
| 10.00A | 0.01A | |
(10A: 30 sec max with reduced accuracy) AllAC voltage rangesare specifie from5% of range to 100% of range. ACvoltagebandwidth:45Hz to 1kHz(Sine); 50/60Hz (All wave). | ||
Resistance
Range | Resolution | Accuracy |
600.0W | 0.1W | ±(1.0% + 2 digits) |
6.000kW | 0.001kW |
±(0.8% + 2 digits) |
60.00kW | 0.01kW | |
600.0kW | 0.1kW | |
6.000MW | 0.001MW | ±(1.2% + 2 digits) |
60.00MW | 0.01MW | ±(1.0% + 5 digits) |
Frequency (Electronic)
Range | Resolution | Accuracy |
| 9.999Hz | 0.001Hz |
±(0.1 % + 4 digits) |
| 99.99Hz | 0.01Hz | |
| 999.9Hz | 0.1Hz | |
| 9.999kHz | 0.001kHz | |
| 99.99kHz | 0.01kHz | |
| 999. 9kHz | 0.1kHz | |
| 9.999MHz | 0.001MHz | |
| Sensitivity:0.8V RMS min. at 20% to 80% duty cycle and <100kHz; 5Vrms min at 20% to 80% duty cycle and >100kHz | ||
Frequency (Electrical)
Range | Resolution | Accuracy |
10.00 - 1kHz | 0.01Hz | ±0.5% reading |
Sensitivity: ACmV Range (≥100mV), ACV Range (≥6% Range) 6000μA/600.0mA/10.00A Range (≥6%Range); 600.0μA/60.00mA/6.000A (≥60% Range). | ||
Duty Cycle
Range | Resolution | Accuracy |
0.1 to 99.9% | 0.1% | ±(1.2% + 2 digits) |
Pulse width:100μs-100ms; Frequency: 5Hz to 150kHz.
| ||
Temperature (Type-K)
Range | Resolution | Accuracy |
| -40 to 1000°C | 1°C | ±(3.0% + 3°C/5°Fdigits) (Probe accuracy not included) |
-40 to 1832°F | 1°F |
