Metravi PRO 12B Digital TRMS Multimeter with Bluetooth
Click To Zoom
Metravi PRO 12B Digital TRMS Multimeter with Bluetooth
Metravi PRO 12B Digital TRMS Multimeter with Bluetooth
4000 Count, Backlight LCD Display, TRMS, IP 67 Dust and Waterproof Digital Multimeter, 600V AC(TRMS)/DC Voltage, 10A AC(TRMS)/DC Current, LoZ, Resistance, Capacitance, Frequency, Temperature, Diode & Continuity test, 50 to 400Hz AC Bandwidth, Bluetooth Smartphone interface, Free Smartphone App, Data Hold, MAX/MIN Record, Built-in Flashlight, Double-moulded injection body, Auto Power Off, Low battery indication, CAT-III 600V. Hand-Held Waterproof and Dustproof, Digital Multimeter. Anything and Everything that you can possibly think about. A must for all technicians.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 5,519.00
(GST inclusive price) i₹7,425.00
( - 26% OFF )
Description

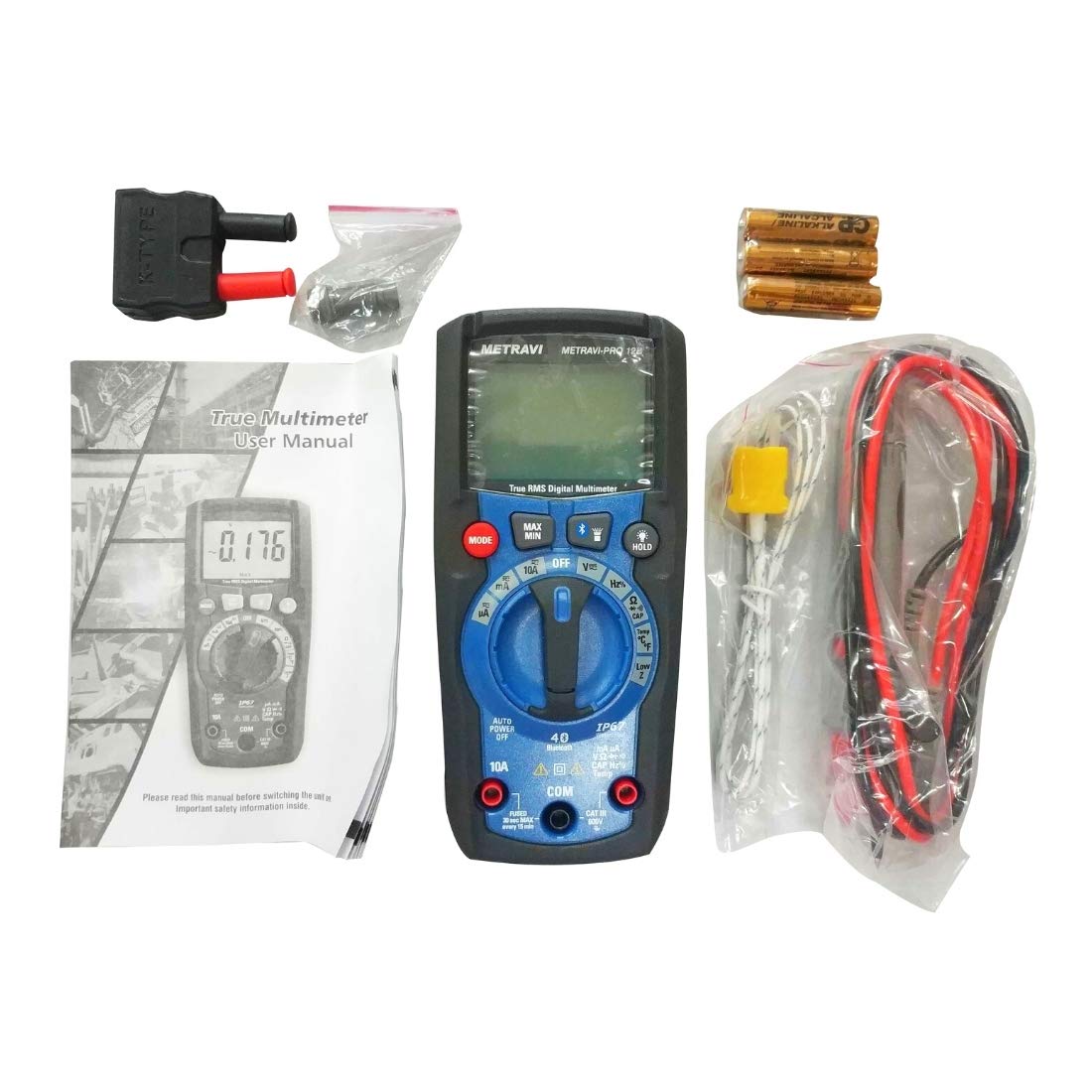

What's in the box?
|
Rating & Reviews
Rating
1) Insulation : Class 2, Double Insulation
2) Enclosure : Double Molded, IP67 waterproof and dust-proof
3) Diode Test : Test current 1.5mA max., open circuit voltage 3V typical
4) Continuity Test : Audible signal if the resistance is approx. 50W
5) Low Battery Indication : “ ” is displayed
6) Display : 4000 count LCD display
7) Over Range Indication : “OL” is displayed
8) Polarity : Minus symbol “-” is displayed for negative polarity
9) Measurement Rate : 3 readings per second, nominal
10) T-RMS Measurements : Only in PRO-12B
11) Built in Flash Light to access dark areas
12) Bluetooth interface : For PRO-12B only
13) APP available on Appstore and Google Play Store for remote access of Multimeter
and to store Data (Only in PRO-12B)
14) Auto Power Off : After approx. 15 minutes of inactivity
15) Input Impedance : 10MW AC/DC Voltage
16) Low Z (In PRO-12B only): approx. 3KW input impedance
17) AC Response : True RMS (PRO-12B only)
18) AC Bandwidth : 50 to 400Hz
19) Batteries : Three “AAA” 1.5V batteries
20) Fuse : 10A/600V (5*20) fast acting Fuse 500mA/600V (5*20) fast acting Fuse
21) Operating Environment : 32°F to 104°F (0°C to 40°C), < 70% relative humidity
22) Storage Environment : 14°F to 140°F (-10°C to 60°C) < 80% relative humidity
23) Operating Altitude : 2000 meters maximum
24) Dimensions/ Weight : 5.8” x 2.7” x 2.0”/0.70lb) (147 x 68 x 50mm/318g)
25) Safety : Complies with UL 61010-1 v.3 for measurement Category 600V, Pollution Degree
Function | Range | Resolution | Accuracy ± (% of reading + digits) |
| 400.0mV | 0.1mV |
±(0.6% + 10)
. |
| 4.000V | 1mV | |
DC Voltage | 40.00V | 10mV | |
| 400.0V | 0.1V | |
| 600V | 1V |
Input Protection : 600V DC or 600V AC RMS
Input Impedance : 10M
Function | Range | Resolution | Accuracy ± (% of reading + digits) |
DC Current | 400uA | 0.1uA |
±(1% + 8) |
| 4000uA | 1uA | ||
| 40mA | 0.01mA | ||
| 400mA | 0.1mA | ||
| 4.000A | 1mA | ±(2% + 8) | |
| 10.00A | 10mA |
Overload Protection : 10A range : 10A/600VFuse
uA,mA range : 500mA/600V Fuse
Function | Range | Resolution | Accuracy ± (% of reading + digits) |
Resistance | 400.0W | 0.1W |
±(1.5% + 5) |
4.000kW | 1W | ||
40.00kW | 10W | ||
400.0kW | 100W | ||
4.000MW | 1kW | ±(2% +10) | |
40.00MW | 10kW |
Input Protection : 300V AC RMS or 300V DC
Function | Range | Resolution | Accuracy ± (% of reading + digits) |
Capacitance | 40.00nF | 10pF | ±(3.5% +5) |
| 400.0nF | 100pF |
±(3.0% +5) | |
| 4.000µF | 0.001µF | ||
| 40.00µF | 0.01µF | ||
| 400.0µF | 0.1µF | ||
| 4000µF | 1µF |
Input Protection : 300V AC RMS or 300V DC
Function | Range | Resolution | Accuracy ±(% of reading + digits) |
Frequency (Electronic) | 9.999Hz | 0.001Hz |
±(1.0% + 5) |
| 99.99Hz | 0.01Hz | ||
| 999.9Hz | 0.1Hz | ||
| 9.999kHz | 1Hz | ||
| 99.99kHz | 10Hz | ||
| 999.9kHz | 100Hz | ±(1.2% + 5) | |
| 9.999MHz | 1kHz |
Input Protection : 300V AC RMS or 300V DC Sensitivity : > 8V RMS
Function | Range | Resolution | Accuracy ±(% of reading + digits) |
Duty Cycle | 1.0% to 99.9% | 0.1% | ±(1.2% + 5) |
Input Protection : 300V AC RMS or 300V DC Pulse Width : 0.1 to 100mS
Frequency Range : 5Hz to 100kHz Sensitivity : <8V RMS
Function | Range | Resolution | Accuracy ±(% of reading + digits) |
Temperature | 0°F to 1400°F | 0.1°F | ±(1.5% + 9°F) |
| -18°C to 760°C | 0.1°C | ±(1.5% + 5°C) |
Input Protection : 300V AC RMS or 300V DC
