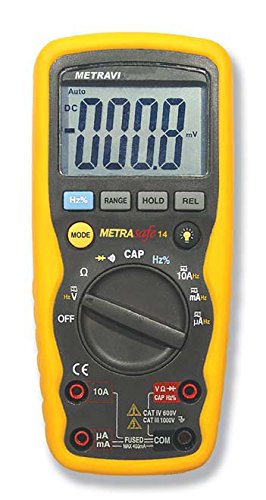

Metravi Metrasafe-14 Fully-protected Digital Multimeter

Metravi Metrasafe-14 Fully-protected Digital Multimeter
Metravi Metrasafe-14 Fully-protected Digital Multimeter
Metravi Metrasafe-14 Fully-protected Digital Multimeter

Click To Zoom

Metravi Metrasafe-14 Fully-protected Digital Multimeter

Metravi Metrasafe-14 Fully-protected Digital Multimeter

(Based On 10 Reviews)

The Metravi Metrasafe‑14 is a rugged, fully protected digital multimeter featuring a backlit 3‑¾ digit (3999 count) display. It offers auto‑ranging, IP67 dust & water protection, CAT IV safety, voltage, current, resistance, capacitance, frequency, temperature, duty cycle, continuity, and battery test functions.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 5,379.00

(GST inclusive price) i
  • Base Value: ₹ 4558.5
  • GST: (18) % ₹ 820.5
  • Total Value ₹ 5379

₹7,236.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Overload protection up to 1200V DC / AC RMS in the AC/DC Voltage range.
  • Overload protection up to 20A DC/AC RMS by fast blow fuse in the AC/DC Current range.
  • Overload protection up to 600V DC / AC RMS in the capacitance, Frequency, Temperature, Resistance, Continuity and Diode Test Range.
  • The instrument has overload protection up to 20ADC/AC RMS in the Voltage Range and 1000V DC/AC RMS in the Current Range.
  • Surge Protection of 8 kV peak IEC 61010
  • O Ring Seal body.
  • The instrument has IP-67 Protection making the body water proof even if dipped in 1m. deep water for 30 mins.
  • Double moldedinjection body with rubber liningto provide insulation against electrical shocks and anti-slip grip.
  • Confirms to EN61010-1, CAT IV 600V, CAT III 1000V.
  • Two Years' Warranty against any manufacturing defects



What's in the box?

  • Metravi Metrasafe-14 Fully-protected Digital Multimeter

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

The instrument complies with : IEC61010-1:2001 and IEC, 61010-031:2002
Insulation : Class2, Double insulation.
Overvoltage category : CATIII 1000V, CAT IV 600V.
Display : 4000 counts Backlit LCD display with function indication.
Polarity : Automatic, (-) negative polarity indication.
Overrange : "OL" mark indication.
Low battery indication : The "BAT" is displayed when the battery voltage drops below the operating level.
Measurement rate : 2 times per second, nominal.
Auto power off : Meter automatically shuts down after approx. 15 minutes of inactivity.
Operating environment : 0ºC to 50ºC (32ºF to 122ºF) @ 70% R.H. Storage temperature    : -20ºC to 60ºC (-4ºF to 140ºF) @ < 80% R.H. For inside use, max height    : 2000m
Pollution degree : 2
Power : One 9V battery , NEDA 1604, IEC 6F22.
Dimensions : 182 (H) x 82 (W) x 55 (D) mm
Weight : Approx.: 375g
Data Hold : To freeze the displayed data Relative measuring facility



TECHNICAL

DC Voltage (Auto-ranging)

Range

Resolution

Accuracy
400.0mV

0.1mV

± 0.5% of rdg + 2 dgts
4.000V

1mV

± 1.2% of rdg + 2 dgts
40.00V

10mV

400.0V

100mV

1000V

1V

± 1.5% of rdg + 2 dgts

Input Impedance : 7.8MΩ.

Maximum Input : 1200V DC or 1200V AC rms.

AC Voltage (Auto-ranging except 400mV)

Range

Resolution

Accuracy

400.0mV

0.1mV

± 1.5% of rdg + 70 dgts

4.000V

1mV

± 1.2% of rdg + 3 dgts

40.00V

10mV

± 1.5% of rdg ± 3 dgts

400.0V

100mV

1000V

1V

± 2.0% of rdg + 4 dgts

Input Impedance        : 7.8MΩ.

AC Response           : 50 Hz to 400 Hz

Maximum Input         :  1200V DC or 1200V AC rms.

DC Current (Auto-rangingfor uA and mA)

Range

Resolution

Accuracy

400.0uA

0.1uA

± 1.0% of rdg ± 3 dgts

4000uA

1uA



± 1.5% of rdg ± 3 dgts

40.00mA

10uA

400.0mA

100uA

20A

10mA

± 2.5% of rdg + 5 dgts

Overload Protection  :  0.5A / 1000V and 20A /500V Fuse

Maximum Input         : 400mA DC or 400mA AC rms on

uA / ma ranges, 20A DC or AC rms on 20A range.

AC Current (Auto-ranging for uA and mA)

Range

Resolution

Accuracy

400.0uA

0.1uA

± 1.5% of rdg + 5 dgts

4000uA

1uA



± 1.8% of rdg + 5 dgts

40.00mA

10uA

400.0mA

100uA

20A

10mA

± 3.0% of rdg + 7 dgts

Overload Protection  :  0.5A / 1000V and 20A / 500V Fuse

AC Response           : 50 Hz to 400 Hz

Maximum Input         : 400mA DC or 400mA AC rms on

uA / mA ranges, 10A DC or AC rms on 10A range

Resistance (Auto-ranging)

Range

Resolution

Accuracy

400.0Ω

0.1Ω

± 1.2% of rdg + 4 dgts

4.000Ω

1Ω

± 1.0% of rdg + 2 dgts

40.00kΩ

10Ω



± 1.2% of rdg ± 2 dgts

400.0kΩ

100Ω

4.000MΩ

1kΩ

40.00MΩ

10kΩ

± 2.0% of rdg + 3 dgts
Input Protection        : 600V DC or 600V AC rms

Capacitance (Auto-ranging)

Range

Resolution

Accuracy

4.000nF

1pF

± 5.0% of rdg + 0.2 nF

40.00nF

10pF

± 5.0% of rdg + 7 dgts

400.0nF

0.1nF



± 3.0% of rdg + 5 dgts

4.000uF

1nF

40.00uF

10nF

200.0uF

0.1uF

± 5.0% of rdg ± 5 dgts
Input Protection        : 600V DC or 600V AC rms

Frequency (Auto-ranging)

Range

Resolution

Accuracy

9.999Hz

0.001 Hz



± 1.5% of rdg ± 5 dgts

99.99Hz

0.01 Hz

999.9Hz

0.1 Hz





± 1.2% of rdg ± 3 dgts

9.999kHz

1Hz

99.99kHz

10Hz

999.9kHz

100Hz

9.999MHz

1kHz

± 1.5% of rdg ± 4 dgts

Sensitivity               : > 0.5V RMS while ≤ 1MHz

Sensitivity               : > 3V RMS while > 1MHz

Overload protection : 600V DC or AC rms

Duty Cycle

Range

Resolution

Accuracy

0.1% ~ 99.9%

0.1%

± 1.2% of rdg ± 2 dgts

Pulse width             : > 100us, < 100ms

Frequency width     : 5Hz - 150kHz

Sensitivity     : > 0.5V RMS

Overload protection :600V DC or AC rms



Temperature

Range

Resolution

Accuracy

-20ºC~+760ºC

1ºC

±3% of rdg ± 5ºC/9ºF

-4ºF~+1400ºF

1ºF

Sensor                    : Type K Thermocouple

Overload protection : 600V DC or AC rms

Diode Text

Test Current

Resolution

Accuracy

0.3mA

typical

1 mV

± 10% of rdg ± 5 dgts

Open circuit voltage  : 1.5Vdc typical

Overload protection : 600V DC or AC rms



Audible continuity

Audible threshold : Less than 150Ω

Test current : < 0.3 mA

Overload protection :600V DC or A rms
