Metravi PRO 11 Digital Multimeter
Click To Zoom

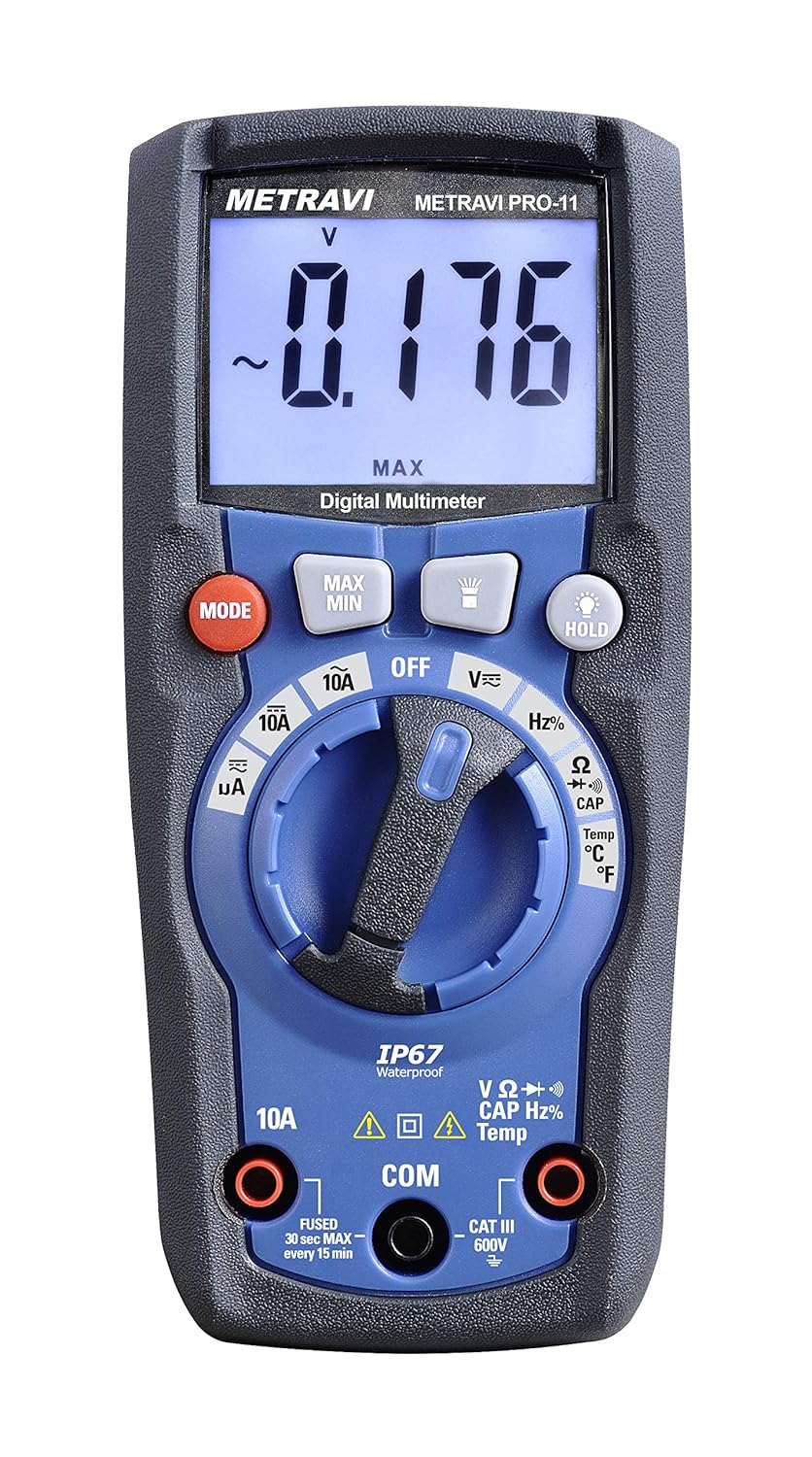

Metravi PRO 11 Digital Multimeter
Metravi PRO 11 Digital Multimeter

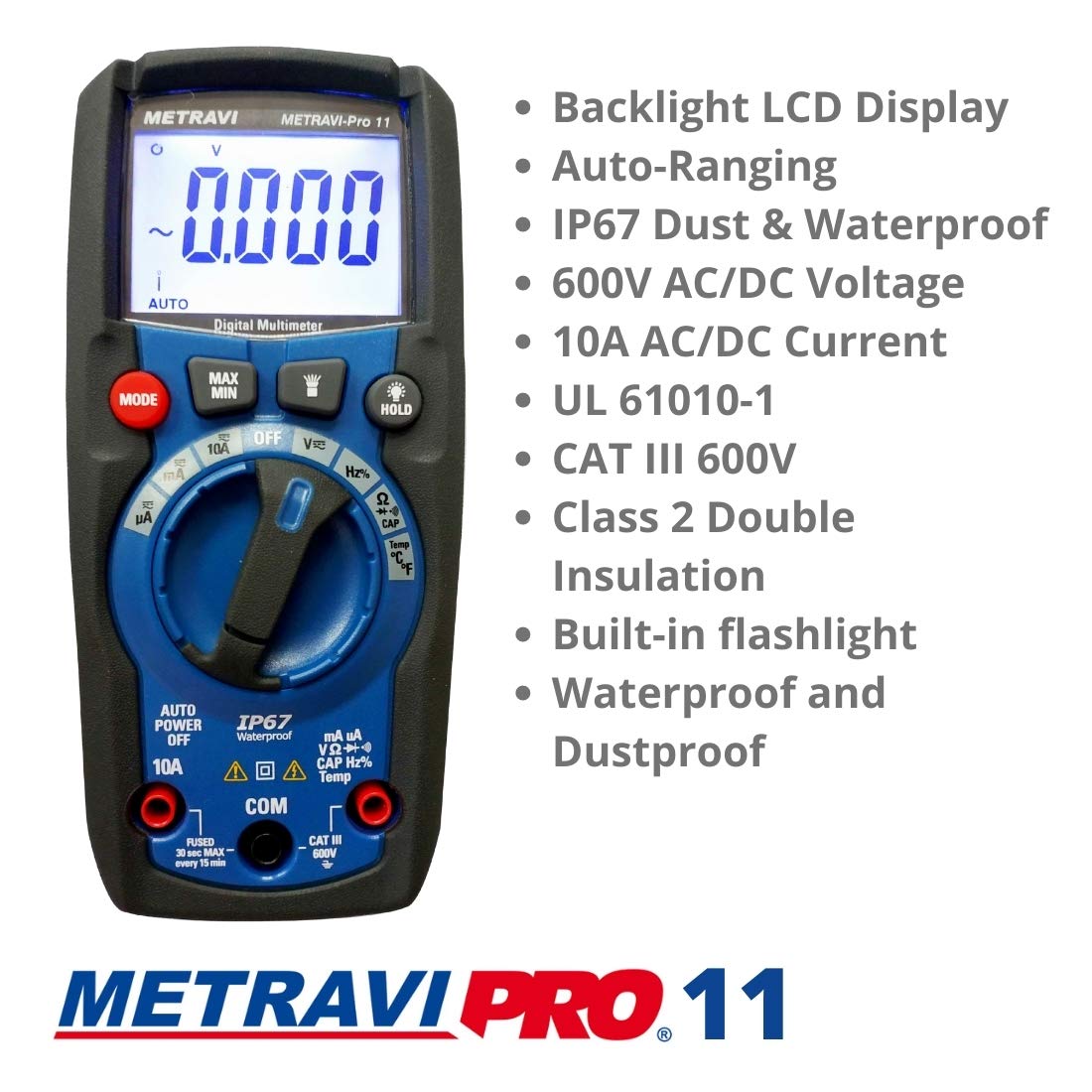

4000 Count Backlight LCD Display, Auto-Ranging, IP67 Dust and Waterproof, 600V AC/DC Voltage, 10A AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Temperature, UL 61010-1, CAT-III 600V, Class 2 Double Insulation, Built-in flashlight, Over range indication, Auto Power Off, Min/Max Data Hold. Hand-Held Waterproof and Dustproof, Digital Multimeter.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 4,719.00
(GST inclusive price) i₹6,345.00
( - 26% OFF )
Description

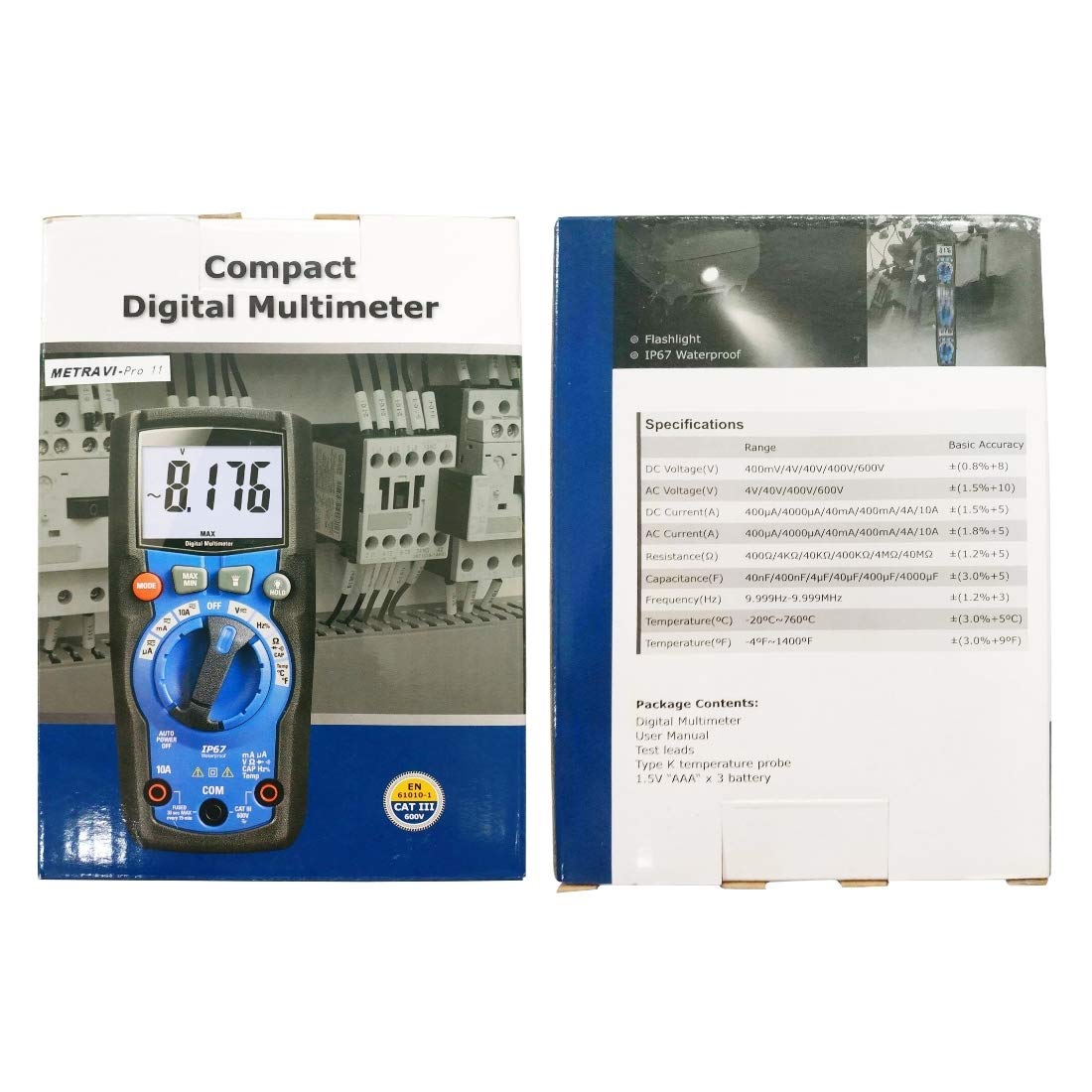

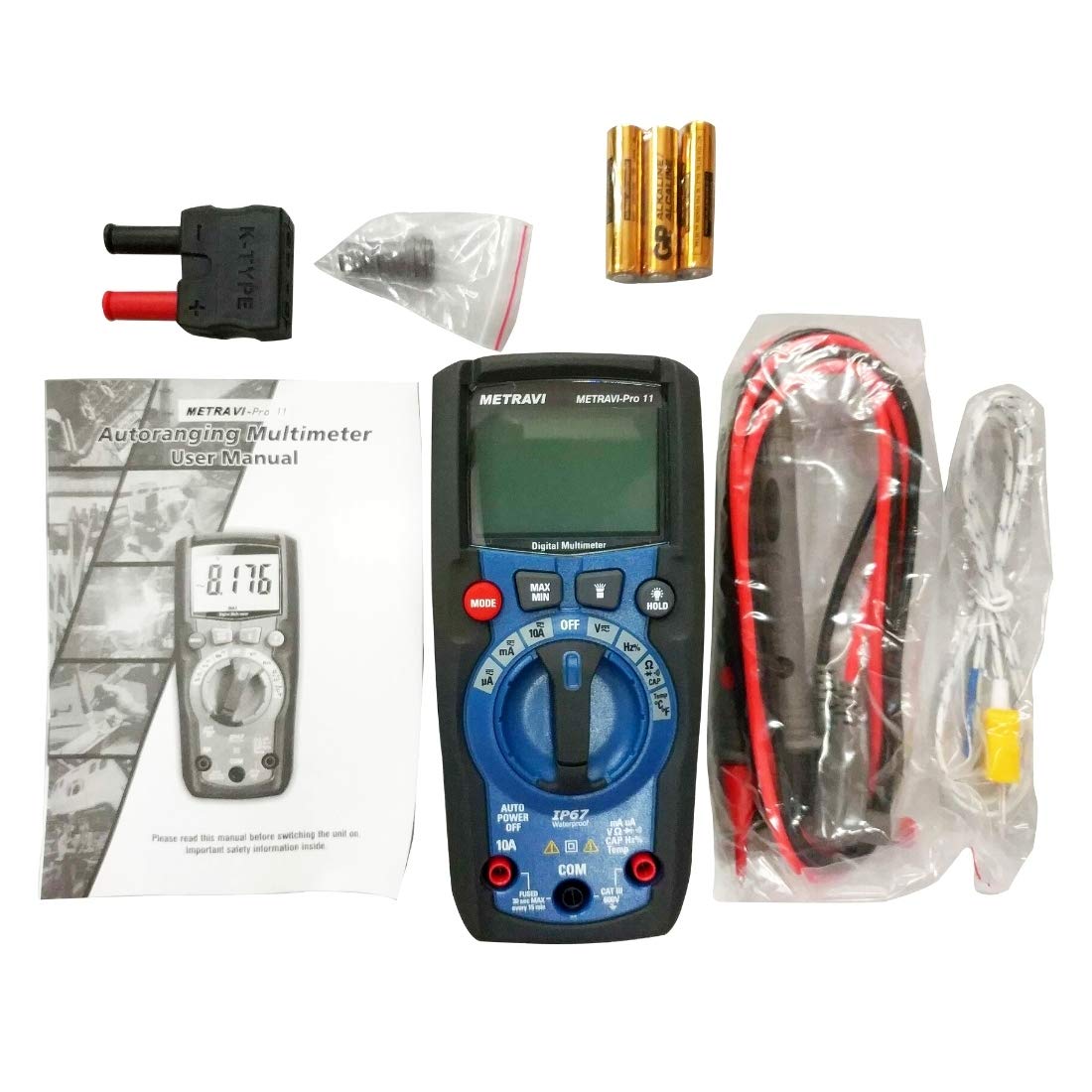

What's in the box?
|
Rating & Reviews
Rating
1) Insulation : Class 2, Double Insulation
2) Enclosure : Double Molded, IP67 waterproof and dust-proof
3) Diode Test : Test current 1.5mA max., open circuit voltage 3V typical
4) Continuity Test : Audible signal if the resistance is approx. 50W
5) Low Battery Indication : “ ” is displayed
6) Display : 4000 count LCD display
7) Over Range Indication : “OL” is displayed
8) Polarity : Minus symbol “-” is displayed for negative polarity
9) Measurement Rate : 3 readings per second, nominal
10) T-RMS Measurements : Only in PRO-12B
11) Built in Flash Light to access dark areas
12) Bluetooth interface : For PRO-12B only
13) APP available on Appstore and Google Play Store for remote access of Multimeter
and to store Data (Only in PRO-12B)
14) Auto Power Off : After approx. 15 minutes of inactivity
15) Input Impedance : 10MW AC/DC Voltage
16) Low Z (In PRO-12B only): approx. 3KW input impedance
17) AC Response : True RMS (PRO-12B only)
18) AC Bandwidth : 50 to 400Hz
19) Batteries : Three “AAA” 1.5V batteries
20) Fuse : 10A/600V (5*20) fast acting Fuse 500mA/600V (5*20) fast acting Fuse
21) Operating Environment : 32°F to 104°F (0°C to 40°C), < 70% relative humidity
22) Storage Environment : 14°F to 140°F (-10°C to 60°C) < 80% relative humidity
23) Operating Altitude : 2000 meters maximum
24) Dimensions/ Weight : 5.8” x 2.7” x 2.0”/0.70lb) (147 x 68 x 50mm/318g)
25) Safety : Complies with UL 61010-1 v.3 for measurement Category 600V, Pollution Degree
Function | Range | Resolution | Accuracy ± (% of reading + digits) |
| 400.0mV | 0.1mV |
±(0.6% + 10)
. |
| 4.000V | 1mV | |
DC Voltage | 40.00V | 10mV | |
| 400.0V | 0.1V | |
| 600V | 1V |
Input Protection : 600V DC or 600V AC RMS
Input Impedance : 10M
Function | Range | Resolution | Accuracy ± (% of reading + digits) |
DC Current | 400uA | 0.1uA |
±(1% + 8) |
| 4000uA | 1uA | ||
| 40mA | 0.01mA | ||
| 400mA | 0.1mA | ||
| 4.000A | 1mA | ±(2% + 8) | |
| 10.00A | 10mA |
Overload Protection : 10A range : 10A/600VFuse
uA,mA range : 500mA/600V Fuse
Function | Range | Resolution | Accuracy ± (% of reading + digits) |
Resistance | 400.0W | 0.1W |
±(1.5% + 5) |
4.000kW | 1W | ||
40.00kW | 10W | ||
400.0kW | 100W | ||
4.000MW | 1kW | ±(2% +10) | |
40.00MW | 10kW |
Input Protection : 300V AC RMS or 300V DC
Function | Range | Resolution | Accuracy ± (% of reading + digits) |
Capacitance | 40.00nF | 10pF | ±(3.5% +5) |
| 400.0nF | 100pF |
±(3.0% +5) | |
| 4.000µF | 0.001µF | ||
| 40.00µF | 0.01µF | ||
| 400.0µF | 0.1µF | ||
| 4000µF | 1µF |
Input Protection : 300V AC RMS or 300V DC
Function | Range | Resolution | Accuracy ±(% of reading + digits) |
Frequency (Electronic) | 9.999Hz | 0.001Hz |
±(1.0% + 5) |
| 99.99Hz | 0.01Hz | ||
| 999.9Hz | 0.1Hz | ||
| 9.999kHz | 1Hz | ||
| 99.99kHz | 10Hz | ||
| 999.9kHz | 100Hz | ±(1.2% + 5) | |
| 9.999MHz | 1kHz |
Input Protection : 300V AC RMS or 300V DC Sensitivity : > 8V RMS
Function | Range | Resolution | Accuracy ±(% of reading + digits) |
Duty Cycle | 1.0% to 99.9% | 0.1% | ±(1.2% + 5) |
Input Protection : 300V AC RMS or 300V DC Pulse Width : 0.1 to 100mS
Frequency Range : 5Hz to 100kHz Sensitivity : <8V RMS
Function | Range | Resolution | Accuracy ±(% of reading + digits) |
Temperature | 0°F to 1400°F | 0.1°F | ±(1.5% + 9°F) |
| -18°C to 760°C | 0.1°C | ±(1.5% + 5°C) |
Input Protection : 300V AC RMS or 300V DC
