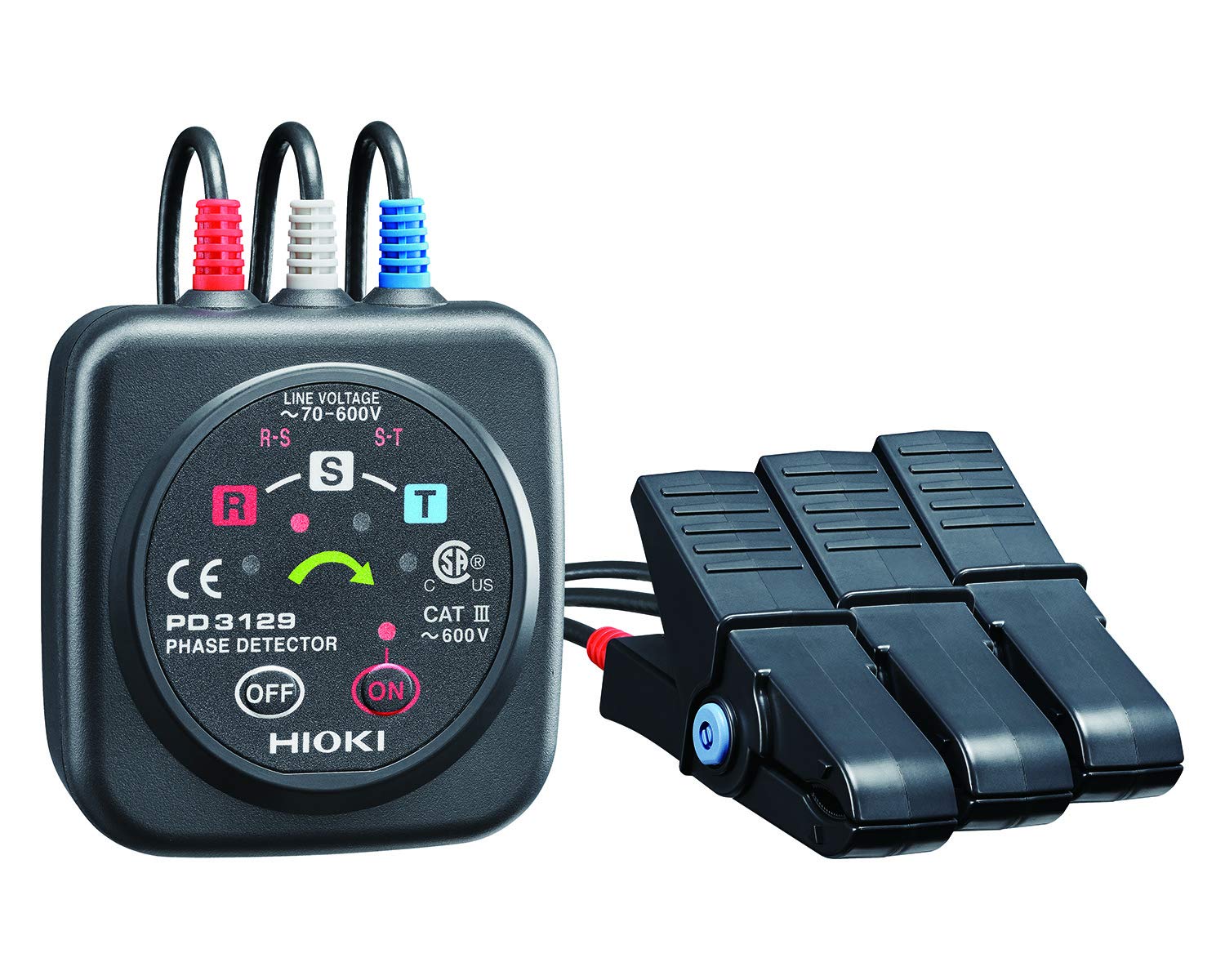

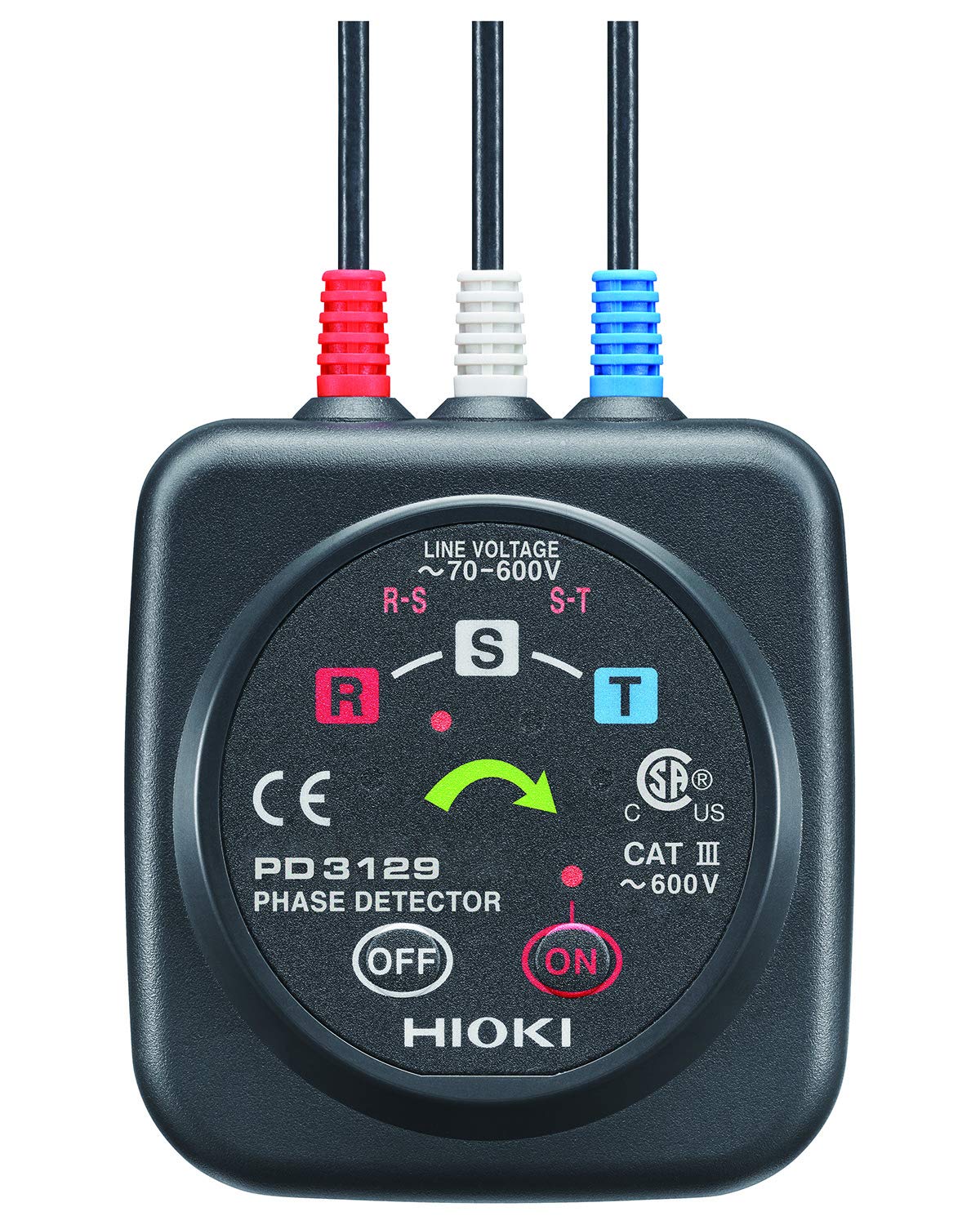

HIOKI PD3129 PHASE DETECTOR
Click To Zoom
HIOKI PD3129 PHASE DETECTOR
HIOKI PD3129 PHASE DETECTOR

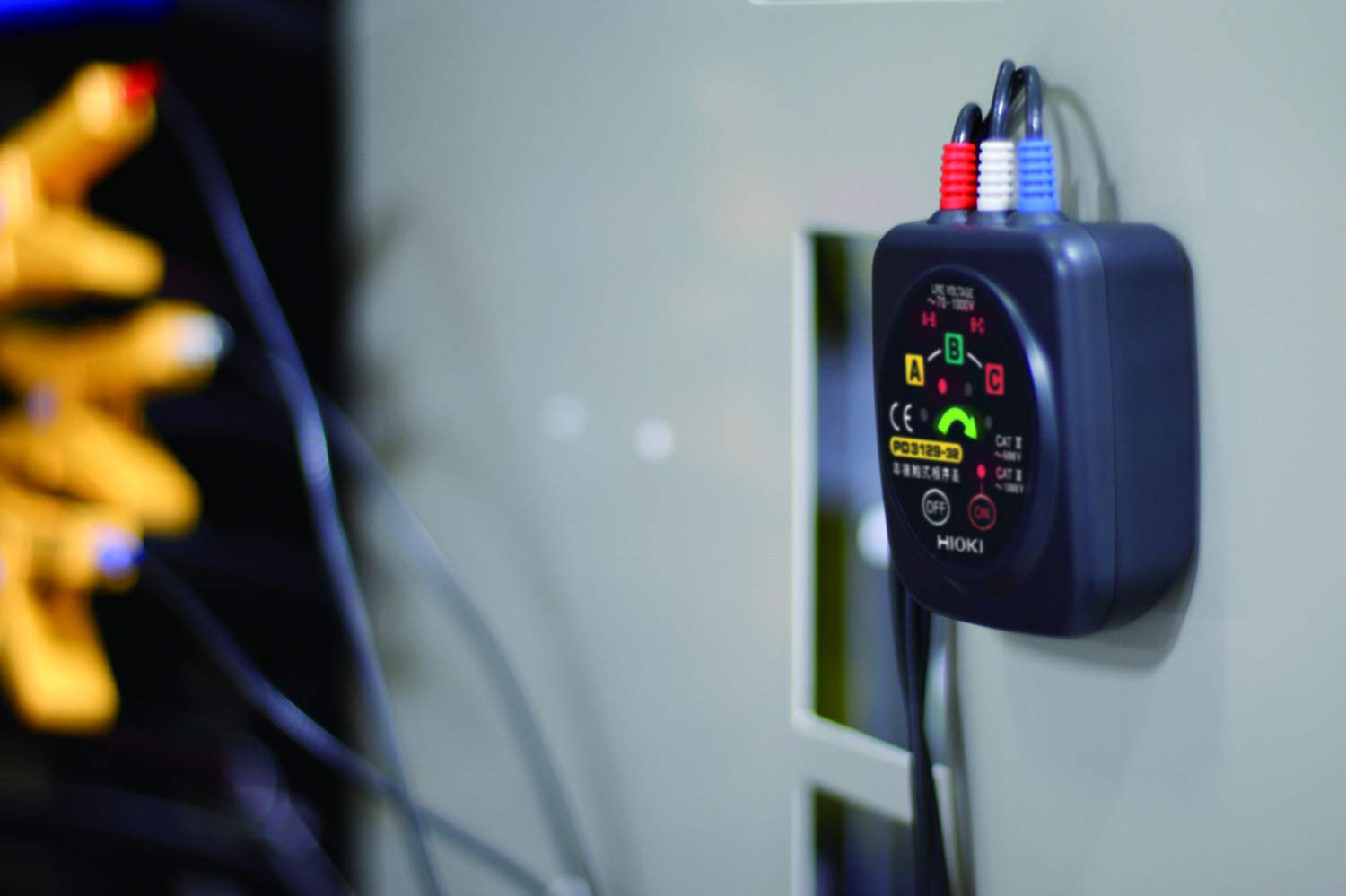

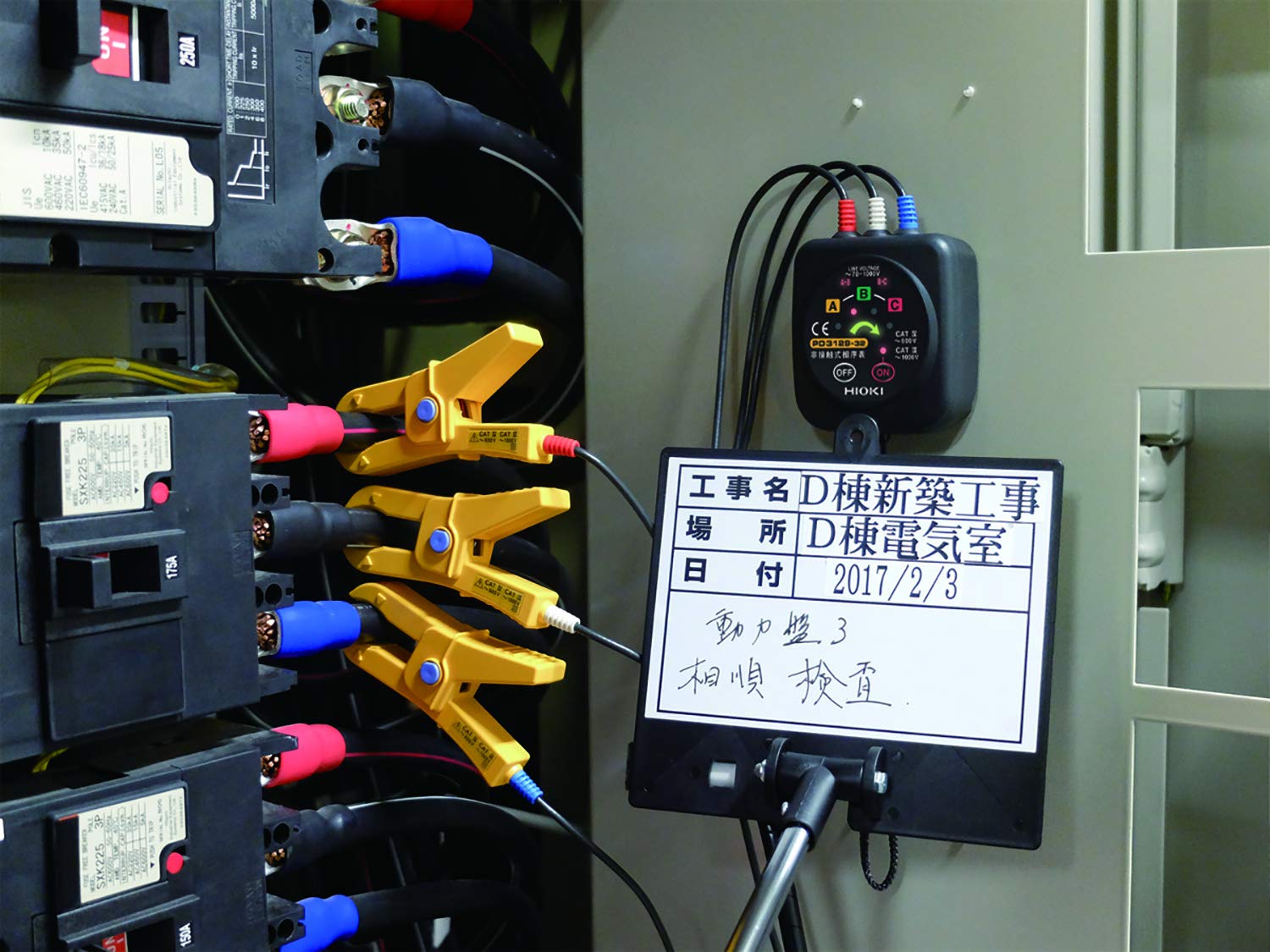

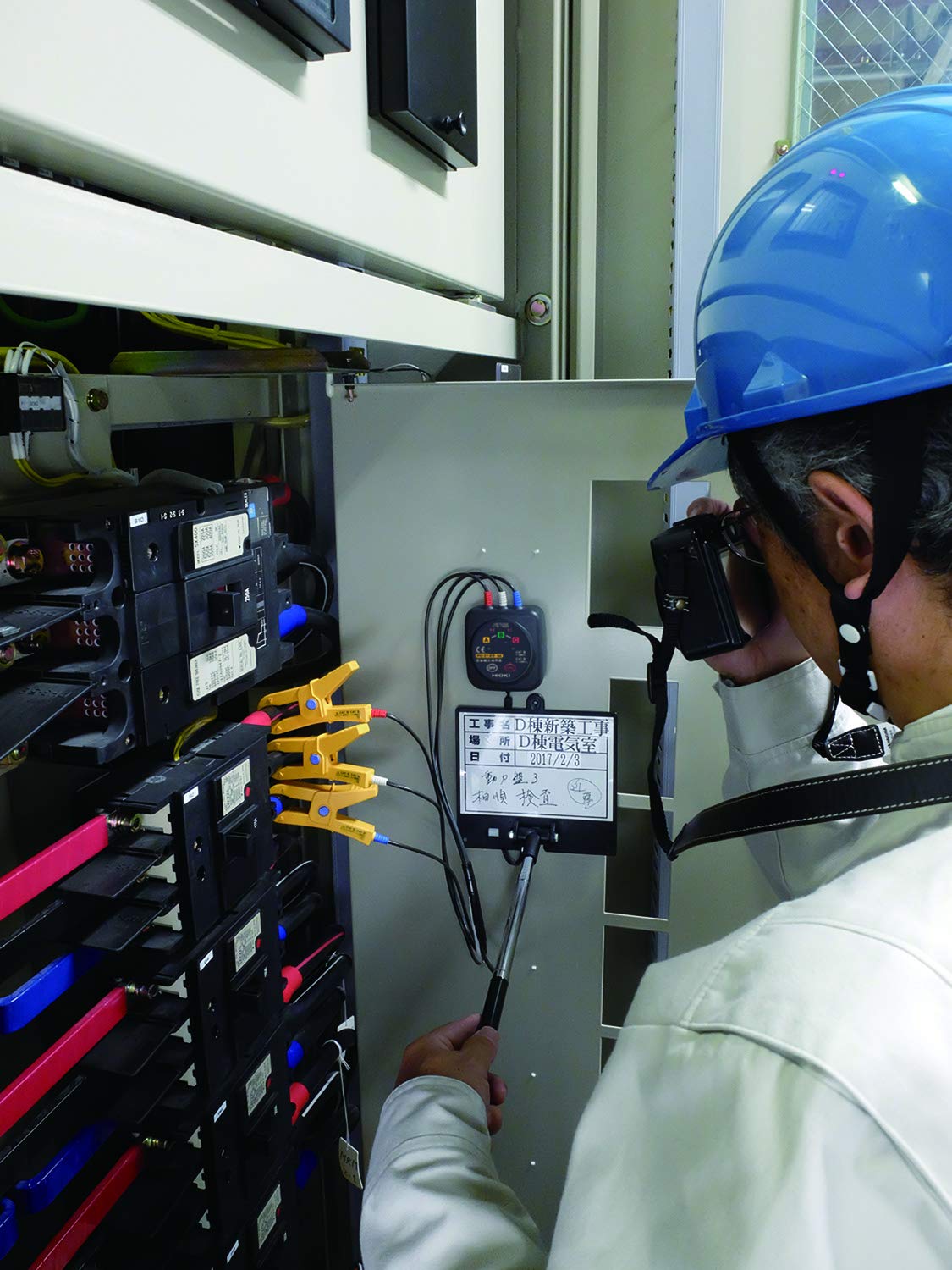

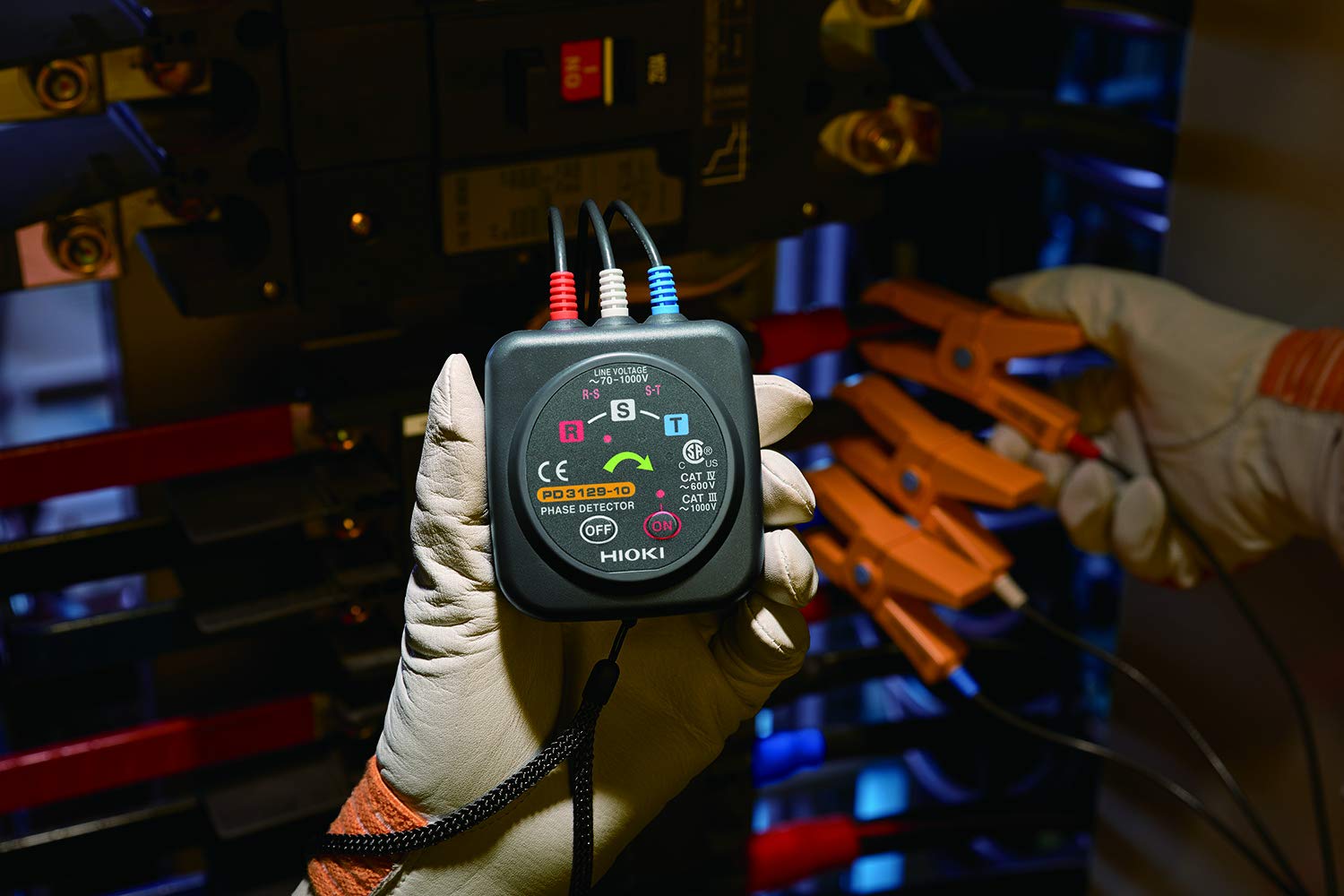

Hioki’s non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings. Model PD3129 is a non-contact phase rotation meter that detects the phase of electrical current flow within insulated wires without using metallic contact voltage clips. The green arrow indicates normal phase, which can be useful for visual reports that document the proper completion of electrical work.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 16,969.00
(GST inclusive price) i₹26,500.00
( - 36% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Functions | Phase detection (positive and negative) |
|---|---|
| Voltage detection method | Static induction |
| Voltage range | 70 to 600 V AC (50/60 Hz) (sine wave,continuous input) |
| Frequency range | 45 Hz to 66 Hz |
| Object to be connected | 2.4 mm (0.09 in) to 17 mm (0.67 in) of insulated wiring |
| Display | Phase detection :Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously |
| Battery check function | Power ON lamp: lights up (Power ON), blinks (Battery LOW) |
| Auto power off | Auto shut off if no activity is detected after power is turned ON for 15 minutes |
| Power supply | AA alkaline battery(LR6) x 2, Continuous use: 200 hr |
| Dimensions and mass | 70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D, 200 g (7.1 oz), Cord length : 0.7 m (2.30 ft) |
