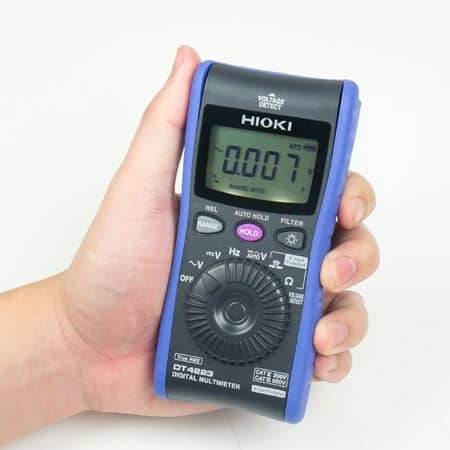

HIOKI DT4223 DMM Multimeter 6000 count
Click To Zoom
HIOKI DT4223 DMM Multimeter 6000 count
HIOKI DT4223 DMM Multimeter 6000 count
The Hioki DT4223 is a pocket-sized digital multimeter featuring an innovating circuit-breaker false trip prevention function to enhance testing safety and a built-in voltage detector, ideal for electrical inspections.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 10,539
(GST inclusive price) i-
Base Value: ₹ 8931.4
-
GST: (18) % ₹ 1607.6
-
Total Value ₹ 10539
₹13,135.00
( - 20% OFF )
Description
Key Features
- Achieving a high level of safety in a compact body and lightweight design
- Circuit breaker false trip prevention function helps avoid accidents resulting from breakers that mistakenly trip due to incorrect input
- Resistance measurement and voltage detection function (DT4223)
- Robust design capable of withstanding a drop from a height of 1 m
- Test leads conveniently wrap around the back
- ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
- Display backlight
What's in the Box?
|
Rating & Reviews
Rating
| DC Voltage range | 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt. |
| AC Voltage range | 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHzBasic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3) |
| Resistance range | 600.0 Ω to 60.00 MΩ, 6 ranges Basic accuracy: ±0.9 % rdg. ±5 dgt. |
| Capacitance range | N/A |
| Frequency range | AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges Basic accuracy: ±0.1 % rdg. ±2 dgt |
| Continuity check | Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more |
| Diode test | N/A |
| Voltage detection | 80 V to 600 V AC |
| Other functions | Circuit-breaker false trip prevention function, filter function, display value hold, relative value display, auto-power save |
| Display | Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph |
| Display refresh rates | 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s ) |
| Power supply | LR03 alkaline batteries ×1, Continuous use: 35 hours (backlight OFF) |
| Dimensions and mass | 72 mm (2.83 in)W × 149 mm (5.87 in)H× 38 mm (1.50 in)D,190 g (6.7 oz) (including batteries and holster) |
