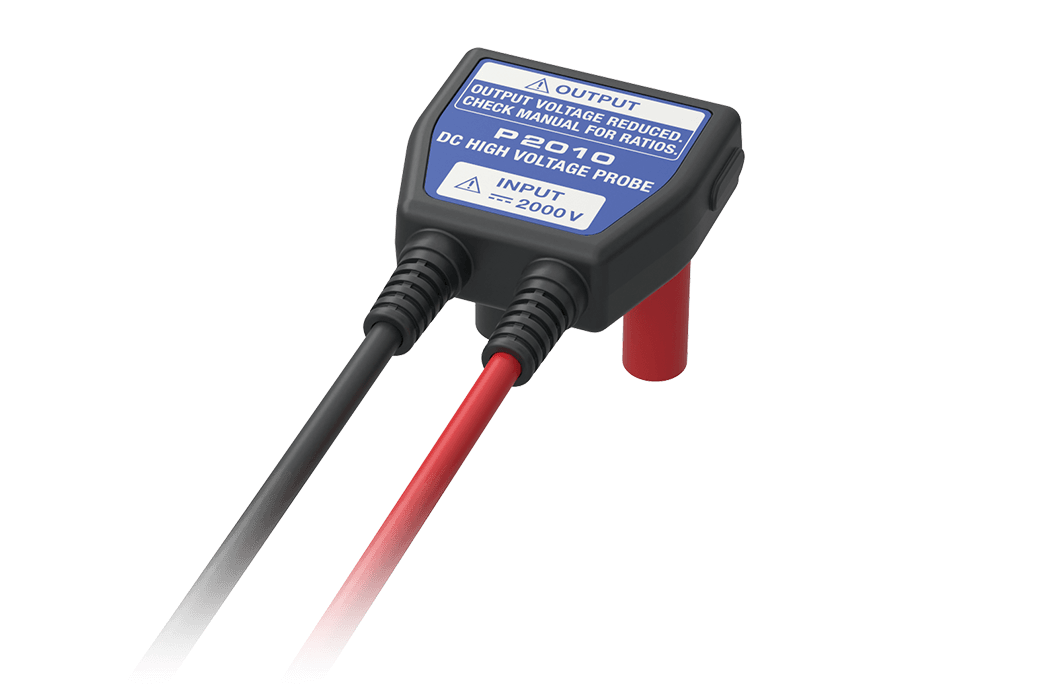

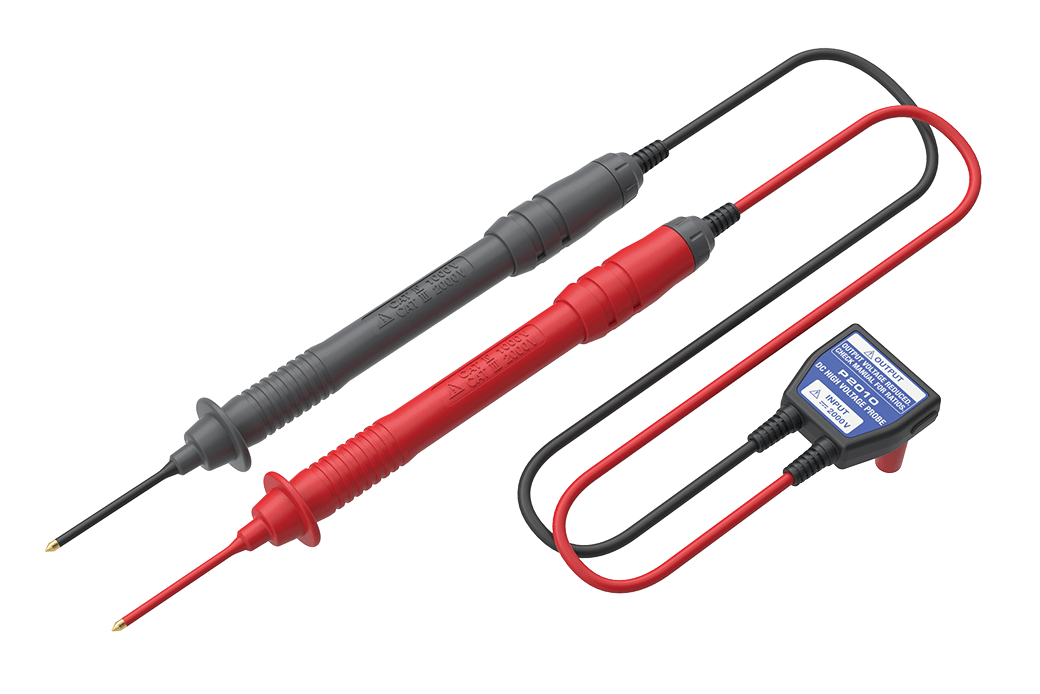

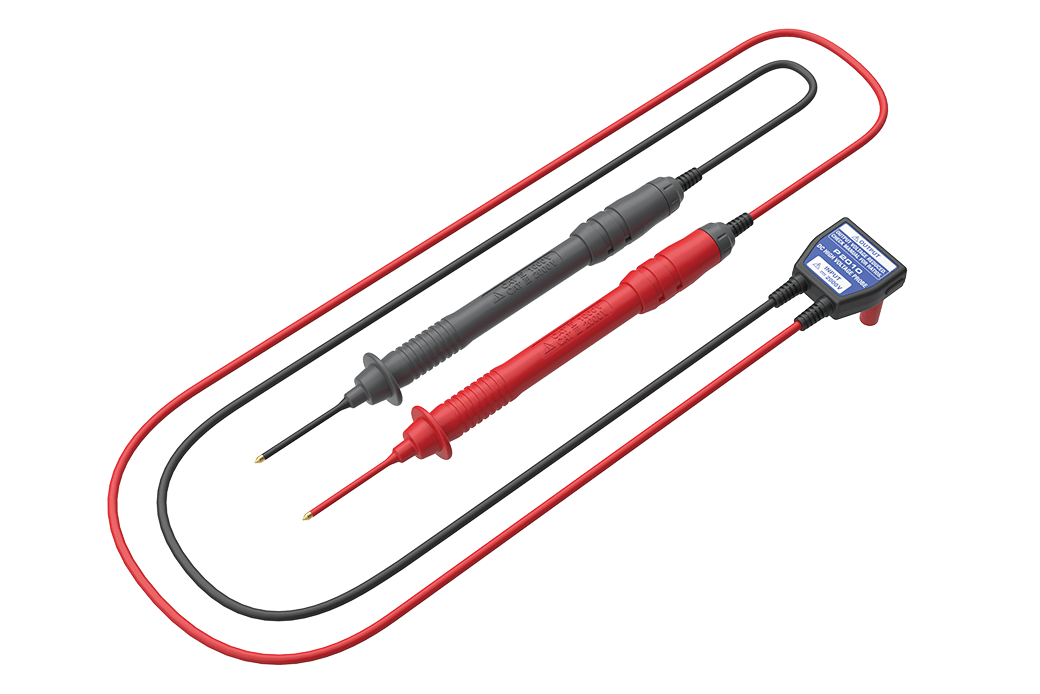

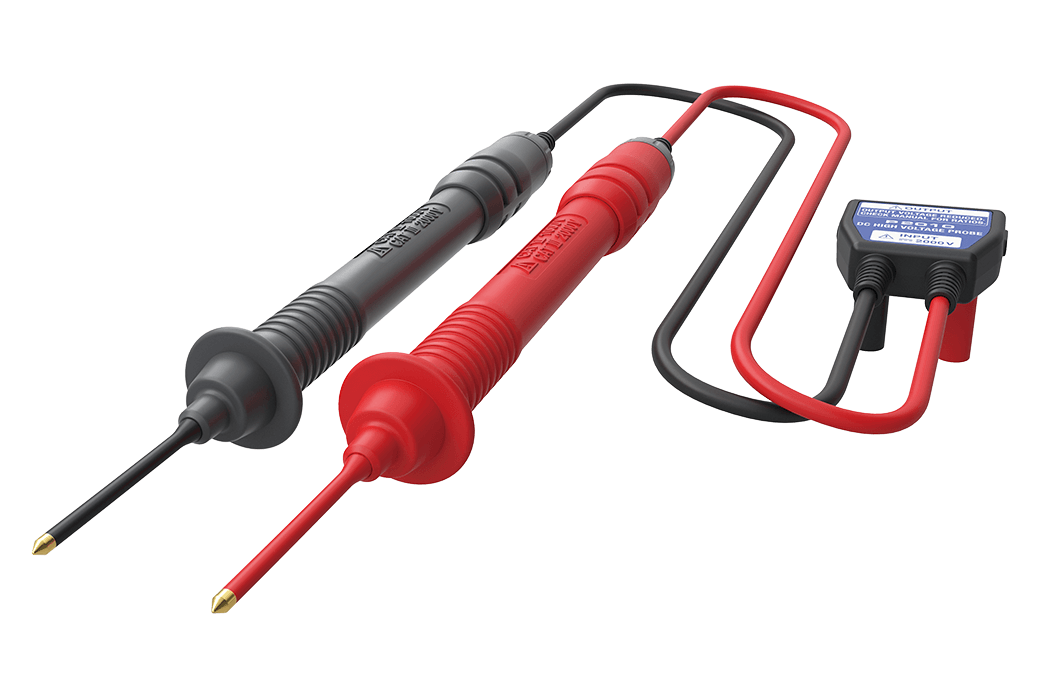

HIOKI P2010 DC HIGH VOLTAGE PROBE
Click To Zoom
HIOKI P2010 DC HIGH VOLTAGE PROBE
HIOKI P2010 DC HIGH VOLTAGE PROBE
The voltage of the solar installations (also known as photovoltaic or PV installations) increases to reduce cost and improve the efficiency of solar equipment. As a result, it is important to select measuring instruments that support higher voltage measurement to protect the safety of inspection workers. The P2010 enables high voltage measurement up to CAT III 2000 V by simply connecting to a compatible Hioki clamp meter or digital multimeter (DMM).
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 13,739
(GST inclusive price) i-
Base Value: ₹ 11643.2
-
GST: (18) % ₹ 2095.8
-
Total Value ₹ 13739
₹18,500.00
( - 26% OFF )
Description
Key Features
- Measures up to 2000 V DC.
- Safety rated CAT III 2000 V.
- Ideal for PV / solar system testing.
- Compatible with Hioki clamp meters & DMMs.
- High input resistance (20 MΩ).
- Overload withstand: 2200 V DC/AC for 1 min.
- Output via 4 mm banana terminal.
- Compact, lighter design than older models.
- Safe, easy field handling.
- Meets IEC safety standards.
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Maximum input voltage (*1) | 2000 V DC |
|---|---|
| Maximum rated line-to-ground voltage | 1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V 2000 V (Measurement Category III), Anticipated transient overvoltage 15000 V |
| Input resistance | 20 MΩ ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open) |
| Overload protection | 2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L) 600 V DC/600 V AC (applied for 1 minute) (between OUTPUT H and OUTPUT L) |
| OUTPUT terminal | 4 mm banana terminal |
| Operating temperature and humidity range | Temperature: -25°C to 65°C (-13°F to 149°F) Humidity: −25°C to 40°C (−13°F to 104°F): 80% RH or less (non-condensing) 40°C to 65°C (104°F to 149°F): Linearly reduces from 80% RH or less at 40°C (104°F) to 25% RH or less at 65°C (149°F) (non-condensing) |
| Storage temperature and humidity range | -30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing) |
| Standards | EN 61010 |
| Model | Combined accuracy |
| DT4261 | Range 600.0 V: Combined accuracy ±0.8% rdg ±0.2 V Range 2000 V: Combined accuracy ±0.8% rdg ±5 V |
| CM4141-50 CM4371-50 CM4373-50 CM4375-50 | Range 600.0 V: Combined accuracy ±1.0% rdg ±0.3 V Range 2000 V: Combined accuracy ±1.0% rdg ±3 V |
| DT4281 DT4282 | Range 60.000 V: Combined accuracy ±0.8% rdg ±0.002 V (output rate 1/10) Range 600.00 V: Combined accuracy ±0.8% rdg ±0.02 V (output rate 1/10) |
| DT4252 DT4253 | Range 60.00 V: Combined accuracy ±1.2% rdg ±0.05 V (output rate 1/10) Range 600.0 V: Combined accuracy ±1.2% rdg ±0.5 V (output rate 1/10) |
| DT4255 DT4256 | Range 60.00 V: Combined accuracy ±1.2% rdg ±0.03 V (output rate 1/10) Range 600.0 V: Combined accuracy ±1.2% rdg ±0.3 V (output rate 1/10) |
