HIOKI P2000 High Voltage Probe 2000V
Click To Zoom
HIOKI P2000 High Voltage Probe 2000V
HIOKI P2000 High Voltage Probe 2000V

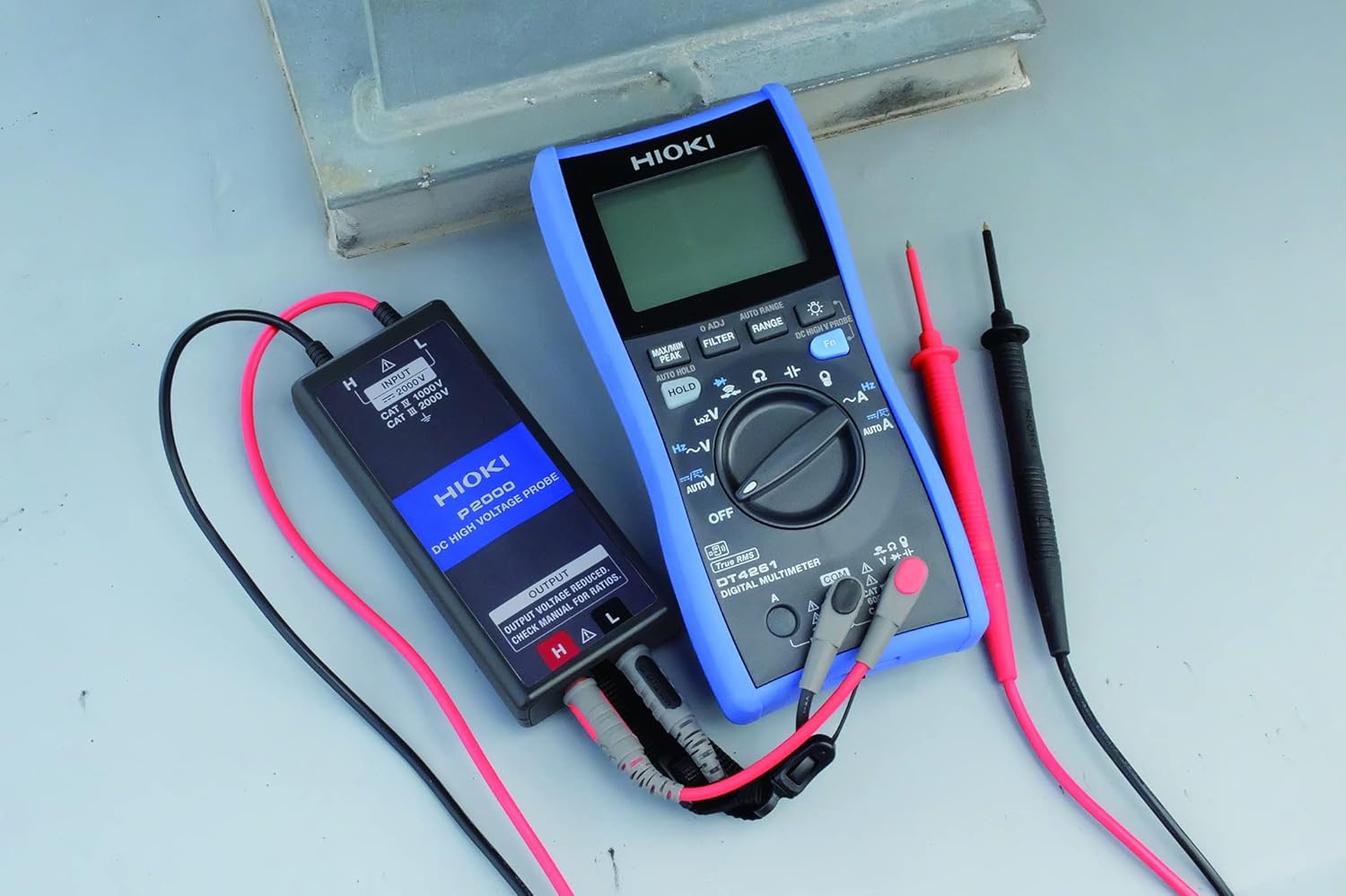

The HIOKI P2000 is a high-voltage probe that enables safe measurement of voltages up to CAT III 2000V when connected to a compatible Hioki clamp meter or digital multimeter. It's ideal for safely inspecting high-voltage solar installations.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 14,938
(GST inclusive price) i-
Base Value: ₹ 12659.3
-
GST: (18) % ₹ 2278.7
-
Total Value ₹ 14938
₹14,938.00
( - 0% OFF )
Description
Key features
- Enables high voltage measurement up to CAT â…¢ 2000 V
- Safely measure solar installations like the mega-solar without interrupting the grid
- Connects to compatible Hioki clamp meters and digital multimeters (DMMs)
What's in the Box
|
Rating & Reviews
Rating
Product Specifications
| SPECIFICATIONS | |
| Maximum input voltage (*1) | 2000 V DC |
| Maximum rated line-to-ground voltage | 1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V 2000 V (Measurement Category III), Anticipated transient overvoltage 15000 V |
| Input resistance | 20 MΩ ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open) |
| Overload protection | 2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L) 600 V DC/600 V AC (applied for 1 minute) (between OUTPUT H and OUTPUT L) |
| OUTPUT terminal | 4 mm banana terminal |
| Operating temperature and humidity range | Temperature: Humidity: |
| Storage temperature and humidity range | -30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing) |
| Standards | EN 61010 |
