Metravi PRO ETS Smart Electrical Tester
Click To Zoom

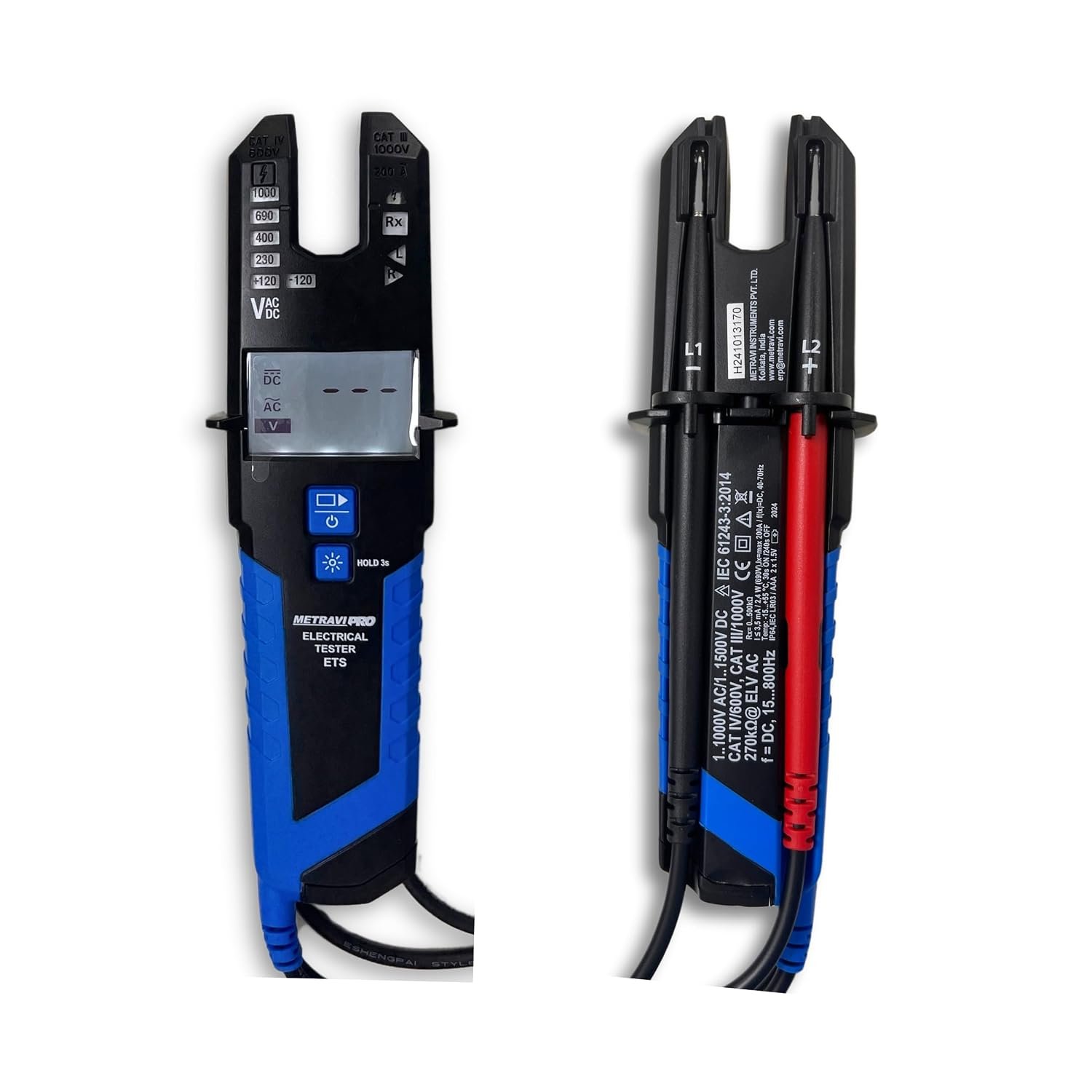

Metravi PRO ETS Smart Electrical Tester
Metravi PRO ETS Smart Electrical Tester

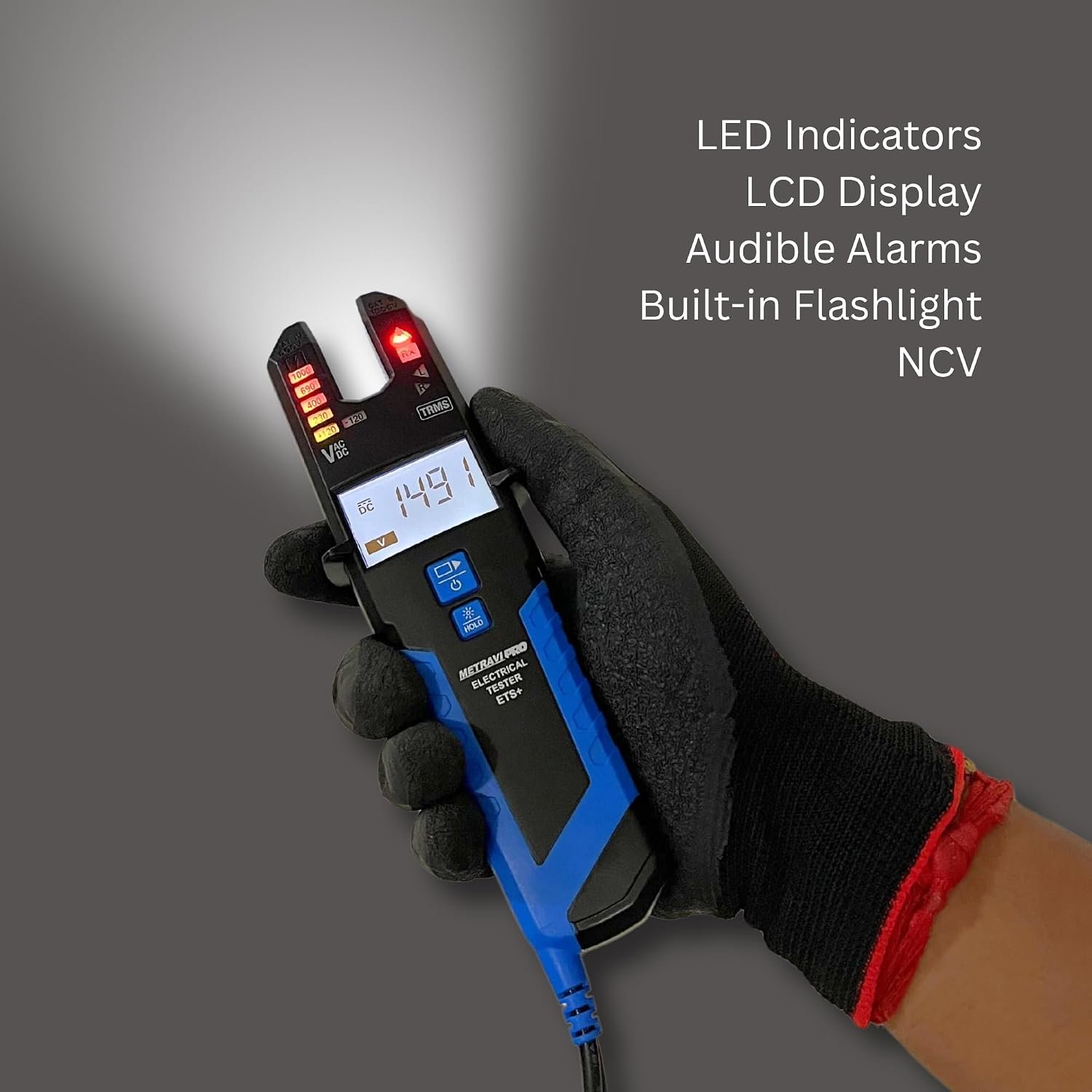

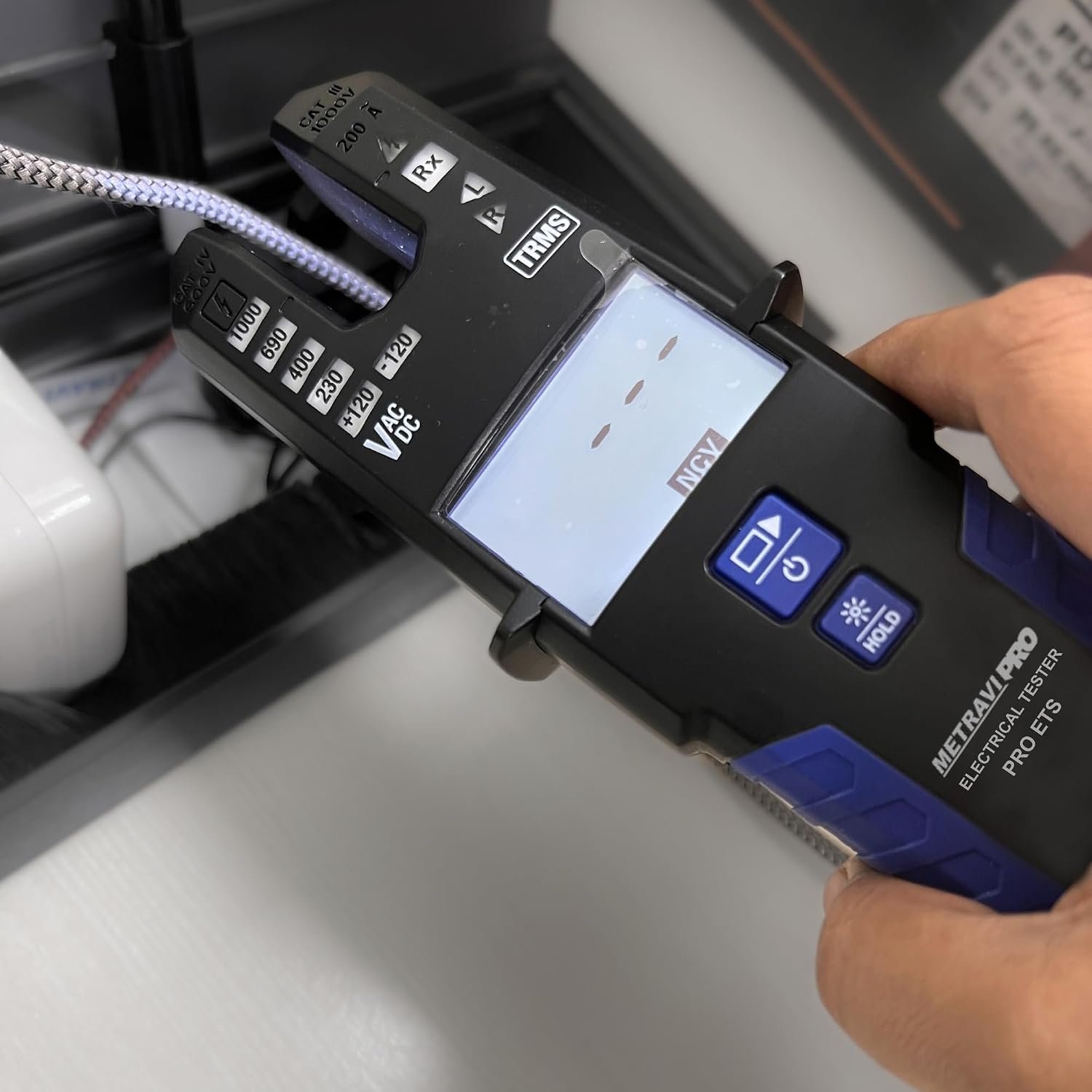

The Swiss army knife for electricians. Measures AC Current via Fork Jaw. 4 digit backlit display. Fork Opening 16mm. Up to 1500V with LED light alarm & readings. 0-200A AC/DC Current measurement. Single Pole Phase Test. Phase Rotation Test. Resistance, Frequency, Continuity & Diode test, Cable Break test using NCV, Duty Cycle, Self Test. Flashlight, Auto Power-off, Test Leads with storage clips. CAT IV 600V, CAT III 1000V, IP64 protection.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 27,000.00
(GST inclusive price) i₹36,450.00
( - 26% OFF )
Description

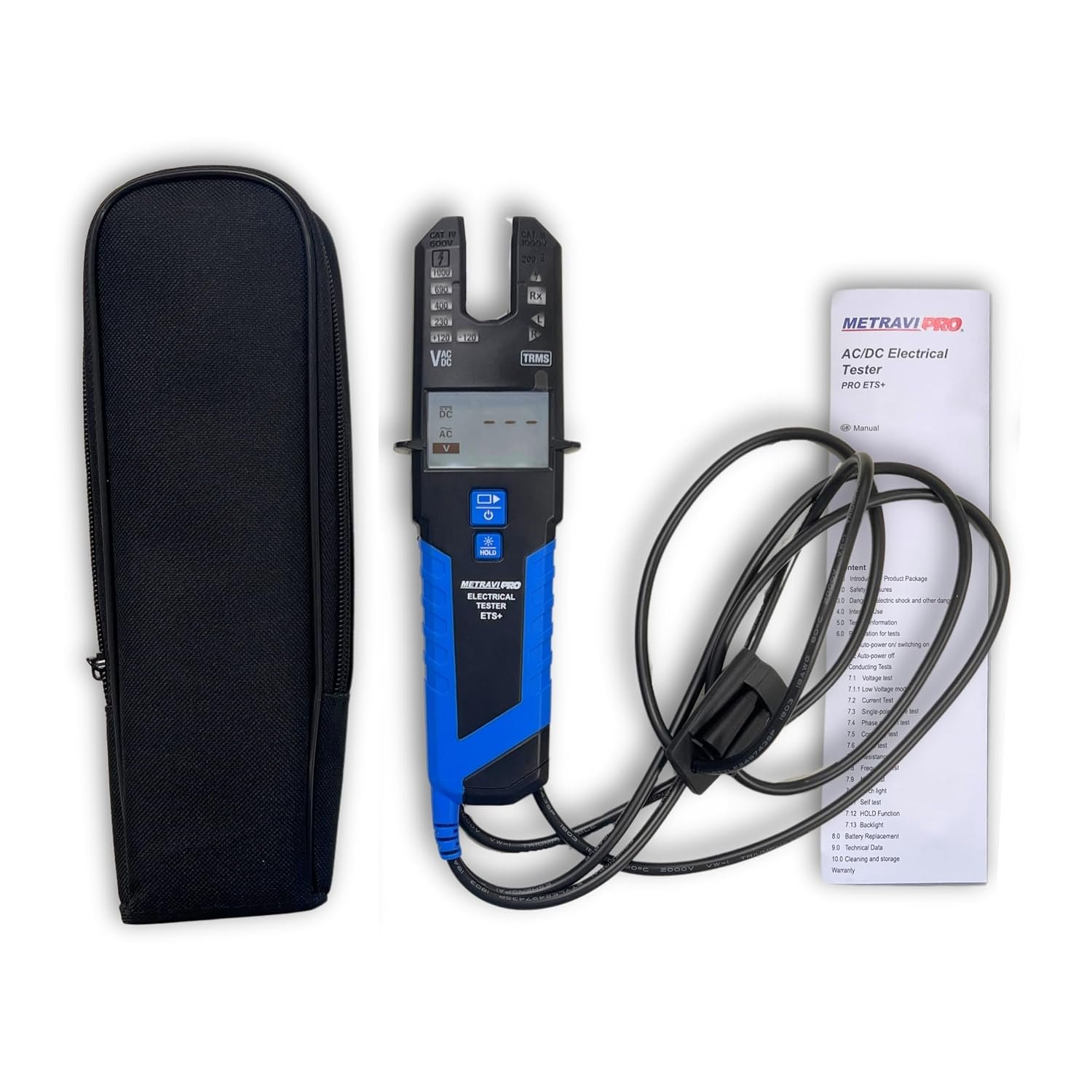

What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Display | 4 digit 7 segment Backlit LCD |
| LED Display Indication | For Voltage, Polarity indication, Single pole, Continuity and Rotary Field |
| Voltage Indication | Buzzer & Vibration if Voltage is higher than 50V AC or 120V DC |
| Voltage Range | 0 - 1000V AC TRMS (15-800Hz); 0 -1500V DC (±) |
| LED Nominal Voltage | 120/230/400/690/1000V |
| LED Tolerance | EN 61243-3 |
| ELV Indication | >50V AC; < 120V DC |
| LED Response Time | <1s at 100% for each nominal value |
| LCD Range | 0 〜 1000V AC (15-800Hz), 0 〜 1500V DC (±0.1V) |
| LCD Resolution | 0.1V (1- 29.9V), 1V (30 〜 1500V) |
| LCD Accuracy | ±3% ±1.5 V (1 〜 29.9V), ±3% ±3dgt (30 〜 1500V) |
| LCD Over-range Indication | "OL" |
| Current Test | 0.1 〜 200A AC (PRO ETS), 0.1 〜 200A AC/DC (PRO ETS+); Accuracy (+/-3%+5dgt), Resolution 0.1A, Frequency 45 〜 65 Hz (Only for double insulated cables) |
| Zero Function | Keep tester away from any current carrying conductors, press both buttons until LCD shows “Zero” and wait until the buzzer sounds 3 times |
| Safety Current Is | <3.5mA at 1000V AC; <6mA at 1500V DC |
| Measurement Duty | 30s ON, 240 s OFF |
| Internal Battery | Consumption Approx. 120mA |
| Single-Pole Phase Test Voltage Range | 100 〜 1000V AC (50/60 Hz) |
| Phase Rotation Test Continuity Test | 170 〜 1000V phase-to-phase AC (40 - 70Hz) |
| Resistance Measurement | 0 100 kΩ; Accuracy: ±5% ±10dgt @25°C 〜 Resolution: 1Ω (1〜2000Ω), 1kΩ (2〜100 kΩ) |
| Frequency Measurement | 1 〜 800Hz ±5% ±5dgt; Resolution: 1Hz |
| Continuity Test | 0 〜 500 kΩ + 50% |
| Diode Test | Yes |
| NCV (Non-contact Voltage detection) Test | 100 〜 1000V AC (50/60 Hz) |
| Data Hold | Yes |
| Low Battery Indication | Yes, on LCD display |
| Battery | 3V (IEC LR03 1.5 V x 2) |
| Environment Temperature | -15° 〜 55°C Operation; -20° 〜 70°C Storage |
| Environment Humidity | No condensation, Max. 85%RH |
| Altitude | Up to 2000m |
| Standards | CATIV 600V, CATIII 1000V, EN/IEC 61243-3:2014 |
| Protection | IP64 Dust & Splash Proof |
| Dimensions | (L x W x D) 210 x 60 x 40 mm |
| Weight | Approx 270 g (with test leads attached) |
