RISHABH AIT 501 Smart 5KV Digital Insulation Tester

RISHABH AIT 501 Smart 5KV Digital Insulation Tester
RISHABH AIT 501 Smart 5KV Digital Insulation Tester

RISHABH AIT 501 Smart 5KV Digital Insulation Tester

Click To Zoom

RISHABH AIT 501 Smart 5KV Digital Insulation Tester

RISHABH AIT 501 Smart 5KV Digital Insulation Tester

(Based On 10 Reviews)

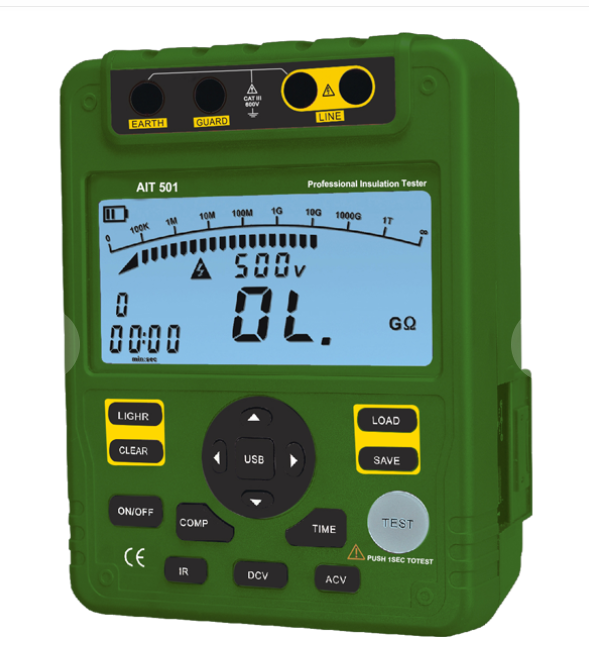

The Agam AIT 501 is the 5KV Smart Digital Insulation resistance tester with diagnostic features like PI, DAR. Has selectable test voltages of 500V, 1000V, 2500V and 5000V & Insulation resistance measurement upto 1 TOhm. An compact tool for Insulation testing designed smartly.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

₹ 34,000

(GST inclusive price) i
  • Base Value: ₹ 28813.6
  • GST: (18) % ₹ 5186.4
  • Total Value ₹ 34000

₹58,290.00

( - 42% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Robust unit : Ideal for portable testing
  • Test voltages of 500V, 1000V, 2500V and 5000V & Insulation Resistance measurement upto1 TOhm : To cater wide applications
  • Automatic Polarisation Index (PI), Dielectric Absorption Ratio (DAR): For diagnostic testing of Insulation
  • DC/AC voltage measurements to 600V : To check live voltages if any present in DUT
  • Autoranging insulation resistance tester : No need to select range manually
  • Auto shut down when left idle & Optional Operation on Mains via adapter: Ensures Battery saving
  • Datalogging capabilities and USB interface : For maintaining records & data analysis
  • Comparator Function:Pass/fail (Go-No-Go) test for the insulation measurements
  • Wide LCD with backlit screen, Analog bar graph (30 segment): For Easy, Comfortable and Accurate viewing



What's in the box?

  • RISHABH AIT 501 Smart 5KV Digital Insulation Tester
  • Operating Manual (1 piece)
  • One plug test lead to one alligator clip (Black colour)(1 piece)
  • One plug test lead to one alligator clip (Green colour)(1 piece)
  • Two plugs test lead to one alligator clip (Red colour) (1 piece) 5. 1.5V Battery (LR14) (8 piece)
  • Tool Box USB (1 piece)
  • Interface Cable (1 piece)
  • Software

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Test Voltages500V, 1000V, 2500V, 5000V
Test Voltage Accuracy0% to 20%
500V Range (Accuracy)1MOhm to 20GOhm (± 3%+5)
1000V Range (Accuracy)2MOhm to 40GOhm (± 3%+5)
2500V Range (Accuracy)5MOhm to 100GOhm (± 3%+5)
5000V Range (Accuracy)10MOhm to 1000GOhm (± 3%+5)
Short Circuit Current1.8 mA
AC/ DC Voltage600V
Low Resistance0.1Ohm to 999.9Ohm
