RISHABH RISH INSU 20 INSULATION TESTERS
Click To Zoom

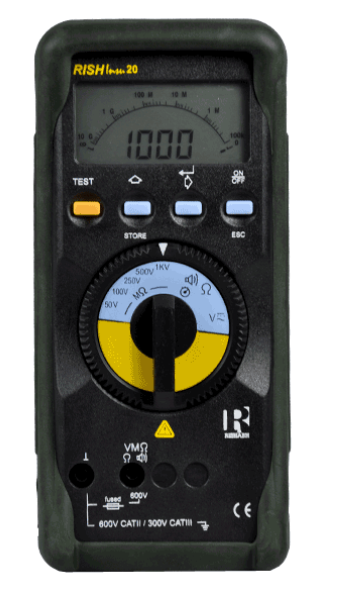

RISHABH RISH INSU 20 INSULATION TESTERS
RISHABH RISH INSU 20 INSULATION TESTERS
Analog digital Insulation & continuity tester for measure of 10Kohm-2Gohm with selectable test voltage upto 1000V. LR measurement from 0.01-99.9 ohm & upto 600V AC/DC. Storage of Min, Max & last 50 readings. Preselectable measurement time, stop watch, fuse blow, auto power off.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 5,899
(GST inclusive price) i-
Base Value: ₹ 4999.2
-
GST: (18) % ₹ 899.8
-
Total Value ₹ 5899
₹10,090.00
( - 42% OFF )
Description
Key Features
- Analog + Digital Display (Log scale for Insulation Measurement)
- User Selectable Backlit Display
- Connector jack for External Mains Adapter (Optional)
- Test Voltages 50V/100V/250V/500V/1000V
- Insulation Resistance Measurement
- Low Resistances Measurement (0.01Ohm... 99.9 Ohm)
- Hands-free continuity testing
- Voltmeter
- Automatic discharge for capacitive circuits after test measurement
- Live circuit detection
- Blown fuse indication
- Pre-selectable measurement time for Insulation Resistance Measurement
- Pre-selectable limit checks (Go/ No-go option) for MOhm / GOhm
- Lead resistance null facility
- Storage of MIN / MAX values
- Storage Memory for last 10 readings
- Stop Watch
- Auto-power off function
- Protective holster for rough duty
What's in the box?
|
Rating & Reviews
Rating
| Meas. Function | Range | Resolution | Accuracy (% of rdg +Digit) | Overload value & duration |
| Insulation" Resistance MΩ UN=50V, 100V | 0.01 ΜΩ τo 0.99 ΜΩ | 10 ΚΩ (0.01 ΜΩ) | ±3% ±2D | 1200 Vrms 10 sec |
| >1.0 ΜΩ to 9.9 ΜΩ | 100 ΚΩ (0.1 ΜΩ) | ±5% ±2D | ||
| >10 ΜΩ to 99 ΜΩ | 1ΜΩ | ±30% | ||
| Insulation" Resistance M UN=250, 500V, 1000V | 0.01 ΜΩ to 9.99 ΜΩ | 10 ΚΩ (0.01 ΜΩ) | ±5% + 2D | 1200 Vrms 10 sec |
| >10 ΜΩ to 99 ΜΩ | 100 ΚΩ (0.1 ΜΩ) | ±5% + 2D | ||
| >100 ΜΩ το 999ΜΩ | 1ΜΩ | + 30% service error | ||
| Low Ohms Ω | 0 to 9.99Ω | 0.012 at 210 mA | +3% +2D | 1200 Vrms 10 sec |
| 210 Ω το 99.9Ω | 0.10 at 21 mA | +5% + 2D | ||
| Continuity | 0 to 9.99Ω | 0.012 at 210 mA | + 3% + 2D | 1200 Vrms 10 sec |
| >100 to 99.9Ω | 0.12 at 21 mA | ±5% ± 2D | ||
| V AC/DC | 25V to 450V | 1V | ±2% ±3D | 1200 Vrms 10 sec |
| 450V to 600V | 1V | ±3% |
