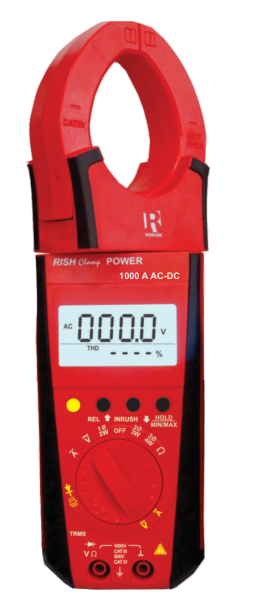

Rishabh RISH 1000 A AC/DC 3 Phase Power Clamp meter
Click To Zoom
Rishabh RISH 1000 A AC/DC 3 Phase Power Clamp meter
Rishabh RISH 1000 A AC/DC 3 Phase Power Clamp meter
RISH Clamp POWER 1000A measures, calculate and displays important electrical parameters of single phase or three phase power system. It also features Resistance, continuity, diode and non contact voltage detection.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 15,299
(GST inclusive price) i-
Base Value: ₹ 12965.3
-
GST: (18) % ₹ 2333.7
-
Total Value ₹ 15299
₹26,220.00
( - 42% OFF )
Description
Key Features
- AC&DC Voltageupto1000V
- AC&DCCurrent upto 1000A/400 A
- Inrush/Peak ValueMeasurement
- Active,Reactive andApparentPower
- Horse PowerMeasurement
- kWh
- Measure up to49thHarmonics
- PhaseAngle
- THD
- DF
- Power Factor
- Crest Factor
- LPFMode forVFDApplication
What's in the box?
|
Rating & Reviews
Rating
Measuring function | Measuring range |
Resolution | Intrinsic error of digital display at reference condition | Over load capacity | ||
Over load value | Overload duration | |||||
V DC | 999.9 V | 0.1 V | ±(0.5% of rdg + 5 dgt) |
1000 V DC/AC eff/rms Sine wave |
Continuously | |
V ~ | 999.9 V | 0.1 V | ±(0.75% of rdg+5 dgt) | |||
V ACDC | 999.9 V | 0.1 V | ±(1.25% of rdg+10dgt) | |||
LPF V~ |
999.9 V |
0.1 V | 50 60 Hz | ±(0.75% of rdg + 5dgt) | ||
61...400Hz | ±(5.0% of rdg + 5dgt) | |||||
POWER clamp 1000A DC |
999.9A |
0.1 A |
±(1.5% of rdg+5 dgt)1) |
1100 A AC/DC for power clamp 1000A
440 A AC/DC for power clamp 400A |
Continuously | |
POWER clamp 400A DC | 99.99 A | 0.01 A | display value <1000 add 10 dgt | ±(1.5% of rdg+0.2A)1) | ||
400 A | 0.1 A | ±(1.5% of rdg+5 dgt)1) | ||||
POWER clamp 1000A AC |
999.9A |
0.1 A |
±(3% of rdg+10 dgt)1) | |||
POWER clamp 400A AC | 99.99 A | 0.01 A | display value <1000 add 10 dgt | ±(3% of rdg+0.4A) 1) | ||
400 A | 0.1 A | ±(3% of rdg+10 dgt)1) | ||||
POWER clamp LPF 1000AA AC |
999.9A |
0.1 A | 50 60 Hz 61 400Hz | ±(1.5% of rdg +5dgt) ±(5.0% of rdg +5dgt) | ||
POWERclamp LPF 400A A AC | 99.99 A | 0.01 A | 50 60 Hz 61 400Hz | ±(1.5% of rdg +0.3A) ±(5.0% of rdg + 5dgt) | ||
400 A | 0.1 A | 50 60 Hz 61 400Hz | ±(1.5% of rdg +5dgt) ±(5.0% of rdg + 5dgt) | |||
Active Power2) | 9.999 kW | 1 W |
±(2% of rdg+5 dgt) 1) |
1000 V DC/AC 1100 A AC/DCfor Power Clamp 1000A 440 A AC/DC for Power Clamp 400A |
Continuously | |
99.99 kW | 10 W | |||||
999.9 kW | 100 W | |||||
9999 kW | 1 kW | |||||
Reactive Power 2) | 9.999 kVAr | 1 VAr | ||||
99.99 kVAr | 10 VAr | |||||
999.9 kVAr | 100 VAr | |||||
9999 kVAr | 1 kVAr | |||||
Apparent Power 2) | 9.999 kVA | 1 VA | ||||
99.99 kVA | 10 VA | |||||
999.9 kVA | 100 VA | |||||
9999 kVA | 1 kVA | |||||
Horse Power 2) | 9.999 hp | 0.001 hp | ||||
99.99 hp | 0.01 hp | |||||
999.9 hp | 0.1 hp | |||||
9999 hp | 1 hp | |||||
kWh 2) | 9.999 kWh | 0.001 kWh |
±(3% of rdg+5 dgt) | |||
99.99 kWh | 0.01kWh | |||||
999.9 kWh | 0.1 kWh | |||||
9999 kWh | 1 kWh | |||||
