Rishabh 300A AC Clamp Meter
Click To Zoom

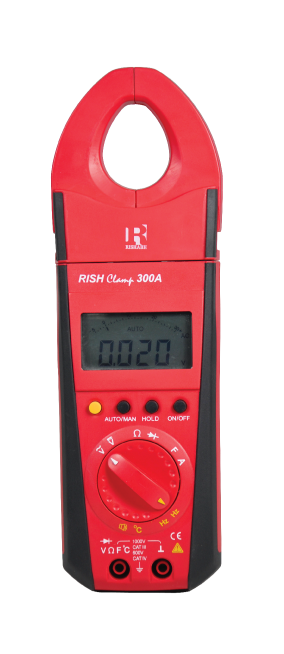

Rishabh 300A AC Clamp Meter
Rishabh 300A AC Clamp Meter
3¾ digit 300A Clamp meter measures Aac Vac Vdc F ? continuity Hz Dutycycle °C, at awkward positions of bus-bars, conductors difficult to access.180°rotating clamp jaws with 55/50mm Jaw opening Backlite display Auto/Manual mode,Double moulded soft touch cover & firm grip.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 5,199.00
(GST inclusive price) i₹8,880.00
( - 41% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Measuring function | Measuring range | Resolution | Input impedance | Intrinsic error of digital display ± (…% of rdg + …digit) at reference condition | Over load capacity 1) | |
Over load value | Overload duration | |||||
V dc | 30.00 mV | 10 μV | >10 GΩ // <40pF | 0.5+ 3 2) |
1000 V DC AC eff / rms Sine wave |
Continuously |
300.0 mV | 100μV | >10 GΩ // <40pF | 0.5 + 3 | |||
3.000 V | 1 mV | 11 MΩ // <40pF | 0.25 + 1 | |||
30.00 V | 10 mV | 10MΩ // <40pF | 0.25 + 1 | |||
300.0 V | 100 mV | 10 MΩ // <40pF | 0.25 + 1 | |||
1000 V | 1 V | 10 MΩ // <40pF | 0.35 + 1 | |||
V ~ | 3.000 V | 1 mV | 11 MΩ // <40pF | 0.75 + 2 (10….300 Digit) 0.75 + 1 > 300 Digit | ||
30.00 V | 10 mV | 10MΩ // <40pF | ||||
300.0 V | 100 mV | 10 MΩ // <40pF | ||||
1000 V | 1V | 10MΩ // <40pF | ||||
Ω | No load voltage | |||||
30.00 Ω | 10mΩ | Max. 3.2 V | 0.5+ 3 2) |
1000 V DC AC eff / rms Sine wave |
10 min | |
300.0 Ω | 100mΩ | Max. 3.2 V | 0.5 + 3 | |||
3.000 KΩ | 1Ω | Max.1.25 V | 0.4 + 1 | |||
30.00 KΩ | 10Ω | Max. 1.25V | 0.4 + 1 | |||
300.0 KΩ | 100Ω | Max. 1.25V | 0.4 + 1 | |||
3.000 MΩ | 1 KΩ | Max. 1.25 V | 0.6 + 1 | |||
30.00 MΩ | 10 KΩ | Max. 1.25 V | 2.0 + 1 | |||
| 2.000 V | 1 mV | Max. 3.2 V | 0.25 + 1 | ||
A ~ | 300.0 A | 0.01 A | ----- | 1.5 % of range+ 5 Digits | 1100* A / 360A | Continuously |
1000A* | 0.1 A | ----- | 1.5 % of range + 5 Digits | |||
Measuring function | Measuring range | Resolution | Discharge resistance | U0 max. | Intrinsic error of digital display ± (…% of rdg + …digit) at reference condition | Over load capacity 1) | ||
Over load value | Overload duration | |||||||
F | 30.00 nF | 10 pF | 250 KΩ | 2.5 V | 1.0 + 3 2) | 1000 V DC AC eff / rms Sine |
10 min | |
300.0 nF | 100 pF | 250KΩ | 2.5 V | 1.0 + 3 | ||||
3.000 μF | 1 nF | 25KΩ | 2.5 V | 1.0 + 3 | ||||
30.00 μF | 10 nF | 25KΩ | 2.5 V | 3.0 + 3 | ||||
Hz | f min V dc | f min V ~ | ||||||
300.0 Hz | 0.1 Hz | 1 Hz | 45 Hz |
0.5 + 1 3) | ≤ 3 kHz 1000 v 30 kHz; 300 V 100 kHz 30 V |
Continu- ously | ||
3.000 KHz | 1 Hz | 1 Hz | 45 Hz | |||||
30.00 KHz | 10 Hz | 10 Hz | 45 Hz | |||||
100.0 KHz | 100 Hz | 100 Hz | 100 Hz | |||||
% | 2.0... 98.0% | 0.1 % | 2 Hz | -- | 2Hz… 1kHz ± 5 Digit 4) 1 kHz … 10 kHz;± 5 Digit / kHz 4) | |||
ºC |
Pt 100 | -200.0... +200.0 ºC |
0.1 ºC |
– |
-- |
2 Kelvin + 5 Digit 5) |
1000 V DC AC eff / rms Sine |
10 min |
+200.0... +850.0 ºC | 0.1 ºC | 1.0+ 5 5) | ||||||
Pt 1000 | -100.0... +200.0 ºC | 0.1 ºC |
– |
-- | 2 Kelvin+ 2 Digit 5) | |||
+200.0... +850.0 ºC | 0.1 ºC | 1.0 + 2 5) | ||||||
