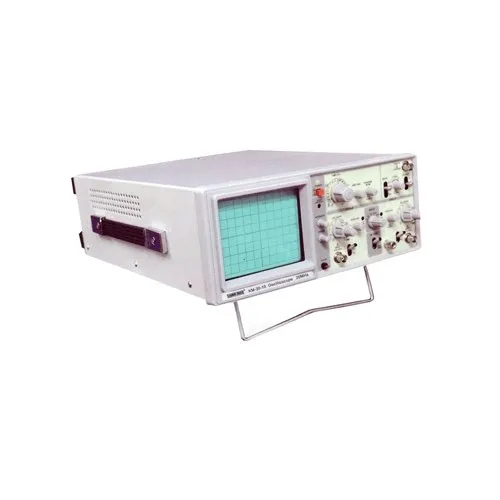

Kusam Meco KM 5060 Analog Oscilloscope

Kusam Meco KM 5060 Analog Oscilloscope
Kusam Meco KM 5060 Analog Oscilloscope
Kusam Meco KM 5060 Analog Oscilloscope

Click To Zoom

Kusam Meco KM 5060 Analog Oscilloscope

Kusam Meco KM 5060 Analog Oscilloscope

(Based On 10 Reviews)

The Kusam Meco KM 5060 is a high-performance digital insulation resistance tester designed for accurate testing of insulation resistance up to 5kV. It features large LCD display, auto-discharge, PI & DAR calculation, USB interface, and robust safety protections, making it ideal for industrial and electrical maintenance applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 56,999.00

(GST inclusive price) i
  • Base Value: ₹ 48304.2
  • GST: (18) % ₹ 8694.8
  • Total Value ₹ 56999

₹73,750.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Dual channels / dual traces, X-Y mode
  • 6” display, high brightness oscilloscope tube
  • High sensitivity triggering, upto 1mV / division clearer display than ordinary oscilloscope.
  • TV synchronous separation circuit to observe stable TV signal.
  • Triggering mode : AUTO / NORM / AV-V / AV-H
  • Vertical : ALT / CHOP / ADD X-x10 / Y-x5; Polarity reversal; CH1 Sync output
  • Power Supply : AC 220V ADN (110V optional)



What's in the box?

  • Kusam Meco KM 5060 Analog Oscilloscope
  • User Manual
  • Mains Power Cord

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

  • Triggering mode : NORM, AUTO, TV-V, TV-H
  • Triggering sourde : CH1, CH2, LINE, EXT
    Sensitivity & Frequency : Auto : 20Hz-----100MHz (VERT)
                                                          Norm : 0.5div int, 0.8Vp---p EXT
                                                                          0.5div INT, 0.5vp-----PEXT
                                                          TV-H : At least 1 div or 1V p-p
    Input impedance : 1MW
  • CRT : 6 inches rectangular screen with internal graticule, 8*10 div (1 div = 1cm) Vertical deflection.
  • Display mode : CH1, CH2, CH3, ADD ALT & CHOP
  • Deflection factor : 5mV / div to 5V / div ± 3%, (1mV / div to 1V / div ± 5% at*5), 10steps.
  • Rise time : £ 17.5ns
  • Max. Input Voltage : 40V (DC+AC peak value) when £ 1KHz.
  • Input coupling : AC, DC, Grounding
  • Polarity selection : ± (CH2 only).
  • Display mode : 1, 10, X-Y
  • Time Base : 0.2ms / div to 0.5s / div, 20 range
  • Sweep expansion width : *10 —Accuracy : ±3%
  • Calibration waveform : Frequency : 1KH 20% Voltage : 0.5v 1%
  • Power Supply : AC 220V / 110V ± 10%, 50 / 60Hz
  • Dimensions : 370 X 310 X 130mm
