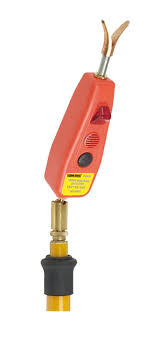

Kusam Meco 290 HD - 81.5 KV High Voltage Detector
Click To Zoom
Kusam Meco 290 HD - 81.5 KV High Voltage Detector
Kusam Meco 290 HD - 81.5 KV High Voltage Detector
The detector detects high and extra high voltage in AC lines. An elongated insulated rod permits checking of high tension circuits at safe distance for live voltage. Also it is telescopic compact, light-weight, easy to use and handy.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 33,400
(GST inclusive price) i-
Base Value: ₹ 28305.1
-
GST: (18) % ₹ 5094.9
-
Total Value ₹ 33400
₹54,970.00
( - 23% OFF )
Description
Key Features
- Telescopic, Compact, light-weight, Easy to use.
- High-voltage detection in high tension circuits.
- Easy to recognize indications
- Intermittent lighting in RED of a high intensity light emitting diode and intermittent audible sound of an electronic buzzer are easy recognizable in full daylight, noisy location.
- Water proof
- The detecting head, being tightly enclosed, is free from any trouble due to dust, water.
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Display : Light : Flashing red light; Sound : intermittent sound 50dB apart 3m.
• Overall length :
• Retracted :1370 ± 50mm ;
• Extracted : 2450 ± 50mm.
• Operating Temperature : -10°C ~ 50°C
• Storage Temperature : -20°C ~ 60°C
• Construction : Water proof (detecting head impervious to water)
• Battery : 2 button cells Lr44 (1.5V)
• Weight : Approx. 590g.(including Battery)
TECHNICAL
| Measuring Voltage range | 6kV ~ 81.5kV |
| Operating start Voltage (to ground) | 2.7kV |
| Frequency | 50/60Hz |
| Withstand Voltage (On insulating rod) | 100kV / 300mm : 5 minutes |
| Insulation Resistance | 2000M min by 1kV / DC megger at the same testing location as withstand voltage |
| Leakage Current | 100 A at withstand voltage test |
| DC VOLTAGE | |
| Distance | Voltage |
| 48 cm | 81.5 KV |
| 28 cm | 60 KV |
| 8 cm | 30 KV |
| Upto 11kV | 100 A at withstand voltage test |
