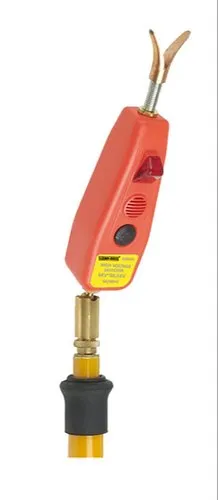

Kusam Meco KM 230HD High Voltage Detectors
Click To Zoom
Kusam Meco KM 230HD High Voltage Detectors
Kusam Meco KM 230HD High Voltage Detectors
The detector detects high and extra high voltage in AC lines. An elongated insulated rod permits checking of high tension circuits at safe distance for live voltage. Also it is telescopic compact, light-weight, easy to use and handy.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 26,260
(GST inclusive price) i₹43,250.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
• Display : Light : Flashing red light; Sound : intermittent sound 50dB apart 3m.
• Overall length :
Model 230HD : Retracted : 893 ± 50mm ; Extracted : 1520 ± 50mm.
• Operating Temperature : -10°C ~ 50°C
• Storage Temperature : -20°C ~ 60°C
• Construction : Water proof (detecting head impervious to water)
• Battery : 2 button cells Lr44 (1.5V)
• Weight : Approx. 485g.(including Battery)
| Measuring Voltage range | 6kV ~ 36.5kV |
| Operating start Voltage (to ground) | 2.7kV |
| Frequency | 50/60Hz |
| Withstand Voltage (On insulating rod) | 100kV / 300mm : 5 minutes |
| Insulation Resistance | 2000M min by 1kV / DC megger at the same testing location as withstand voltage |
| Leakage Current | 100 A at withstand voltage test |
| DC VOLTAGE | |
| Distance | Voltage |
| 10 cm | 36 KV |
| 5 cm | 25 KV |
| 2 cm | 15 KV |
| Upto 11kV | By contact method |
