Kusam Meco KM 1154TMF Digital Multifunction Insulation Resistance
Click To Zoom
Kusam Meco KM 1154TMF Digital Multifunction Insulation Resistance
Kusam Meco KM 1154TMF Digital Multifunction Insulation Resistance
The Kusam Meco KM 1154 TMF is a 1kV digital multifunction insulation, continuity, and voltage tester. It measures insulation resistance up to 10 GΩ with selectable test voltages (50V-1000V). Key features include Gas Arrester and MOV/Protection Devices testing, auto-discharge, and an automatic AC/DC voltage test.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 29,370
(GST inclusive price) i-
Base Value: ₹ 24889.8
-
GST: (18) % ₹ 4480.2
-
Total Value ₹ 29370
₹48,370.00
( - 23% OFF )
Description

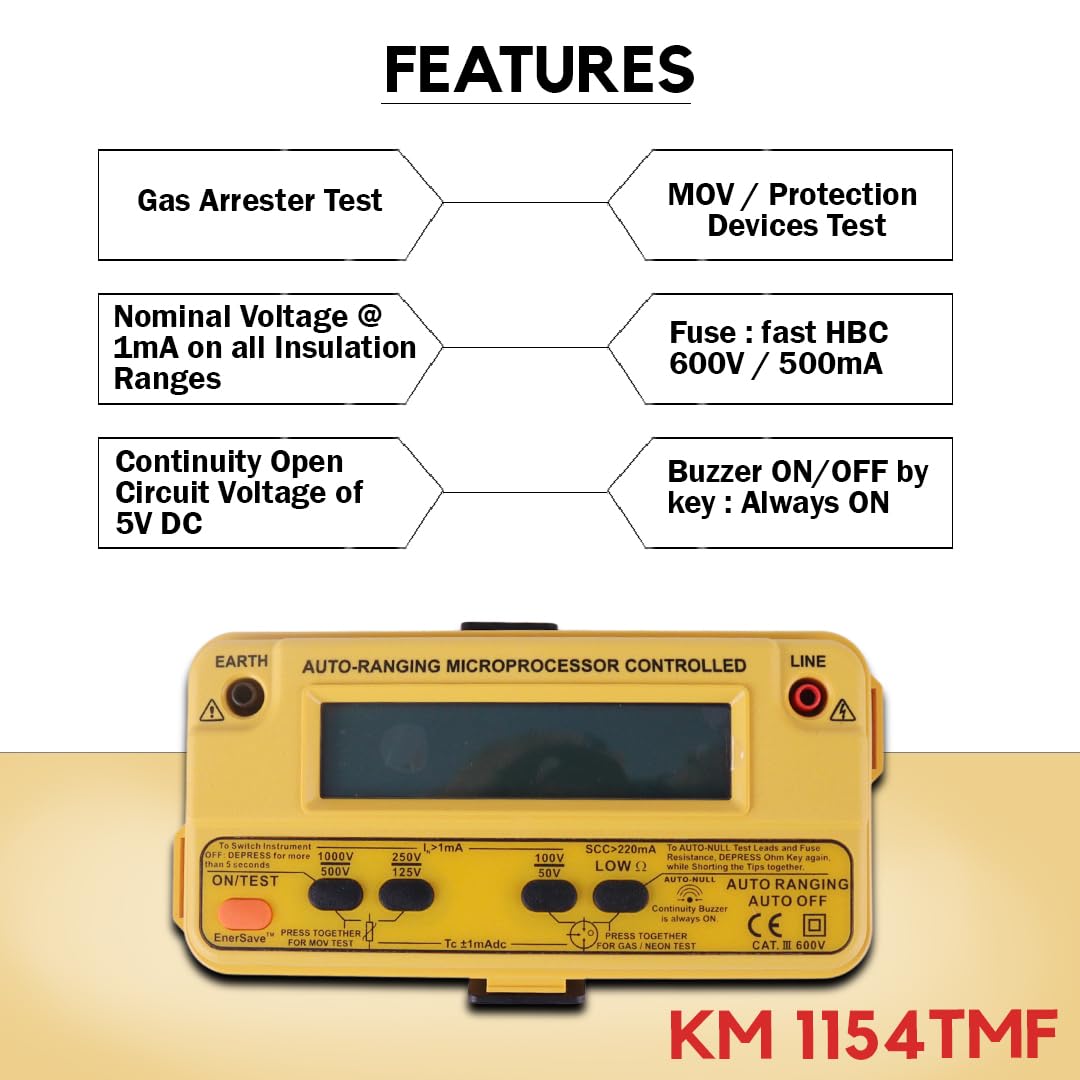

Key Features
- Auto Discharge Function on all tests & all ranges.
- Gas Arrester Test
- MOV / Protection Devices Test
- Preselectable Measurement Time : Auto Stop on completion of Test
- Auto Stop & Hold Function. TM
- Ener Save
- Can be calibrated in All calibration laboratories
- Buzzer ON/OFF by key : Always ON
- Nominal Voltage @ 1mA on all Insulation Ranges
- Continuity Short Circuit Current >220mA (225mA typical)
- Continuity Open Circuit Voltage of 5V DC
- Smart Hold & Stop on Voltmeter AC / DC
- Test ON/OFF
- Fuse : fast HBC 600V / 500mA

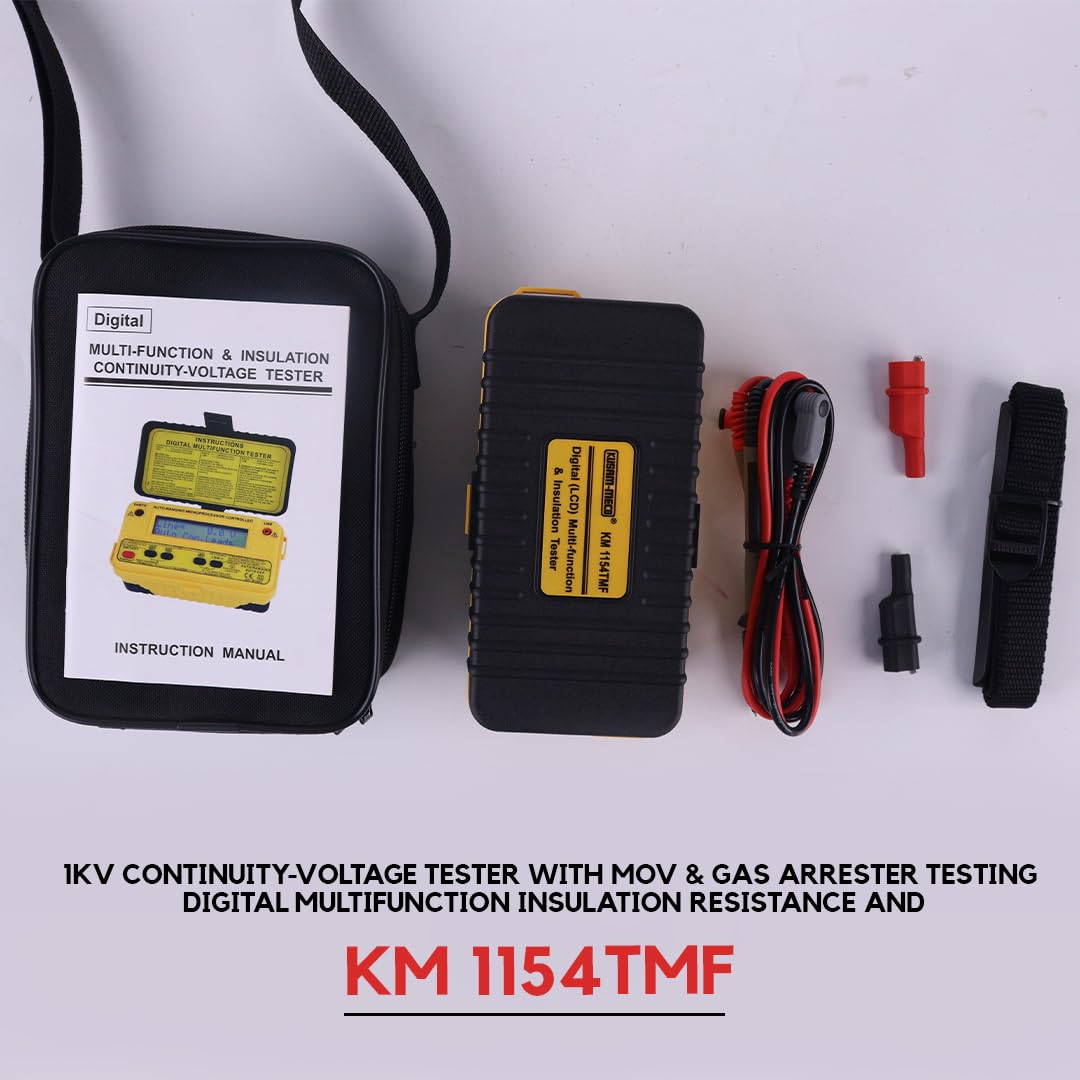

What's in the box?
|
Rating & Reviews
Rating
GENERAL
- Insulation Resistance Range : 0.1MW ~ 10GW
- Selectable Test Voltages(Low Voltage for Telecom) : 50 / 100 / 125 / 250 / 500 / 1000V
- LCD Type : Large Type 2 x 16 Characters
- Continuity Measurement : 0.01 to 1999
- Automatic AC / DC Voltage Test At Start-Up
- AC Voltage Measurement : 0 to 700V
- DC Voltage Measurement : 0 to 950V
- Battery Load Current : About 300mA
- Battery Test at switch ON / RESET Lead Resistance Null Facility
- Auto Off approx. 5 minutes 0 0
- Operating Temperature : 1 C to 55 C not in full sun 0 0
- Storage Temperature : -20 C to 70 C ; Relative Humidity max. 80% R.H.
- Open Current : about 19.15mA
- Consumption Current : about 193.5mA.
- Power Supply : 8 x1.5V Alkaline batteries.
- Dimension : 175(L) x 85(W) x 75(H) mm
- Weight : Approx. 655gms.

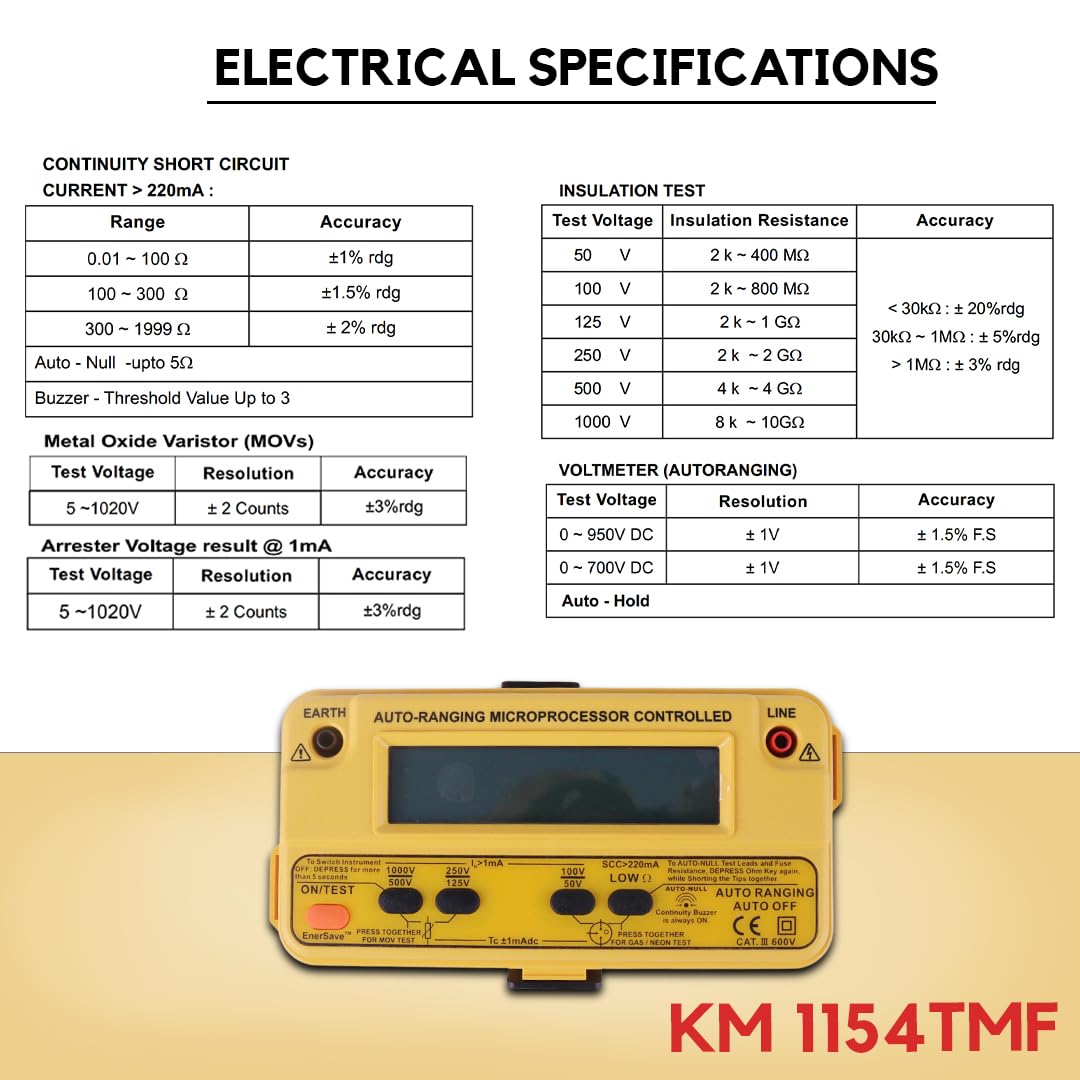

TECHNICAL
| INSULATION TEST | ||
| Test Voltage | Insulation Resistance | Accuracy |
| 50 V | 2 k ~ 400 MW | < 30kW : ± 20%rdg 30kW ~ 1MW : ± 5%rdg > 1MW : ± 3% rdg |
| 100 V | 2 k ~ 800 MW | |
| 125 V | 2 k ~ 1 GW | |
| 250 V | 2 k ~ 2 GW | |
| 500 V | 4 k ~ 4 GW | |
| 1000 V | 8 k ~ 10GW | |
| VOLTMETER (AUTORANGING) | ||
| Test Voltage | Resolution | Accuracy |
| 0 ~ 950V DC | ± 1V | ± 1.5% F.S |
| 0 ~ 700V DC | ± 1V | ± 1.5% F.S |
| Metal Oxide Varistor (MOVs) | ||
| Test Voltage | Resolution | Accuracy |
| 5 ~1020V | ± 2 Counts | ±3%rdg |
| Arrester Voltage result @ 1mA | ||
| Test Voltage | Resolution | Accuracy |
| 5 ~1020V | ± 2 Counts | ±3%rdg |
| CURRENT > 220mA : | |
| Range | Accuracy |
| 0.01 ~ 100 W | ±1% rdg |
| 100 ~ 300 W | ±1.5% rdg |
| 300 ~ 1999 W | ± 2% rdg |
| Auto - Null -upto 5W | |
| Buzzer - Threshold Value Up to 3 | |
