Kusam Meco KM 3001 suitable for solar AC/DC TRMS Clamp on multimeter
Click To Zoom
Kusam Meco KM 3001 suitable for solar AC/DC TRMS Clamp on multimeter
Kusam Meco KM 3001 suitable for solar AC/DC TRMS Clamp on multimeter

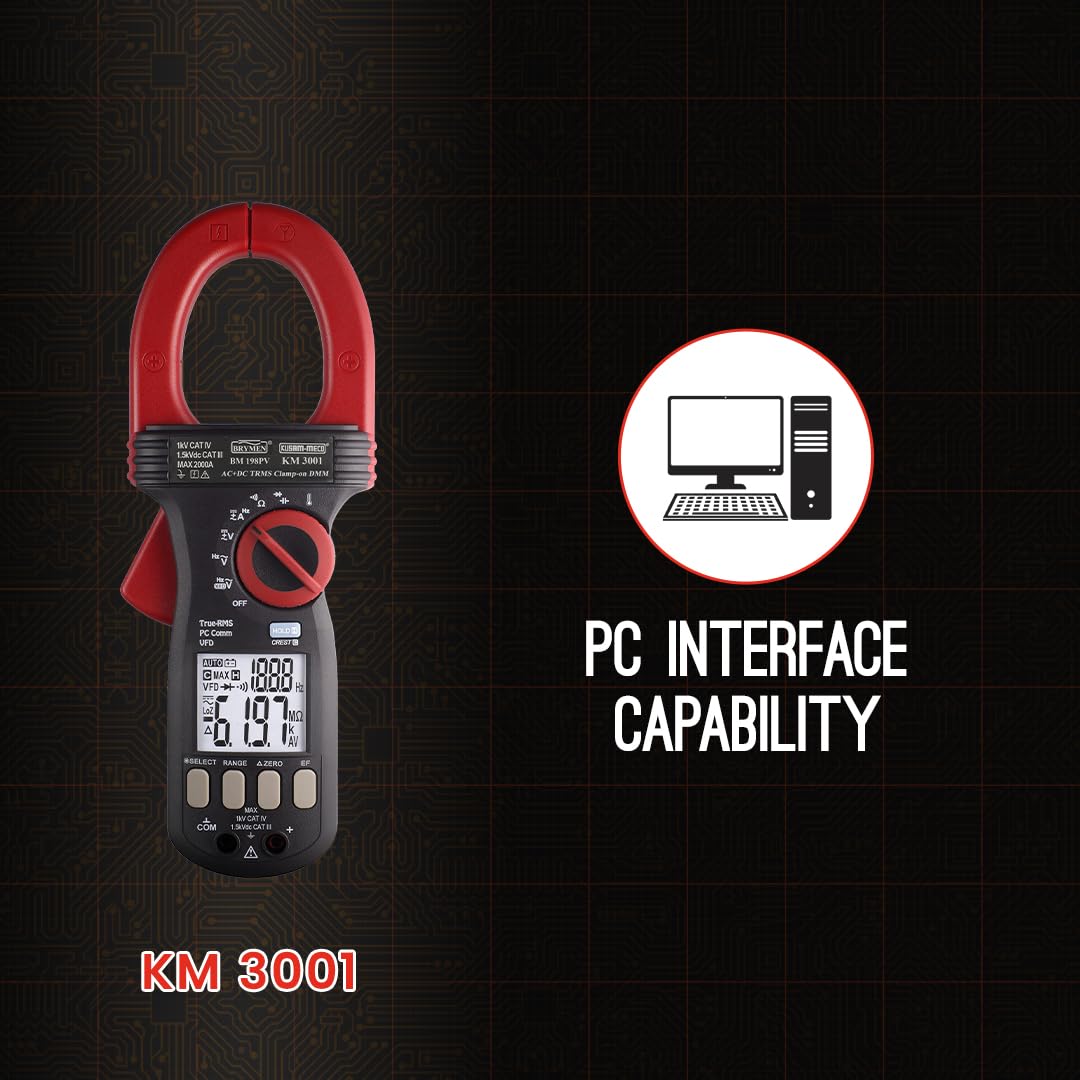

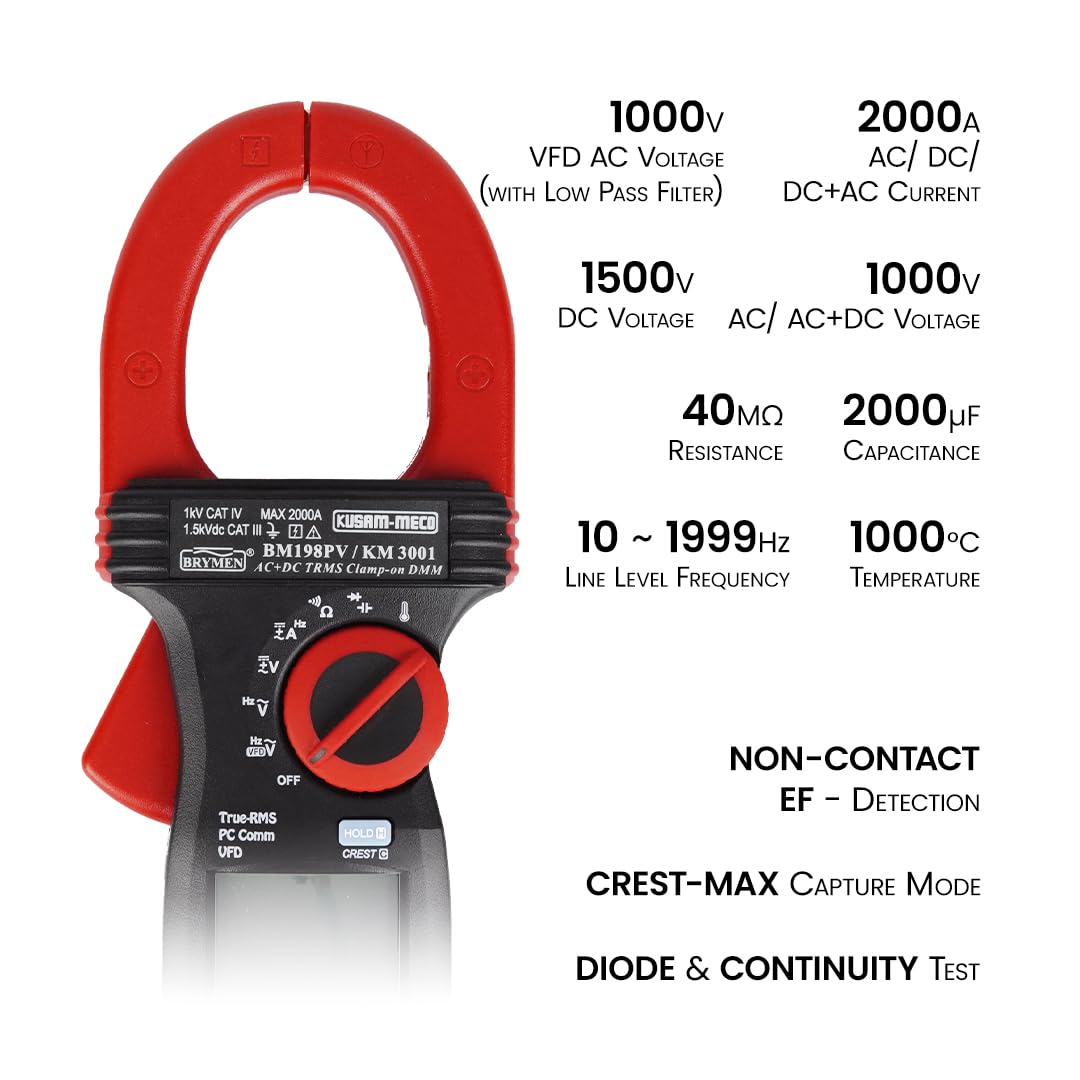

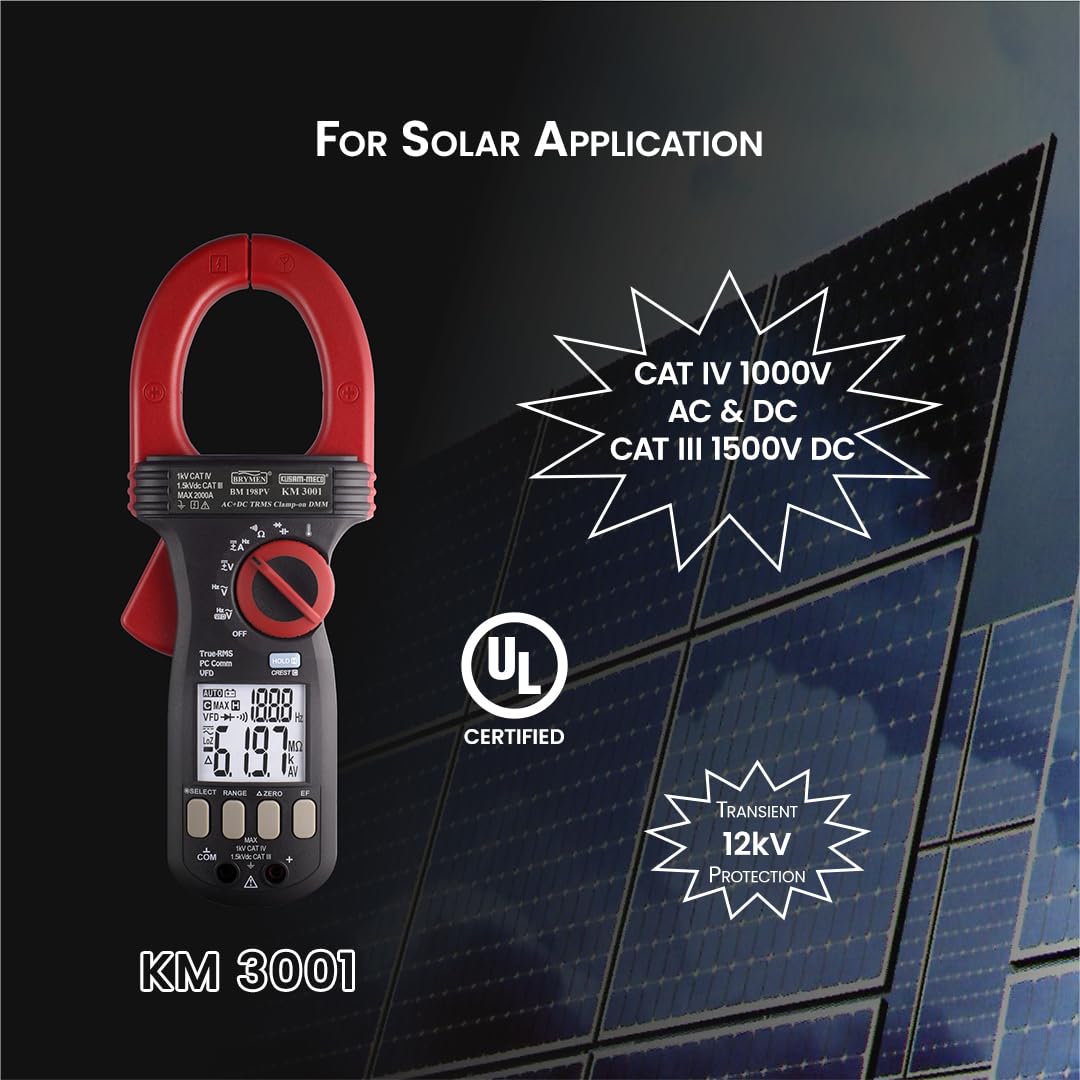

The Kusam Meco KM3001 is a versatile AC/DC True RMS clamp-on multimeter designed for solar applications. It features a 1500V DC range, VFD-V & Hz functions, 5ms CREST-MAX capture, and a 3-5/6 digit, 6000-count backlit LCD. It also offers NCV, AutoCheck, and PC interface capability.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 20,299.00
(GST inclusive price) i₹26,200.00
( - 23% OFF )
Description
Optional Accessories

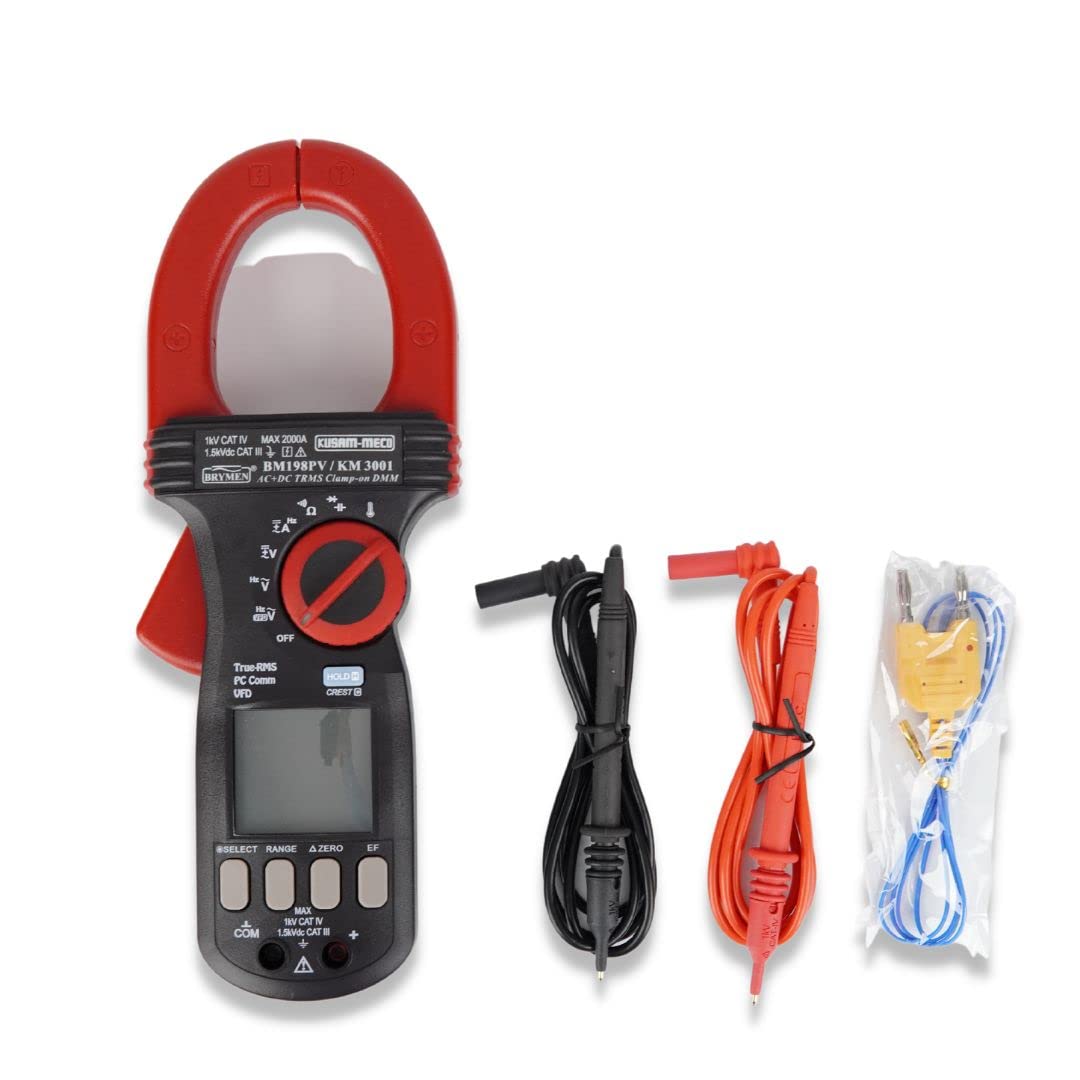

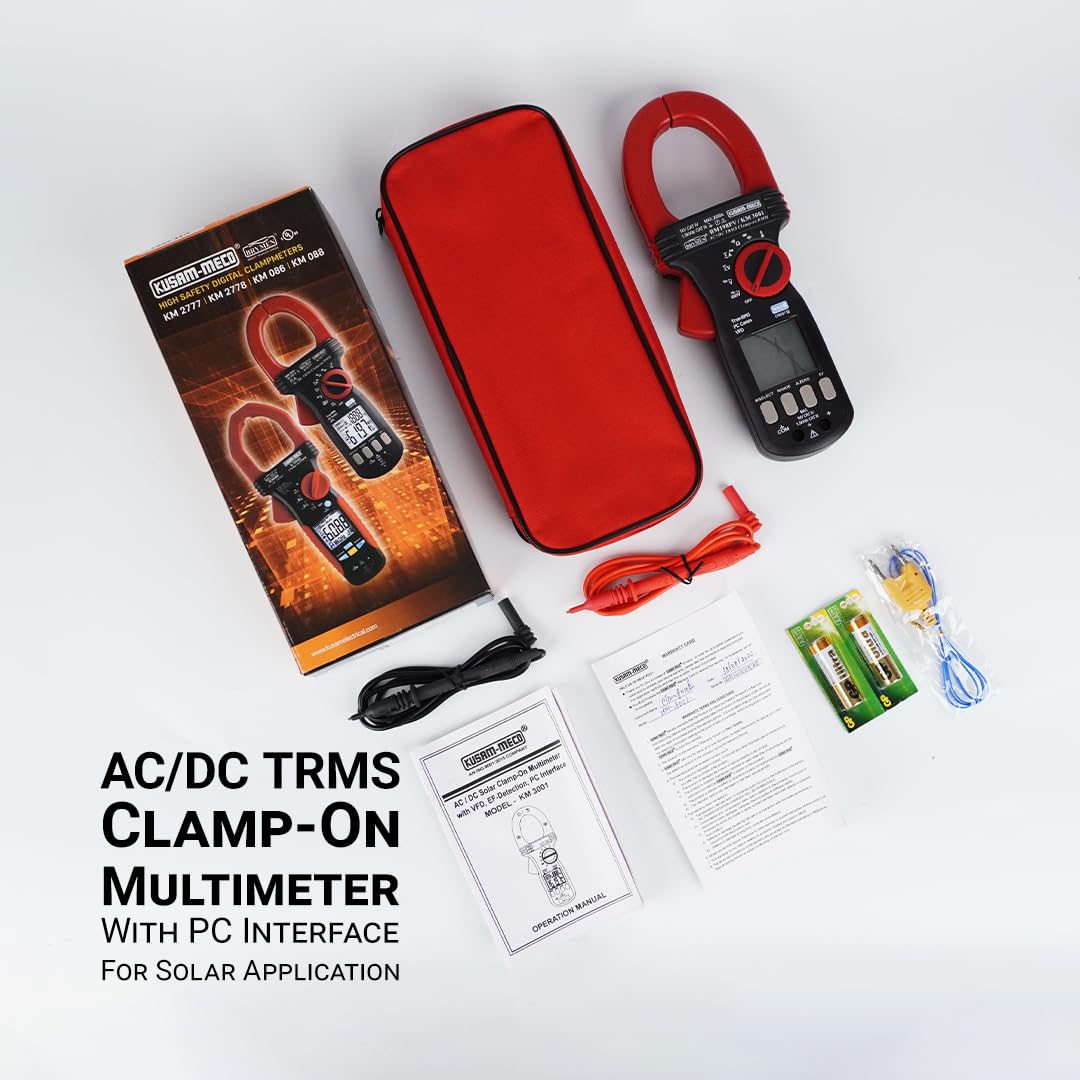

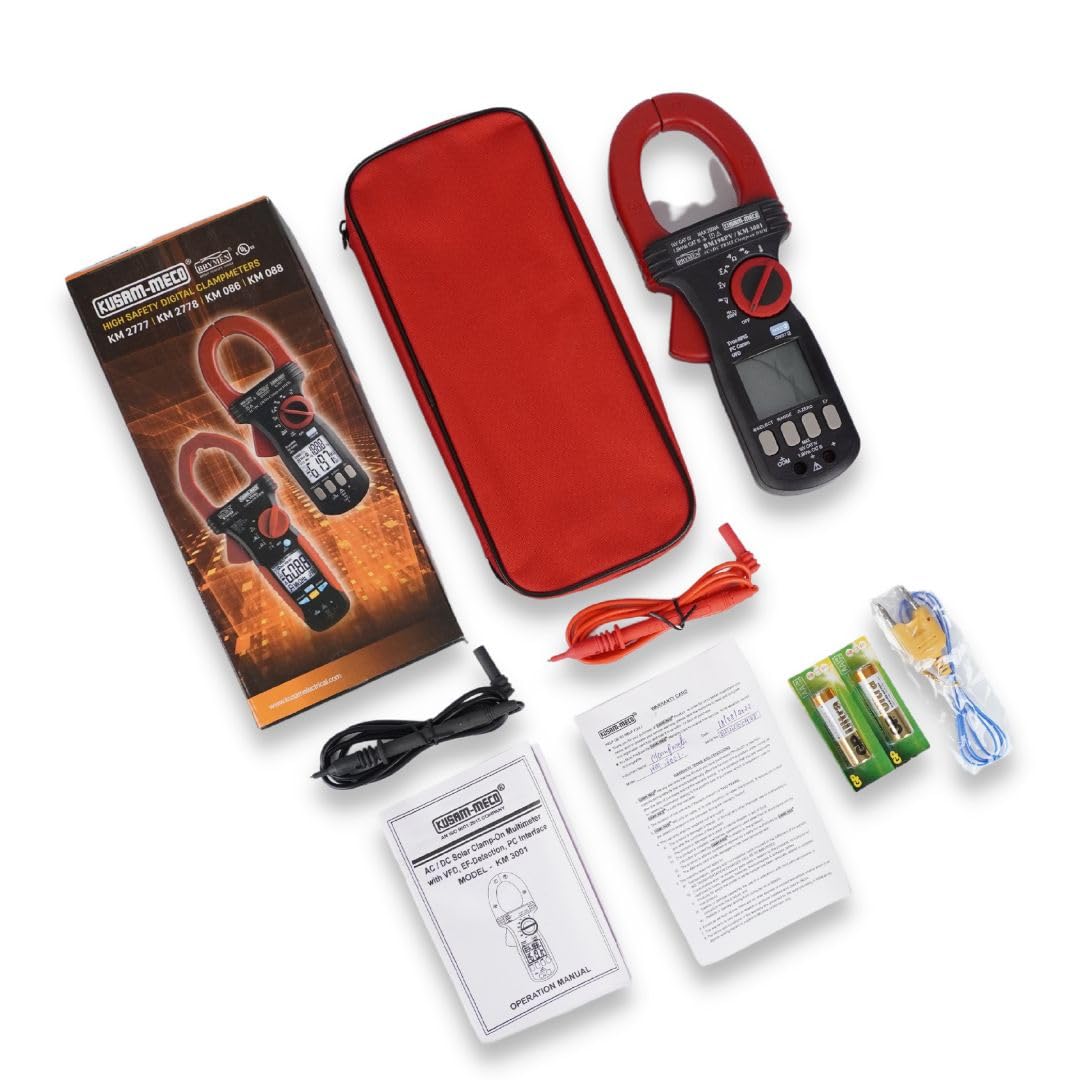

What's in the box?
|
Rating & Reviews
Rating
Product Specifications
• Sensing : TRMS sensing

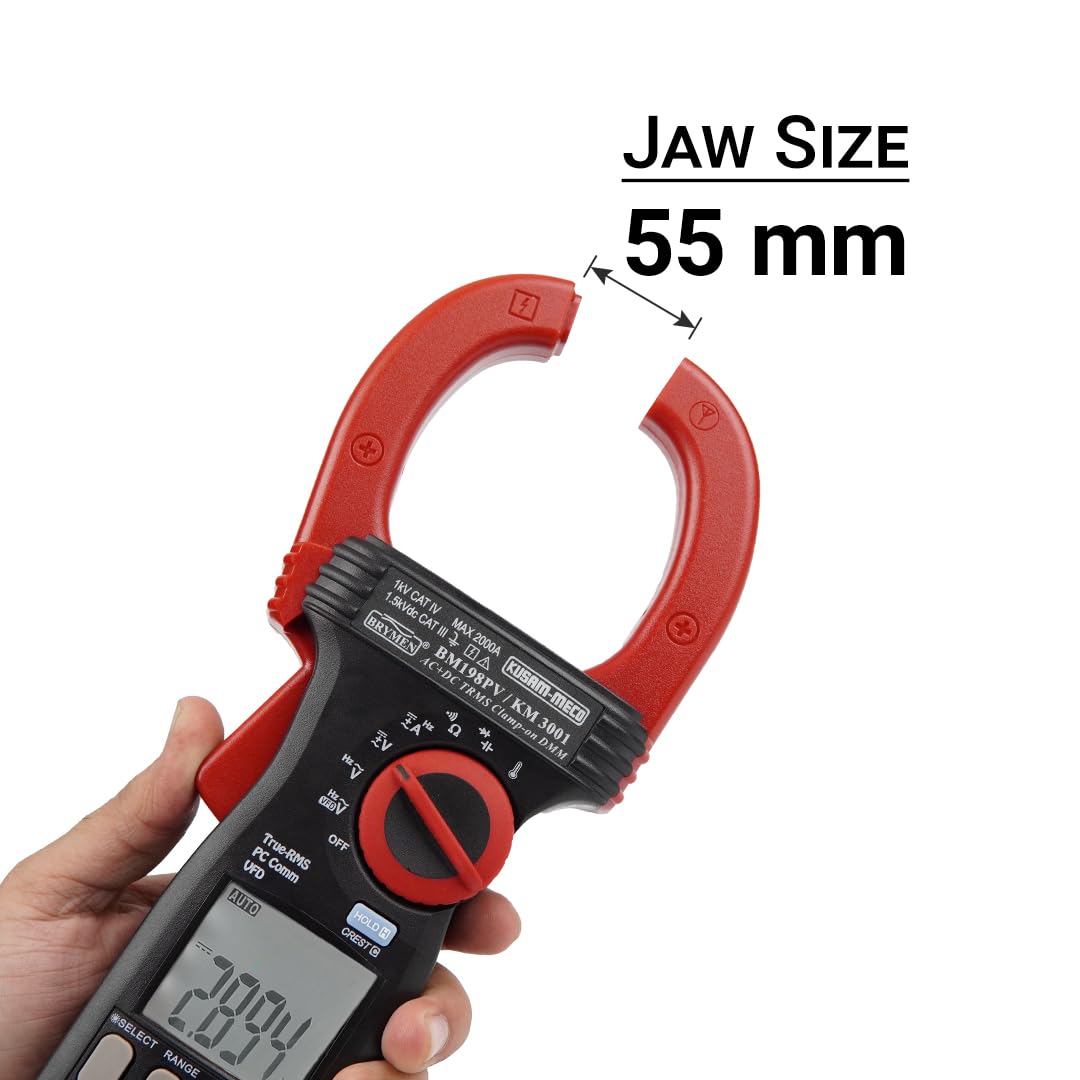

• Jaw Opening : 55mm max.
• Display : 3-5/6 digits 6000 counts & 3½ digits 1,999 counts for Hz.
• Update Rate : 5 per second nominal
• Polarity : Automatic
• Low Battery : Below approx < 2.4V
• Operating Temperature : 0 ° C to 40 °C
• Relative Humidity : Maximum 80% R. H. for temperature upto 31 °C decreasing linearly to 50% Relative Humidity at 40oC
• Storage Temperature : -20 °C to 60 °C, < 80% R.H. (With battery removed)
• Altitude : Operating below 2000m
• Temperature Coefficient : nominal 0.15 x (specified accuracy) / °C @ (0 °C-18 °C or 28 °C-40 °C), or otherwise specified
• Power supply : Standard 1.5V AAA Battery x 2.
• Power Consumption : Typical 14mA for Current function, & 5.2mA for others.
• APO Timing : Idle for 34 minutes
• APO Consumption : 10mA typical
• Dimension : 264(L) x 97(W) x 43(H) mm
• Weight : Approx. 608gm.
| ACA CURRENT(Clamp on) | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 200.0 A | 100 mA | ±(2.0%rdg + 5dgts) |
| 0 ~ 500 A | 1 A | ±(2.5%rdg + 5dgts) |
| 500~2000 A | 1 A | ±(3.0%rdg + 5dgts) |
| 40Hz~50Hz & 60Hz~400Hz | ||
| 200.0 A | 100 mA | ±(2.5%rdg + 5dgts) |
| 0 ~ 500 A | 1 A | ±(3.0%rdg + 5dgts) |
| 500~2000 A | 1 A | ±(3.5%rdg + 5dgts) |
| 1000 V1000~2000 A | 1 A | Unspecified |
| DCA CURRENT(Clamp on) | ||
| Range | Resolution | Accuracy |
| 200.0 A | 100 mA | ±(2.0%rdg + 5dgts) |
| 0 ~ 500 A | 1 A | ±(2.0%rdg + 5dgts) |
| 500~2000 A | 1 A | ±(3.0%rdg + 5dgts) |
| DC + ACA CURRENT(Clamp on) | ||
| Range | Resolution | Accuracy |
| DC, 50Hz ~ 60Hz | ||
| 200.0 A | 100 mA | ±(3.0%rdg + 8dgts) |
| 2000 A | 1 A | |
| 40Hz ~ 50Hz & 60Hz ~ 400Hz | ||
| 200.0 A | 100 mA | ±(3.5%rdg + 8dgts) |
| 0 ~ 1000 A | 1 A | |
| 1000~2000 A | 1 A | Unspecified |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 6.000 V | 1 mV | ±(0.5%rdg + 5dgts) |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | |
| 1000 V | 1 V | |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 400Hz | ||
| 6.000 V | 1 mV | ±(1.2%rdg + 5dgts) |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | |
| 1000 V | 1 V | |
| AC + DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| DC, 50Hz ~400Hz | ||
| 6.000 V | 1 mV | ±(1.4%rdg + 7dgts) |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | |
| 1000 V | 1 V | |
| VFD AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 10Hz ~ 20Hz | ||
| 6.000 V | 1 mV | ±(4%rdg + 80dgts) |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | |
| 1000 V | 1 V | |
| 20Hz ~ 200Hz | ||
| 6.000 V | 1 mV | ±(2%rdg + 60dgts) |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | |
| 1000 V | 1 V | |
| 200Hz~420Hz | ||
| 6.000 V | 1 mV | ±(7%rdg + 80dgts) |
| 60.00 V | 10 mV | |
| 600.0 V | 100 mV | |
| 1000 V | 1 V | |
| RESISTANCE (OHMS) | ||
| Range | Resolution | Accuracy |
| 600.0 Ω | 100 mΩ | ±(0.5%rdg + 5dgts) |
| 6.000 kΩ | 1 Ω | |
| 60.00 kΩ | 10 Ω | |
| 600.0 kΩ | 100 Ω | ±(0.8%rdg + 5dgts) |
| 6.000 MΩ | 1 kΩ | ±(1.2%rdg + 5dgts) |
| 40.00 MΩ | 10 kΩ | ±(2.3%rdg + 5dgts) |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 60.00 nF | 10 pF | ±(2.0%rdg + 5dgts) |
| 600.0 nF | 100 pF | |
| 6.000 μF | 1 nF | |
| 60.00 μF | 10 nF | ±(3.5%rdg + 5dgts) |
| 600.0 μF | 100 nF | |
| 2000 μF | 1 μF | ±(4.0%rdg + 5dgts) |
| ~ Hz Line Level Frequency | ||
| Function Range | Sensitivity (sine Rms) | Range |
| 6 V | 2 V | 40Hz ~ 1999Hz |
| 60 V | 20 V | 40Hz ~ 1999Hz |
| 600 V | 100 V | 40Hz ~ 1999Hz |
| 1000 V | 600 V | 40Hz ~ 1999Hz |
| 200 A | 10 A | 20Hz ~ 400Hz |
| 2000 A | 100 A | 20Hz ~ 400Hz |
| VFD 6 V | 0.6V ~ 2.4 V | 10Hz ~ 400Hz |
| VFD 60 V | 6 V ~ 24 V | 10Hz ~ 400Hz |
| VFD 600 V | 60 V ~ 200 V | 10Hz ~ 400Hz |
