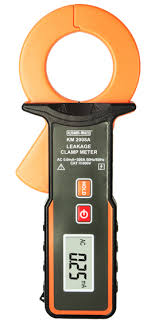

Kusam Meco KM 2008A Jaw Opening Size 40mm Clamp Meter
Click To Zoom
Kusam Meco KM 2008A Jaw Opening Size 40mm Clamp Meter
Kusam Meco KM 2008A Jaw Opening Size 40mm Clamp Meter
The Kusam Meco KM 2008A is a 300A AC Leakage Current Clampmeter. It features a 4-digit LCD display, 40mm jaw size, and measures AC leakage and load current. Key functions include data storage (99 units), peak hold, data hold, and auto power-off for battery conservation.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 13,999.00
(GST inclusive price) i₹18,000.00
( - 22% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
• Function : Measurement of AC Leakage current, AC Current & on-line AC current.
• Test Mode : Clamp CT, integration method
• Display mode : 4 digits LCD display
• CT Size : F40mm
• LCD Dimension : 35 x 21.5 mm
• Display Size : 32 x 15mm
• Sampling rate : about 2 times/s
• Frequency : Automatic identification 50Hz / 60Hz
• Shift : Automatically
• Line Voltage : Line measurement below AC 600V
• Data Storage : 99 units, flashing display "FULL" symbol indicate storage full.
• Peak Hold : Peak capture & Hold function, long press "Hold" key & not release can display peak value in measurement.
• Data Hold : Data hold function : DH symbol display.
• Overflow display : Over range overflow function OL symbol display.
• Working Current : 5mA
• Operating Temperature : 0°C ~ 40°C, Below 80% RH
• Storage Temperature : -10°C ~ 60°C, Below 80% RH
• Insulating Strength : AC 2KV / rms (between the core & outside shell)
• Automatic shutdown: 5 minutes after power on, the meter shuts down automatically without any operation to reduce battery consumption.
• Battery Voltage : While battery voltage drop to around 2.82V, will display low battery voltage “-+” , & remind to replace the battery.
• Power Supply : Alkaline dry battery LR03 x 2
• Dimension : Approx. 180 x 72 x 32mm
• Weight : Approx. 0.31kg (including accessories
• Safety : IEC1010-1, IEC1010-2-032, Pollution 2, CAT III (600V)
| Range | Resolution | Accuracy |
| 0.00mA ~ 300.0A | ||
| 0.00mA ~ 60A | 10mA | ±(1.5% rdg + 5 dgts) |
| 60A ~ 300A | ±(2% rdg + 5 dgts) | |
