Kusam Meco KM 3060-T Digital Multimeter
Kusam Meco KM 3060-T Digital Multimeter

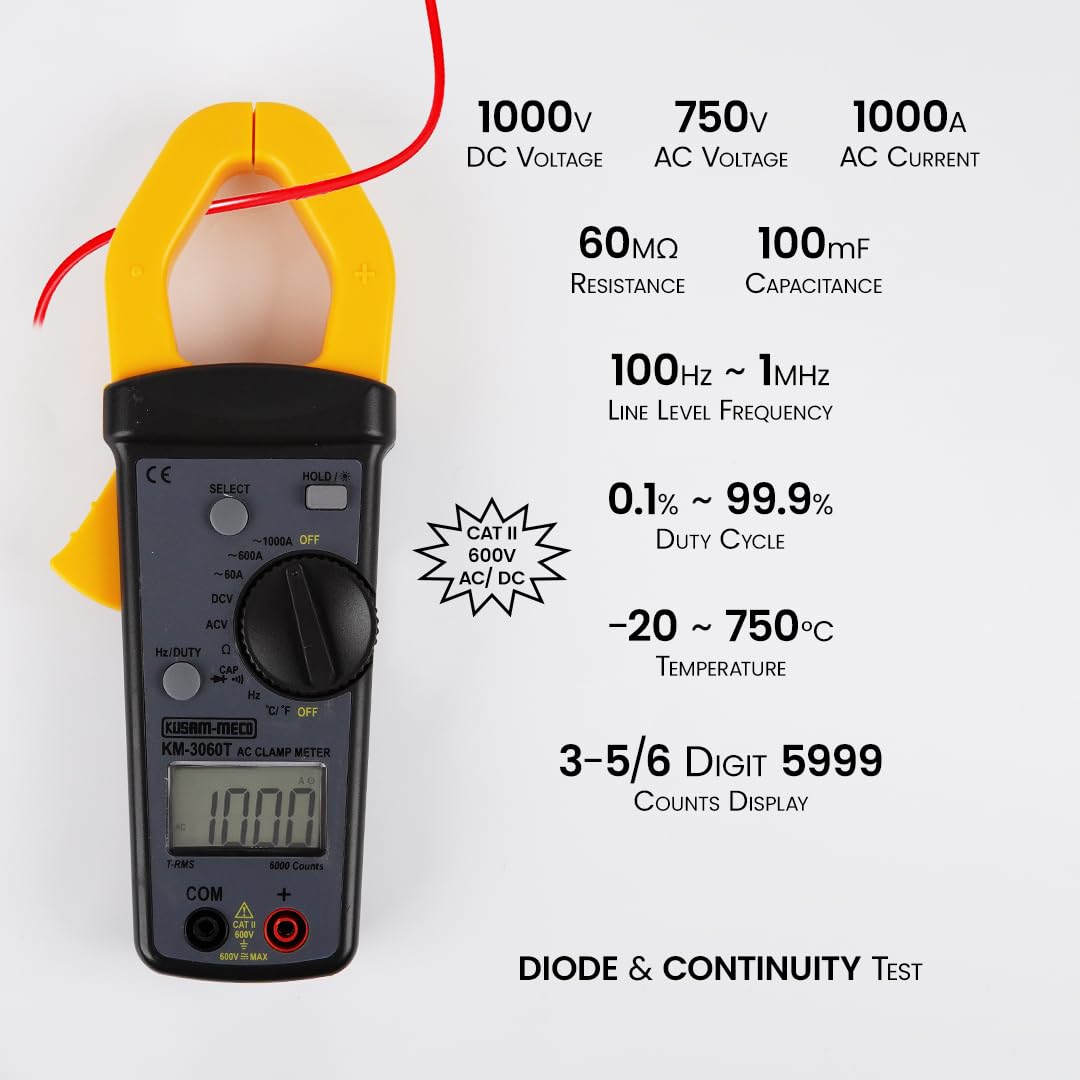

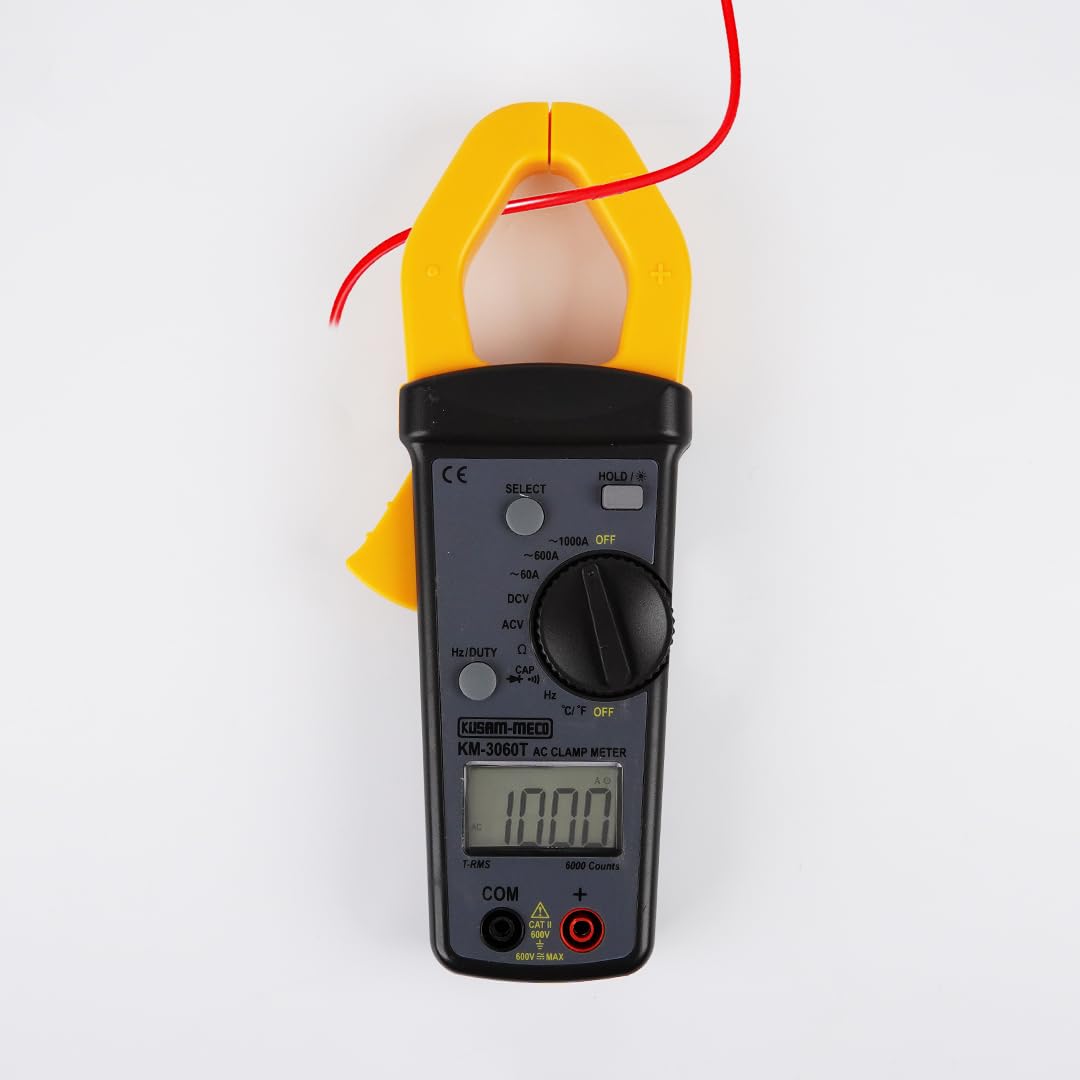

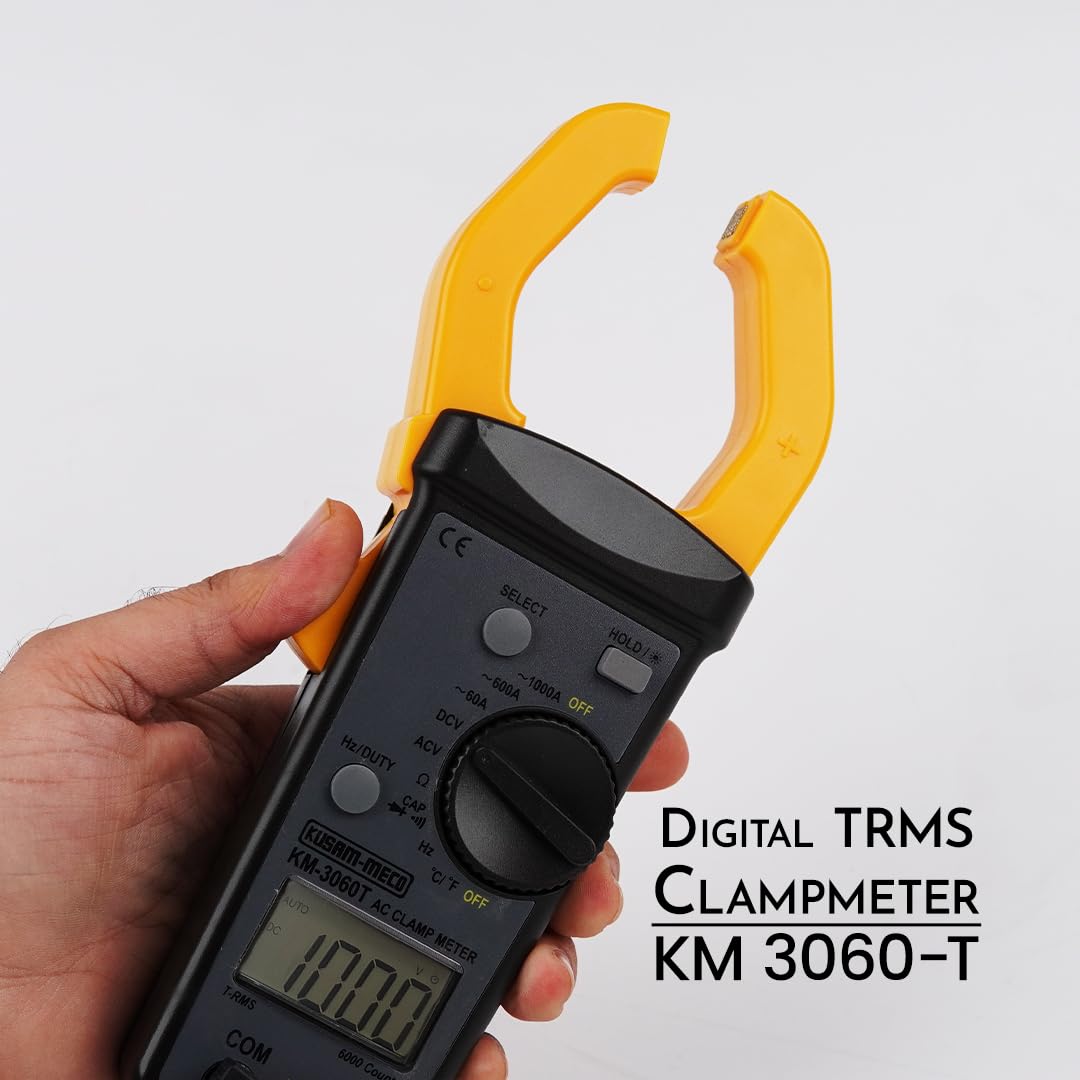

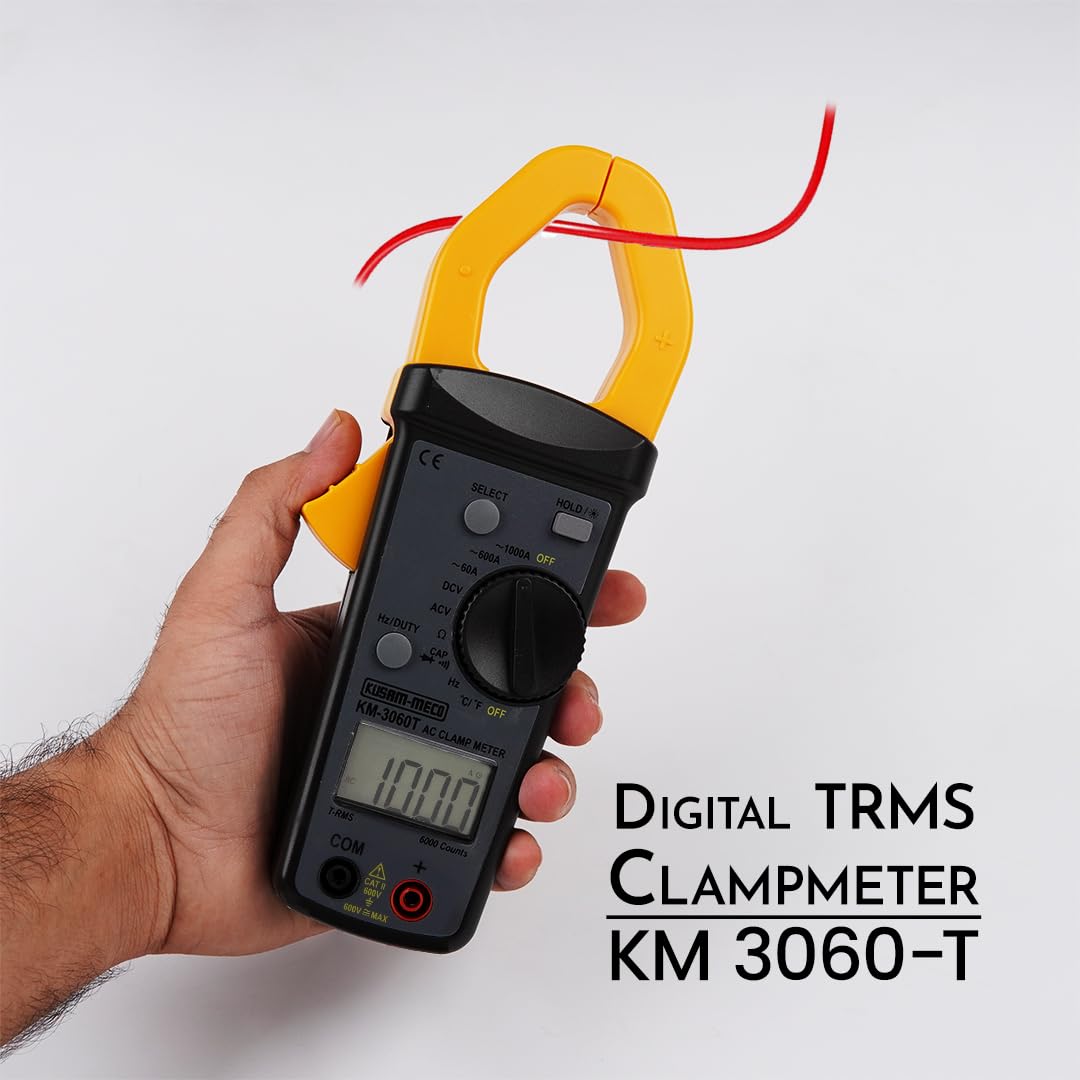

The Kusam Meco KM 3060-T is a 1000A AC Digital Clampmeter (some sources say 400A, so confirm with supplier). It features a 3-5/6 digit, 5999 count LCD display, 36mm jaw size, data hold, backlight, and includes temperature measurement. It also offers resistance, frequency, diode, and continuity tests.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 2,050.00
(GST inclusive price) i₹2,600.00
( - 21% OFF )
Description

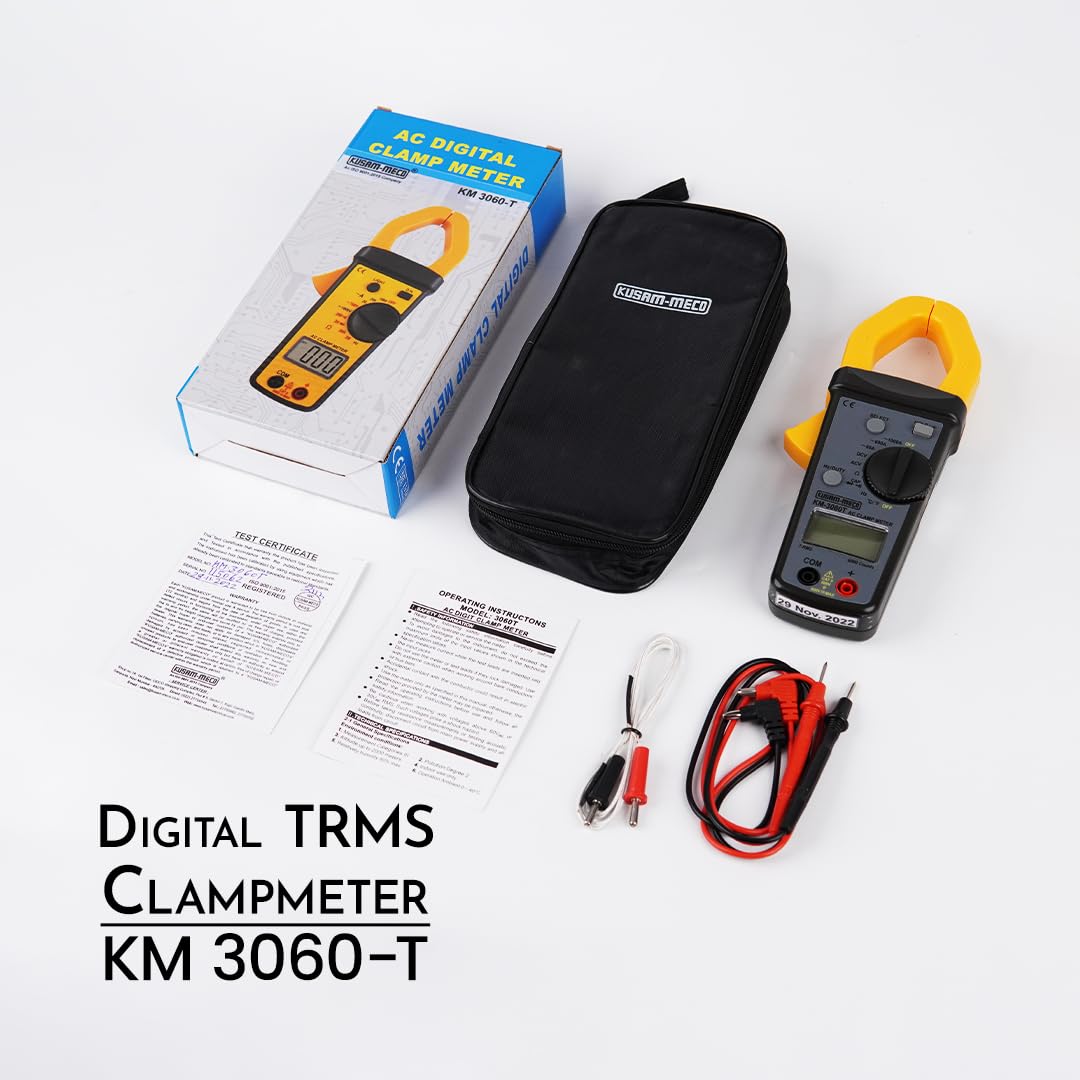

What's in the box?
|
Product Specifications
Display : 3-5/6 digits liquid crystal display (LCD) Max. Rading 5999. Automatic indication of functions and symbols.
Jaw Size : Cables Φ36mm
Maximum Voltage between any terminal & Earth ground 750 Vrms.
Operating Temperature : 0~40°C
Operating Principle : Dual slope integration
Over Range Indication : LCD will show a “OL” in the highest position accompanied. (except for ranges of 1000A AC, and 1000VDC or 750VAC)
Low Battery Indication : The is displayed
AC CURRENT | ||
Range | Resolution | Accuracy |
60 A | 0.01 A | ± (2%rdg + 5dgts) |
600 A | 0.1 A | |
1000 A | 1 A |
AC VOLTAGE | ||
Range | Resolution | Accuracy |
600 mV | 0.1 mV | ± (1.8%rdg + 5dgts) |
6 V | 0.001 V | ± (1.0%rdg + 3dgts) |
60 V | 0.01 V | |
600 V | 0.1 V | |
750 V | 1 V | ± (1.5%rdg + 3dgts) |
DC VOLTAGE | ||
Range | Resolution | Accuracy |
600 mV | 0.1 mV | ± (1.0%rdg + 2dgts) |
6 V | 0.001 V | ± (0.8%rdg + 2dgts) |
60 V | 0.01 V | |
600 V | 0.1 V | |
750 V | 1 V |
RESISTANCE | ||
Range | Resolution | Accuracy |
600 W | 0.1 W | ± (1.2%rdg + 2dgts) |
6 kW | 0.001 kW | ± (1.0%rdg + 2dgts) |
60 kW | 0.01 kW | |
600 kW | 0.1 kW | |
6 MW | 0.001 MW | |
60 MW | 0.01 MW | ± (2.0%rdg + 2dgts) |
RESISTANCE | ||
Range | Resolution | Accuracy |
10 nF | 0.01 nF | ± (2.5%rdg + 10dgts) |
100 nF | 0.1 nF | |
1 mF | 0.001 mF | ± (2.0%rdg + 4dgts) |
10 mF | 0.01 mF | |
100 mF | 0.1 mF | |
1 mF | 0.001 mF | ± (2.5%rdg + 10dgts) |
10 mF | 0.01 mF | |
100 mF | 0.1 mF |
