Kusam Meco KM 2781 1000A DC/AC Digital Clamp Meter
Click To Zoom

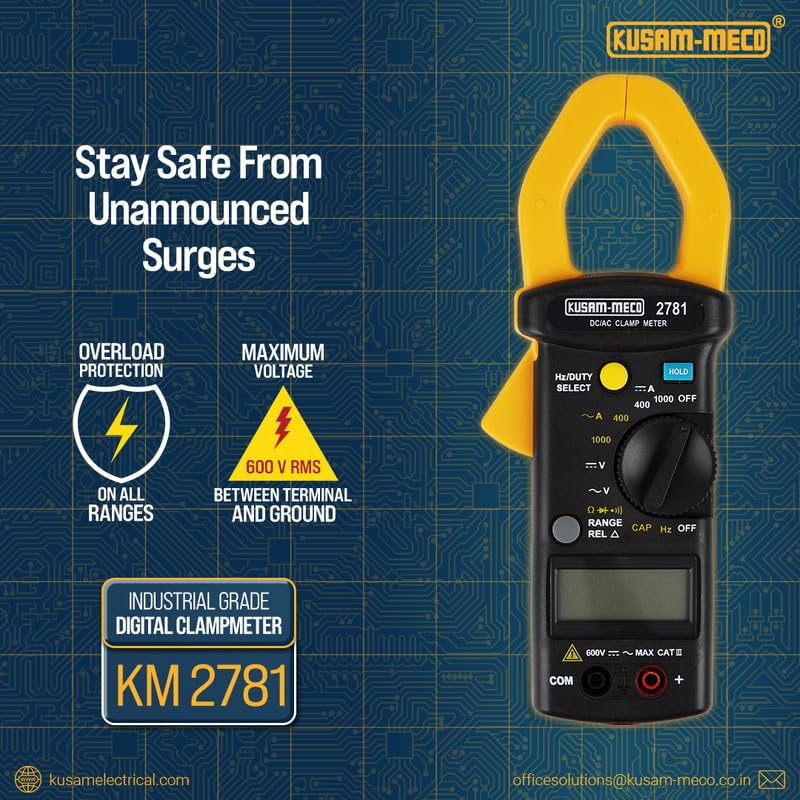

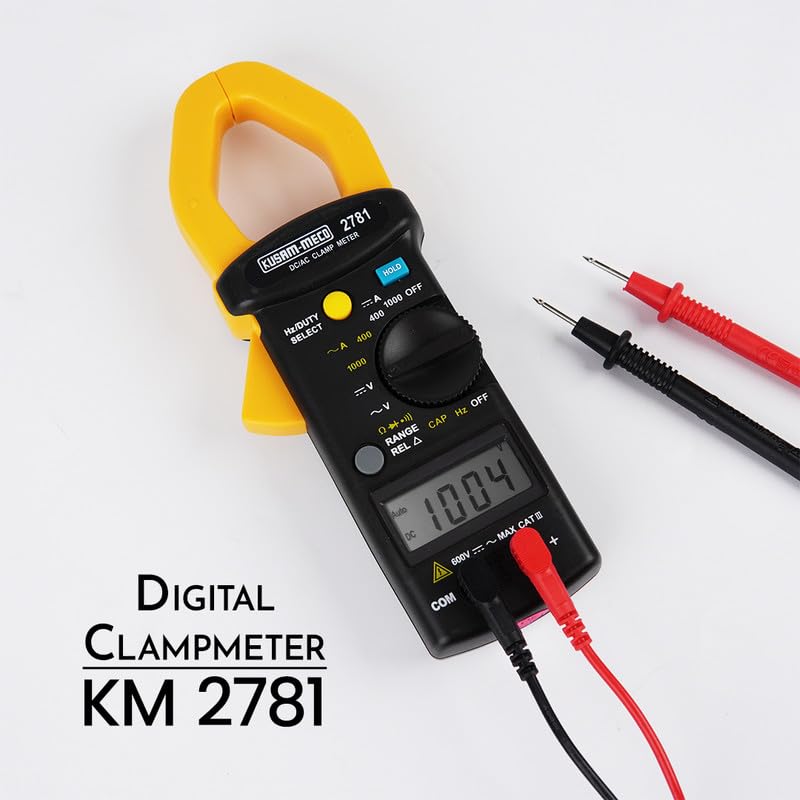

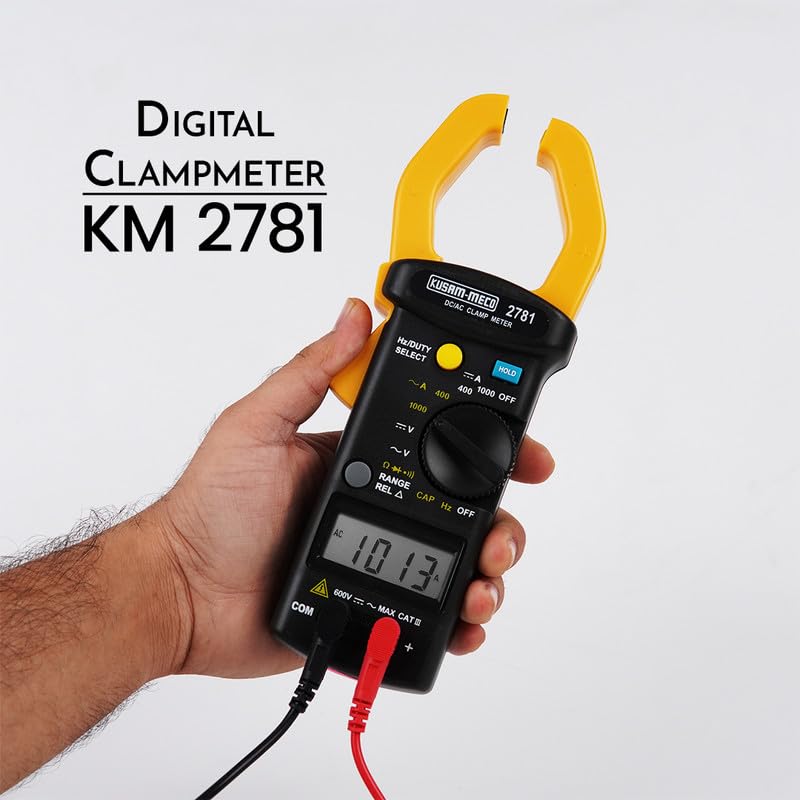

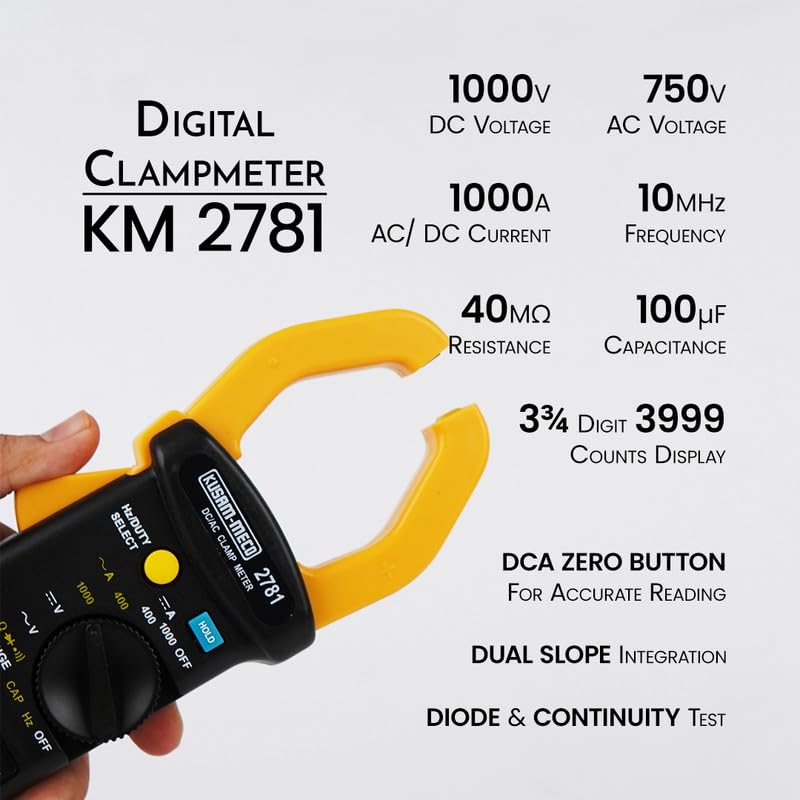

Kusam Meco KM 2781 1000A DC/AC Digital Clamp Meter
Kusam Meco KM 2781 1000A DC/AC Digital Clamp Meter
The Kusam Meco KM 2781 is a 1000A AC/DC Digital Clamp Meter with 9 functions and 32 ranges. It features overload protection, data hold, auto power-off, and a clear 3¾ digit LCD display. It provides accurate readings with average sensing.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 5,450
(GST inclusive price) i-
Base Value: ₹ 4618.6
-
GST: (18) % ₹ 831.4
-
Total Value ₹ 5450
₹8,962.00
( - 23% OFF )
Description
Key Features
- Overload protection on all ranges.
- Maximum Voltage between any terminal and earth ground 600V rms
- Dual slope integration
- Data-hold facility
- DCA zero button for accurate reading
- Low battery indication
- Auto power off
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Sensing : Average sensing

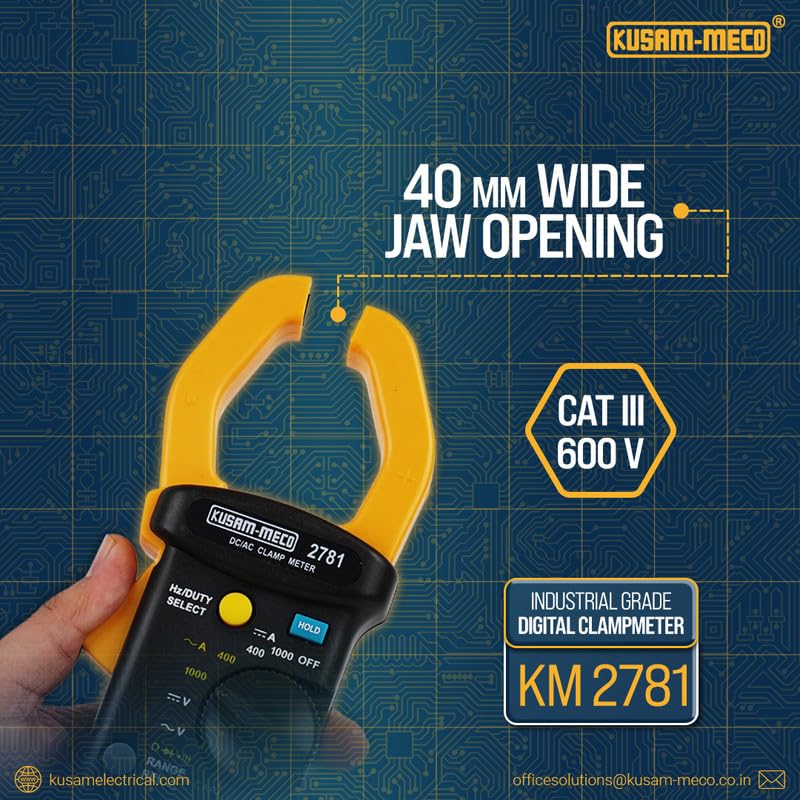

• Jaw opening size : cables Ø 40mm

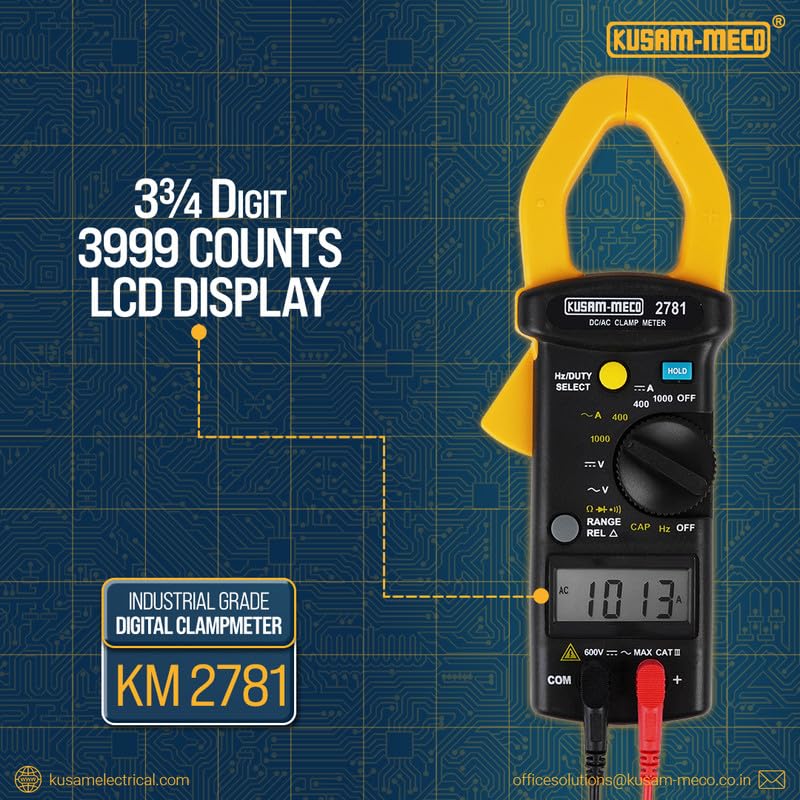

• Display : 3 ¾ digit 3999 counts liquid crystal LCD display.
• Over range indication : Display of “OL” on LCD at the highest position means range selection too low for the input.(Except for ranges of 1000A AC,& 600V AC / DC)
• Polarity : Symbol “-” automatic displayed for negative input.
• Sampling rate : 3 times per second (Digital display)
• Auto power off : The meter is automatically powered off after idling for 15 minutes. To awake the meter, turn the rotary function switch or push any button.
• Operating Temperature & Humidity : 0°C to 40°C; < 80% R.H. Non-condensing
• Low battery : The symbol "
" is displayed when the batteries are weak and below the operating Voltage. Replace batteries immidiately.
• Battery life : Approx. 60 hrs continuously use with alkaline batteries.
• Power supply : 1.5V AAA x 2
• Dimension : 228(L) x 76(W) x 39(H) mm
• Weight : approx. 465gms. (Including batteries)
TECHNICAL
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 400 A | 0.1 A | ± (2%rdg + 5dgts) |
| 1000 A | 1 A | |
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 400 A | 0.1 A | ± (2%rdg + 5dgts) |
| 1000 A | 1 A | |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 4.000 V | 0.001 V | ±(0.8%rdg+2dgts) |
| 40.00 V | 0.01 V | |
| 400.0 V | 0.1 V | |
| 1000 V | 1 V | ±(1.0%rdg+2dgts) |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 4.000 V | 0.001 V | ±(1.0%rdg+5dgts) |
| 40.00 V | 0.01 V | |
| 400.0 V | 0.1 V | |
| 1000 V | 1 V | ±(1.5%rdg+5dgts) |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 40 nF | 0.01nF | ±(2.5%rdg+10dgts) |
| 400 nF | 0.1 nF | ±(2.0%rdg+4dgts) |
| 4 F | 1 nF | |
| 40 F | 10 nF | |
| 100 F | 10 nF | Unspecified |
| FREQUENCY | ||
| Function Range | Sensitivity (sine Rms) | Range |
| 100Hz | 0.01 Hz | ±(0.5%rdg+3dgts) |
| 1KHz | 0.1 Hz | |
| 10KHz | 1 Hz | |
| 100KHz | 10 Hz | |
| 1MHz | 100 Hz | |
| 10MHz | 1 KHz | Unspecified |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 400 | 0.1 | ±(1.2%rdg+8dgts) |
| 4 K | 1 | ±(1.0%rdg+2dgts) |
| 40 K | 10 | |
| 400 K | 100 | |
| 4 M | 1 K | |
| 40 M | 10 K | ± (2%rdg+5dgts) |
