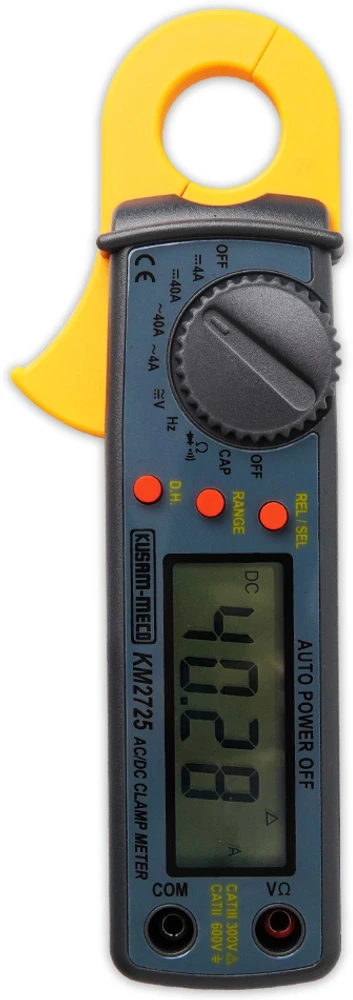

Kusam Meco KM 2725 AC/DC AUTORANGING DIGITAL CLAMPMETER
Click To Zoom
Kusam Meco KM 2725 AC/DC AUTORANGING DIGITAL CLAMPMETER
Kusam Meco KM 2725 AC/DC AUTORANGING DIGITAL CLAMPMETER

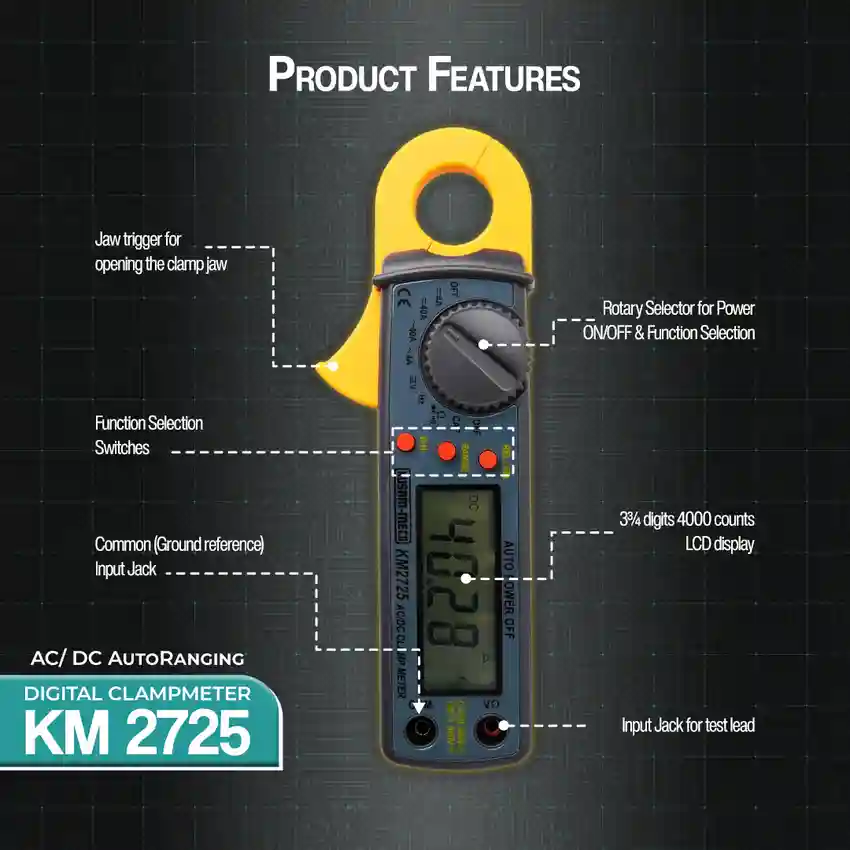

The Kusam Meco KM 2725 is a 3¾ digit, 4000 count AC/DC autoranging digital clamp meter. It offers high resolution 1mA DCA/ACA, auto-polarity display, auto-zero adjustment, and annunciators for all functions. Features include continuity, diode measurements, auto power-off, and low battery indication.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 7,199.00
(GST inclusive price) i₹9,300.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
• Sensing : Average sensing

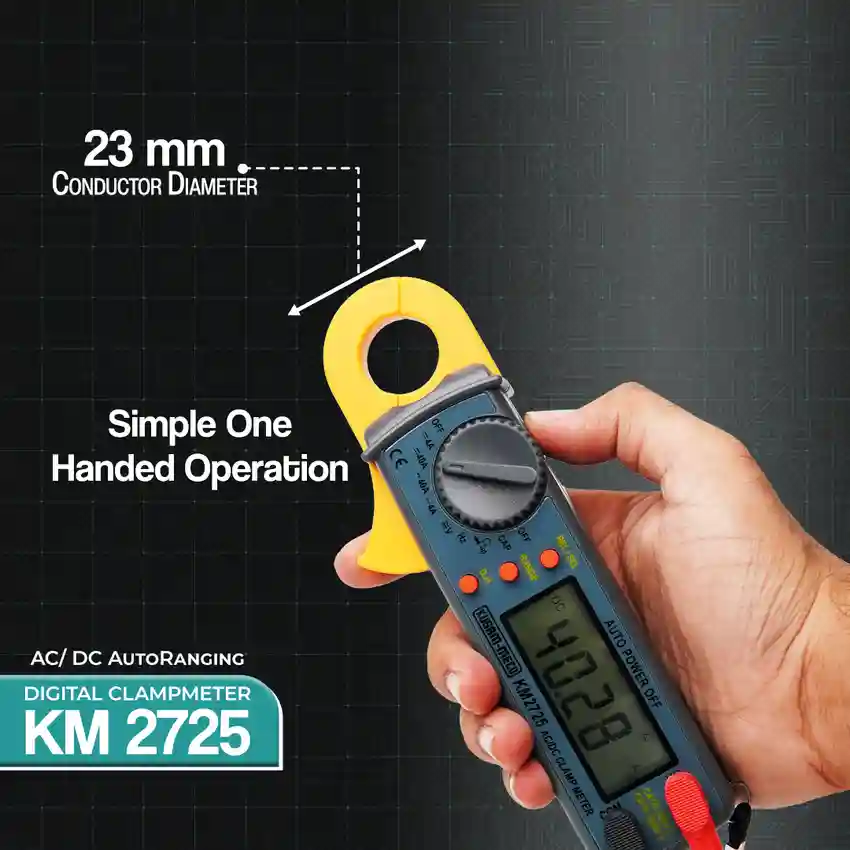

• Jaw Size : 23 mm
• Display : 3 ¾ digits 4000 counts LCD display
• Sampling rate : 2.5 reading / sec.
• Low Battery : "
" mark is displayed when the Battery Voltage drops below 2.4V
• Over range indication : Display “OL” or “-OL”
• Operating Temperature : 0 °C~50 °C; ≤ 75% R.H.
• Storage Temperature : -20 °C to 60 °C; ≤ 80% R.H. (Without battery)
• Power Supply : 1.5V AAA battery x 2
• Dimension : 183(L) X 43(W) X 31(H) mm
• Weight : Approx. 200 gm (battery included)
| AC/DC CURRENT | |||
| Range | Resolution | Accuracy (ACA) | Accuracy (DCA) |
| 40 A | 1 mA | ±(3.0%rdg + 3dgts) | ±(3.0%rdg + 2dgts) |
| 200 A | 10 mA | ±(2.0%rdg + 3dgts) | ±(2.0%rdg ± 2dgts) |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400 mV | 0.1 mV | ±(1.8%rdg + 5dgts) |
| 4 V | 1 mV | ±(1.0%rdg + 3dgts) |
| 40 V | 0.01 V | ±(1.0%rdg + 3dgts) |
| 400 V | 0.1 V | ±(1.0%rdg + 3dgts) |
| 750 V | 1 V | ±(1.5%rdg + 3dgts) |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400 mV | 0.1 mV | ±(1.0%rdg + 2dgts) |
| 4 V | 1 mV | ±(0.8%rdg + 2dgts) |
| 40 V | 0.01 V | ±(0.8%rdg + 2dgts) |
| 400 V | 0.1 V | ±(0.8%rdg + 2dgts) |
| 750 V | 1 V | ±(0.8%rdg + 2dgts) |
| RESISTANCE (OHMS) | ||
| Range | Resolution | Accuracy |
| 400 | 100 m | ±(1.0%rdg + 2dgts) |
| 4 k | 1 | ±(1.0%rdg + 2dgts) |
| 40 k | 10 | ±(1.0%rdg + 2dgts) |
| 400 k | 100 | ±(1.0%rdg + 2dgts) |
| 4 M | 1 K | ±(1.0%rdg + 2dgts) |
| 40 M | 10 K | ±(1.5%rdg + 2dgts) |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 40 nF | 10 pF | ±(2.5%rdg + 10dgts) |
| 400 nF | 100 pF | ±(2.0%rdg + 4dgts) |
| 4 μF | 1 nF | ±(2.0%rdg + 4dgts) |
| 40 μF | 10 nF | ±(2.5%rdg + 4dgts) |
