Kusam Meco KM 112M Autoranging Digital TRMS Clampmeter
Click To Zoom

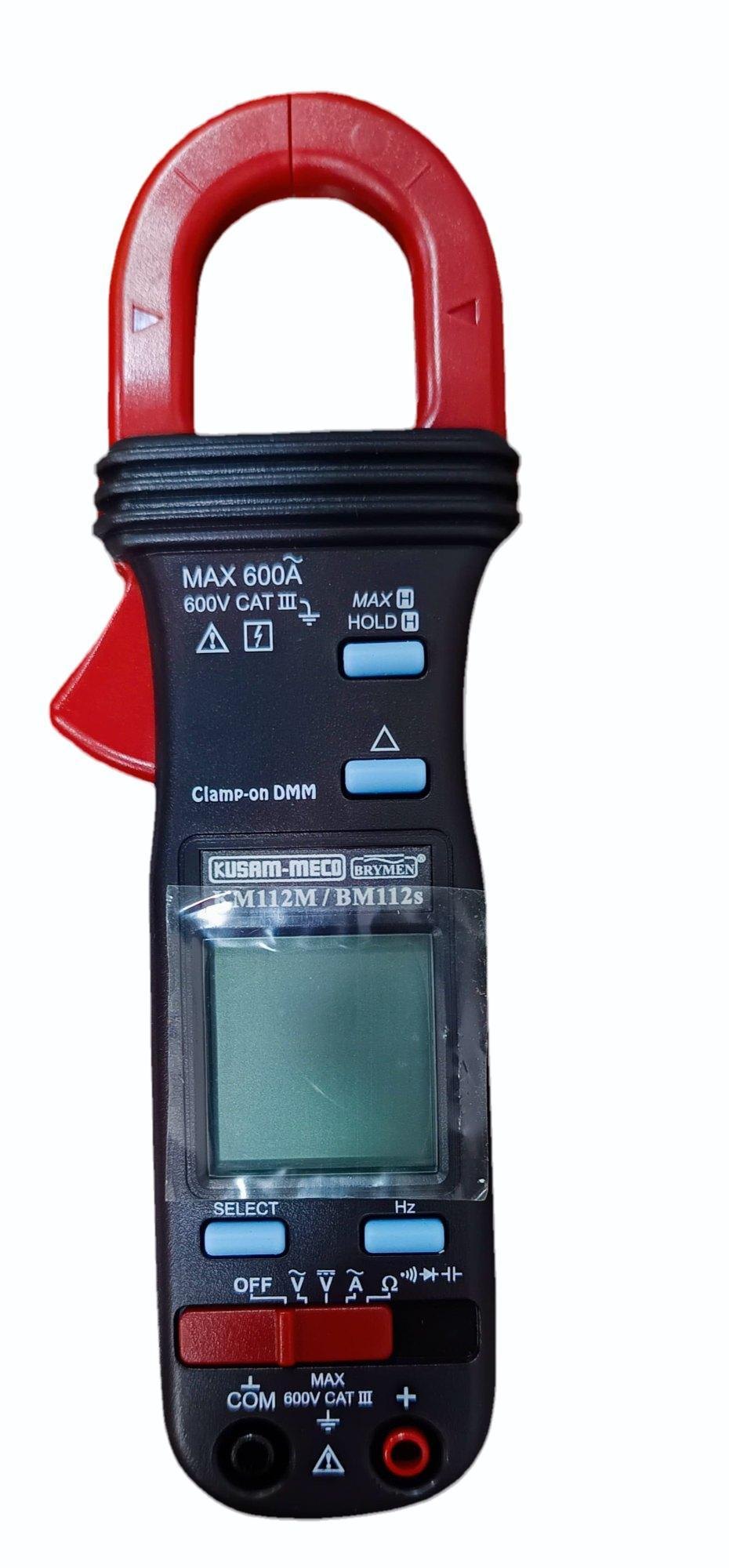

Kusam Meco KM 112M Autoranging Digital TRMS Clampmeter
Kusam Meco KM 112M Autoranging Digital TRMS Clampmeter
The Kusam Meco KM 112M is a True RMS digital clamp meter with 600A AC clamp-on and full multimeter ranges. Its ultra-slim, 26mm jaws access tight spaces, and it offers fast 30ms MAX Hold, Relative Zero mode, and non-invasive ACA Frequency measurement.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 7,950.00
(GST inclusive price) i₹11,200.00
( - 29% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
• Sensing : Average sensing (KM 111M ); True RMS Sensing (KM 112M)
• Jaw Opening Size : 26mm
• Basic Accuracy : 0.5%
• Display : 3¾ Digits 4000 counts LCD display
• Update Rate : 3 per second nominal
• Polarity : Automatic
• Low Battery : Below approx. 2.4V.
• Operating Temperature: 0°C to 40°C.
• Relative Humidity: Maximum relative humidity 80% for temperature upto 31°C decreasing linearly to 50% relative humidity at 40°C
• Altitude : Operating below 2000m
• Storage Temperature : -20 °C ~ 60 °C,< 80% R.H. (With Battery removed)
• Temperature Coefficient : Nominal 0.15 x (specified accuracy) / °C @ (0 °C ~ 18 °C or 28 °C ~ 40 °C), or otherwise specified.
• Power Supply : Single 3V coin Battery IEC CR-2032.
• Power Consumption : 2.8 mA typical, except 3.3 mA typical for current function.
• APO Timing : Idle for 30 minutes.
• APO Consumption : 5 µA typical.
• Dimension : 190(L) x 63(W) x 32(H)mm
• Weight : Approx. 139gm
| AC CURRENT (CLAMP-ON) (50HZ / 60HZ) | ||
| Range | Resolution | Accuracy |
| 40.00 A | 10 mA | ±(1.5%rdg + 8dgts) |
| 400.0 A | 100 mA | |
| 600 A | 1 A | |
| AC VOLTAGE (50HZ ~ 500HZ) | ||
| Range | Resolution | Accuracy |
| 4.000 V | 1 mV | ±(1.5%rdg + 5dgts) |
| 40.00 V | 10 mV | |
| 400.0 V | 100 mV | |
| 600 V | 1 V | ±(2.0%rdg + 5dgts) |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400.0 mV | 100 mV | ±(0.3%rdg + 4dgts) |
| 4.000 V | 1 mV | ±(0.5%rdg + 3dgts) |
| 40.00 V | 10 mV | |
| 400.0 V | 100 mV | |
| 600 V | 1 V | ±(1.0%rdg + 4dgts) |
| ~ Hz Line Level Frequency | ||
| Function Range | Sensitivity (sine Rms) | Range |
| 400.0 mV | 350 mV | 10Hz ~ 2KHz |
| 4.000 V | 1 V | 5Hz ~ 5KHz |
| 40.00 V | 32 V | 5Hz ~ 100KHz |
| 400.0 V | 90 V | 5Hz ~ 10KHz |
| 600 V | 500 V | 5Hz ~ 5KHz |
| 400.0 A | 60 A | 40Hz ~ 400Hz |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 400.0 W | 0.1 W | ±(0.8%rdg + 6dgts) |
| 4.000 KW | 1 W | ±(0.6%rdg + 4dgts) |
| 40.00 KW | 10 W | |
| 400.0 KW | 100 W | |
| 4.000 MW | 1 kW | ±(1.0%rdg + 4dgts) |
| 40.00 MW | 10 kW | ±(2.0%rdg + 4dgts) |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 500.0 nF | 100 pF | ±(3.5%rdg + 6dgts) |
| 5.000 mF | 1 nF | |
| 50.00 mF | 10 nF | |
| 500.0 mF | 100 nF | |
| 3000 mF | 1 mF | |
