Kusam Meco KM076 Digital Clamp Meter

Kusam Meco KM076 Digital Clamp Meter
Kusam Meco KM076 Digital Clamp Meter

Kusam Meco KM076 Digital Clamp Meter

Click To Zoom

Kusam Meco KM076 Digital Clamp Meter

Kusam Meco KM076 Digital Clamp Meter

(Based On 10 Reviews)

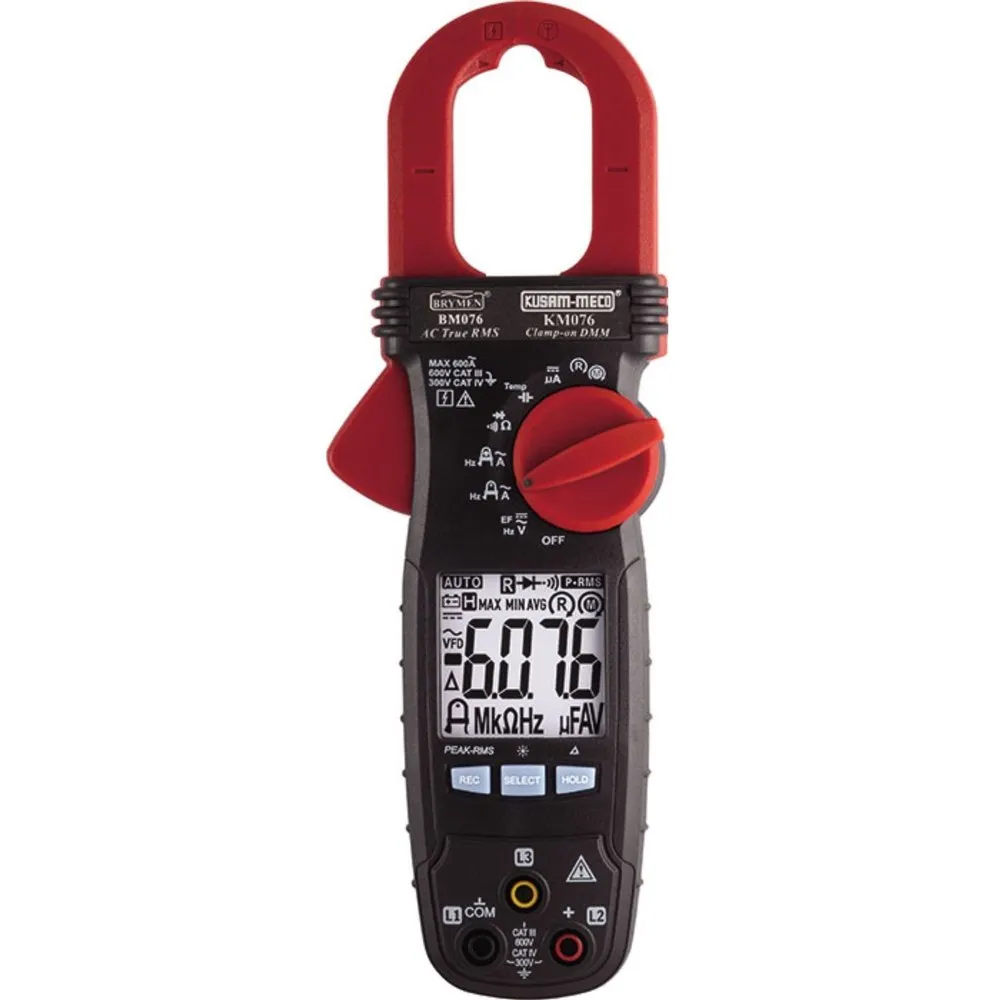

The Kusam Meco KM 076 is a 600A AC True RMS Digital Clampmeter. It features AmpTip for low-current accuracy, VFD-V & Hz for variable frequency drives, non-contact EF-detection, and a backlit LCD display. It also includes 3-Phase Rotation-R/M functions.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 13,900

(GST inclusive price) i
  • Base Value: ₹ 11779.7
  • GST: (18) % ₹ 2120.3
  • Total Value ₹ 13900

₹22,800.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

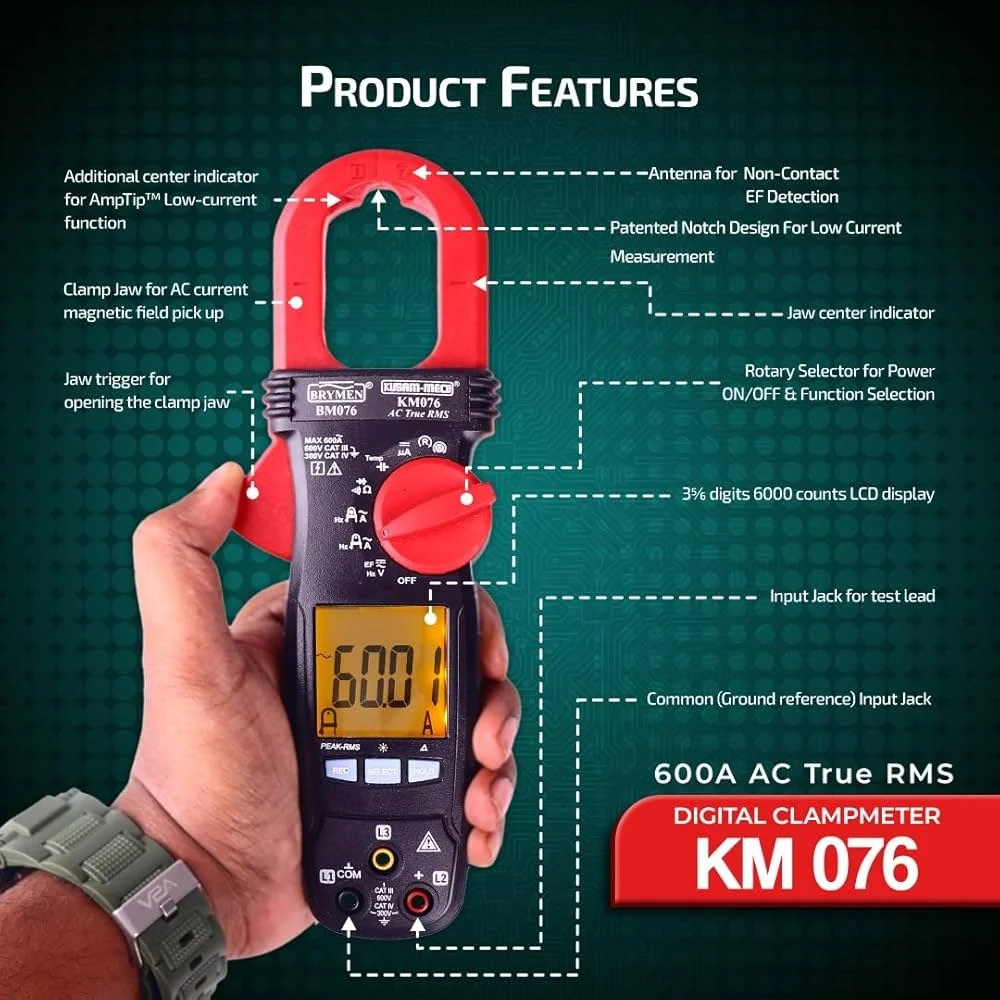

Key Features

  • TM AmpTip low-current range calibrated at Jaw-tip for slim-conditions for accurate readings
  • MAX/MIN/AVG Recording mode (Auto ranging)
  • VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
  • Display Hold & Non-Contact EF-Detection (NCV)
  • Back-lighted easy-to-read LCD display
  • Fast 80ms Peak-RMS mode to capture in-rush currents
  • Auto-ranging Relative mode with DC-Zero mode & 5ms Crest (Instantaneous Peak-Hold) mode
  • 3-Phase Rotation-R for MAINS supply (Probe contact).
  • 3-Phase Ro

What's in the box?

  • Kusam Meco KM076 Digital Clamp Meter
  • Test leads set
  • Users Manual
  • Soft carrying pouch
  • Bkp60 banana plug K-type thermocouple
  • Alligator Clip set
  • tation-M (Hi-sensitivity mode) for Motors (Probe-contact)





Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

• Sensing : AC;True RMS
• Jaws Opening size & conductor diameter : 30mm Max.
• Display : 3-5/6 digits 6000 counts
• Update Rate : 5 per second nominal
• Polarity : Automatic
• Operating Temperature :0ºC to 40ºC
• Relative Humidity : Maximum relative humidity 80% for temperature up to 31ºC
  decreasing linearly to 50% relative humidity at 40ºC
• Altitude : Operating below 2000m
• Storage Temperature : -20 °C ~ 60 °C, <80% R.H. (with battery removed)
• Temperature Coefficient : Nominal 0.15 x (specified accuracy) / °C @ (0°C - 18°C or 28°C - 40°C), or otherwise specified
• Power Supply : Standard 1.5V AAA Size Battery X 2
• Power Consumption : typical 4.3mA
• Low Battery: Below approx. 2.85V for Capacitance & Hz Below approx. 2.5V for other functions
• APO timing : Idle for 32 minutes
• APO Consumption : typical 5µA
• Dimension : 217(L) x 76(W) x 37(H)mm
• Weight : approx 186 gms.



TECHNICAL

REGULAR CLAMP-ON AC CURRENT
RangeResolutionAccuracy
50Hz ~ 100Hz
60.00 A0.01 A±(1.8%rdg + 5dgts)
600.0 A0.1 A
100Hz ~ 400Hz
60.00 A0.01 A±(2.0%rdg + 5dgts)
600.0 A0.1 A
TM AMPTIP CLAMP-ON AC CURRENT
RangeResolutionAccuracy
DC, 50Hz ~ 60Hz
60.00 A0.01 A±(1.5%rdg + 5dgts)
DCμA
RangeResolutionAccuracy
DC, 50Hz ~ 60Hz
60.00 A0.01 A±(1.5%rdg + 5dgts)
DC VOLTAGE
RangeResolutionAccuracy
600.0 V0.1 V±(1.0%rdg + 5dgts)
AC VOLTAGE (with Digital Low-Pass Filter)
RangeResolutionAccuracy
50Hz ~ 60Hz
600.0 V0.1 V±(1.0%rdg + 5dgts)
RESISTANCE
RangeResolutionAccuracy
600.0 Ω0.1 Ω±(1.0%rdg + 5dgts)
6.000KΩ1 Ω
60.00KΩ10 Ω
~ Hz Line Level Frequency
Function RangeSensitivity (sine Rms)Range
600 V50 V5.00Hz~999.9Hz
1000 V
60 A (AmpTip)20 A50.00Hz~400.0Hz
60 A20 A50.00Hz~400.0Hz
600 A
CAPACITANCE
RangeResolutionAccuracy
200.0 μF0.1 nF±(2.0%rdg + 4dgts)
2500 μF1 μF
