Kusma Meco 2754A(T) Digital Clamp Meter
Click To Zoom

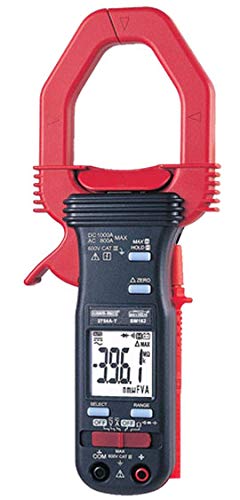

Kusma Meco 2754A(T) Digital Clamp Meter
Kusma Meco 2754A(T) Digital Clamp Meter
The Kusam Meco KM 2754A-T is a TRMS Digital Clamp Meter, offering AC TRMS voltage and current functions with a 50mm jaw opening. It measures up to 1000A DC and 800A AC, with a 4000-count display. Key features include backlight, Max Hold for in-rush currents, and auto-ranging, making it versatile for industrial electrical measurements.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 11,899
(GST inclusive price) i-
Base Value: ₹ 10083.9
-
GST: (18) % ₹ 1815.1
-
Total Value ₹ 11899
₹15,300.00
( - 22% OFF )
Description
Key Features
- DC 1000A / AC 800A Clamp-on + Full Multimeter ranges
- Versatile & Handy
- Fully Auto-ranging on all functions
- Backlighted Display (Model 2754A-T)
- 30ms Max HOLD to capture in-rush currents
- Data Hold, Max Hold & Relative Zero Mode
- Fast Audible continuity Test & Diode Test
- Auto power off
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Sensing : AC TRMS Voltage & Current functions
• Jaws Opening size : 50mm Max.
• Display : 3 ¾digits 4000 counts
• Update Rate : 3 per second nominal
• Polarity : Automatic
• Operating Temperature : 0°C ~ 40°C
• Relative Humidity : Maximum 80%R.H. for Temperature upto 31°C decreasing linearly to 50% R.H. at 40°C
• Altitude : Operating below 2000m
• Storage Temperature : -20°C ~ 60°C, <80% R.H. (With battery removed)
• Temperature Coefficient : Nominal 0.15 x (specified accuracy) / °C @ (0°C ~ 18°C or 28°C ~ 40°C), or otherwise Specified
• Pollution Degree: 2
• Transient Protection: 6.5kV (1.2/50µs) surge
• Low Battery: Below approx. 2.5V
• Power Supply : Standard 1.5V AAA Battery x 2
• Power Consumption : Typical 11mA for DCA / ACA & 2.9mA for other functions
• APO Consumption : 190µA typical
• APO timing : Idle for 30 minutes
• Dimension : 227(L) x 78(W) x 40(H) mm
• Weight : approx 290 gm
TECHNICAL
| AC CURRENT (CLAMP-ON) | ||
| Range | Resolution | Accuracy |
| 400.0A | ||
| 15Hz~40Hz | 0.1 A | ±(2.0%rdg + 5dgts ) |
| 40Hz~200Hz | ±(1.5%rdg + 5dgts) | |
| 200Hz~400Hz @<50A | ||
| 400Hz~1KHz @<50A | ±(2.0%rdg + 5dgts) | |
| 800A | ||
| 15Hz~40Hz | 1 A | ±(2.0%rdg + 5dgts ) |
| 40Hz~100Hz | ±(1.5%rdg + 5dgts) | |
| 15Hz~60Hz | ±(5.0%rdg + 30dgts) | |
| DC CURRENT (CLAMP-ON) | ||
| Range | Resolution | Accuracy |
| 400.0A | ||
| 0A ~ 400A | 0.1 A | ±(1.5%rdg + 4dgts) |
| 1000A | ||
| 400A ~ 800A | 1 A | ±(1.5%rdg + 4dgts) |
| 800A ~ 900A | ±(2.0%rdg + 4dgts) | |
| 900A ~ 1000A | ±(5.0%rdg + 30dgts) | |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400.0 mV | 0.1 mV | ±(0.3%rdg + 3dgts) |
| 4.000 V | 1 mV | ±(0.5%rdg + 3dgts) |
| 40.00 V | 10 mV | ±(0.5%rdg + 3dgts) |
| 400.0 V | 100 mV | ±(0.5%rdg + 3dgts) |
| 600 V | 1 V | ±(1.0%rdg + 4dgts) |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 500Hz | ||
| 400.0 mV | 100 mV | ±(4.0%rdg + 4dgts) |
| 50Hz ~ 60Hz | ||
| 4.000 V | 1 mV | ±(1.0%rdg + 4dgts) |
| 40.00 V | 10 mV | ±(1.0%rdg + 4dgts) |
| 400.0 V | 100 mV | ±(1.0%rdg + 4dgts) |
| 60Hz ~ 500Hz | ||
| 4.000 V | 1 mV | ±(1.5%rdg + 4dgts) |
| 40.00 V | 10 mV | ±(1.5%rdg + 4dgts) |
| 400.0 V | 100 mV | ±(1.5%rdg + 4dgts) |
| 50Hz ~ 500Hz | ||
| 600 V | 1 V | ±(2.0%rdg + 4dgts) |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 400.0 Ω | 0.1 Ω | ±(0.8%rdg + 6dgts) |
| 4.000 kΩ | 1 Ω | ±(0.6%rdg + 4dgts) |
| 40.00 kΩ | 10 Ω | ±(0.6%rdg + 4dgts) |
| 400.0 kΩ | 100 Ω | ±(0.6%rdg + 4dgts) |
| 4.000 MΩ | 1 kΩ | ±(1.0%rdg + 4dgts) |
| 40.00 MΩ | 10 kΩ | ±(2.0%rdg + 4dgts) |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 500.0 nF | 0.1 nF | ±(3.5%rdg + 6dgts) |
| 5.000 μF | 1 nF | |
| 50.00 μF | 10 nF | |
| 500.0 μF | 100 nF | |
| 3000 μF | 1 μF | |
