Kusam Meco KM 405MK-II 25000 COUNTS TRMS DIGITAL MULTIMETER

Kusam Meco KM 405MK-II 25000 COUNTS TRMS DIGITAL MULTIMETER
Kusam Meco KM 405MK-II 25000 COUNTS TRMS DIGITAL MULTIMETER

Kusam Meco KM 405MK-II 25000 COUNTS TRMS DIGITAL MULTIMETER

Click To Zoom

Kusam Meco KM 405MK-II 25000 COUNTS TRMS DIGITAL MULTIMETER

Kusam Meco KM 405MK-II 25000 COUNTS TRMS DIGITAL MULTIMETER

(Based On 10 Reviews)

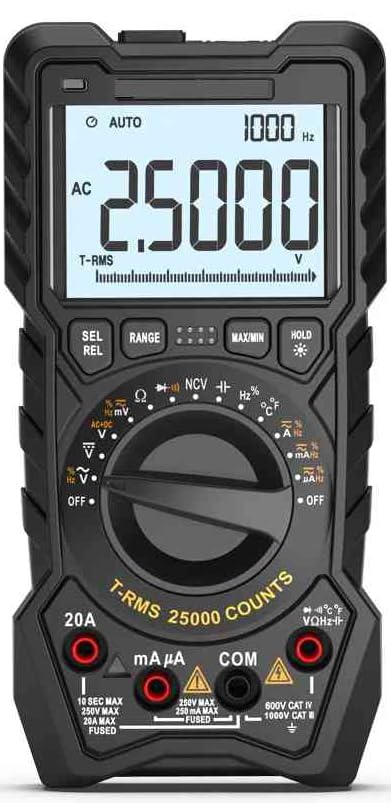

The Kusam Meco KM 405mk-II is a True RMS Digital Multimeter with a 25000-count dual display. It offers high precision, manual ranging, and features like NCV detection, a flashlight, and combined AC+DC voltage measurement. This versatile tool is suitable for accurate electrical measurements in industrial and professional settings.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

₹ 7,000

(GST inclusive price) i
  • Base Value: ₹ 5932.2
  • GST: (18) % ₹ 1067.8
  • Total Value ₹ 7000

₹11,300.00

( - 21% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Manual range
  • True RMS measurement
  • 250MΩ large resistance measurement
  • 25000 counts high-precision display
  • 100mF high capacitance measurment
  • Auto power off
  • Combined AC+DC voltage measurement
  • NCV inductive electricity measurement function
  • 20A current measurement
  • Voltage / Resistance / Frequency / Diode / Duty Cycle / Temperature / Continuty
  • Current input misoperation indication
  • Flashlight
  • Large screen with three displays (main display / auxiliary display / analog bar)
  • Low resistance voltage measurement
  • Maximum and minimum value
  • Data Hold & Backlight
  • Low battery indication



What's in the box?

  • Kusam Meco KM 405MK-II DIGITAL MULTIMETER

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

● Power Supply : 1.5V AA Battery × 3pcs
● Dimension : 180 × 90 × 50mm
● Weight : Approx. 384g (without battery)



TECHNICAL

DC VOLTAGE
RangeResolutionAccuracy
25.000mV0.001mV± (0.05%rdg + 3dgts)
250.00mV0.01mV
2.5000V0.0001V± (0.05%rdg + 3dgts)
25.000V0.001V
250.00V0.01V
1000.0V0.1V
AC VOLTAGE
RangeResolutionAccuracy
25.000mV0.001mV± (0.3%rdg + 3dgts)
250.00mV0.01mV
2.5000V0.0001V
25.000V0.001V
250.00V0.01V
1000.0V0.1V
AC+DC VOLTAGE (DC)
RangeResolutionAccuracy
25.000mV0.0001V± (0.5%rdg + 3dgts)
250.00mV0.001V
250.00V0.01V
1000.0V0.1V
AC+DC VOLTAGE (AC)
RangeResolutionAccuracy
25.000mV0.0001V± (1.0%rdg + 3dgts)
250.00mV0.001V
250.00V0.01V
1000.0V0.1V
AC+DC VOLTAGE (AC+DC)
RangeResolutionAccuracy
25.000mV0.0001V± (1.5%rdg + 3dgts)
250.00mV0.001V
250.00V0.01V
1000.0V0.1V
DC CURRENT
RangeResolutionAccuracy
250.00µA0.01μA± (0.5%rdg + 3dgts)
2500.0µA0.1μA
25.000mA0.001mA
250.00mA0.01mA
2.5000A0.0001A
20.000A0.001A
AC CURRENT
RangeResolutionAccuracy
250.00µA0.01μA± (0.8%rdg + 3dgts)
2500.0µA0.1μA
25.000mA0.001mA
250.00mA0.01mA
2.5000A0.0001A
20.000A0.001A
FREQUENCY
RangeResolutionAccuracy
250.00Hz0.01Hz± (0.1%rdg + 2dgts)
2.5000KHz0.0001KHz
25.000KHz0.001KHz
250.00KHz0.01KHz
2.5000MHz0.0001MHz
10.000MHz0.001MHz
FREQUENCY
RangeResolutionAccuracy
250.00Ω0.01Ω± (0.5%rdg + 3dgts)
2.5000kΩ0.0001kΩ± (0.2%rdg + 3dgts)
25.000kΩ0.001kΩ
250.00kΩ0.01kΩ
2.5000MΩ0.0001MΩ± (0.1%rdg + 3dgts)
25.00MΩ 0.01MΩ
250.0MΩ0.1MΩ± (5%rdg + 5dgts)
CAPACITANCE
RangeResolutionAccuracy
9.999nF0.001nF± (5.0%rdg + 20dgts)
99.99nF0.01nF± (2.0%rdg + 5dgts)
999.9nF0.1nF
9.999µF0.001μF
99.99µF0.01μF
999.9µF0.1μF
9.999mF0.001mF± (5.0%rdg + 5dgts)
99.99mF0.01mF± (5.0%rdg + 20dgts)
TEMPERATURE
RangeResolutionAccuracy
(-20~1000)°C1°C± (3%rdg + 5dgts)
(-20~1000)°C1°F
