Kusam Meco KM 2807CSE TRMS ENHANCED PRACTICAL MULTIMETER

Kusam Meco KM 2807CSE TRMS ENHANCED PRACTICAL MULTIMETER
Kusam Meco KM 2807CSE TRMS ENHANCED PRACTICAL MULTIMETER

Kusam Meco KM 2807CSE TRMS ENHANCED PRACTICAL MULTIMETER

Click To Zoom

Kusam Meco KM 2807CSE TRMS ENHANCED PRACTICAL MULTIMETER

Kusam Meco KM 2807CSE TRMS ENHANCED PRACTICAL MULTIMETER

(Based On 10 Reviews)

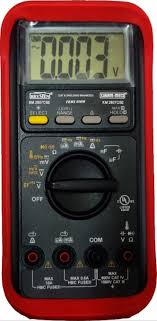

The Kusam Meco KM 2807CSE is a TRMS (True RMS) Digital Multimeter. It features a 3-5/6 digit, 6000-count LCD display, VFD-ACV & VFD-Hz measurements, and Hi/Lo Electric Field (EF) detection (non-contact and single-pole). This "UL" listed, enhanced practical multimeter is designed for safety and versatility in industrial applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

₹ 14,000

(GST inclusive price) i
  • Base Value: ₹ 11864.4
  • GST: (18) % ₹ 2135.6
  • Total Value ₹ 14000

₹22,840.00

( - 22% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • VFD-ACV & VFD-Hz
  • Display Hold w/Hold-alert warning
  • BeepLit Diode w/BeepPass indication
  • Relative-Zero mode
  • BeepJack audible & visible input warning
  • Hi/Lo EF-Detection (NCV & Single pole)
  • MAX Hold
  • BeepLit Continuity
  • Backlighted LCD display

Optional purchase accessories

  • BKB32 banana-plug to type-K socket plug adaptor



What's in the box?

  • Kusam Meco KM 2807CSE ENHANCED PRACTICAL MULTIMETER
  • Test lead set
  • User's manual
  • Banana-plug type-K thermocouple

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

● Sensing: True RMS sensing
● Display: 3-5/6 digits 6,000 counts
● Update Rate: 5 per second nominal
● Operating Temperature: -10°C to 50°C
● Relative Humidity: Maximum relative humidity 80% for temperature up to 31°C decreasing linearly to 50% relative humidity at 50°C
● Altitude: Operating below 2000m
● Storage Temperature: -20°C ~ 60°C, < 80% R.H. (with battery removed)
● Temperature Coefficient: Nominal 0.15 x (specified accuracy)/ °C @ (-10°C ~ 18°C or 28°C ~ 50°C), or otherwise specified
● Low Battery: Below approx. 2.5V
● Power Supply: 1.5V AAA Size battery X 2
● Power Consumption (typical): 3.2mA
● APO Consumption (typical): 10A
● APO Timing: Idle for approx. 32 minutes



TECHNICAL

DC Current
RangeAccuracyBurden Voltage
600.0mA, 6000mA1.0% + 3d0.1mV/mA
60.00mA, 600.0mA0.7% + 3d3.0mV/mA
6.000A, 10.00A 1)25mV/A
AC Current
RangeAccuracyBurden Voltage
50HZ ~ 500HZ
600.0mA, 6000mA1.5% + 3d0.1mV/mA
60.00mA, 600.0mA1.0% + 5d3.0mV/mA
6.000A, 10.00A 1)25mV/A
AC VOLTAGE
RangeAccuracy
50Hz ~ 60Hz
60.00mV1), 600.0mV2)1.0% + 3d
6.000V, 60.00V, 600.0V, 1000V0.7% + 3d
45Hz ~ 500Hz
60.00mV1), 600.0mV2)2.0% + 3d
6.000V, 60.00V, 600.0V, 1000V2.0% + 3d
500Hz~ 1kHz
60.00mV1), 600.0mV2)2.0% + 3d
6.000V, 60.00V, 600.0V, 1000VUnspecified
VFD-ACV (with Low Pass Filter )
RangeAccuracy
10 ~ 100Hz
600.0V, 1000V1.0% + 3d
100 ~ 400Hz
600.0V, 1000V10.0% + 3d
DC Voltage
RangeAccuracy
60.00mV, 600.0mV , 6.000V0.3% + 2d
60.00V0.4% + 2d
600.0V0.2% + 2d
1000V0.4% + 2d
Ohm
RangeAccuracy
600.0Ω , 6.000kΩ0.3% + 3d
60.00kΩ, 600.0kΩ 0.5% + 3d0.9% + 2d
6.000MΩ, 60.00MΩ0.9% + 2d
Capacitance
RangeAccuracy
20.00nF, 200.0nF1.5% + 8d
2000nF1.5% + 3d
20.00mF, 200.0mF, 2000mF
DC Current
FuncitonSensitivityRange
6V5V10Hz- 50kHz
60V10V10Hz- 50kHz
600V50V10Hz- 1kHz
1000V500V50Hz- 1kHz
VFD 60 V50V10Hz– 1kHz
VFD 100V500V50Hz- 1kHz
600mA, 600m0A500mA10Hz- 5kHz
60mA, 600mA50mA10Hz- 5kHz
6A,10A8A50Hz- 1kHz
