Kusam Meco KM 69 Voltage Detector With Rcd Load Test Ef Detection
Click To Zoom
Kusam Meco KM 69 Voltage Detector With Rcd Load Test Ef Detection
Kusam Meco KM 69 Voltage Detector With Rcd Load Test Ef Detection

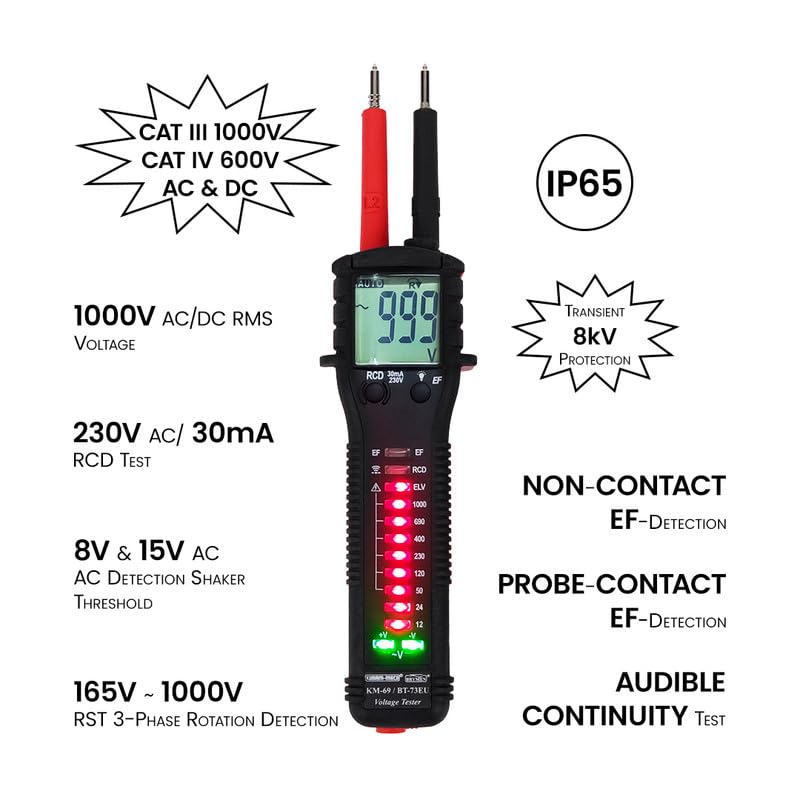

The Kusam Meco KM 69 is a digital voltage detector offering 3-digit, 1000-count readings. It features RCD load testing, EF (Electric Field) detection (both non-contact and contact), continuity with audible/visual indications, and phase rotation detection. This versatile tool is ideal for safely checking AC/DC voltages and circuit integrity.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 10,500
(GST inclusive price) i-
Base Value: ₹ 8898.3
-
GST: (18) % ₹ 1601.7
-
Total Value ₹ 10500
₹17,200.00
( - 22% OFF )
Description
Key Features
- EF-Detection
- RCD leakage-path
- LCD Indication
- RST Phase Rotation Detection
- AC-Detection Shaker
- Handy & Stylish, Fits Comfortably in one’s hand
- 19mm Probe Pitch For Quick European Receptacle Testing
- 4mm Test Tips with IP2X Retractable shroud for IEC61243-3 Ed3
- Detachable (Black) test lead for easy replacement.
- User Replaceable Screw-On stationary (Red) Probe Body
- Battery-less ELV Limit (120VDC/50VAC) LED Indication
- Battery-less DCV & ACV Auto-selection with LED polarity indication
- Battery-less DCV 8-Ranges LED Indication : 12, 24, ... to 1000V
- Battery-less ACV 8-Ranges LED Indication : 12, 24, ... to 1000V
- Automatic Power On & Power Off
- Non-contact EF-Detection (NCV)
- Probe contact EF-Detection for more precise indication of live
- Continuity : Audible beeper & visible LED indications
- Display Backlight & flash-light for easy viewing in the dark
- True RMS ACV Reading on LCD Numeric Display
- AC-Detection Shaker indicates ACV is being measured
- RCD Leakage Load for 230V AC / 30mA RCD Circuit Breakers
- RST Phase sequence / Rotation indication
- Low Battery warning for battery operated functions & features
- Battery Access Door

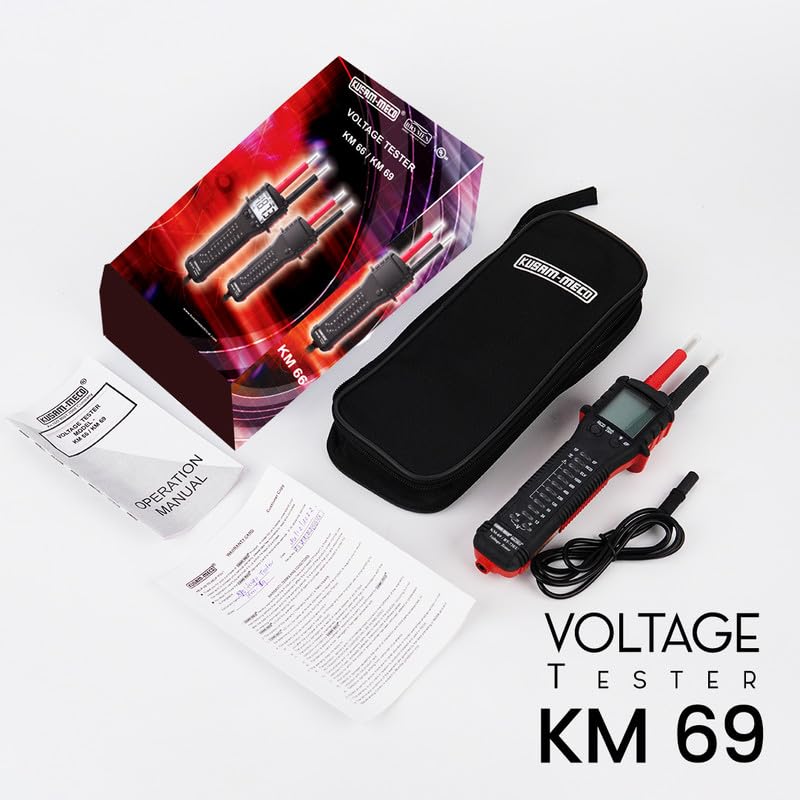

What's in the box?
|
Rating & Reviews
Rating
GENERAL
• LCD Display : 3½ Digits 1999 counts
• Update Rate : 5 per second nominal
• Sensing : TRMS sensing for LCD indication
• Operating Temperature : -10° C ~ 55° C
• Relative Humidity : ≤ 90%
• Altitude : Operating below 2000m
• Storage Temperature : -20° C ~ 65° C, £ 80% R.H. (with battery removed)
• Temperature Coefficient : Nominal 0.15 X (specified accuracy) / ° C @ (10° C ~ 18° C or 28° C ~ 50° C), or otherwise specified
• Pollution Degree : 2
• Low Battery : Below approx. 2.6V
• APO Timing : Idle for 16 seconds
• Power Consumption (typical) : 2.7mA for Power-on ready & DCV; 50mA for ACV (with shaker on)
105mA For RCD; 40mA for Buzzer on @ Continuity or EF function; 55mA for resistance or capacitance;
Add 30mA for backlight on.
• APO Consumption (typical): 12 µA
• Power Supply : 1.5V AAA Size (NEDA 24A or IEC LR03) alkaline battery x 2
• Dimension : 278(L) x 57(W) x 40(H)mm
• Weight : Approx. 235gm
TECHNICAL
| DC & AC VOLTAGE (LED) | ||
| Voltage Marking | Typical Threshold (Turn ON) | Typical Threshold (Turn OFF) |
| 12 V | 9.6 V | 7 V |
| 24 V | 19.2 V | 14 V |
| 50 V | 40 V | 33 V |
| 120 V | 96 V | 67 V |
| 230 V | 184 V | 140 V |
| 400 V | 320 V | 283 V |
| 690 V | 552 V | 490 V |
| 1000 V | 800 V | 760 V |
| DC & AC VOLTAGE (LCD display) | ||
| Range | Threshold | Accuracy |
| DC 199.9V, 1000V | > +27VDC or < - 4.5VDC | ±(1.5%rdg + 3dgts) |
| AC 199.9V, 1000V | > 8 VAC | ±(2.5%rdg + 4dgts) |
