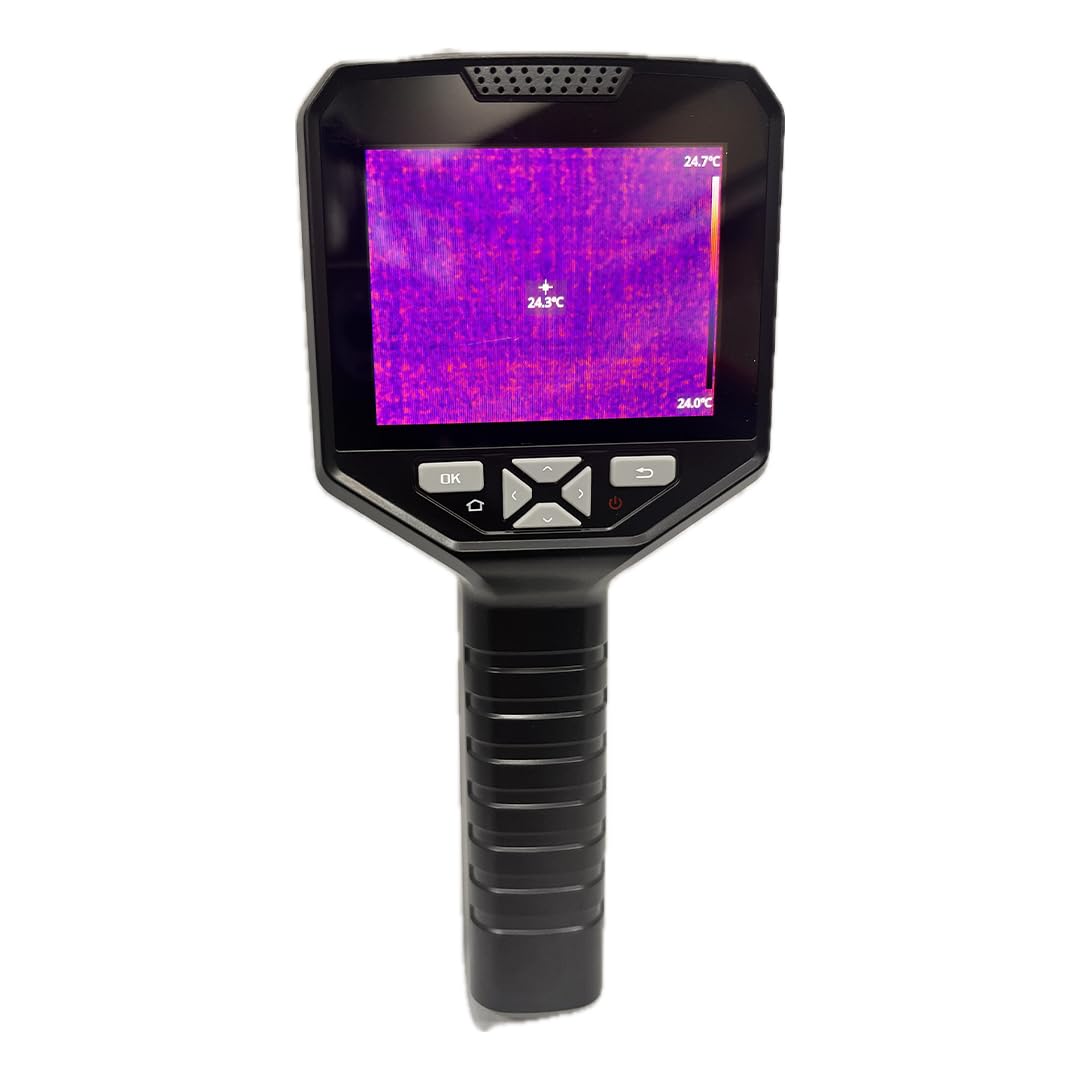

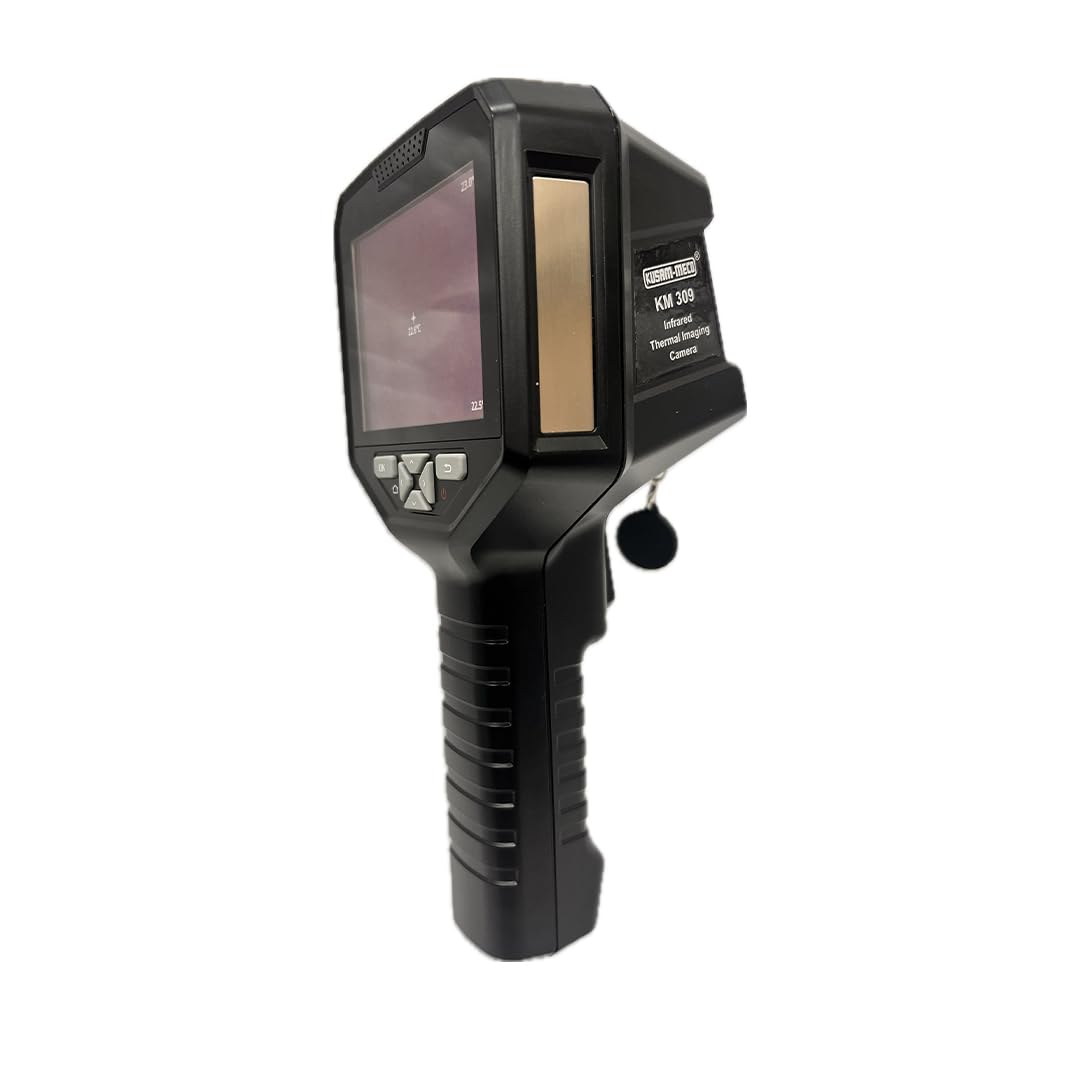

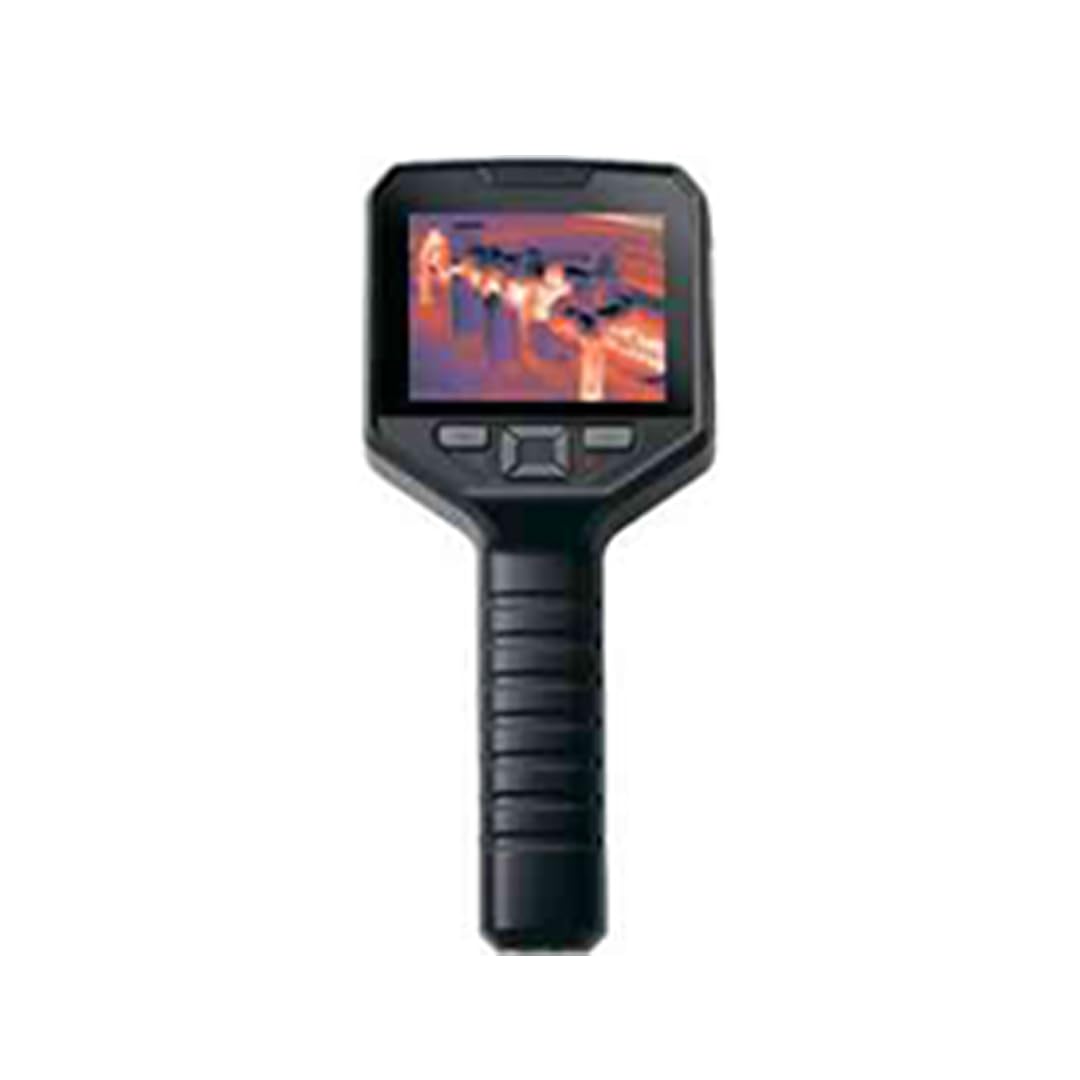

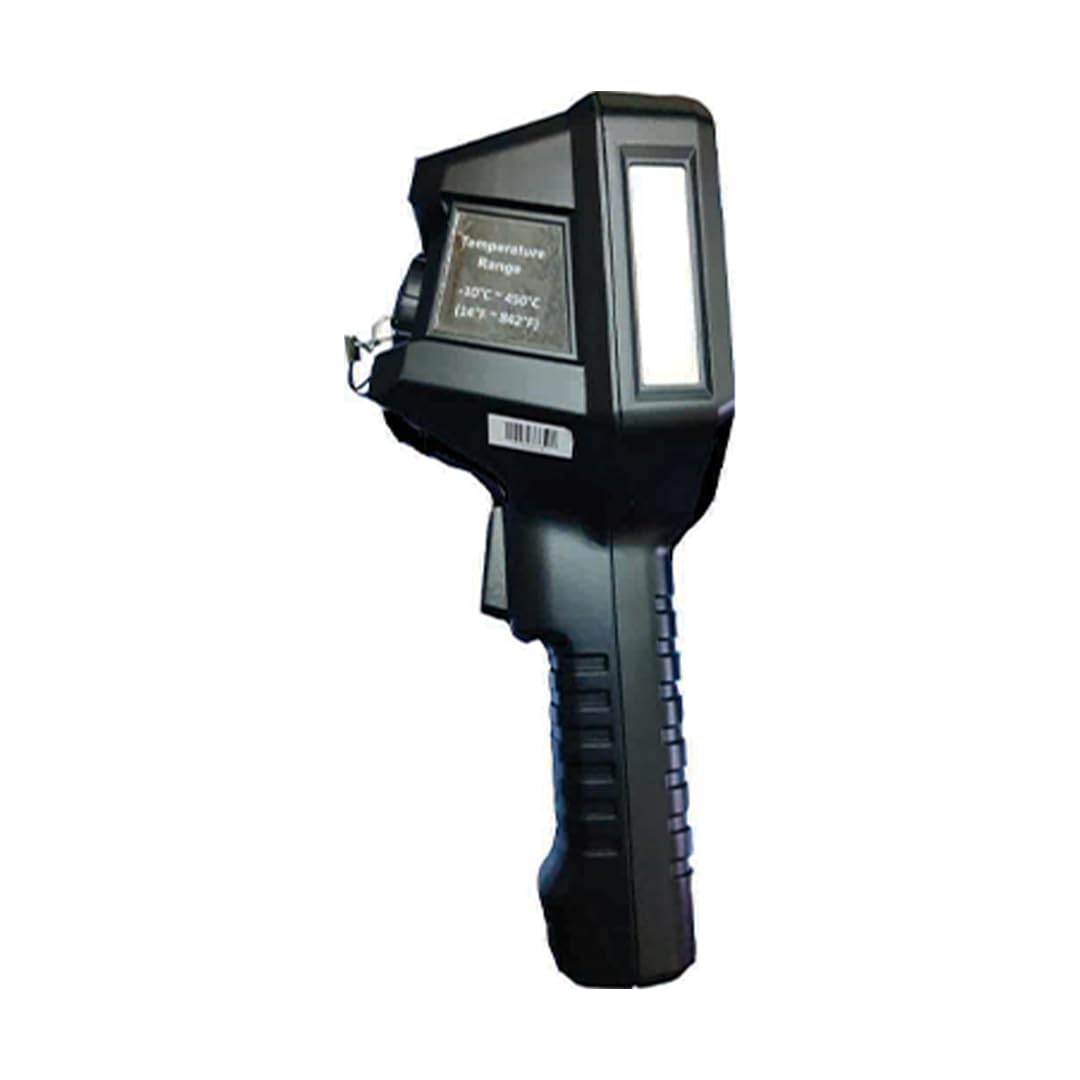

Kusam Meco KM 309 Infrared Thermal Imaging Camera
Click To Zoom
Kusam Meco KM 309 Infrared Thermal Imaging Camera
Kusam Meco KM 309 Infrared Thermal Imaging Camera
It combines thermal imaging and visible light to display the target object imaging, which can measure all the pixel temperature of the target object, can quickly locate the abnormal temperature point, to reduce the users' diagnostic time
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 57,999.00
(GST inclusive price) i₹75,100.00
( - 23% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Infrared Thermal Imaging | Resolution | 220 x 160 |
| Frequency band | 8~14um | |
| Frame rate | 9Hz | |
| NETD | 70mK@25°C (77°C) | |
| Field of view | Horizontal 35°, vercal 26° | |
| Lens | 4mm | |
| Temperature range | -10°C ~ 600°C (14°F ~ 1112°F) | |
| Temperature measurement | ±2°C or ±2% | |
| Temperature measurement | Hoest, coldest, central point, zone area temperature measurement | |
| Color palette | Tyrian, white hot, black hot, iron, rainbow, glory, Hoest, coldest. | |
| Visible | Resolution | 640x480 |
| Frame rate | 25Hz | |
| LED light | Support | |
| Display | Display Resoluon | 320x240 |
| Display Size | 3.5 inch | |
| Image mode | Outline fusion, overlay fusion, picture-inpicture, infrared thermal imaging, visible light | |
| General | Working time | 5000mah baery, >4 hours in 25°C (77°F) |
| Battery Charge | Built-in baery, it is recommended to use +5V & ≥2A universal USB charger | |
| WiFi | Support App and PC soware data transmission | |
| Operating temperature | -20℃~+60℃ (-4°F ~ 140°F) | |
| Storage temperature | -40℃~+85℃ (-40℉~185℃) | |
| Waterproof and dustproof | IP54 | |
| Camera Dimension | 230mm x 100mm x 90mm | |
| Net weight | 420g | |
| Package dimension | 270mm x 150mm x 120mm | |
| Gross weight | 970g | |
| Storage | Capacity | Built-in memory, about 6.6G available, can store more than 20,000 pictures |
| Picture storage mode | Simultaneous storage of infrared thermal imaging, visible light and fusion images | |
| File format | TIFF format, support full frame pictures temperature analysis | |
| Image analysis | Windows platform analysis software | Provide professional analysis funcons to analyze full pixels temperature analysis |
| Android platform analysis software | Provide professional analysis funcons to analyze full pixels temperature analysis | |
| Interface | Data and charging interface | USB Type-C（Support baery charging and data transmission） |
| Secondary development | Open interface | Provide WiFi interface SDK for secondary development |
