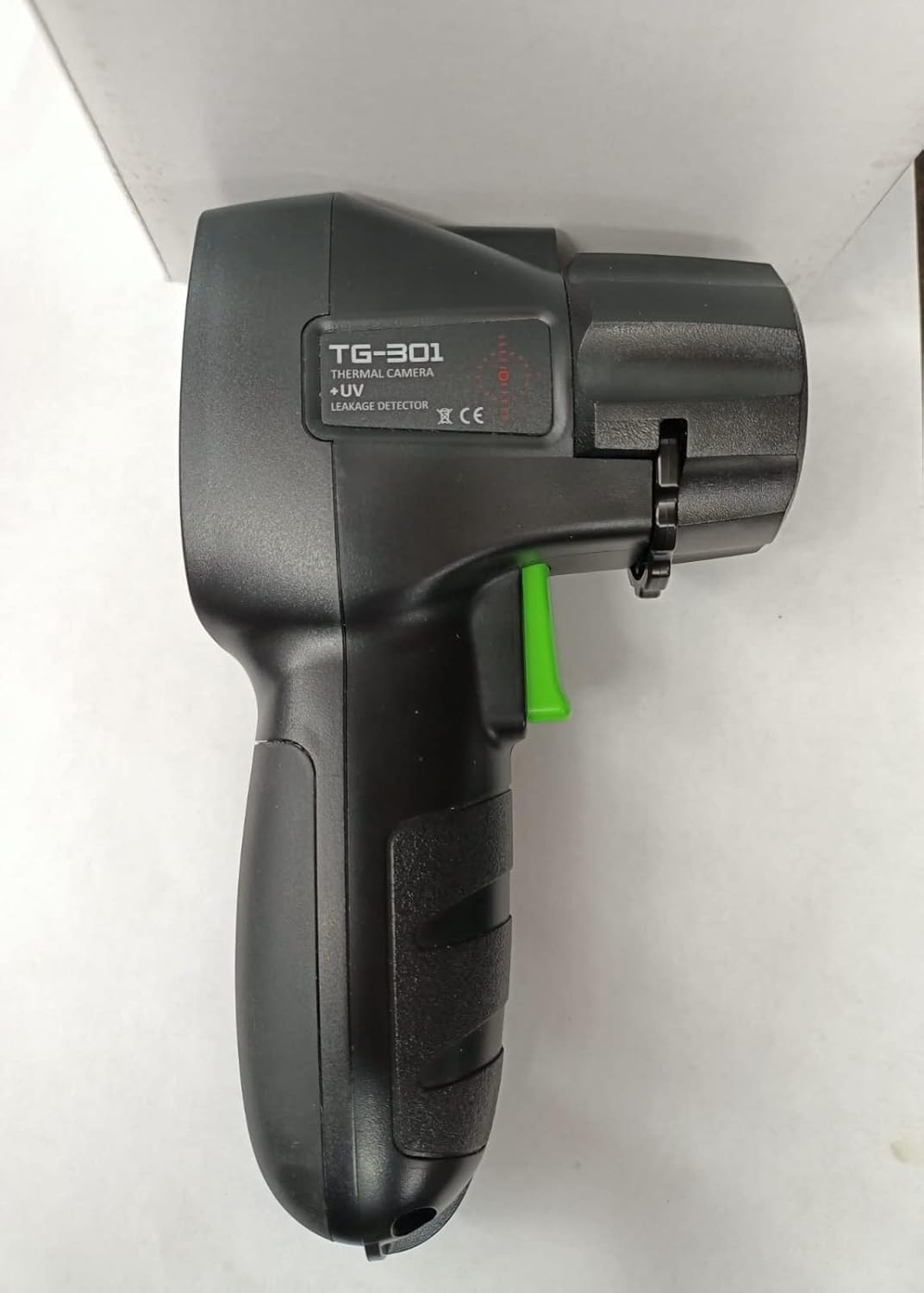

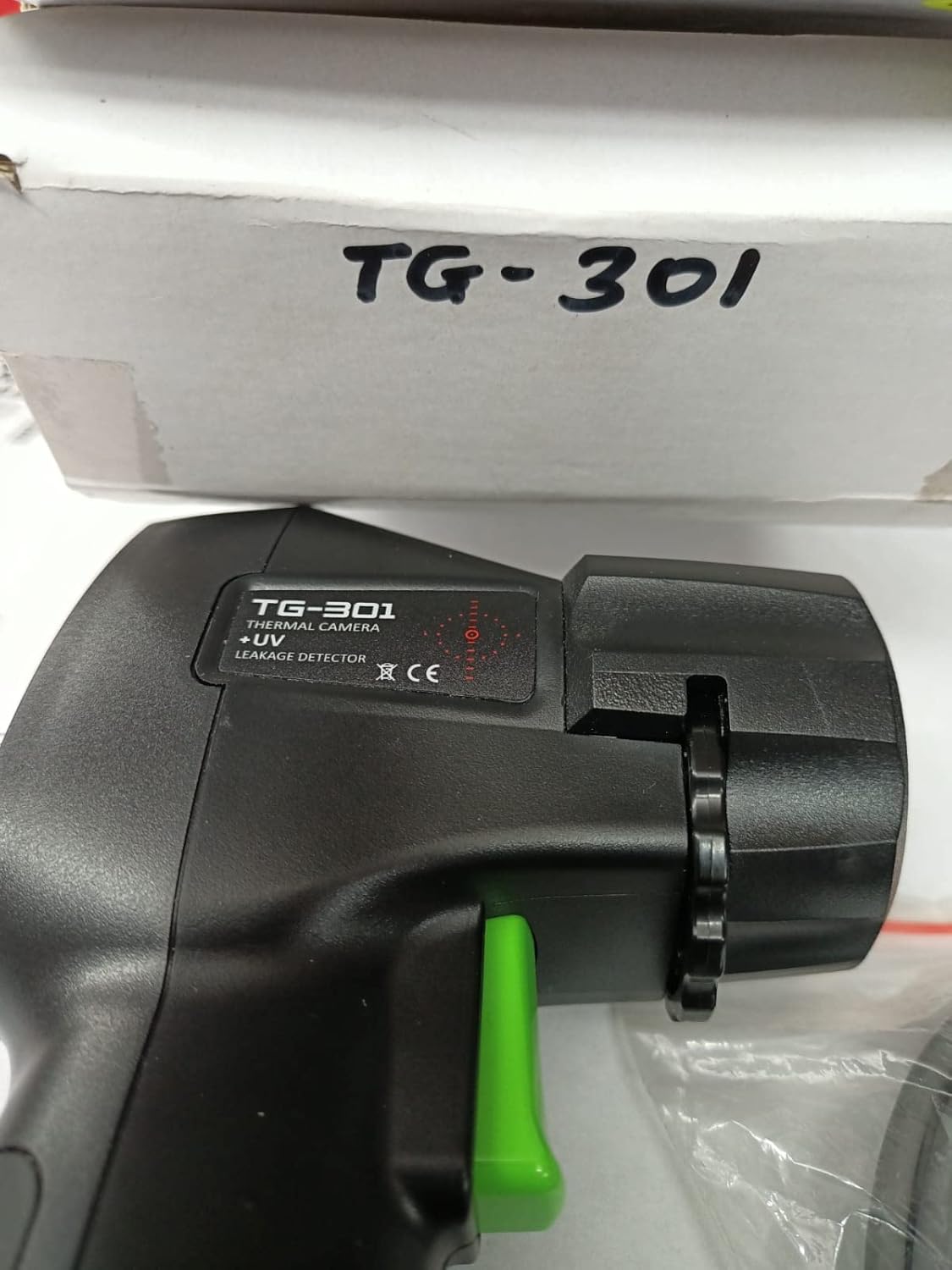

Kusam Meco TG-301 Hand Held Thermal Imaging Camera

Click To Zoom

Kusam Meco TG-301 Hand Held Thermal Imaging Camera

Kusam Meco TG-301 Hand Held Thermal Imaging Camera

(Based On 10 Reviews)

The KUSAM MECO TG 301 is a handheld thermal imaging camera. It features a 160x128 pixel LCD, measures temperatures from -30°C to 650°C, and offers a 30:1 distance-to-spot ratio with laser indication. Compact and versatile, it's ideal for electrical fault prediction and industrial applications.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 33,499.00

(GST inclusive price) i
  • Base Value: ₹ 28389
  • GST: (18) % ₹ 5110
  • Total Value ₹ 33499

₹43,300.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Key Features

  • One Navigator Key Operation
  • 16,384 pixels thermal image after interpolation
  • True D/S 30:1 with precise laser indication.
  • Bright flashlight with 5 white LEDs
  • Simple, Smart, Precise and Versatility.
  • 160x128 pixel 1.77 inches TFT-LCD Display
  • Alkaline AA size x 3 Batteries
  • Key chain with wrist strap for carrying convenience
  • SD Card of 2GB is available.
  • Compact UV refrigerant leak detector with 5UV/Blue LEDs
  • Ergonomically designed pistol grip housing with excellent industrial Design

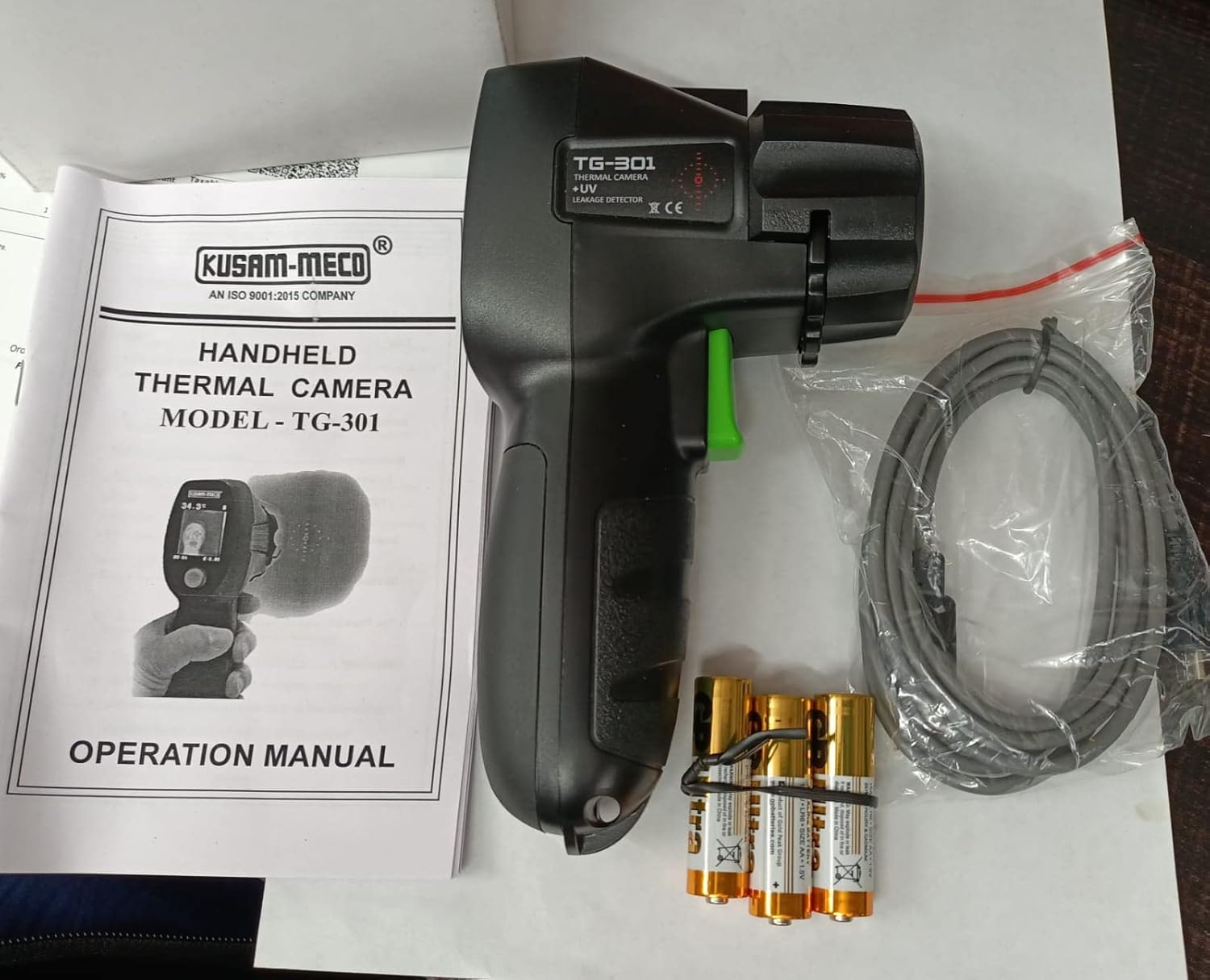

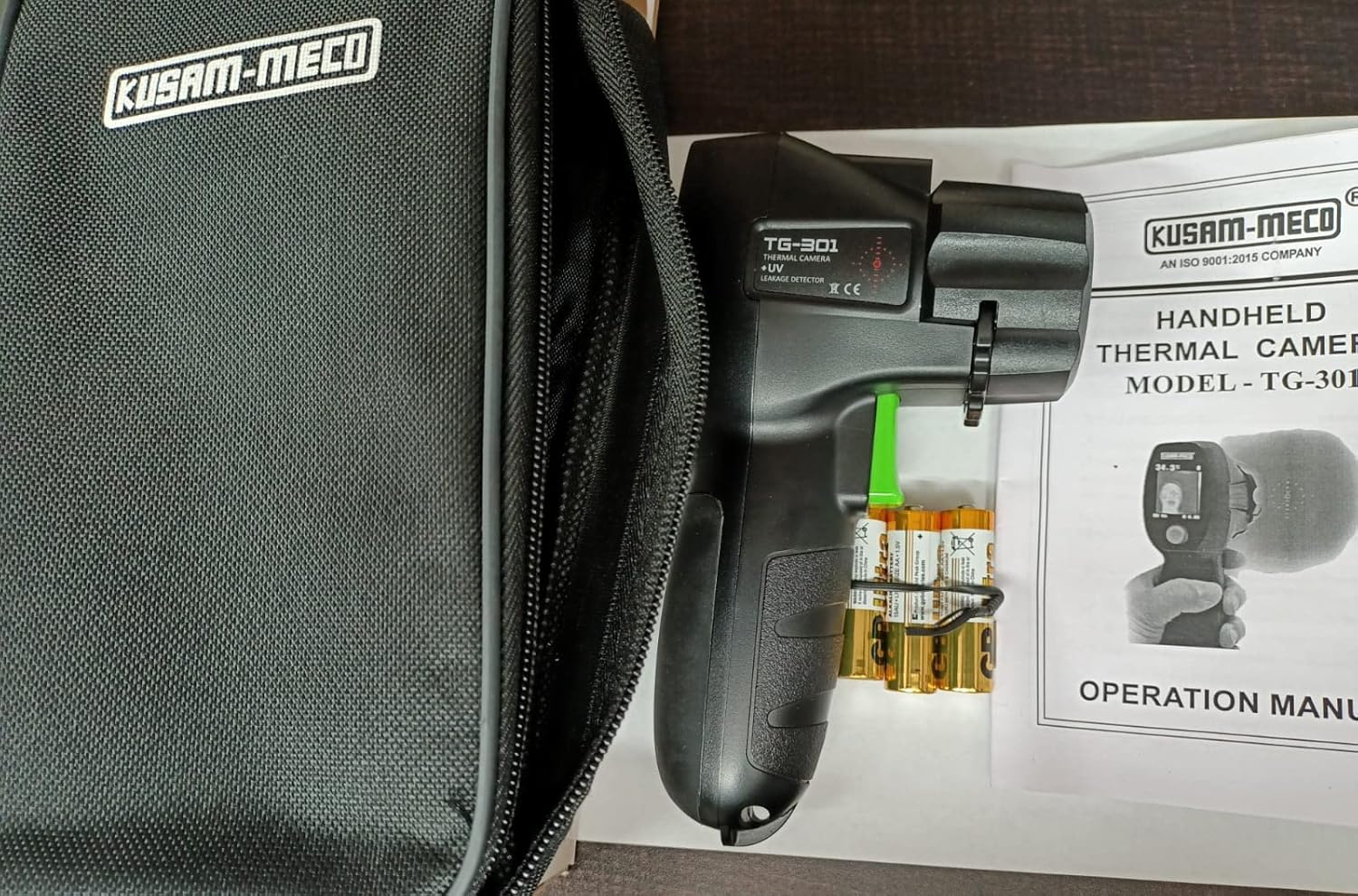

What's in the box?

  • Kusam Meco TG-301 Hand Held Thermal Imaging Camera

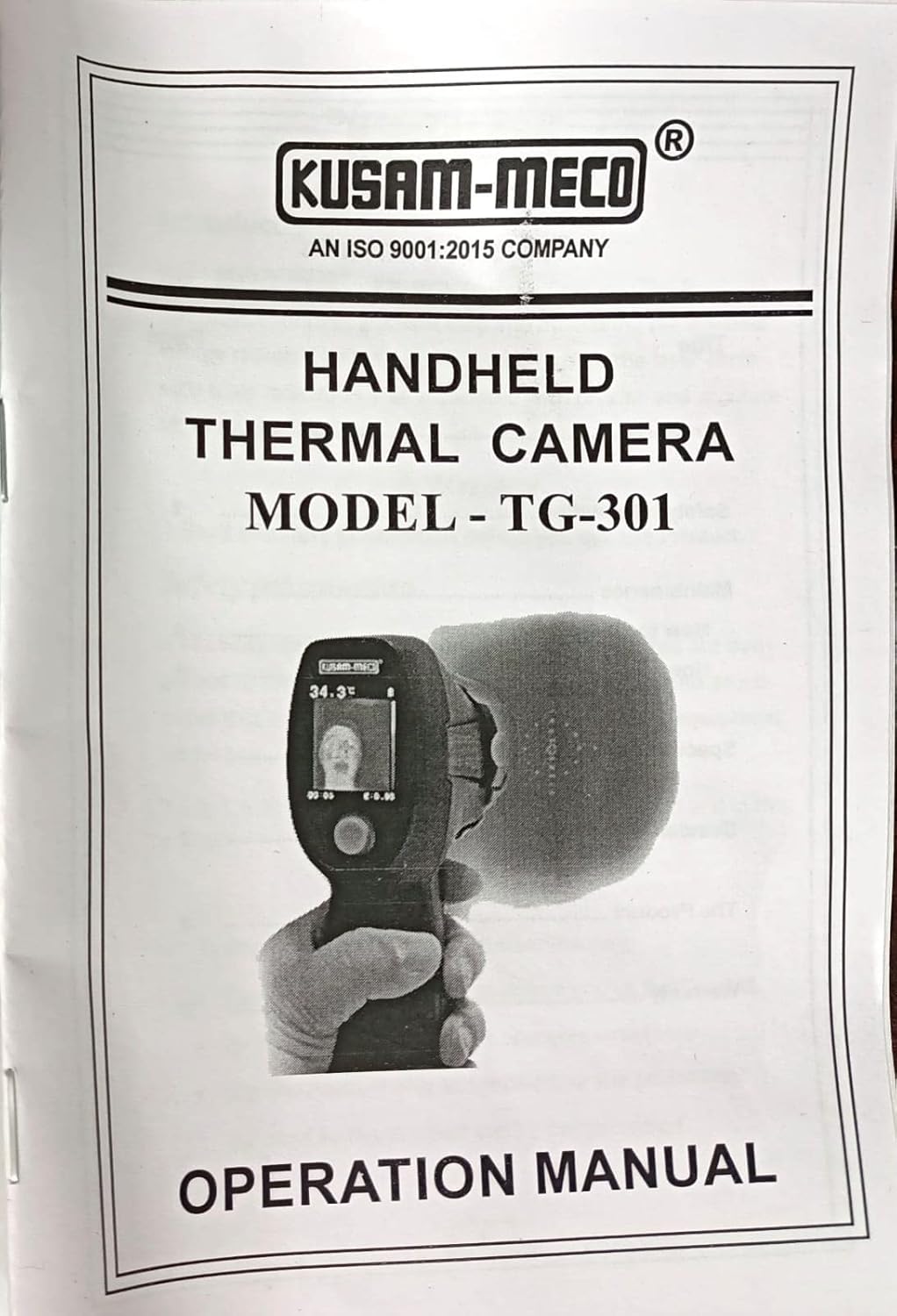

  • User Manual
  • Batteries
  • SD Card
  • USB Cable
  • carrying case

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

Operating Temp. & Humidity : -10 °C to 50 °C (14 °F to 122 °F),10 % to 90 % RH
Storage Temperature : -20 °C to 60 °C (-4 °F to 140 °F)
Operating Altitude : Upto 2000 meters above mean sea level.
Power : AA x 3 batteries
Battery Life : 16 hours with laser and backlight on
Weight : Approx. 300 g
Dimension : (185 x 51 x 100) mm ( 7.29 x 2.01 x 3.94) inches



ELECTRICAL

  • Temperature Range : -30 °C to 650 °C (-22 °F to 1202 °F)
  • Accuracy : ±1.5 °C or ±1.5% of reading ±2.0°C at -10 °C to 0 °C ±3.0°C at -30 °C to -10 °C
  • Response Time(95%) : <300 ms (95% of reading)
  • Optical Resolution : 30:1 (calculated at 95% energy)
  • Display Resolution : 0.1 °C (0.2 °F)
  • Repeatability of Readings : ±0.5% of reading or < ±0.5°C ( 1°F), whichever is greater



SD CARD & PC CONNECTION

  • SD Card of 2GB is available.
  • 2GB SD Card is inserted left side of the Thermal Image Camera.
  • USB slot is also given to directly connect to the PC and view the image.
  • Connect any USB Cable to the PC and the Imager TG-301 should be in OFF mode then connect to the PC. If in ON mode the USB cannot be connected to show files.
  • In Thermal Image Camera the menu option the saved images can be seen directly on the screen of image camera.
  • When connected to the PC with USB cable do not ON the imager. It will not start.

THERMAL IMAGING

  • Imaging Detector : IR Array
  • Image Resolution : 16,384 pixels (128 x 128 pixels)*
  • Field of View (H X W) : 30 °
  • Upper Sense Range : 650 °C
  • Thermo Imaging Sensitivity : 150 mK
  • Color Palettes : 3 (Grey Scale, Hot Iron, Rainbow)
  • Saved Image Format : Bitmap (BMP) Image with Temperature and Emissivity

SAFETY

  • Vibration and Shock: IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
  • EMC : EN 61326-1:2006, EN 61326-2:2006
  • Compliance and Laser Safety : EN/IEC 61010-1: 2001, EN 60825-1 Class II
